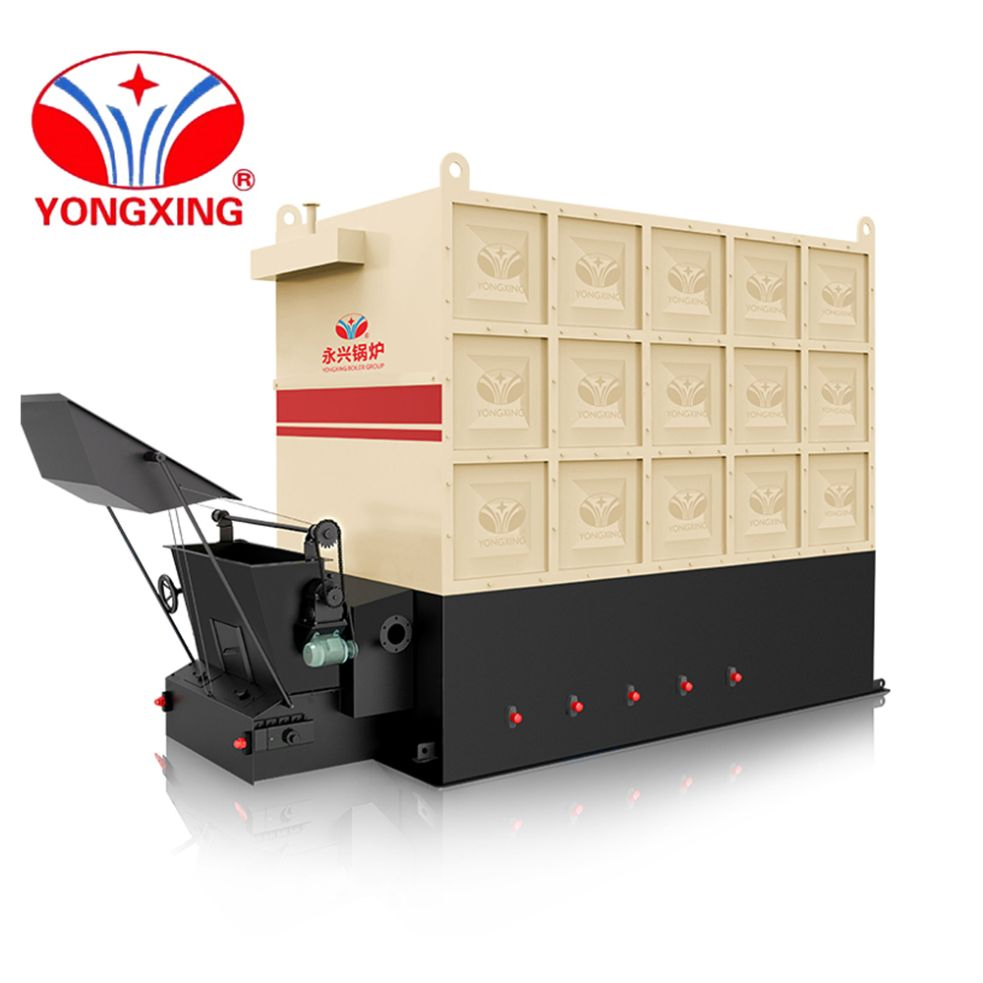

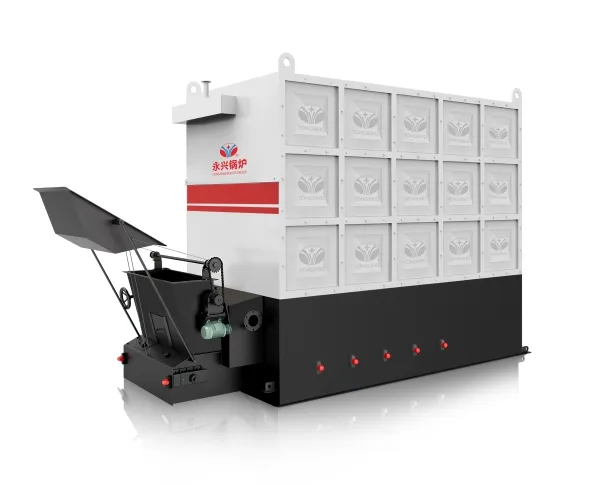

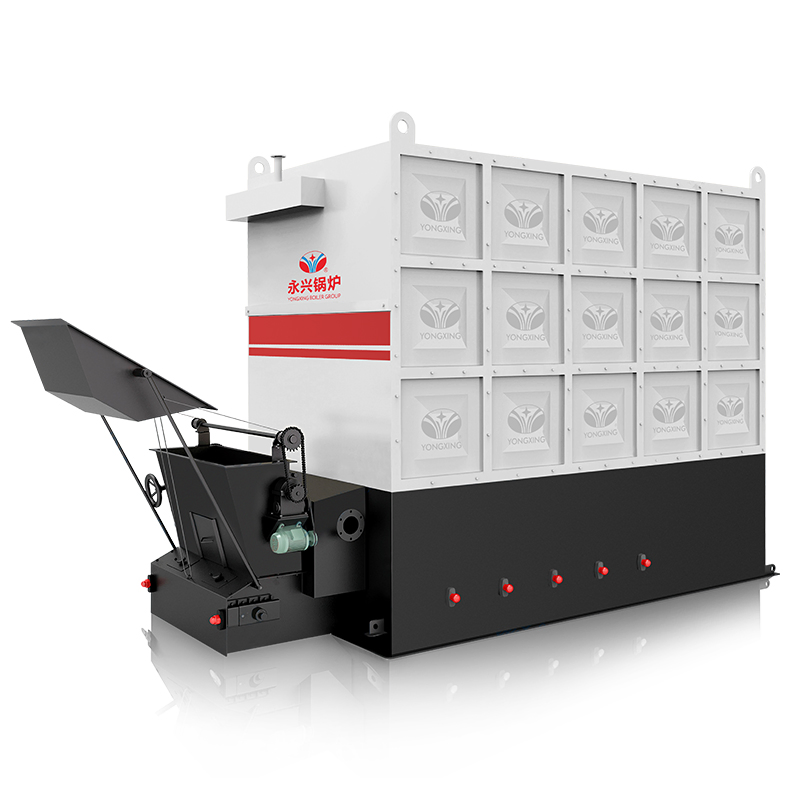

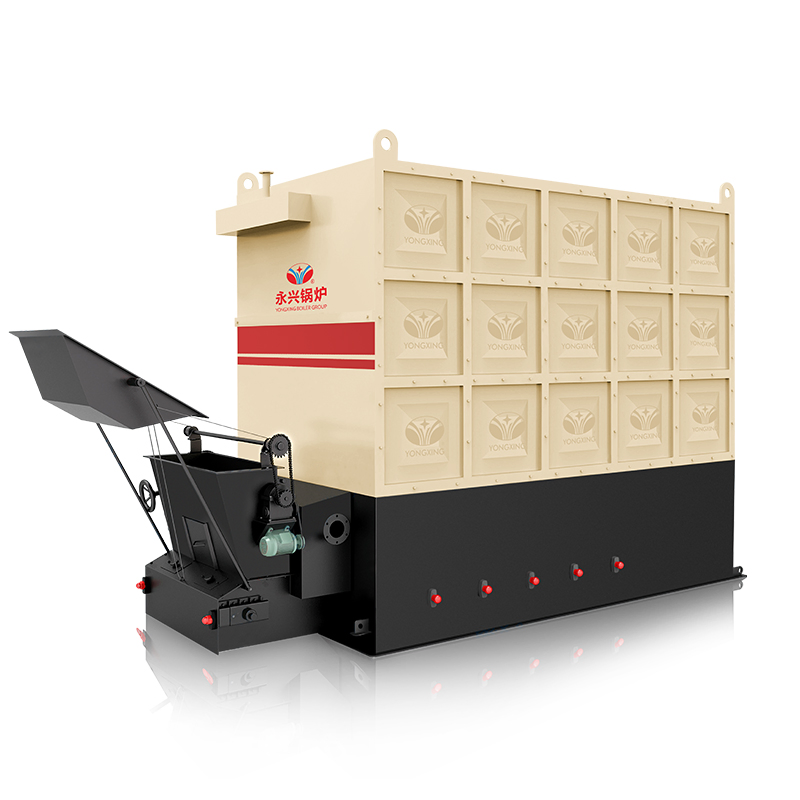

The YLW series biomass-fired thermal oil boiler is a forced-circulation chain grate boiler. As a new type of heating equipment, it uses biomass—an environmentally friendly energy source—as fuel and thermal oil as the heat transfer medium. Composed of an upper boiler body and a lower chain grate, the boiler features a radiant heating surface in the front combustion chamber, a heating surface consisting of serpentine tube bundles in the middle, and a convection surface at the rear.
During operation, it enables precise temperature regulation based on actual requirements. The boiler is equipped with a comprehensive operational control system and safety monitoring devices, ensuring simple and convenient operation. Compared with coal-fired boilers, it reduces operating costs by 5%–10%.
| Item | Unit | YLW-700 | YLW-1400 | YLW-2400 | YLW-2900 | YLW-4200 | YLW-7000 |
|---|---|---|---|---|---|---|---|
| Rated Capacity | kw | 700 | 1400 | 2400 | 2900 | 4200 | 7000 |
| Pressure | Mpa | 0.8 | |||||
| Outlet Temp. | ℃ | 280 / 320 | |||||
| Circulation Flow | m³/h | 45.7 | 87.4 | 149.8 | 155 | 225 | 383.4 |
| Thermal Efficiency | % | 80 | 80 | 81 | 82 | 83 | 83 |
| Fuel Consumption | kg/h | 187 | 373 | 621.3 | 756 | 1189 | 2052 |
As a designated manufacturing enterprise for Grade A boilers and Category A1, A2 pressure vessels, the company focus on R&D, manufacturing and sales of biomass boilers, heat-conducting oil boilers, and pressure vessels. With advanced technical performance and reliable quality, these products have won trust in more than 130 countries.
