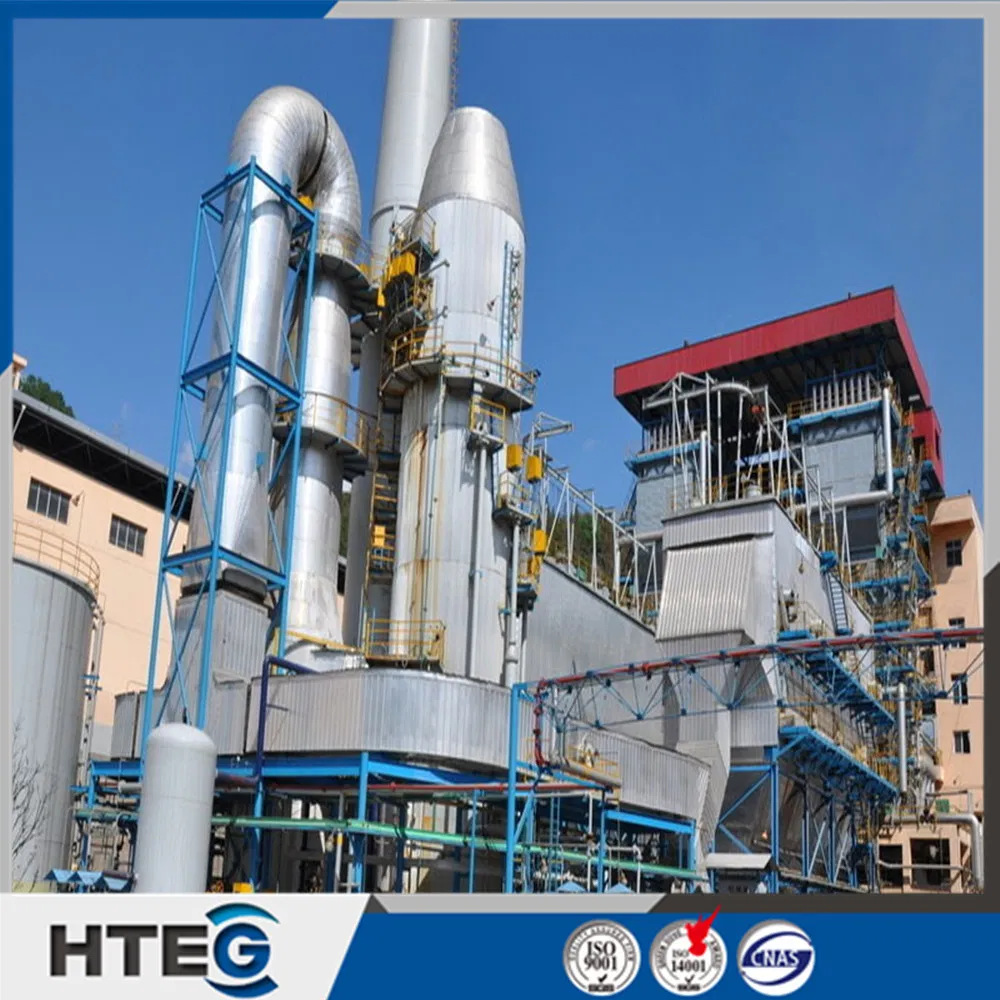

Efficiency improvement coal fueled CFB steam boiler
Circulating fluidized bed (CFB) technology offers low-temperature combustion, resulting in nitrogen oxides (NOx) emissions much lower than coal-powder boilers. This system allows for direct desulfurization during the combustion process, making it an economical and high-rate desulfurization solution.
Technological variants include Internal and Exterior circulating fluidized bed boilers:
This clean coal technology has matured over 20 years, providing wide fuel adaptation, low NOx emissions, and strong load adaptability for urban central heating and power plant requirements.
| Boiler Capacity Items | 35t/h | 75t/h | 240t/h |
|---|---|---|---|
| Rated steam capacity (t/h) | 35 | 75 | 240 |
| Rated working pressure (Mpa) | 3.82 | 5.29 | 9.8 |
| Rated steam temperature (ºC) | 450 | 450 | 540 |
| Feed water temperature (ºC) | 150 | 150 | 215 |
| Combustion method | Circulation fludized bed combustion | ||
| Applicable coal | Coal | ||
| Design fuel low level caloric | 12670 | 8117 | 6520 |
| Coal consumption at full load (Kg/h) | 9045 | 20417 | 38792 |
| Designed efficiency % | 89.3 | 90.2 | 90.3 |
CFB steam boilers are widely utilized in power stations and utility power plants for efficient energy production.
