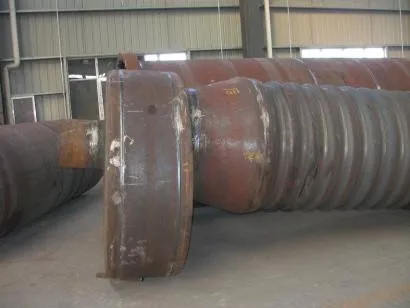

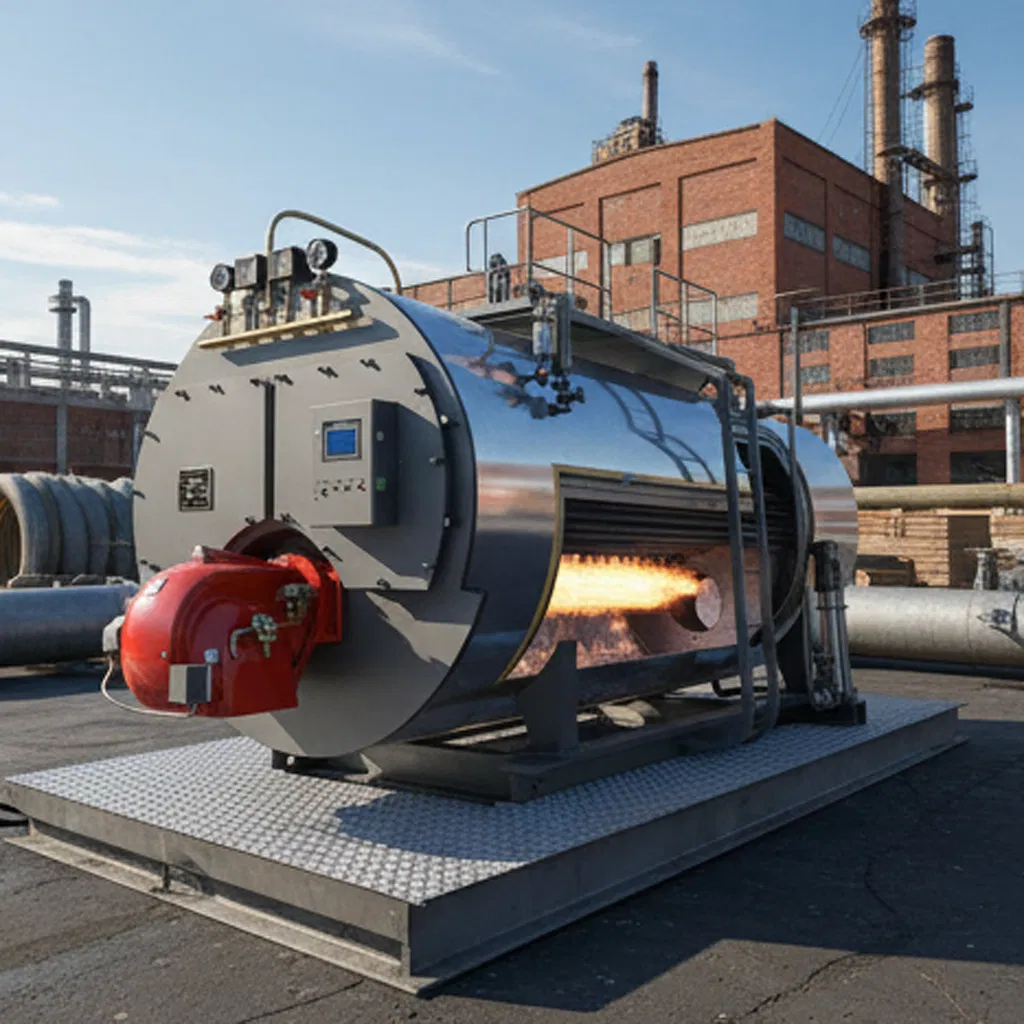

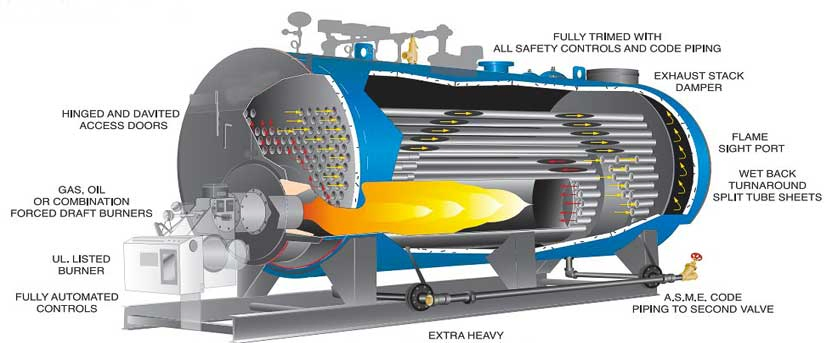

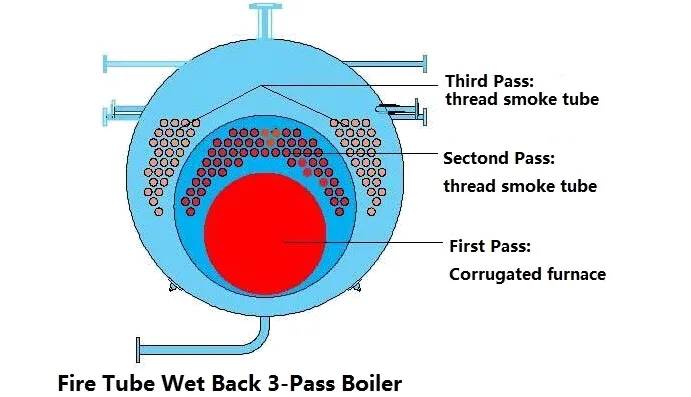

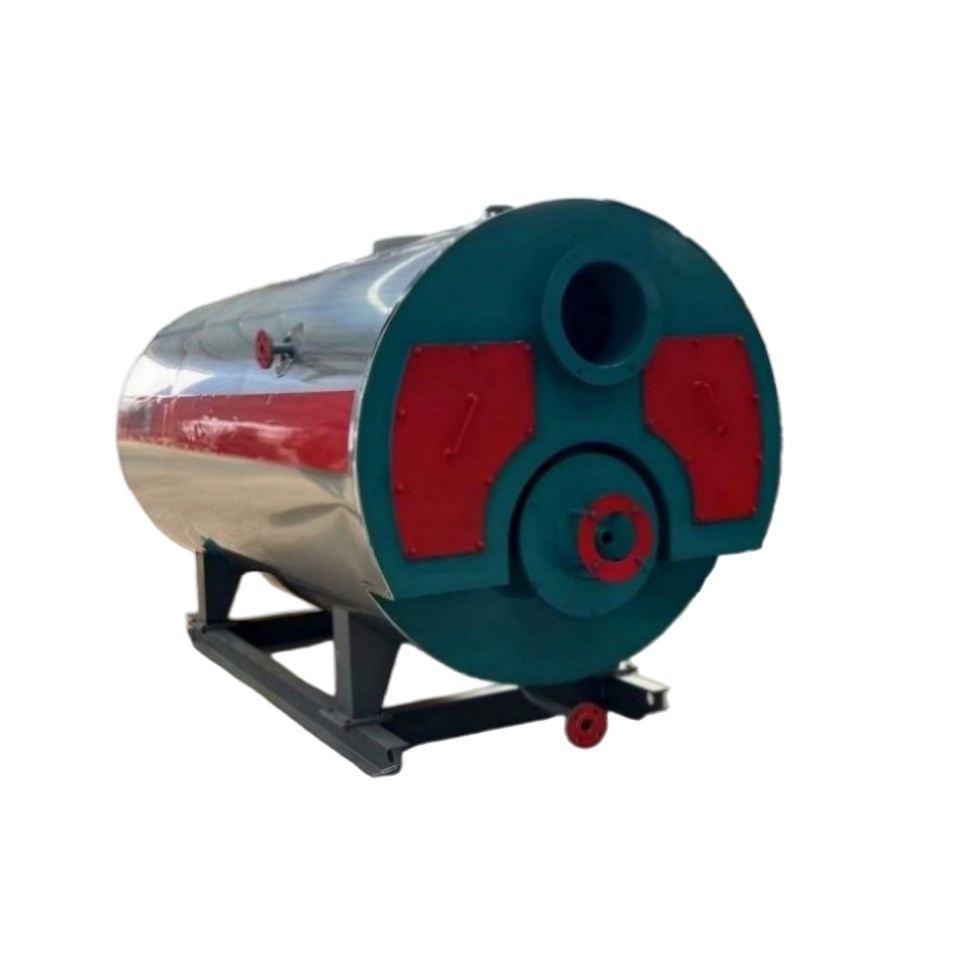

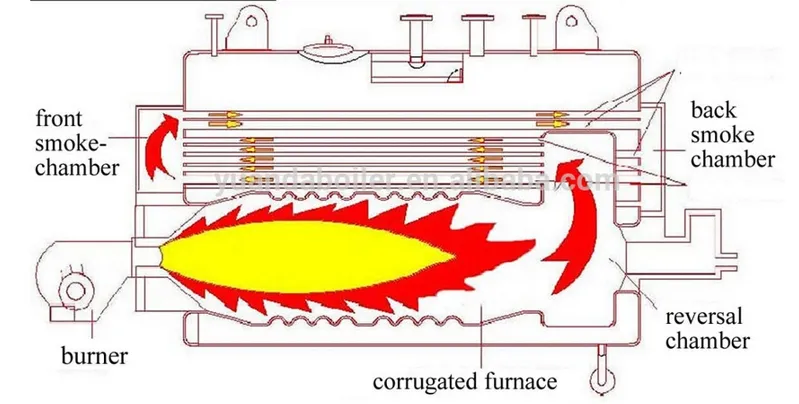

The WNS gas steam or hot water boiler is a cutting-edge thermal product featuring advanced internal combustion technology. This full-automatic horizontal three-pass boiler adopts a shielded structure for maximum safety and efficiency. The design incorporates a wavy furnace for the first pass, threaded smoke pipes for the second, and smooth smoke pipes for the third, ensuring optimal heat transfer.
Equipped with intelligent control systems, it features automatic water level regulation, steam pressure adjustment, and overpressure alarms. Its clean combustion process ensures no pollution and sufficient power for demanding industrial needs.

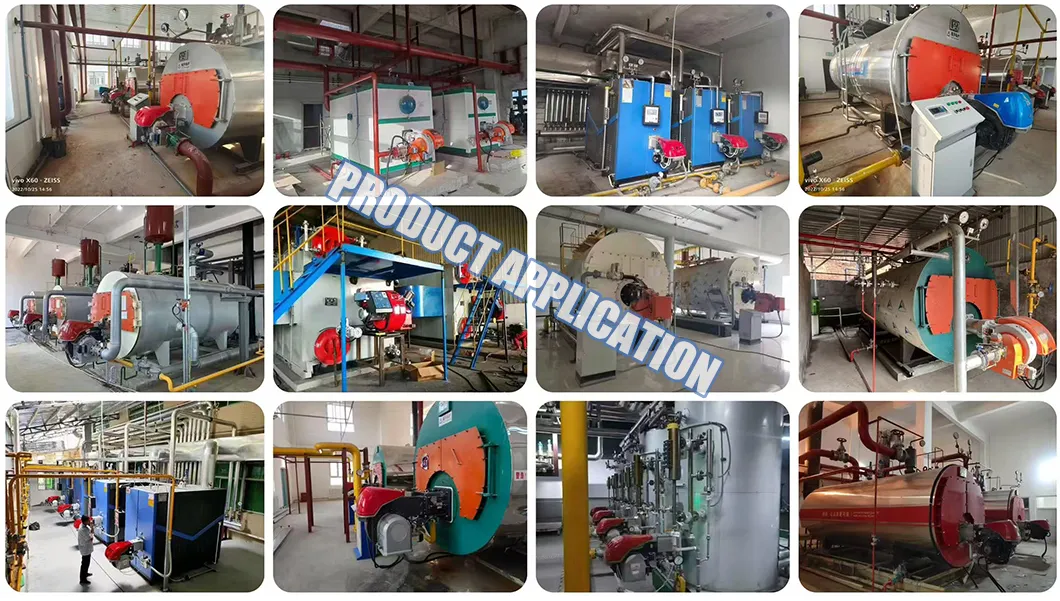

Ideal for hospitals, schools, textile factories, food processing, pharmaceutical plants, hotels, and various industrial garment industries requiring stable steam or hot water supply.
| Boiler Model | WNS1 | WNS2 | WNS4 | WNS6 | WNS10 | WNS20 |
|---|---|---|---|---|---|---|
| Rated Capacity (T/h) | 1 | 2 | 4 | 6 | 10 | 20 |
| Rated Pressure (Mpa) | 1.0 / 1.25 / 1.6 / 2.5 | |||||
| Steam Temp (ºC) | 184 / 194 / 204 / 226 | |||||
| Thermal Efficiency | >98% | |||||
| Natural Gas (Nm³/h) | 70.1 | 140.3 | 283.4 | 424.2 | 707.8 | 1415.8 |

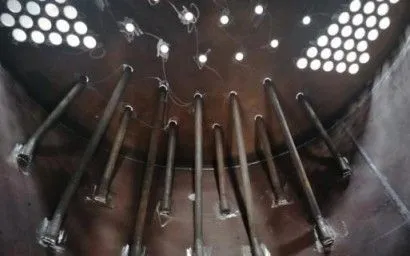

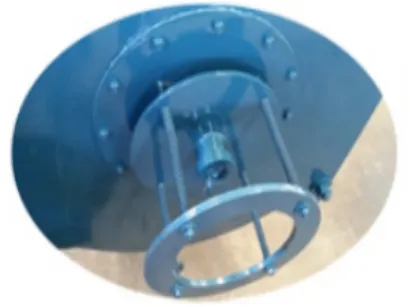

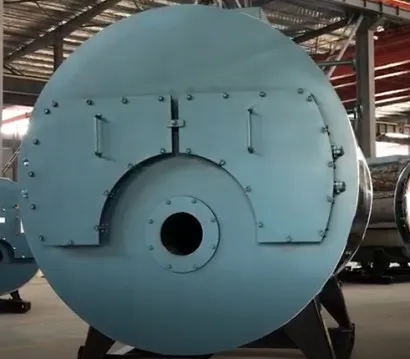

Advanced safety components including explosion-proof doors, high-strength tension rods, and double-door smoke chambers for easy maintenance.
We provide global logistics support via sea, land, and air. Boilers are packaged professionally to ensure integrity during long-distance transportation.
