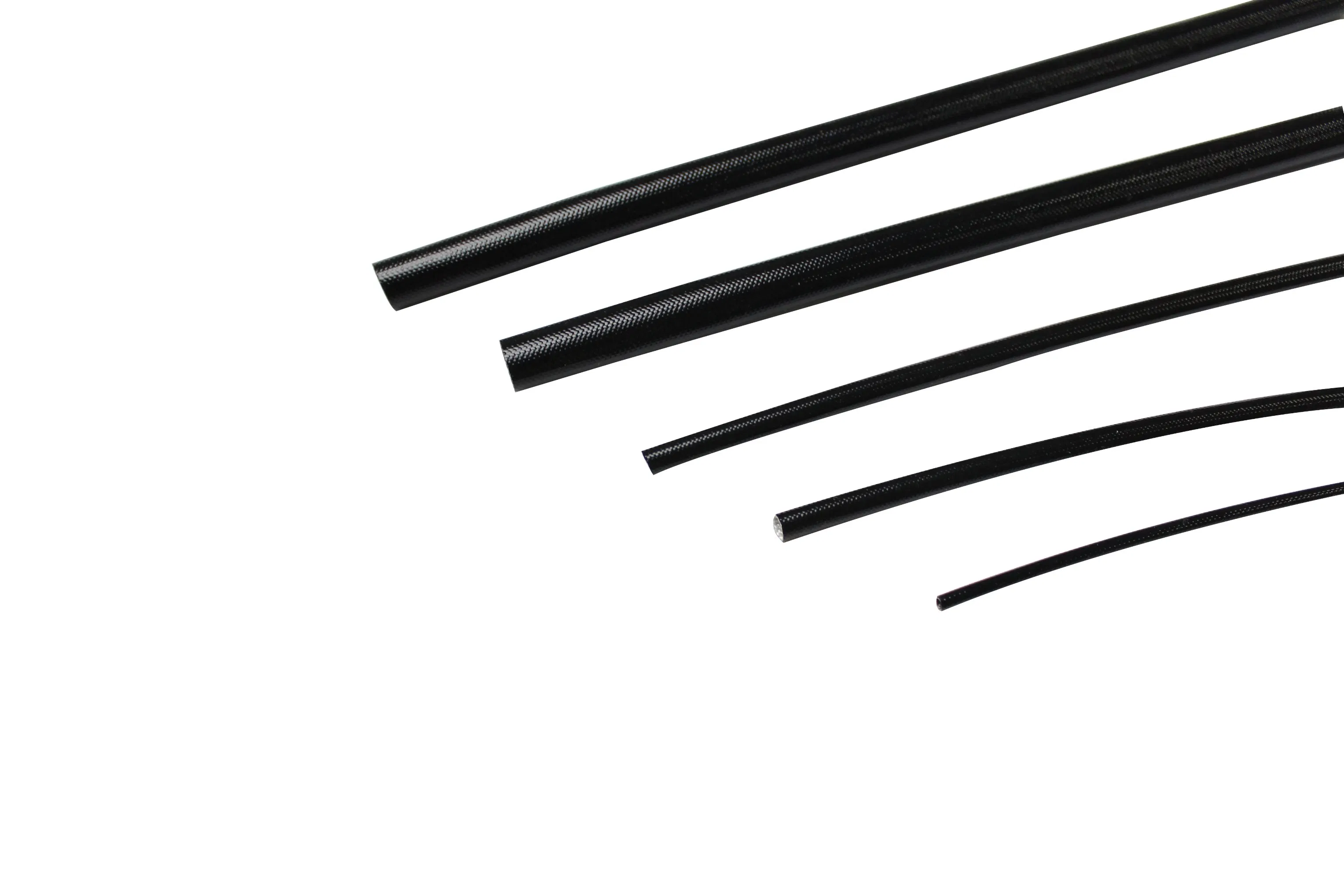

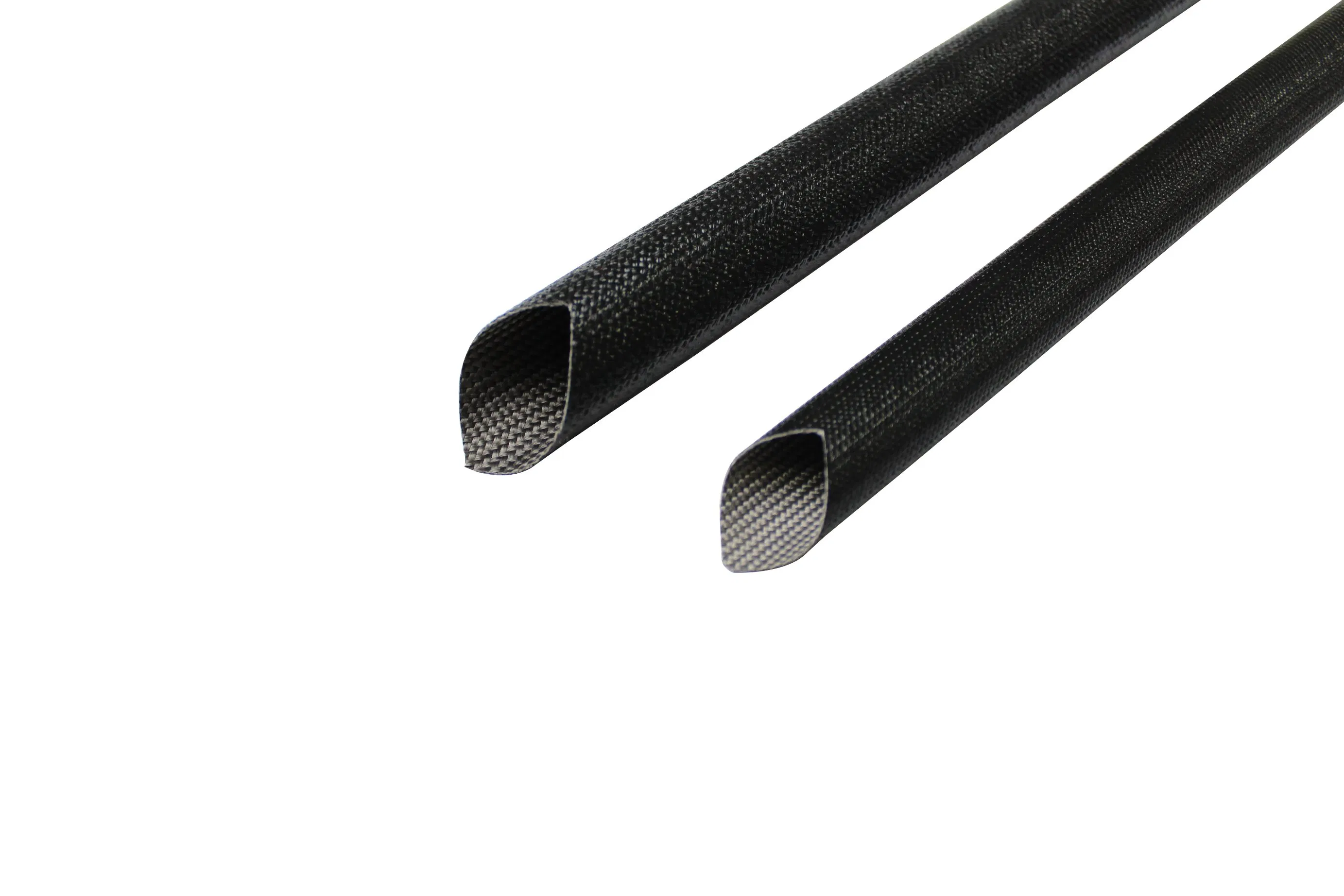

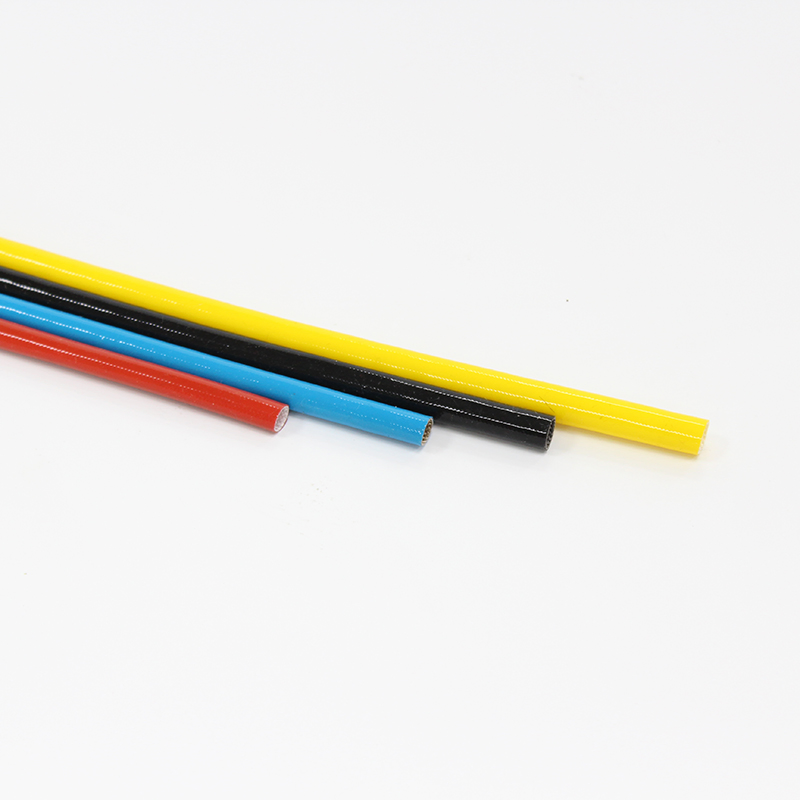

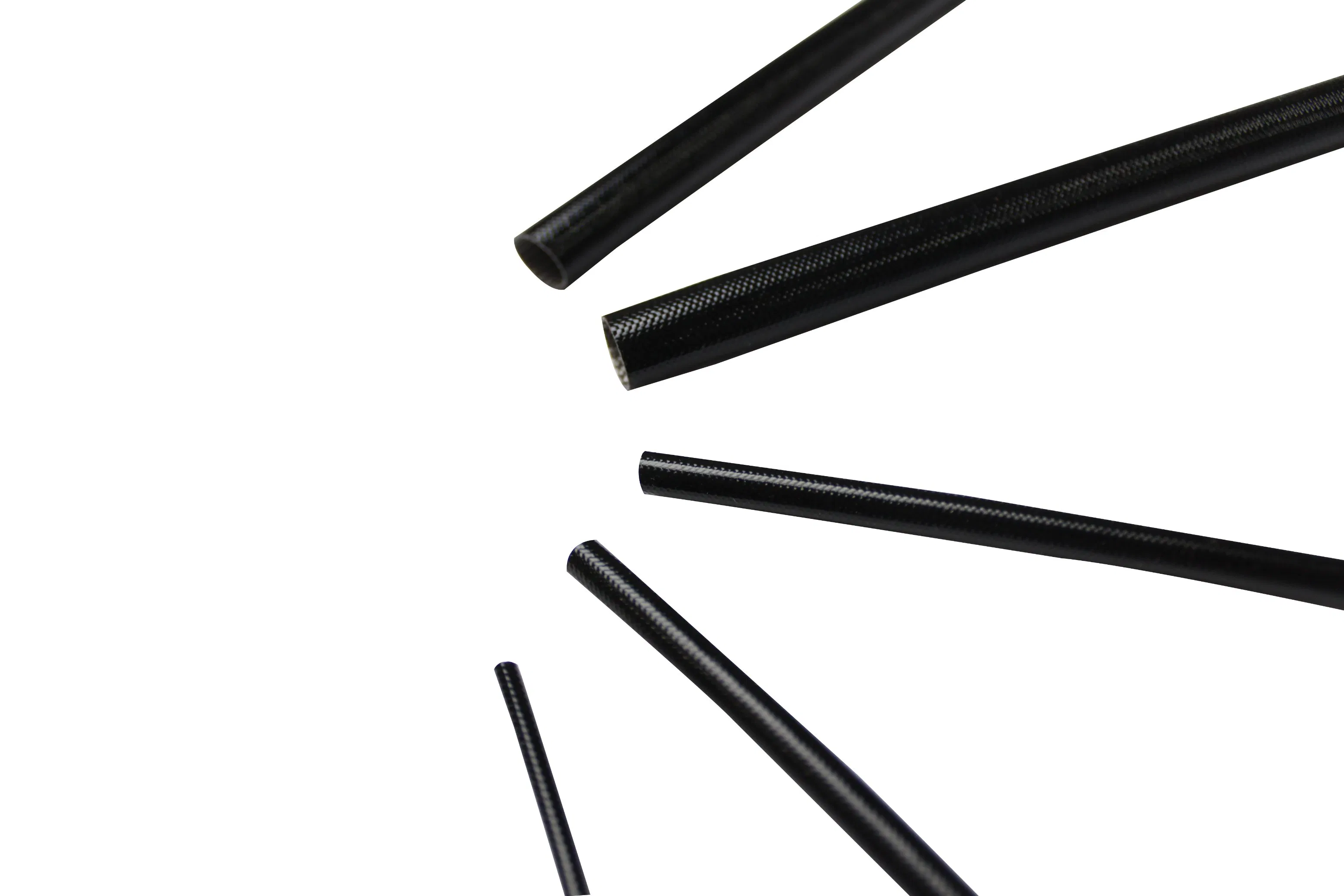

Zh Silicone Fiberglass Sleeve Insulation - Reliable Heat Resistance Solution

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.Fiberglass sleeving
FlexibilityFlexible
Inner Diameter1mm~30mm
MaterialFiberglass
Maximum Voltage<10KV
Outer Diameter1mm~30mm
Thermal Rating-40℃~200℃
Thickness0.32±0.06
Transport PackageCarton
Production Capacity5,000,000 meters/Month
Product Description
Experience unparalleled electrical safety and reliability with our fiberglass sleeving, designed to withstand voltages of 1.5KV, 4KV, and 7KV.

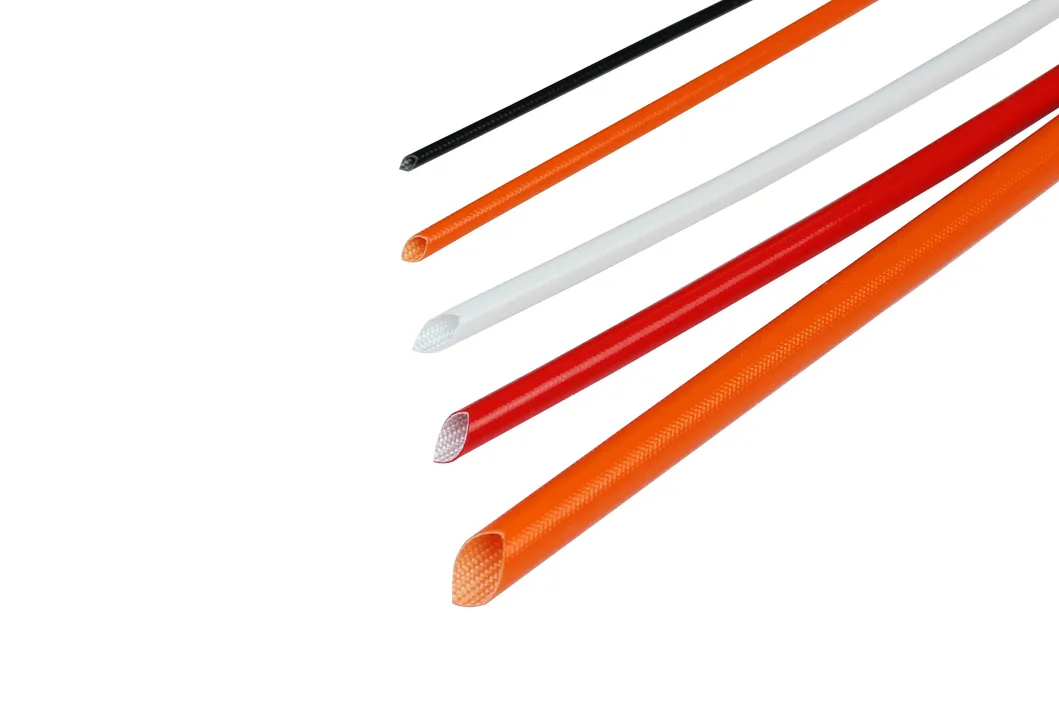

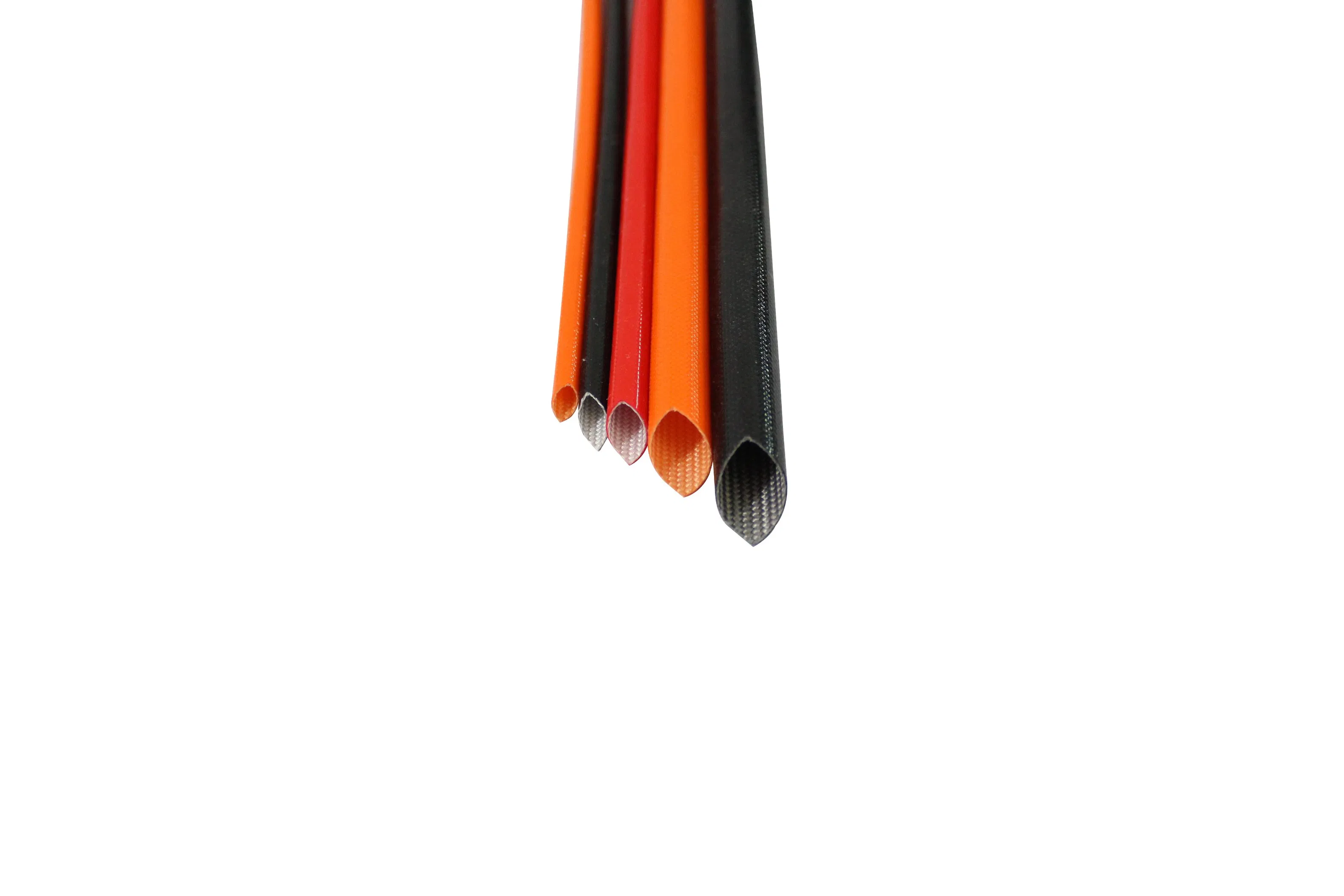

Silicone Fiberglass Sleeve Insulation

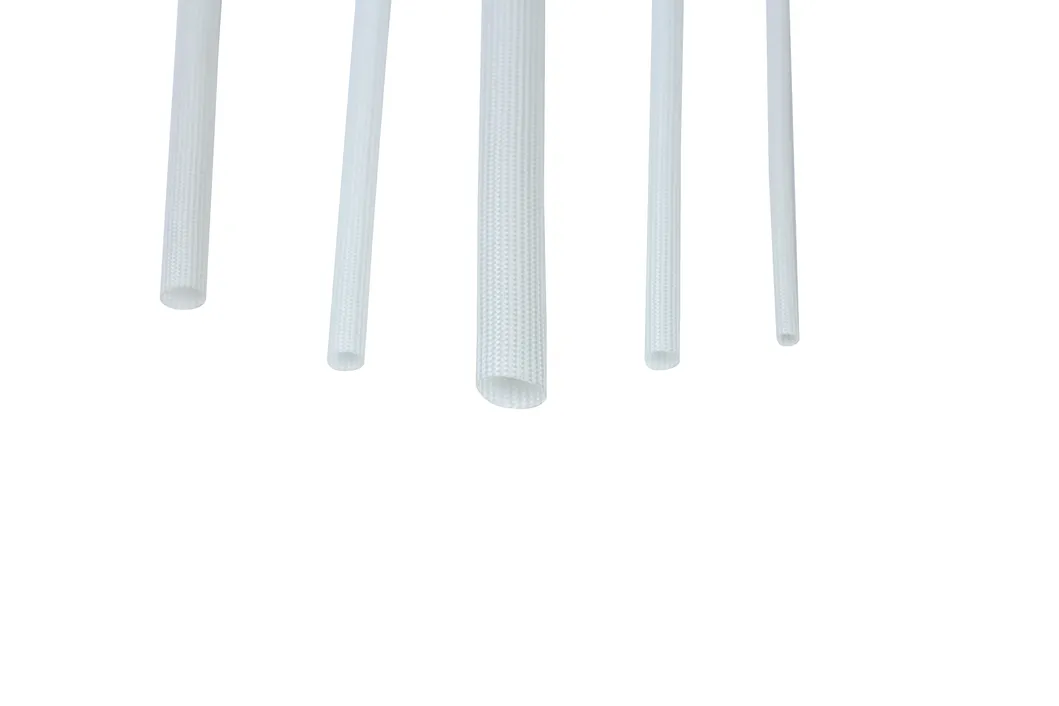

Heat Resistance Insulation
Material Quality
Crafted from premium, alkali-free glass fiber yarn and finished with a durable silicone resin coating.
Key Features
Superior dielectric properties, self-extinguishing capabilities, and remarkable softness for versatile use.
Wide Application
Ideal for H&N grade motors, household appliances, heating devices, and electronic instruments.
Thermal Resistance
Rated for -40ºC to 200ºC; maintains half voltage value even after 168 hours at 265±2ºC.
Raw Material Specification
Material Molecular Formula Purpose of Use
Glassfiber SiO2+Al2O3+CaO Insulation & Temperature Resistance
Silicone Rubber [(CH3)2SiO]n Insulation & Voltage Resistance
Detailed Specifications
Specification (mm) ID Tolerance (mm) 1500V Wall (mm) 4000V Wall (mm) 7000V Wall (mm) Package (M/Roll)
φ 1.0+0.3/-0.20.31±0.060.45±0.10.55±0.1200
φ 3.0+0.3/-0.20.35±0.060.57±0.10.63±0.1100
φ 5.0+0.4/-0.20.38±0.060.57±0.10.63±0.1100
φ 10.0+0.5/-0.20.48±0.060.66±0.10.71±0.1250
φ 20.0+0.7/-0.50.61±0.10.75±0.10.82±0.1250
φ 30.0±1.00.76±0.120.95±0.151.0±0.1525
Certifications
Product Certifications
Exhibition
Exhibition View 1
Exhibition View 2
Frequently Asked Questions
Why choose our products?
We have more than 15 years of industry experience, strong R&D capacity to design custom solutions, and a professional team dedicated to providing excellent service.
What is the Minimum Order Quantity (MOQ)?
We accommodate both large and small scale orders. Please contact our team with your specific requirements for detailed MOQ information.
Can I request a sample and how long will it take?
Yes, free samples are available for testing. Typically, it takes about 4-6 days for delivery depending on the distance and courier service.
Do you provide custom design services?
Yes, we are a professional manufacturer with the expertise to develop and design products according to your specific technical requirements.
What are your standard payment terms?
Our standard terms are a 30% T/T deposit followed by the remaining balance before shipment.
What quality certifications do you hold?
We hold certifications including IATF16949, RoHS, CE, and have passed EN45545 and ELV test reports to ensure international quality standards.
