Three Phase Dry Type Transformer Temperature Heat Run Test System

1 / 5

Three Phase Dry Type Transformer Temperature Heat Run Test System

Customization:	Available
After-sales Service:	Onsite and Remote Guidance
Warranty:	1or 2 Years Free Warranty Longlife Service

Send Inquiry

Product Description

Basic Information

Model NO.:EPS-TRT 10000A

Max Diameter:900mm

Mass Scope:5000kg

Type:Strength Testing Machine

Accuracy Grade:0.1

Display:LCD

Control:Computer Control

Power Source:AC380V

Rated Capacity:300kVA

Current:AC0-10000A Adjustable

Output Voltage:Phase 0-10V / Line 17.732V

Protection Level:IP20

Product Description

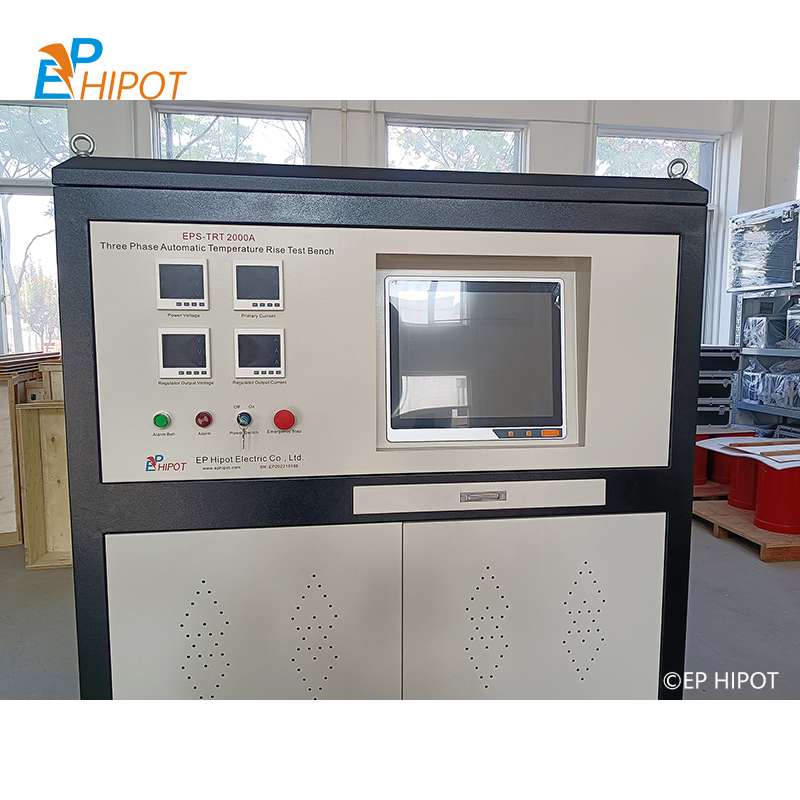

Three Phase Automatic Temperature Rise Test Bench (500A - 15000A)
This system is designed for comprehensive monitoring and closed-loop control of temperature rise experiments. It is primarily used for high-voltage and low-voltage switchgear, busbars, current transformers, isolating switches, and other power equipment. It features a compact design with large output power, utilizing Siemens PLC for real-time scanning and data acquisition.

Key Features

Dual Test Modes: Supports both automatic and manual testing with an automatic steady current system.
Intelligent Control: Built-in industrial computer and Siemens PLC for scanning and closed-loop control.

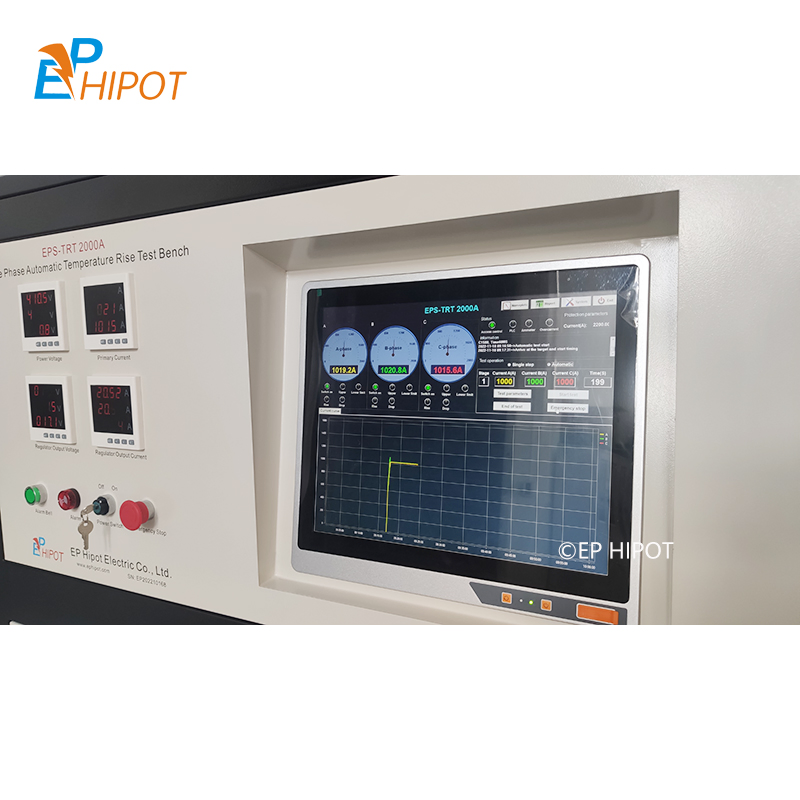

Digital Interface: Touch-type color LCD screen with a clear English menu for fool-like operation.
Safety Protection: Comprehensive self-protection for overheating, overcurrent, overvoltage, and short-circuits.
Data Management: Software recording of current and temperature waveforms with report generation and printing.
Three-Phase Balance: Equipped with an automatic balance system to ensure stable three-phase output.

Technical Specifications

Parameter		Details
Model		EPS-TRT 10000A Three Phase Automatic System
Max. Output Current		AC Three phase, each phase 10000A
AC Input	Phase Line	3Φ4W +G
	Voltage	380V±10%, 50Hz±2%
	Current	263A
Output	Phase Line	3Φ4W
	Voltage	Phase voltage 0-10V, Line voltage 17.732V
	Current Range	0-10000A continuously adjustable
	Rated Capacity	300kVA
Steady Current Accuracy		≤±0.5%
Temperature Points		8, 16, 24, 32... up to 200 channels optional
Cooling		Forced fan cooling

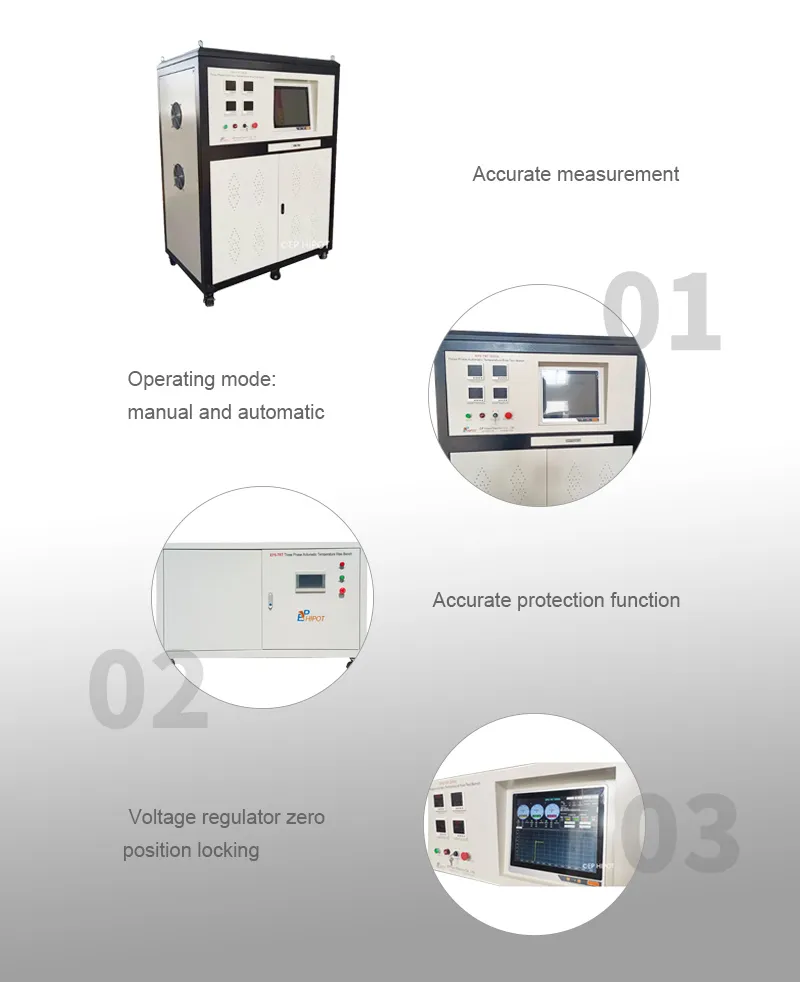

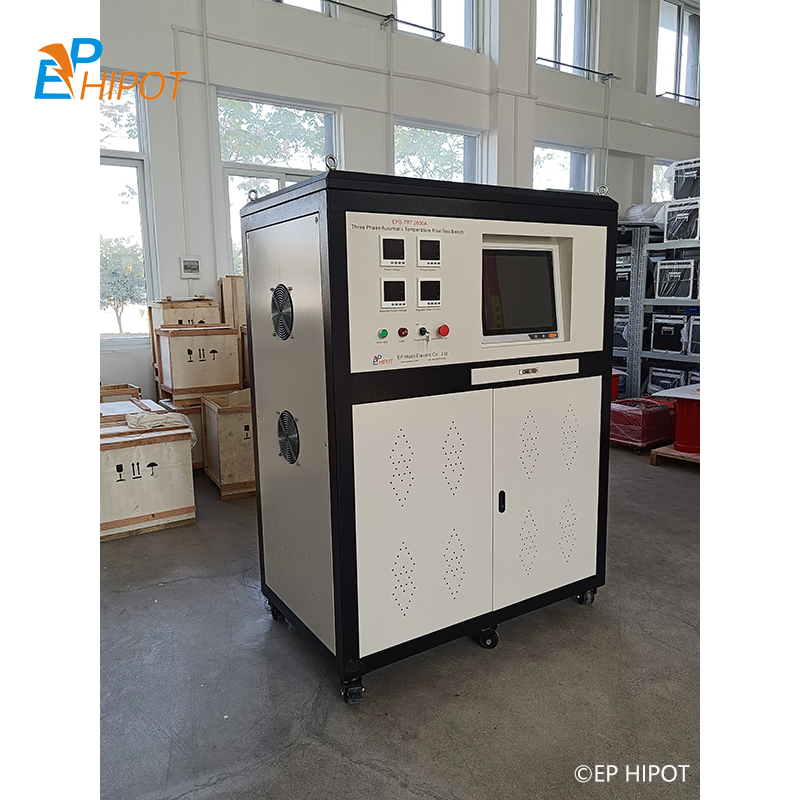

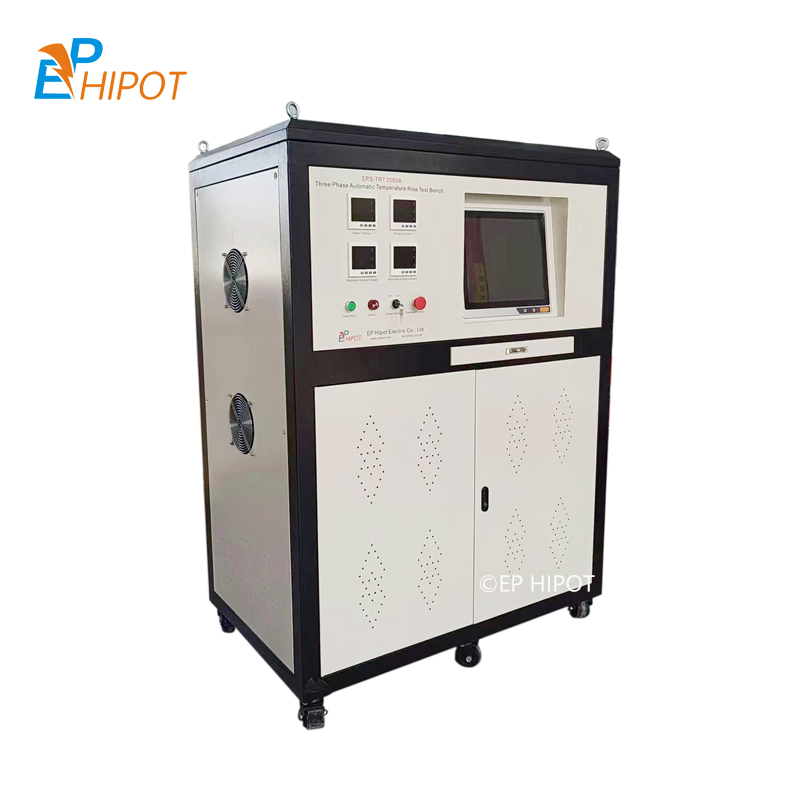

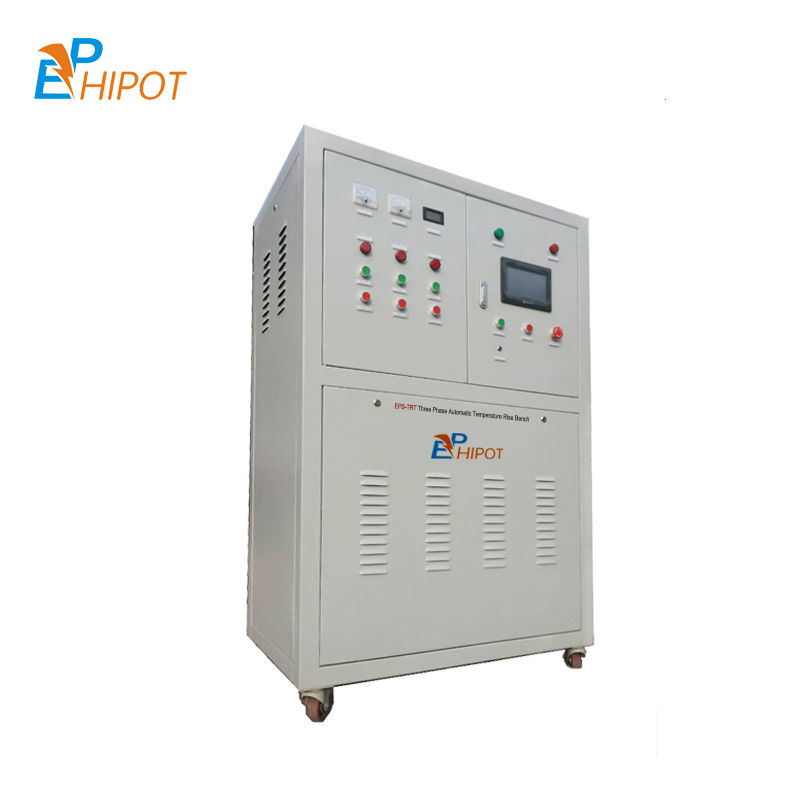

Visual Presentation

Packaging & Delivery

Package Size:120.00cm * 70.00cm * 180.00cm

Gross Weight:820.000kg

Transport Package:Plywood Case

Frequently Asked Questions

Q1: What equipment can be tested with the EPS-TRT system? A1: It is designed for temperature rise tests on high/low voltage switchgear, busbars, current transformers, isolating switches, circuit breakers, and cables.

Q2: How accurate is the current output? A2: The system features a steady current accuracy of less than ±0.5% and utilizes 0.2S-class transformers for high output precision.

Q3: Does the system support data logging? A3: Yes, the integrated software provides data recording, storage of current and temperature waveforms, management, and report printing.

Q4: Can the number of temperature channels be customized? A4: Yes, we offer optional configurations ranging from 8 channels up to 200 channels based on user requirements.

Q5: What are the safety protection mechanisms? A5: The system includes dual protection through microcomputer automatic control and mechanical limit switches, covering over-voltage, over-current, and over-temperature scenarios.

Q6: What standards does this test system comply with? A6: It meets the GB 7251.1 ~ GB 7251.5 standards for medium and low voltage complete switchgear temperature rise testing.
