Interior Material
Stainless Steel

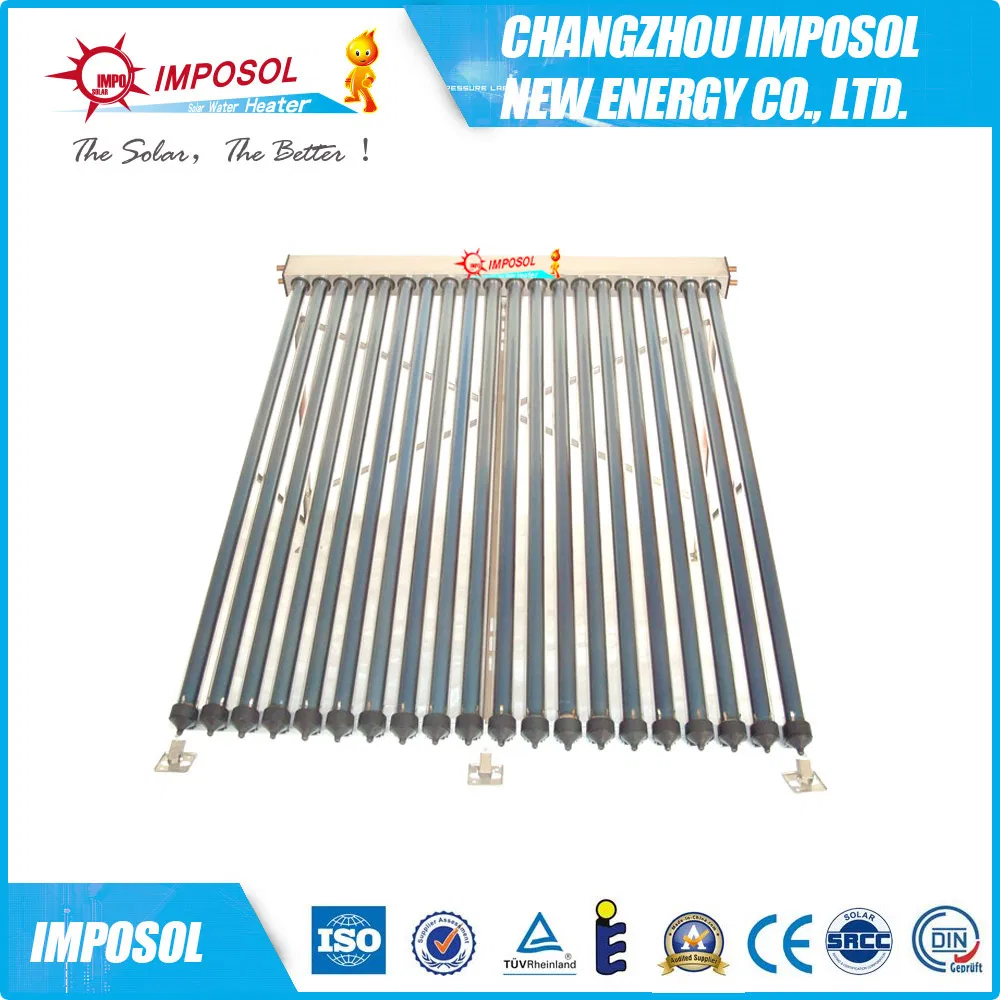

Collector Components
Glass Vacuum Tube
Certification
CE, ISO9001, CCC, Solar Keymark
Heat Pipe
High Purity Oxygen Free Copper
Production Capacity
2000 Sets/Month
- Domestic and commercial hot water, Radiant Floor Heating
- Can be configured for drain-back (end ports)
- Suitable for mains pressure (<800Kpa) and potable water
- Ideal for commercial heating: Caravan Parks, Hotels, Schools, and Restaurants

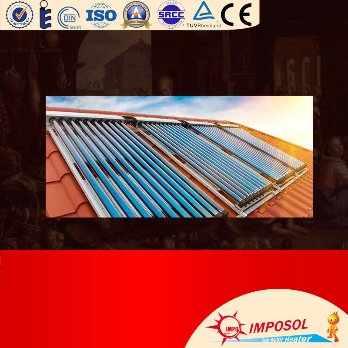

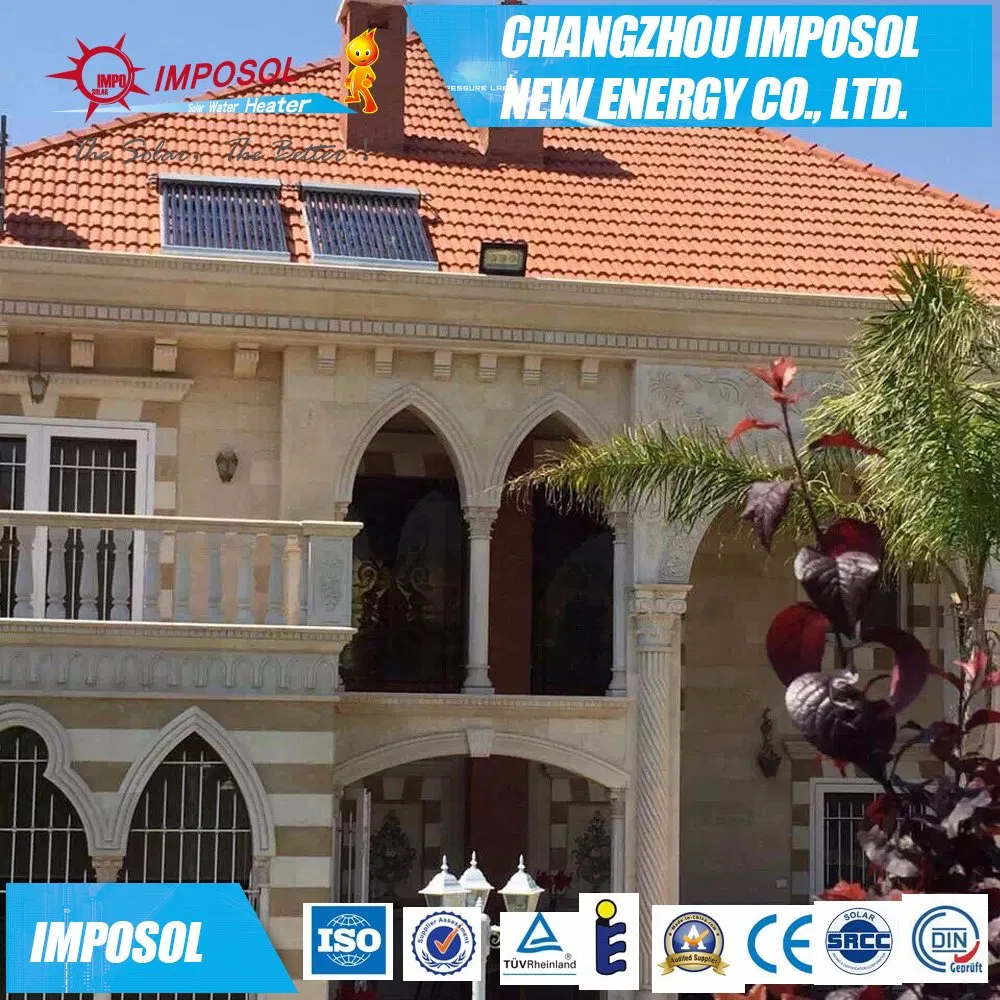

- Versatile installation on almost any wall or roof surface
- Low operating costs with minimal maintenance required
- Non-polluting: Significant reduction in CO2 emissions
| Model |
Capacity |
Collector Qty |
Pump Station |
Expansion Tank |
20GP Load |
40HQ Load |
| IPSV100-NC/SC | 101L | 1 | SR881 / SR961 / SR971 / SR981 | 5L | 46 | 111 |
| PSV150-NC/SC | 150L | 1 | 8L | 33 | 79 |
| PSV200-NC/SC/DC | 200L | 1 | 12L | 26 | 64 |
| PSV300-NC/SC/DC | 300L | 1 | 18L | 18 | 44 |
| PSV400-NC/SC/DC | 400L | 2 | SR Series | 18L | 14 | 35 |
| PSV500-NC/SC/DC | 500L | 2 | SR Series | 24L | 12 | 29 |
System Advantages

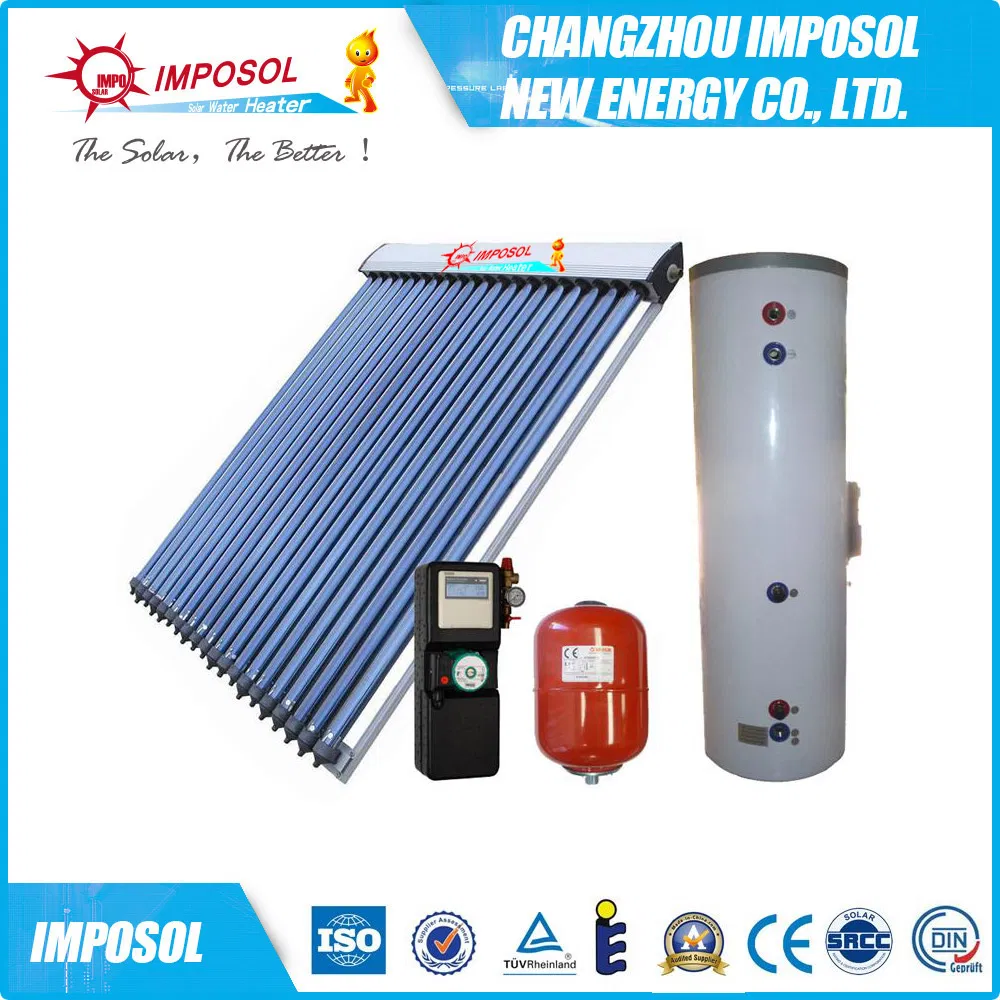

1. Separated collector and storage tank for perfect building integration.
2. Flexible installation on rooftops, walls, or balconies.
3. High-efficiency heat start and zero leakage risk via industry-leading technology.
4. Inner tank made of SUS304/316 stainless steel for health and corrosion resistance.
5. Closed-loop, indirect heat transfer ensures water quality and supply pressure.
6. Customizable design for both domestic hot water and house heating.
Workshop & Quality Control
Modern workshops featuring advanced production lines and professional assembly. We maintain a 100% self-inspection protocol before packing, with detailed flow cards to record every production detail.
Frequently Asked Questions
Q1: Can I request a sample for quality testing?
Yes, we can provide samples for testing to ensure the product meets your technical requirements.
Q2: Do you support OEM or ODM services for the water tanks?
Yes, both OEM and ODM services are available. We can apply your logo and customize specifications based on your provided designs.
Q3: What is your quality inspection process before delivery?
We conduct 100% self-inspection before packing. This includes pressure testing and material checks to ensure high performance and safety.
Q4: How do you handle after-sales service and spare parts?
If problems are caused by manufacturing defects, we provide spare parts free of charge. For other issues, parts are available at cost.
Q5: Is this system suitable for high-pressure applications?
Yes, the system is designed for pressurized environments (up to 800Kpa), making it ideal for modern plumbing and mains water pressure.
Q6: What materials are used for the inner tank and heat pipes?
The inner tank is constructed from high-grade SUS304/316 stainless steel, and the heat pipes are made from high-purity, oxygen-free copper for maximum heat transfer.
