The Sprinkler System Solves The Problem of Reduced Feeding of Cows Due to Heat

Customization:	Available
Material of Water Tank:	PE
Pipe Bracket:	Galvanized

Send Inquiry

Product Description

Basic Information

Model NO.:PL-1

Electromagnetic Valve Voltage:24V

Pump Voltage:380V

Spray Angle:135°

Transport Package:Paper Case

Specification:Plastic

Trademark:JG

Origin:China

HS Code:8481809000

Production Capacity:100,000 Sets/Month

Product Description

The control system can freely set the spray start temperature range, spray time, and interval time.
Manual adjustment available for temperature sensing to reach specified levels.
High-quality pressure nozzles imported from the USA ensure uniform water distribution across the cowshed.
Integrated water source filtration device to prevent nozzle blockage.
Intelligent automatic start based on critical environmental temperatures.
Programmable pause periods (up to 4) to prevent water waste during milking times.
Dual operation modes: Manual and Automatic for specific area control.
Features Japanese PLC components and Israeli imported solenoid valves and filters for maximum reliability.

Product Parameters

No.	Components	Parameter Description and Plan Source

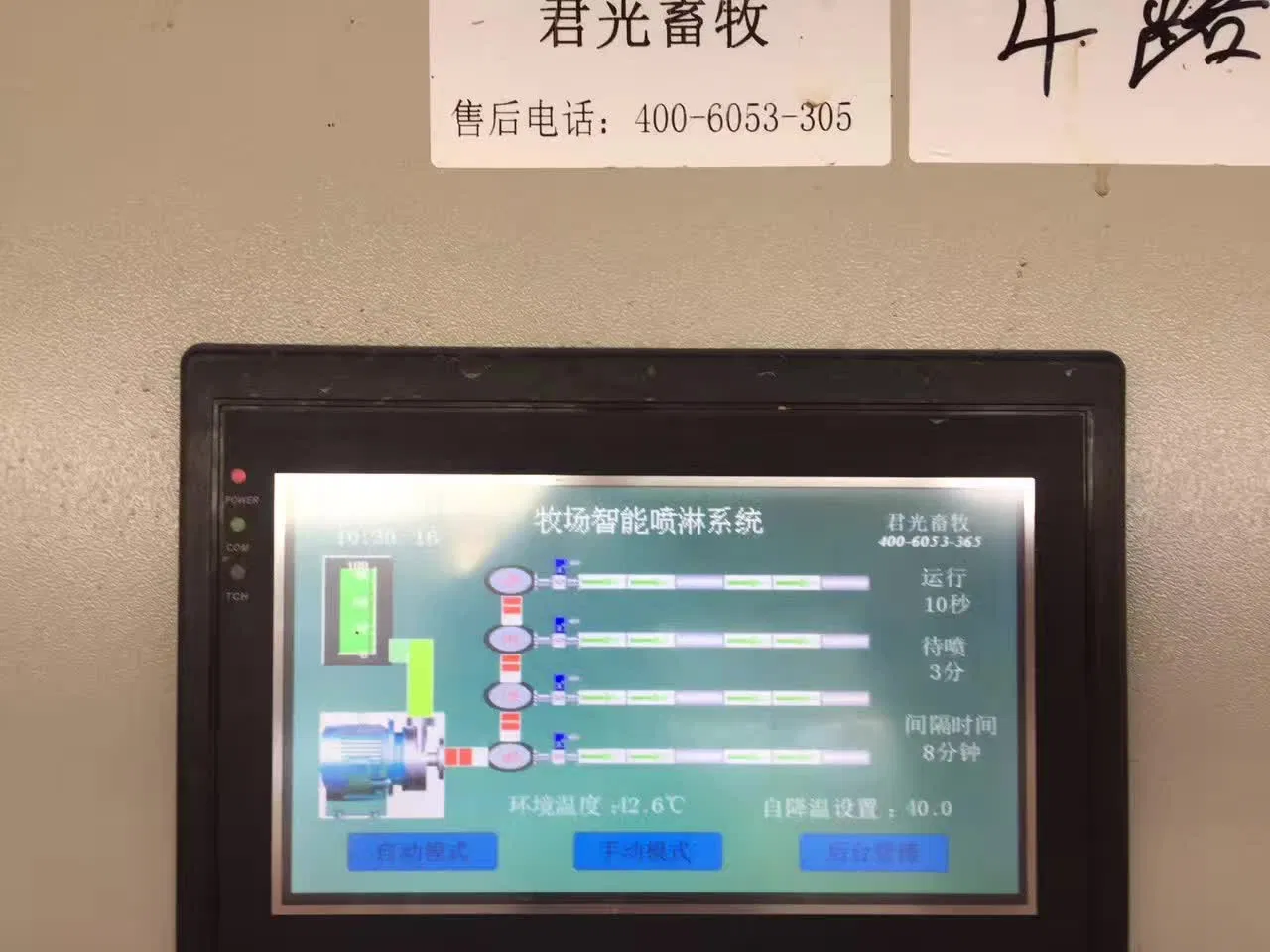

1	PLC controller	Main components: PLC, LCD screen, cooling system, transformer. Includes automatic/manual modes for precise environmental monitoring.
2	Environmental section	JCJ100F series temperature transmitter with high-precision platinum resistors (PT100/Pt1000) for stable and accurate sensing.
3	Filter and Main Line	Includes filter screen and PE main lines (ø 75/ø 50) with 1.6MPa pressure resistance. Built for seasonal durability.

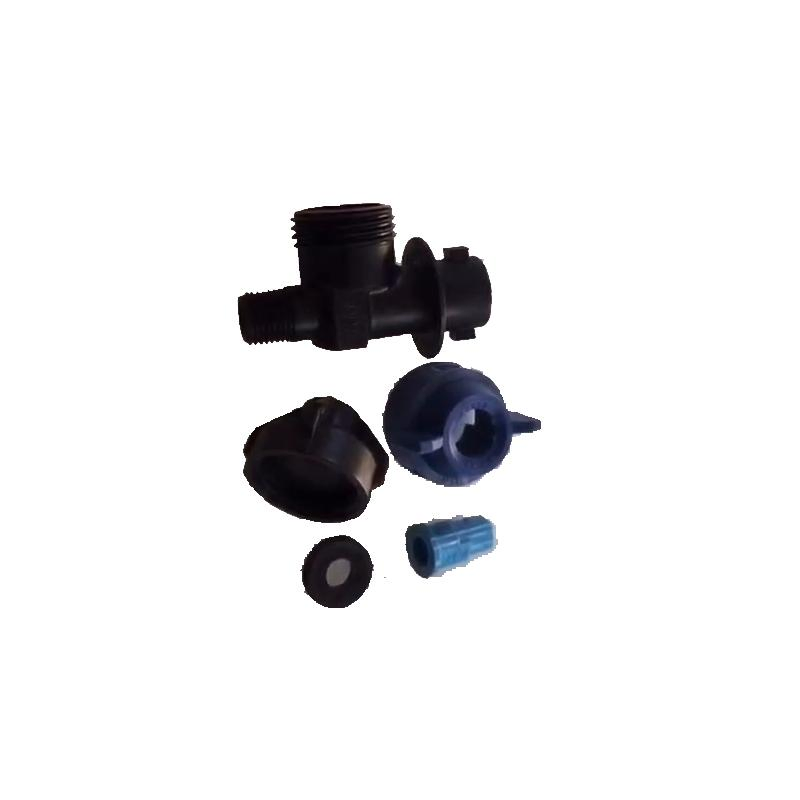

4	Spray nozzle section	Imported pressure unidirectional nozzle. 120°-150° spray angle; radius up to 1.9m; flow rate 1.5-3.8L/min.

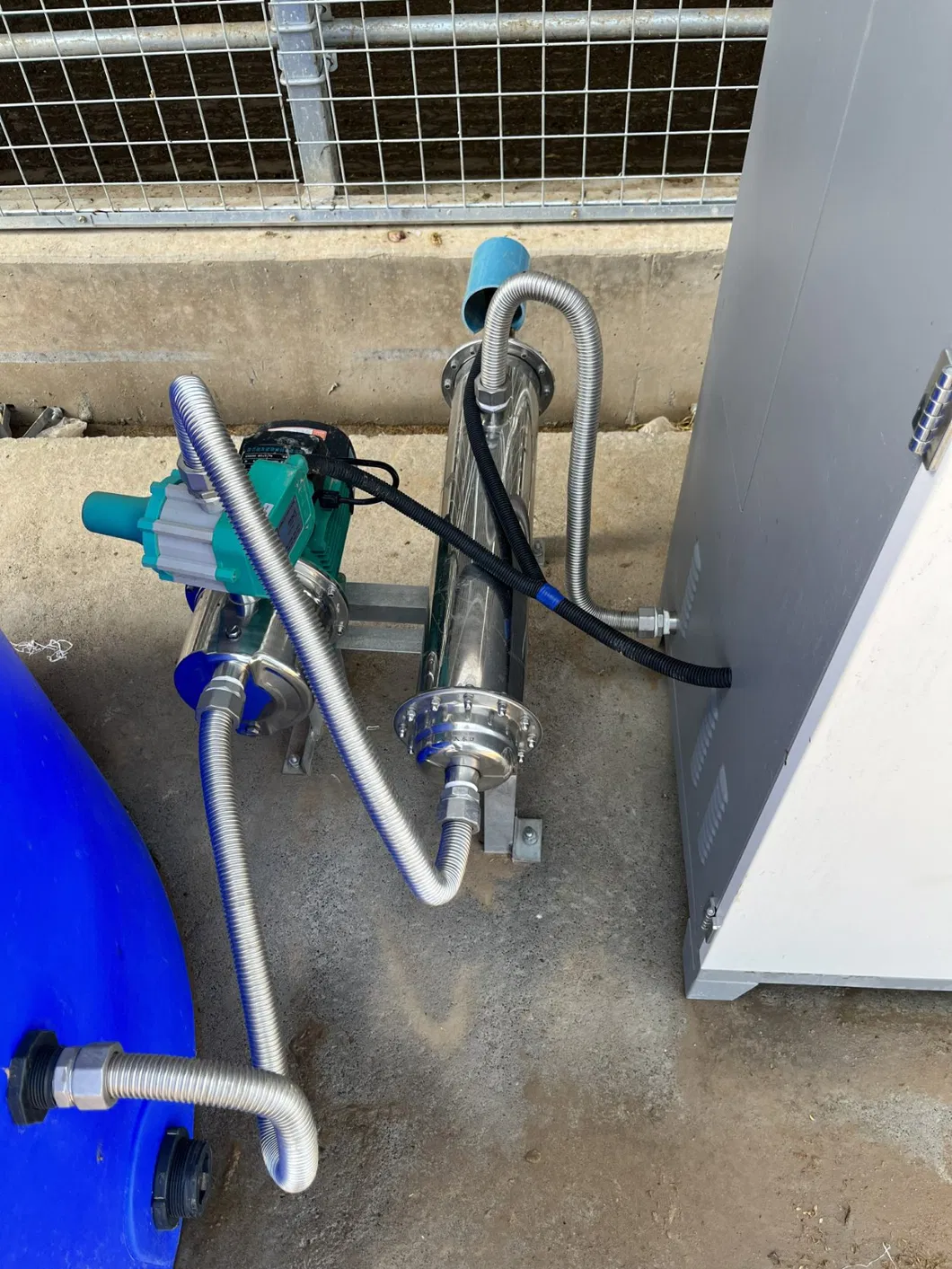

5	Boosting system	Includes booster pump, water tank, check valve, and electric node pressure gauge control box for insufficient pressure scenarios.

Detailed Photos

⚙️

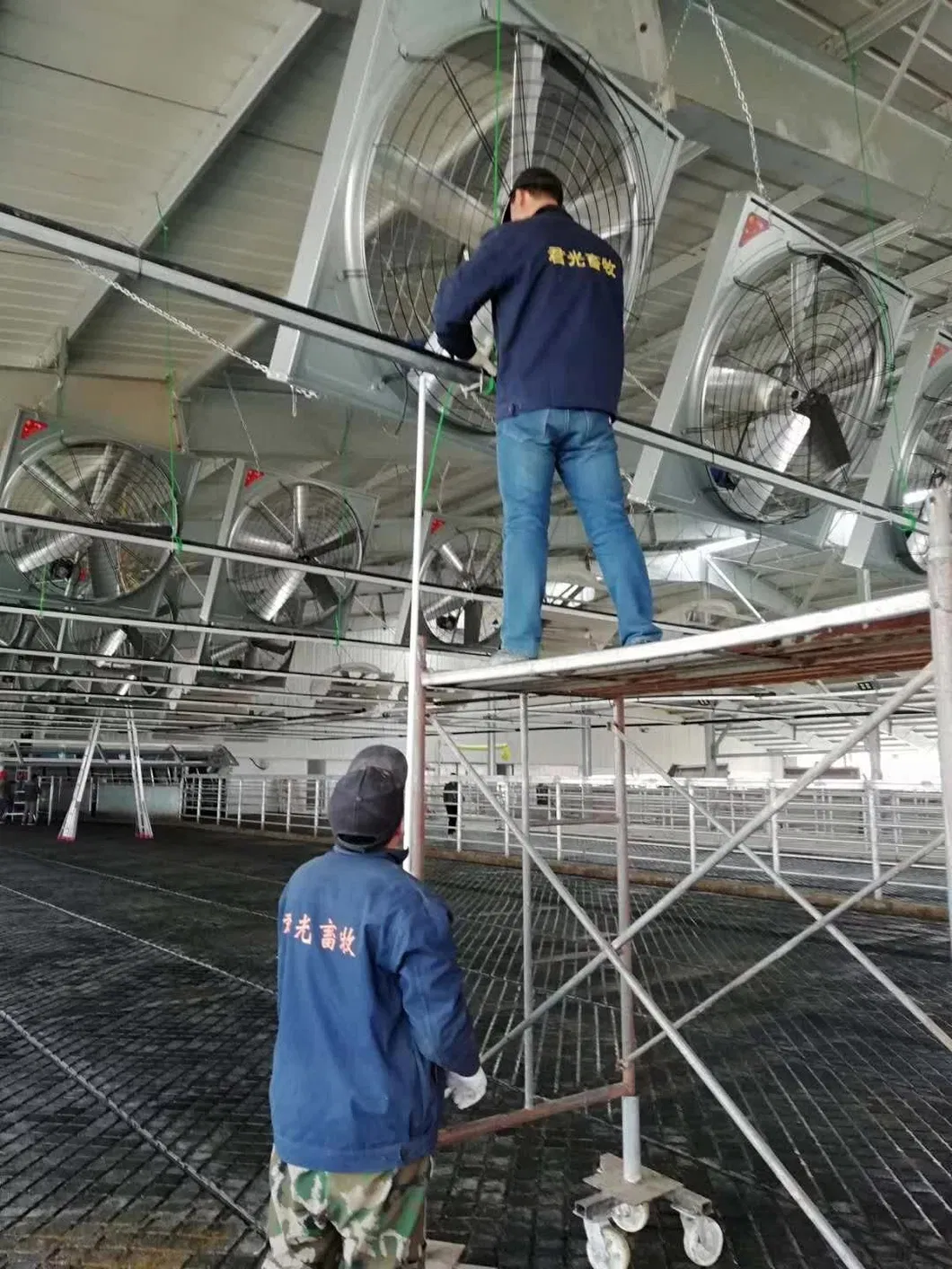

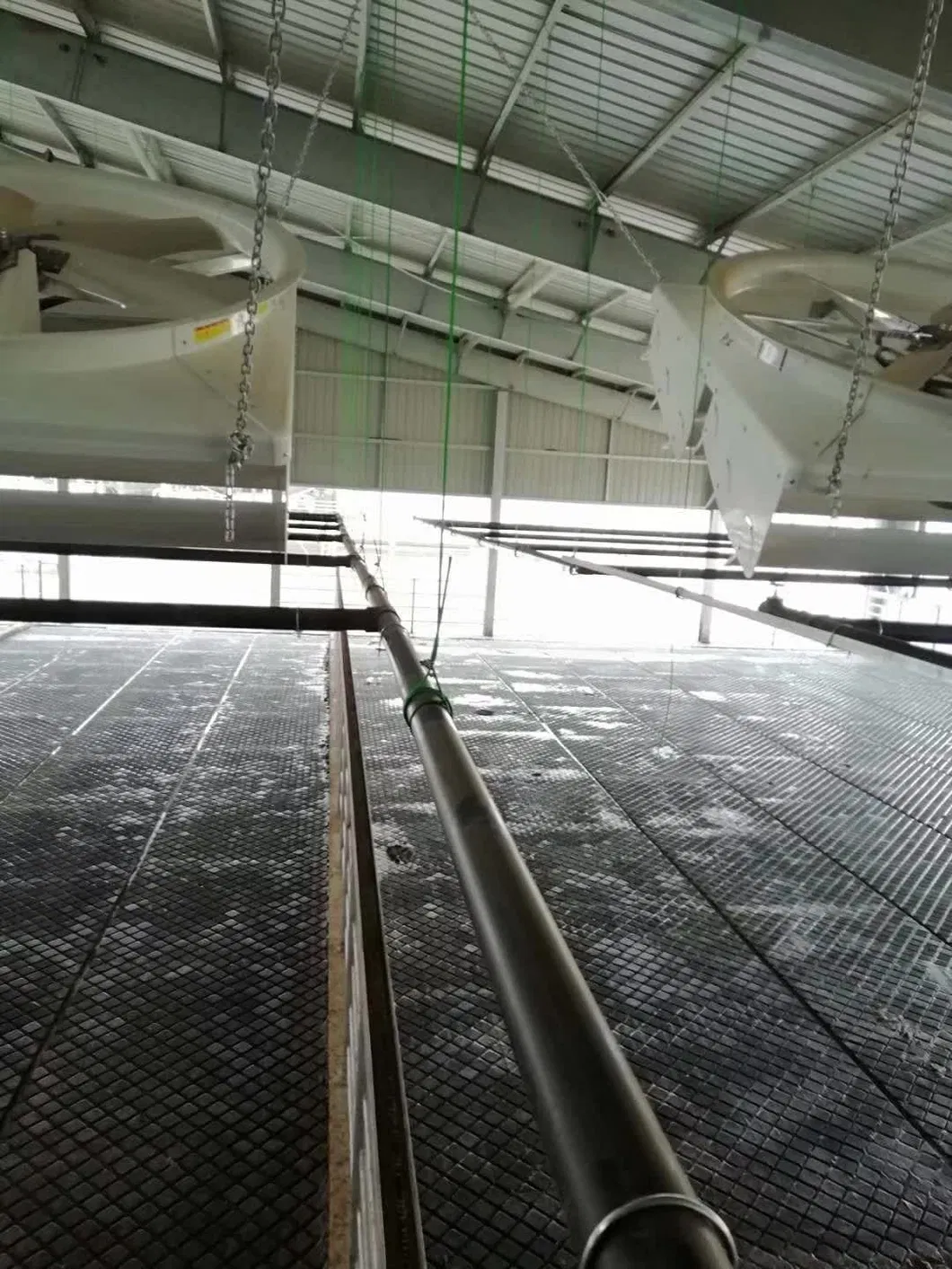

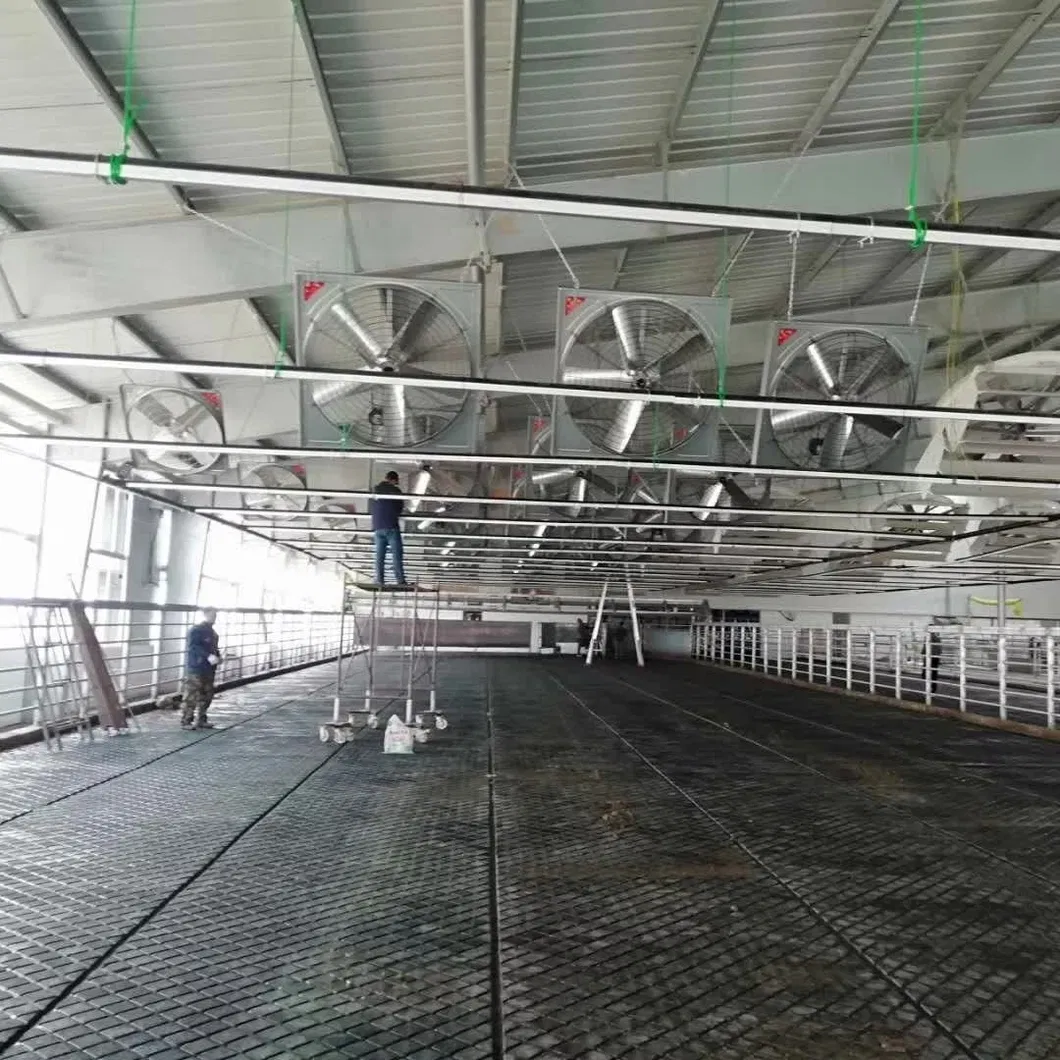

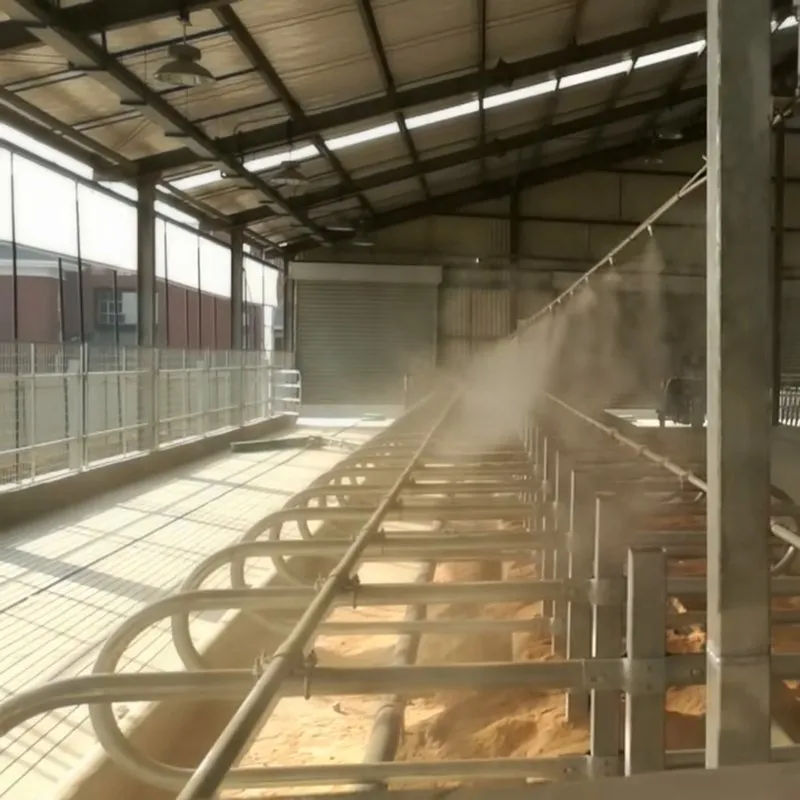

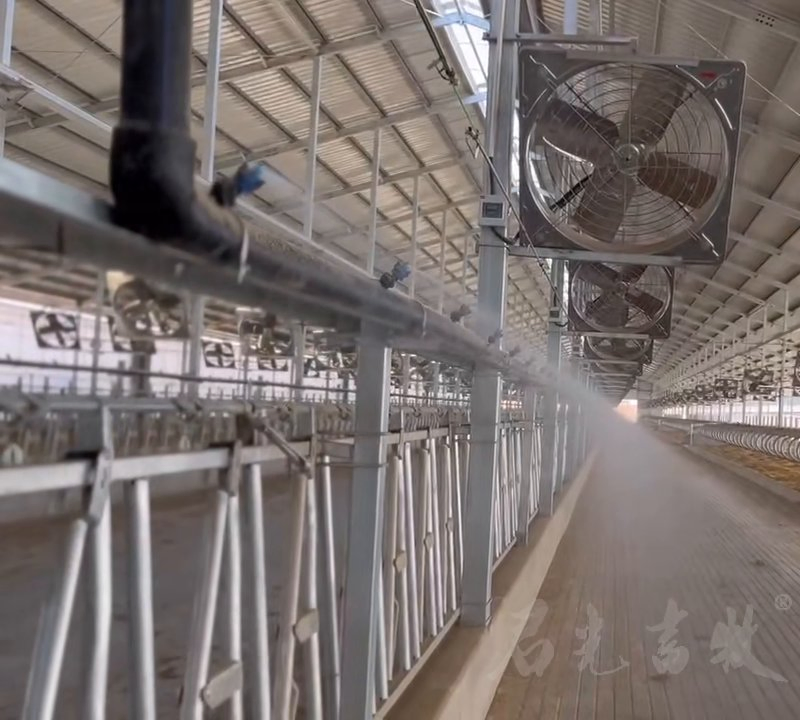

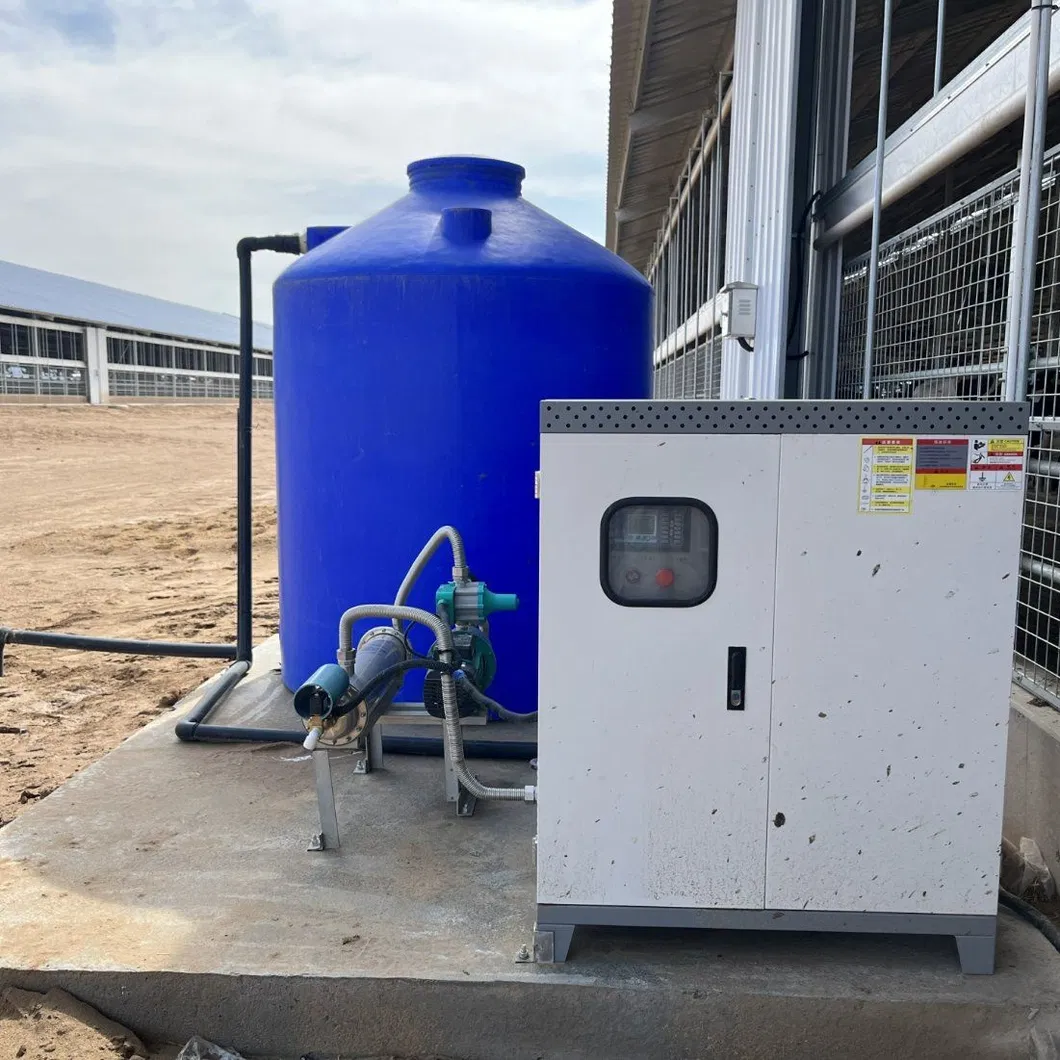

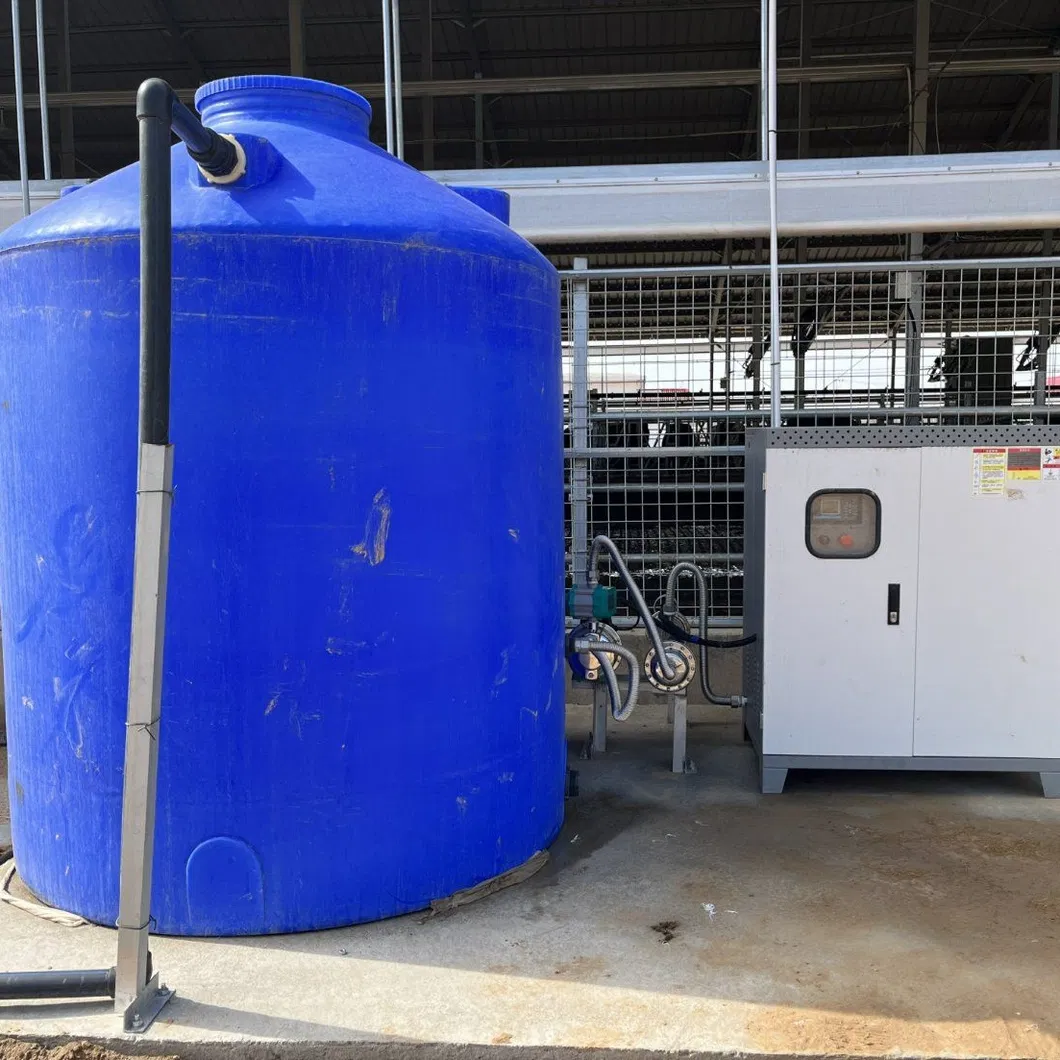

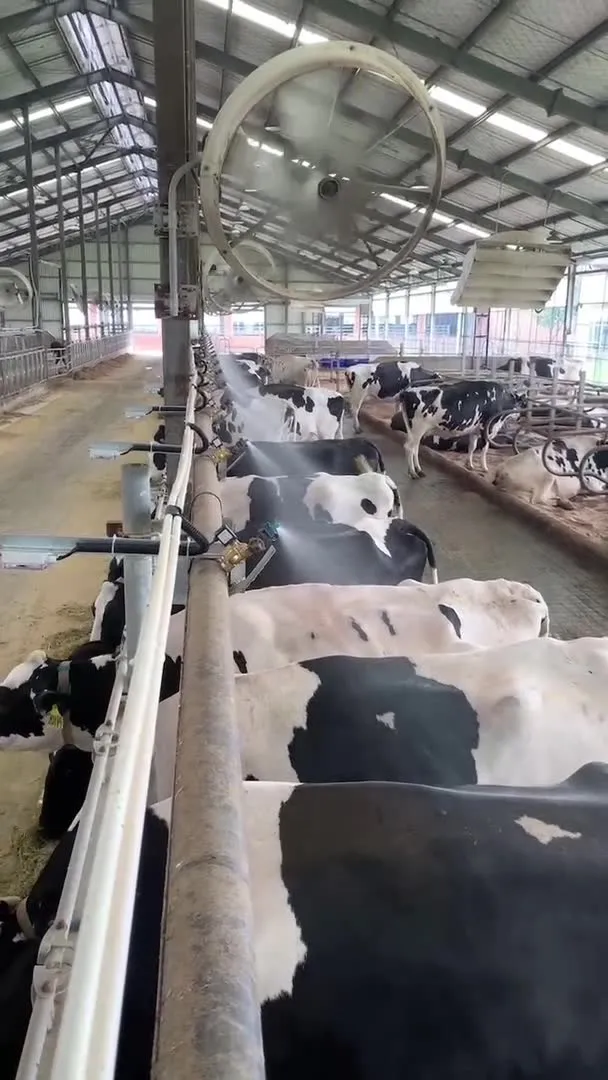

The system consists of three parts: microcomputer control, water tank/booster, and pipeline/spray section. The intelligent instant spraying system wets the cow's body within 8-10 seconds with high pressure (≥ 3kg) to ensure large water droplets penetrate the fur to reach the cow's back effectively.

Related Products

Company Capability

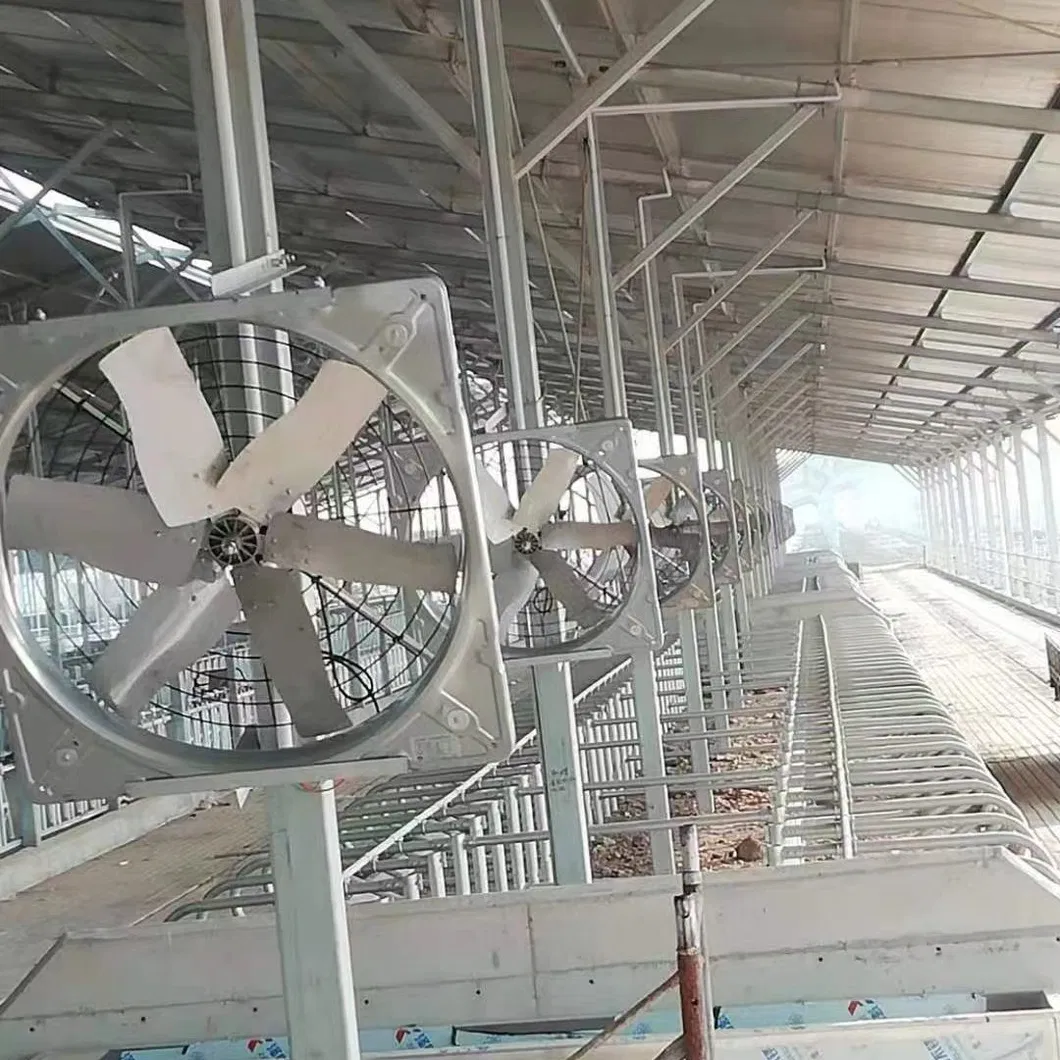

We are a high-tech enterprise specialized in the design and construction of modern livestock farms, production, and sales of breeding and manure treatment equipment. Our facility includes an office area of 2700 square meters and a production workshop of 6500 square meters. We specialize in dairy farm equipment such as headlocks, barns, fans, cattle brushes, and advanced spray systems.

Focusing on the research and development of new products, we hold 24 national patented technologies. All products are designed with an emphasis on efficiency, practicality, durability, and energy saving to meet the rapid development needs of the dairy industry.

Frequently Asked Questions (FAQ)

What should I do if nozzles spray abnormally or won't stop?

This is often caused by foreign objects inside the nozzle. Simply clean the foreign objects inside the nozzle to restore normal operation.

Why is the water spray pressure relatively low after startup?

Check if the filter screen is clogged or if there is a blockage in the pipeline. Regularly cleaning the filter and inspecting the pipeline will solve this issue.

What if the pump cannot stop and pressure won't reach the set level?

This usually indicates the water level in the storage tank is too low or the pump chamber is filled with air. Please manage water sources and discharge the air from the pump as per the manual.

The spray starts even though the set temperature hasn't been reached. Why?

The temperature might not be calibrated, or the sensing probe is damaged. Refer to the manual for calibration or contact the manufacturer for a replacement probe.

What causes the solenoid valve to fail to open?

The most common reasons are a damaged transformer in the control box (check for AC 24V output) or a damaged solenoid valve/head. Contact the manufacturer for specific component replacement.

How can I avoid wasting water during milking periods?

Our system allows you to set up to 4 specific pause time periods. During these times, the spray will not activate, preventing water waste while cows are away.
