Premium Ice Cooling System for Ultimate Heat Relief Solutions

Customization:	Available
After-sales Service:	24 Hours Service
Warranty:	1 Year

📋

Basic Specifications

Ice Making

Flowing

Automation

Unit Structure

Split

Machine Size

Large

Ice Temperature

-15℃~-20℃

Ice Shape

Flake Ice

Application Fields

Aquatic Fishery, Concrete Cooling

Certification

ISO, CCC

Refrigerant

Freon

Ice Delivery

Automatic

Compressor

Semi Hermetic

Specification

100 ton

🏗️

Industrial Ice Cooling Solution

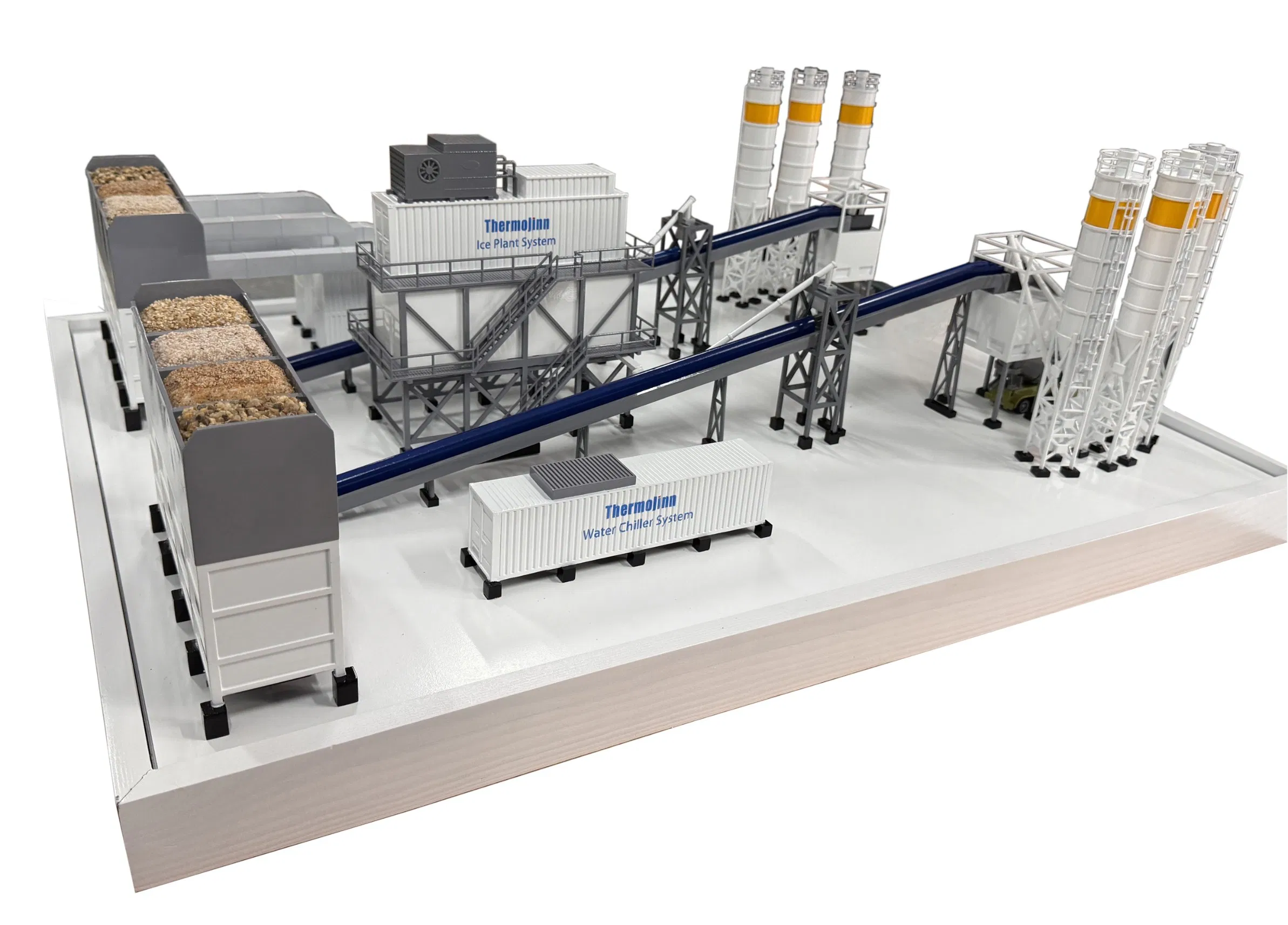

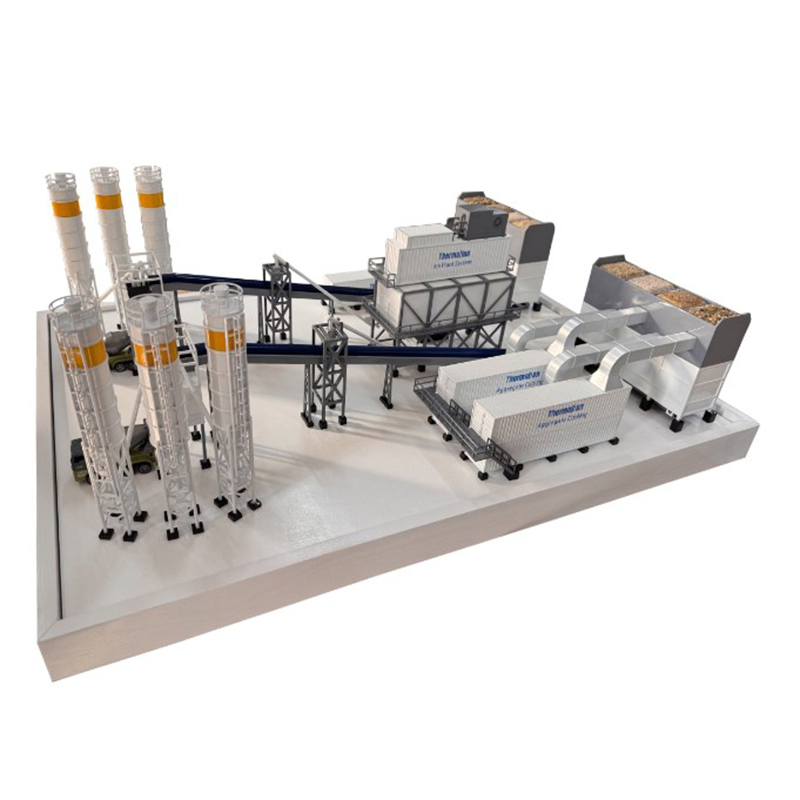

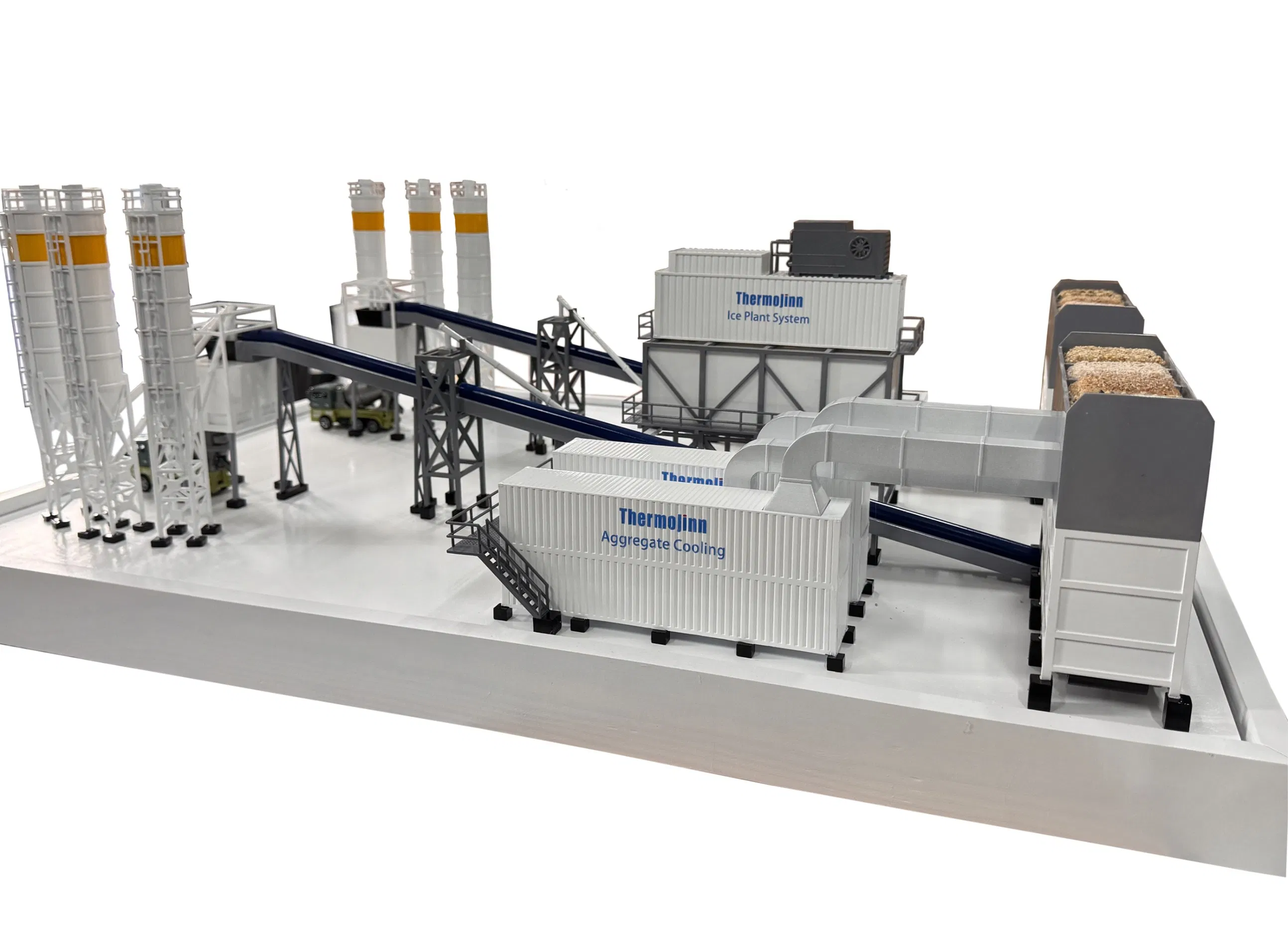

Professional Concrete Cooling Systems: Our systems are designed to optimize temperature control processes essential for large-scale construction projects. Utilizing advanced flake ice technologies, we ensure consistent and efficient cooling, enhancing the overall quality and durability of concrete structures.

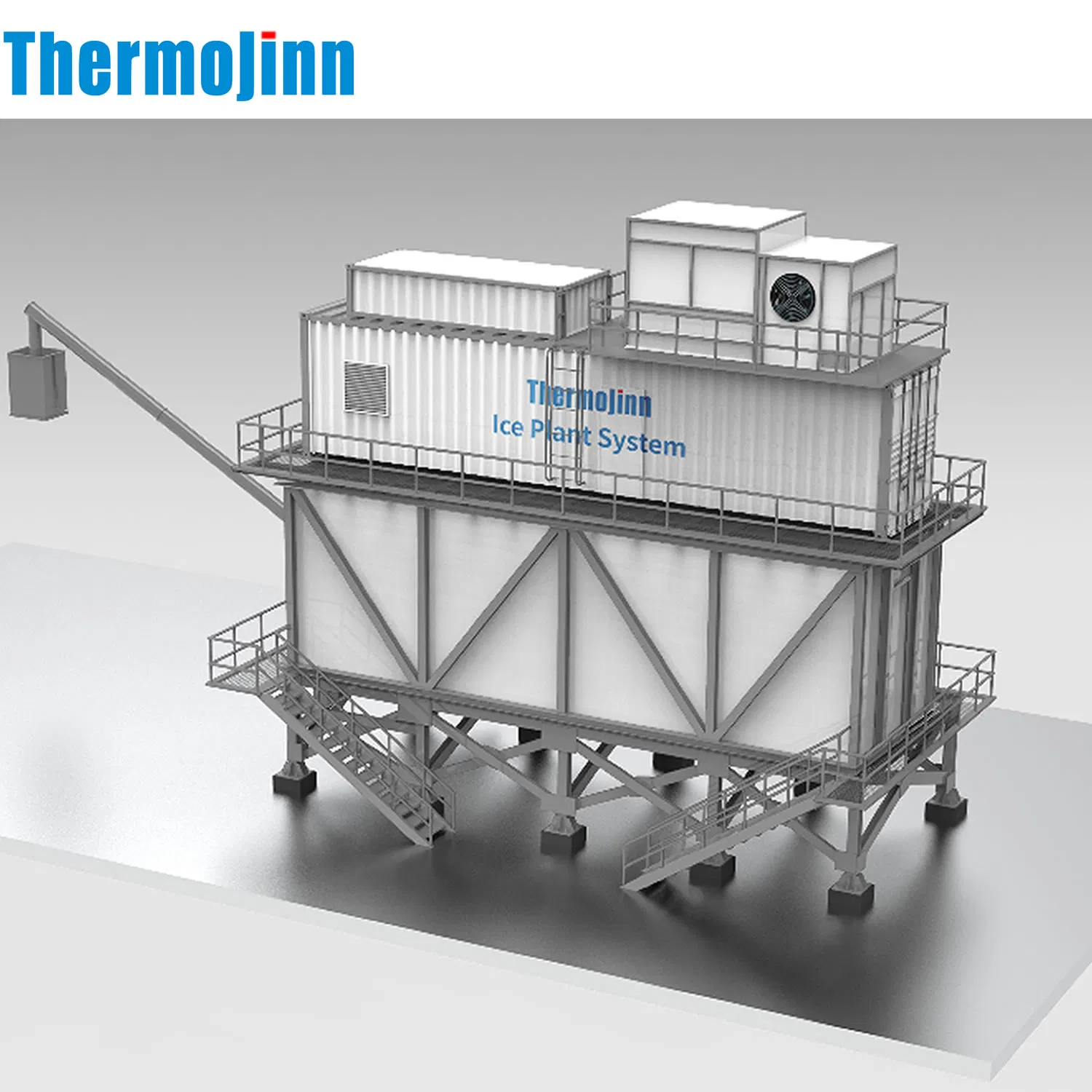

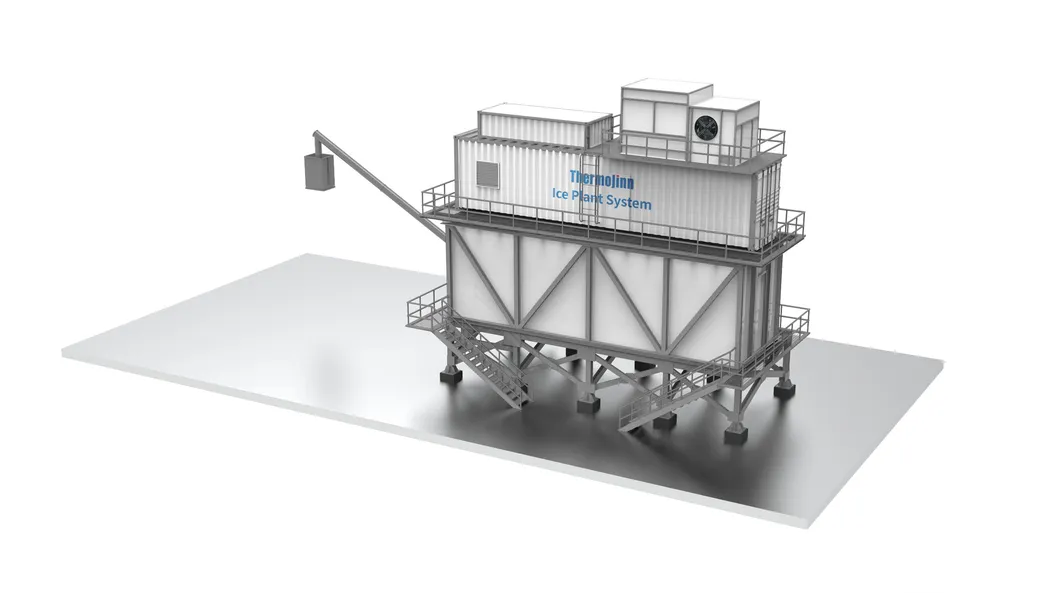

Containerized Flake Ice Plant

The containerized flake ice plant offers an all-in-one solution featuring automated ice storage, delivery, and weighing systems. Designed for optimal efficiency, this plant includes remote control functions for seamless operation and monitoring. It ensures consistent production and distribution, ideal for industrial applications requiring precise ice management.

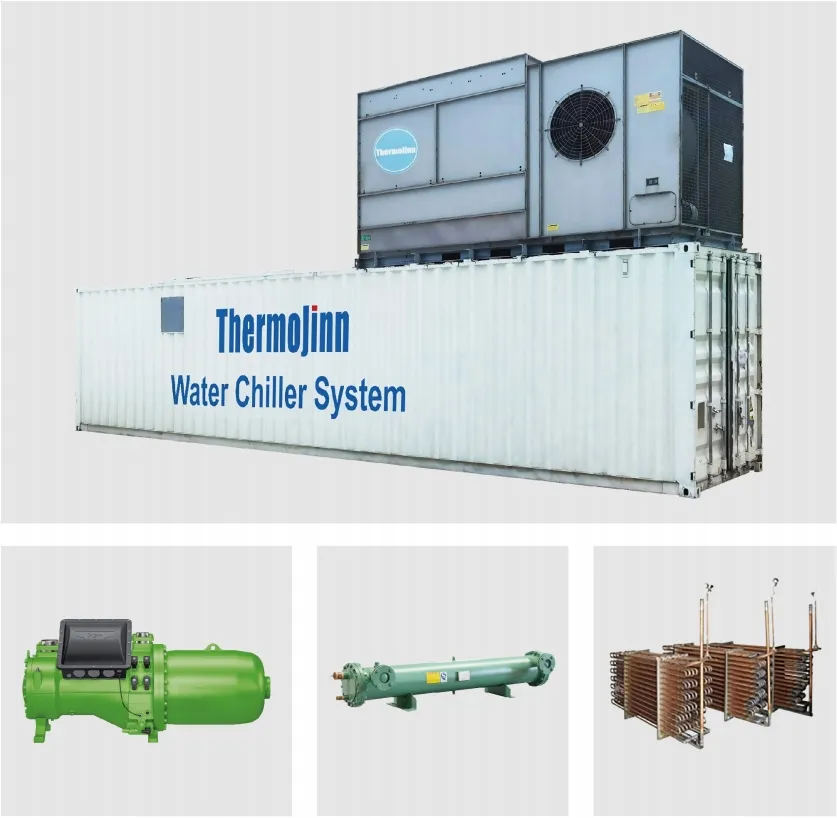

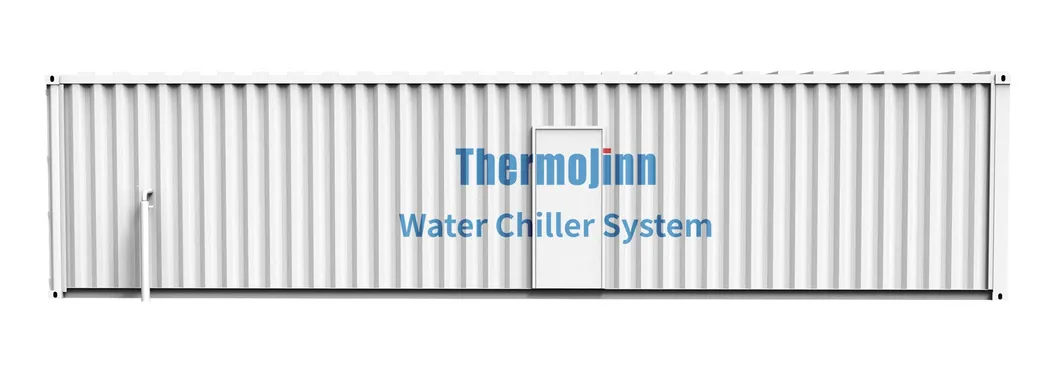

Advanced Water Chiller

We provide advanced containerized water chillers capable of reducing outlet temperatures to as low as 1°C. Utilizing a three-stage cooling process, these systems efficiently cool water from 40°C down to 1°C directly, ensuring reliable temperature control for heavy-duty industrial needs.

Containerized Assembly: Ice makers and chiller units are assembled inside 20' or 40' HQ containers. Maximum capacity of a single container ice plant can reach 86 ton/day, while chiller units can reach up to 360 ton/day.

⚙️

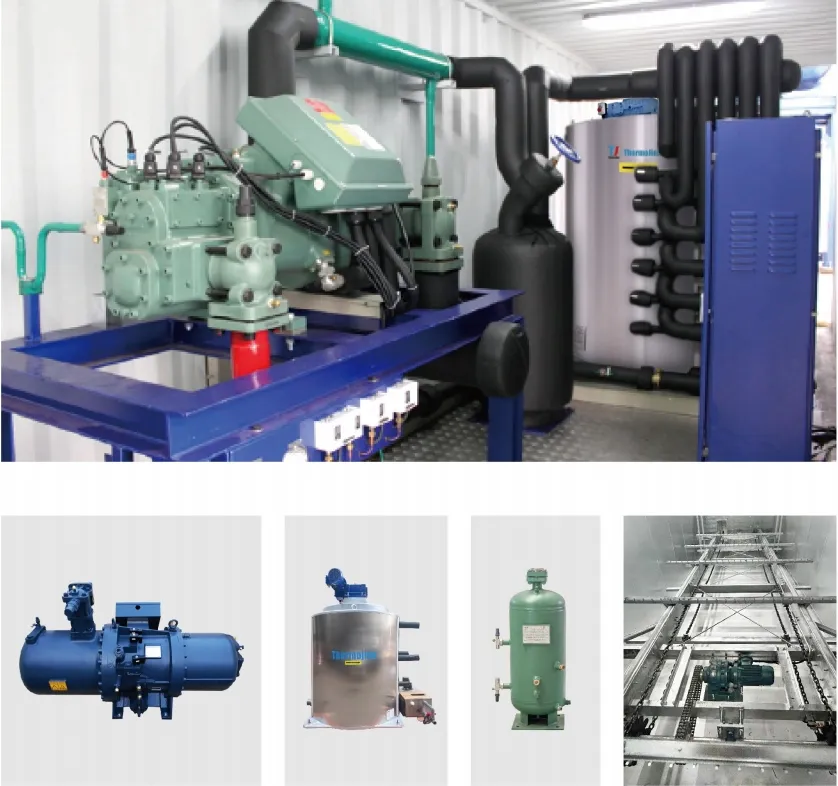

Core Components

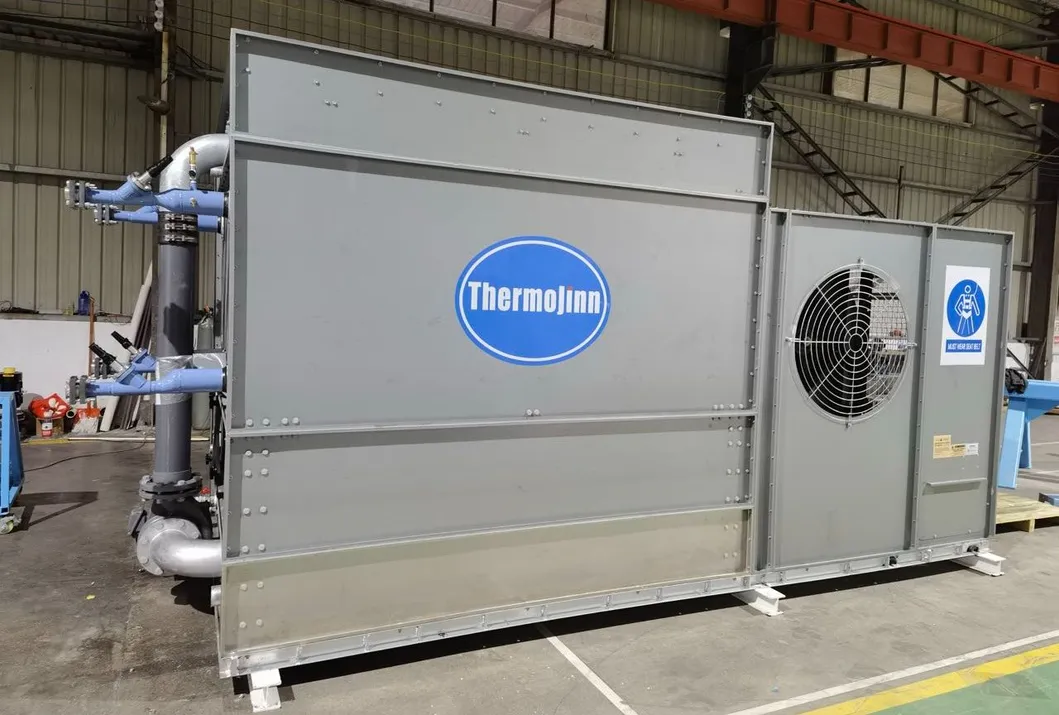

Evaporative Condensers: High-efficiency solutions with full coil configurations maximize heat transfer and reliability even under extreme conditions.

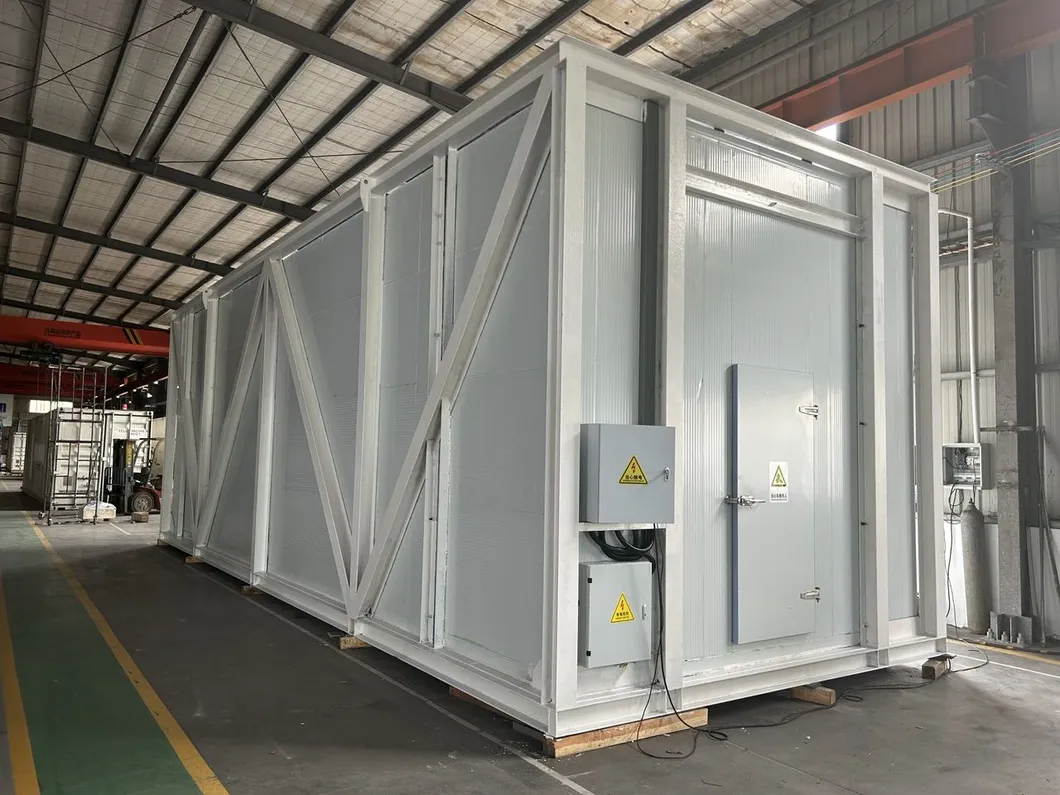

Auto Raking Ice Storage: Automates the storage and distribution process, ensuring continuous supply without manual intervention via a robust rake mechanism.

📊

Product Parameters

Flake Ice Plant Data

Model	Cap. (t/d)	Ref. Cap. (kw)	Ins. Power (kw)	Cons. Power (kw)	Water Cons. (l/h)	Weight (ton)
TJ-FIP20	20	100	83	67.23	1200	14.1
TJ-FIP40	40	200	152	123.12	2700	25.1
TJ-FIP60	60	300	227	183.87	4010	31.2
TJ-FIP100	100	500	427	350.14	7400	42.1

Auto Ice Storage Specs

Model	Capacity (Ton)	Type	Length (mm)	Width (mm)	Height (mm)
AIS 18	18	Containerized	12192	2438	2591
AIS 50	50	Combined	12192	5195	3570
AIS 100	100	Combined	15000	5195	4970

📦

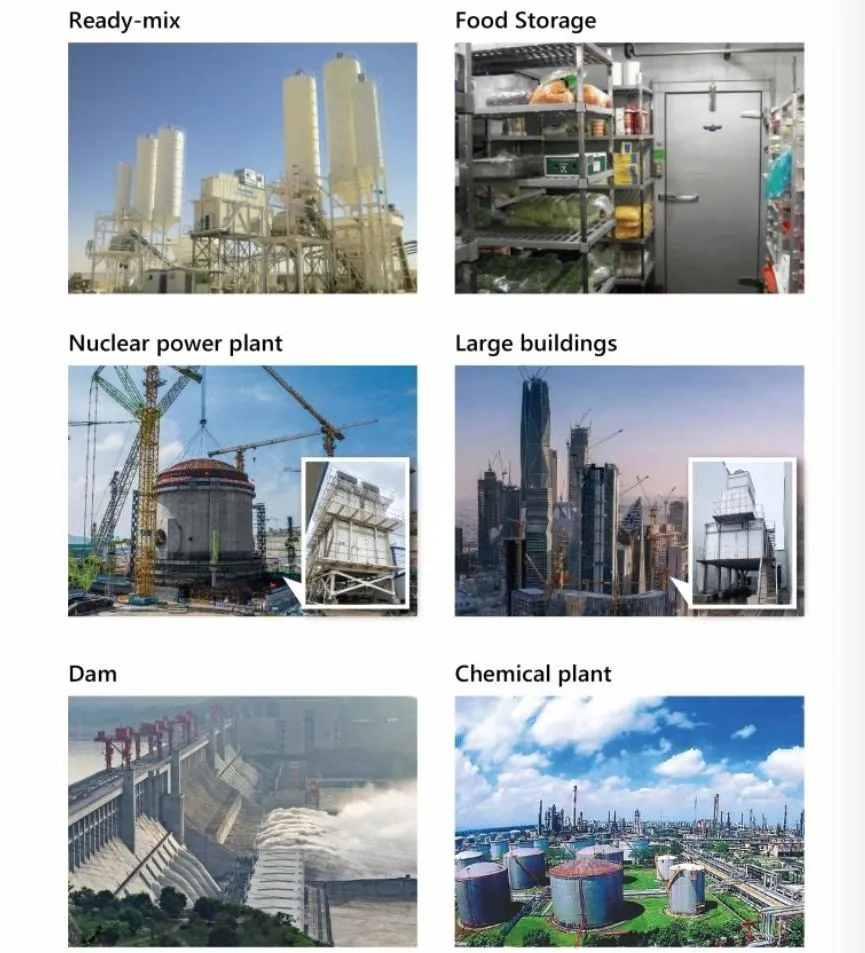

Packing & Applications

❓

Frequently Asked Questions

1. How long is the delivery time for the ice cooling system?

It typically takes within 1 month from the receipt of the deposit to the preparation of the goods for shipment.

2. What is the quality guarantee period?

The warranty period is 1 year, and our after-sales service is available 24 hours a day to support your operations.

3. How is the pricing determined?

Our FOB prices are based on the quantity, materials, and sizes required. Bulk orders qualify for significant discounts. We also offer CIF and CNF pricing.

4. Can the systems be customized for specific project requirements?

Yes, all materials and sizes are available for customization. We can tailor the cooling capacity and configuration to meet your specific industrial needs.

5. What is the maximum cooling capacity for containerized units?

A single container ice plant can reach up to 86 tons per day, while chiller units can handle up to 360 tons per day.

6. Are these systems suitable for extreme environmental conditions?

Yes, our evaporative condensers are designed with high-efficiency coil configurations to ensure consistent performance even under extreme working conditions.
