Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
1 / 5
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation
Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation

Non Invasive 6t Pemf Magneto Therapy System with 830nm Laser for Inflammation

Customization: Available
Type: Rehabilitation Machine
Function: Tissue Repair
Send Inquiry

Product Description

Basic Information
Model NO.
GMS MS 35 PLUS
Theory
Laser
Certification
CE, ISO13485
LCD Display
With LCD Display
Product Name
Pemf Magnetic Therapy Machine
Technology
6 Tesla Magneto Therapy
Power
450W
Cooling System
Air Cooling
Magnetic Intensity
6 Tesla
Pulse Frequency
1Hz - 100Hz
Penetration Depth
up to 8 Cm
Laser Power
50W
Wavelength
685nm / 830nm
Production Capacity
500 Pieces/Month
Product Description

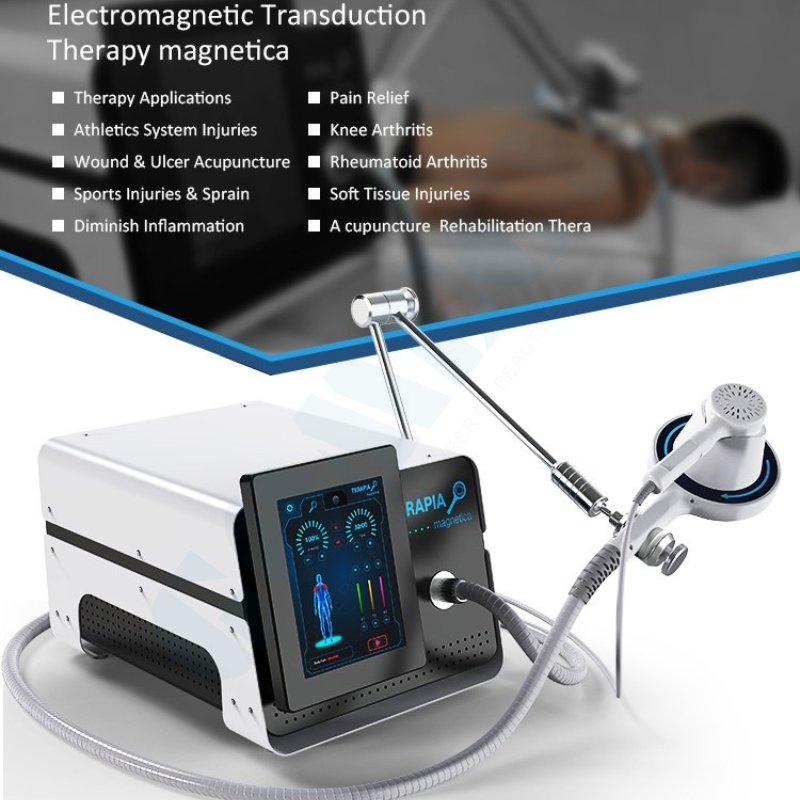

Non Invasive 6T PEMF Magneto Therapy System with 830nm Laser

Discover the advanced solution for pain relief, muscle recovery, and tissue regeneration. This system provides non-invasive, safe, and effective treatment for a wide range of musculoskeletal and neurological conditions.

PEMF Magneto Therapy System
Working Principle

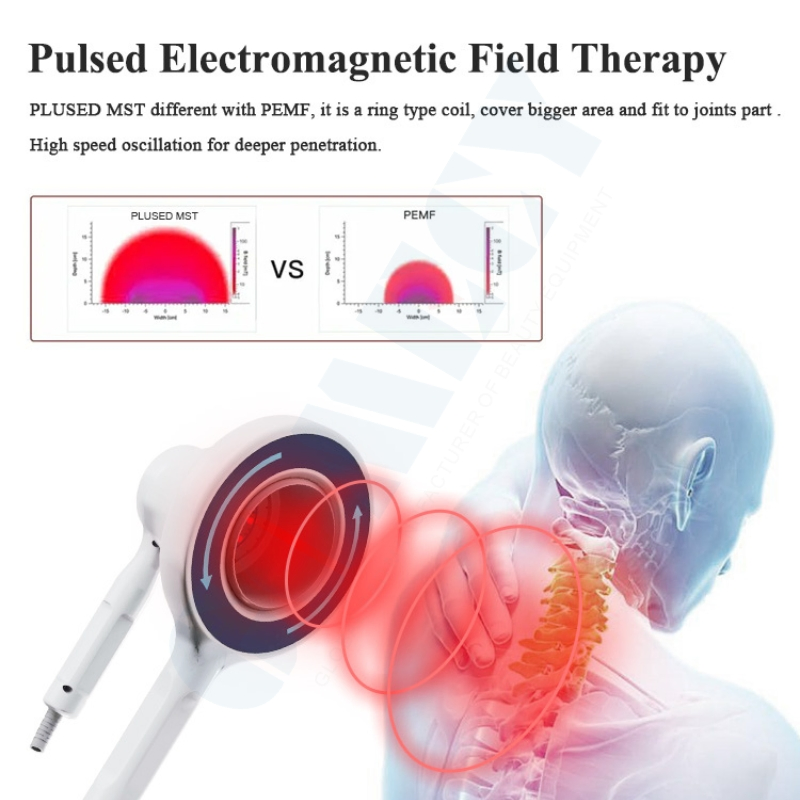

The system is based on the Faraday electromagnetic induction principle. A high-capacity capacitor discharges current into a stimulation coil, generating a powerful pulsed magnetic field that penetrates clothing, skin, and bone to stimulate deep nerves and muscles.

  • High Frequency (≥5Hz): Increases cortical excitability.
  • Low Frequency (≤1Hz): Reduces cortical excitability.

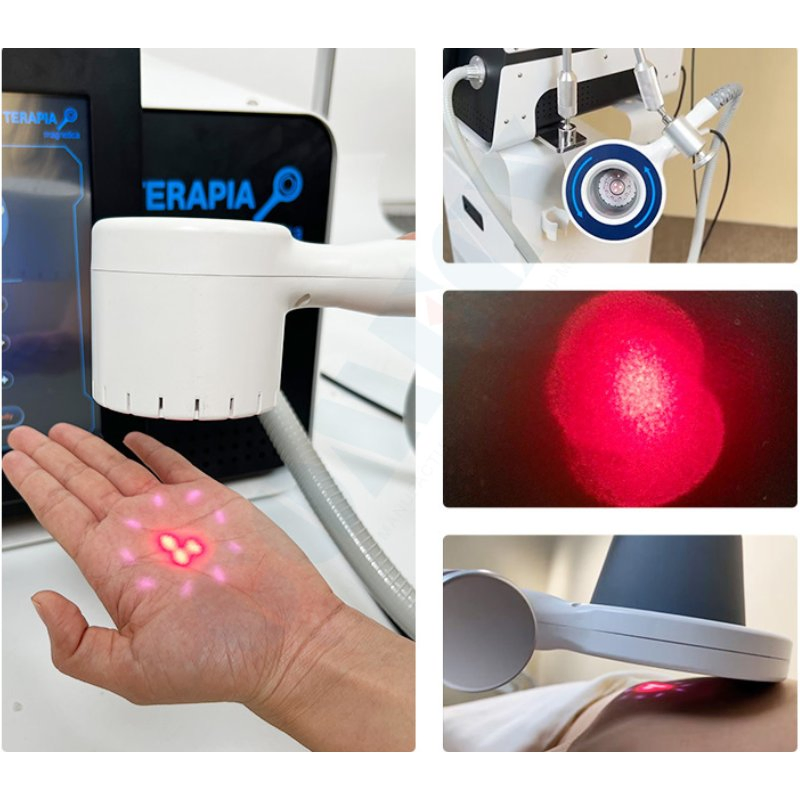

  • Laser Technology: Combines 830nm (deep tissue) and 685nm (superficial) wavelengths for anti-inflammatory effects and regeneration.
Main Applications
Magnetic Therapy:
  • Muscle pathologies (spasm, tears, swelling)
  • Joint disorders (shoulder, hip, knee)
  • Spine disorders (thoracic, lumbar)
Laser Therapy:
  • Frozen shoulder & Cervical spondylosis
  • Soft tissue injuries
  • Skin rejuvenation and repair
Technical Parameters
General Specifications
ParameterSpecification
Power450W
Cooling SystemAir Cooling
Power SupplyAC110V / 220V, 50-60Hz
Package Size62 × 55 × 45 cm
Magnetic Therapy Details
ParameterSpecification
Field Intensity6 Tesla
Pulse Frequency1Hz - 100Hz
Penetration DepthUp to 8 cm
Change Rate≥40kT/s - 80kT/s
Laser Therapy Details
ParameterSpecification
Laser Power50W
Wavelength685nm / 830nm
Spot SizeApprox. 45mm × 45mm
Detailed Product Overview
Product View 1
Product View 2
Key Features
  • 6 Tesla Intensity: Adjustable frequency for deep muscle stimulation.
  • U-Shaped Coil: Concentrates magnetic lines for accurate treatment.
  • Advanced Air Cooling: No leakage risk, low maintenance, and stable operation.
  • 360° Positioning Arm: Multi-angle adjustment for hands-free operation.
  • Progressive Pulse: Gradual intensity increase for maximum patient comfort.
Treatment Guidelines
Magnetic Therapy

Duration: 5-20 min/session

Frequency: 2 times per week

Course: 6-8 sessions

Laser Therapy

Duration: 25-30 min/session

Frequency: Every two days

Course: 10 sessions

Contraindications

Do not use in the following situations:

  • Pregnancy or menstruation.
  • Electronic or metal implants (Pacemakers).
  • Epilepsy or Malignant tumors in treatment area.
  • Avoid treatment on eyes, heart, spinal cord, or kidneys.
  • Blood disorders or acute infections.
Factory Visual 1
Factory Visual 2
Factory Visual 3
Frequently Asked Questions
Q1: Is magnetic therapy safe? A1: Yes. It generates electromagnetic fields, not ionizing radiation. It is non-invasive, painless, and safe for most patients.
Q2: Why is there noise during treatment? A2: The noise comes from the coil wires expanding and contracting when current passes through. This is normal and doesn't affect the results.
Q3: How deep does the magnetic field penetrate? A3: The device delivers up to 8 cm penetration, effectively reaching deep muscles and nerves.
Q4: How does magnetic stimulation differ from electrical stimulation? A4: Electrical stimulation requires skin contact. Magnetic stimulation uses a coil to induce currents inside the body without direct contact, making it more comfortable.
Q5: Can this device be used for cosmetic purposes? A5: Yes. The laser module can stimulate superficial tissues for skin rejuvenation, scar repair, and localized inflammation relief.
Q6: Are there any side effects? A6: Side effects are minimal. Some patients may feel slight tingling or warmth at the treatment site, which is normal and temporary.
