Multi-Alloy Vacuum Heat Treatment Solution

Customization:	Available
Certification:	CE, SGS
Place Style:	Horizontal

Basic Information

Model NO.

HH-GQ

Applications

Industrial

Type

Vacuum Furnace

Fuel

Electric

OEM Label

Available

Temp Control

Yes

Product Description

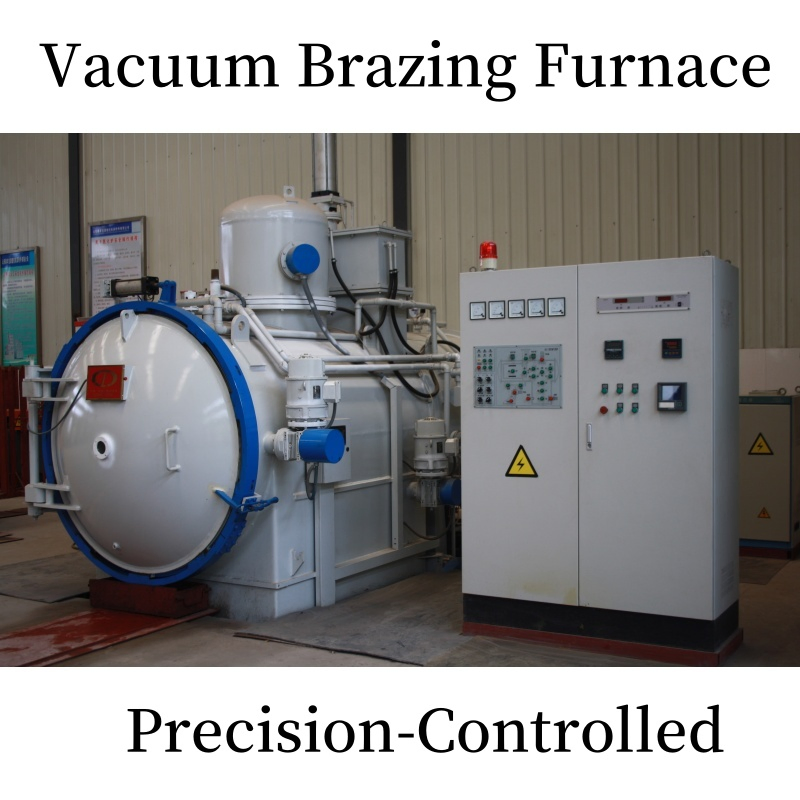

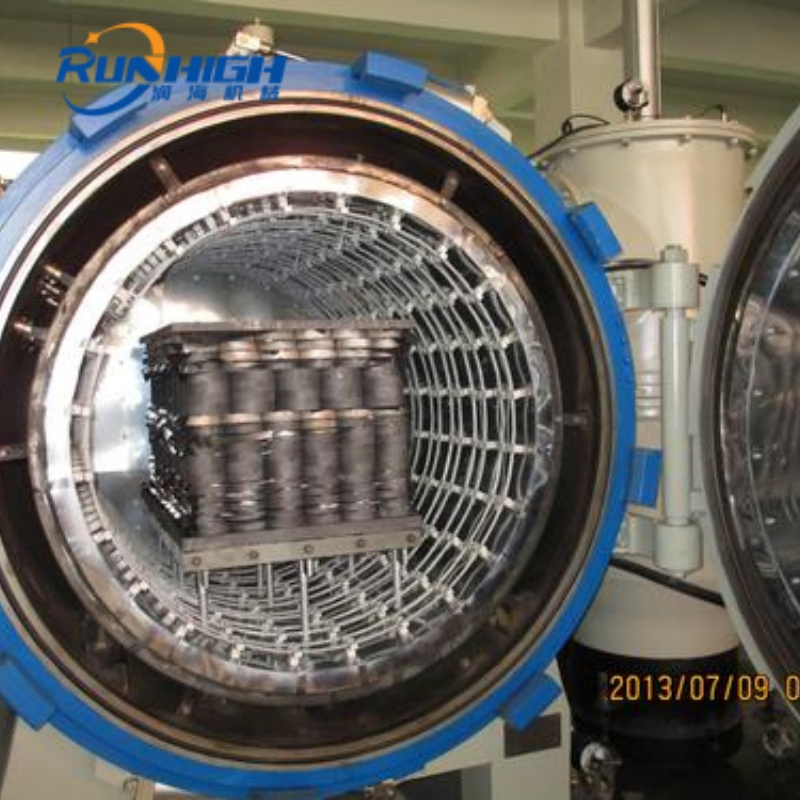

Vacuum Brazing Stainless Steel Furnace for High Temperature

HH-GQ Series Overview

The HH-GQ series vacuum brazing furnace is a mature and sophisticated heat treatment equipment. Its excellent performance and unique design cater to a wide range of applications, primarily for vacuum brazing of stainless steel, superalloys, non-ferrous metals, hard alloys, and special-shaped non-standard parts.

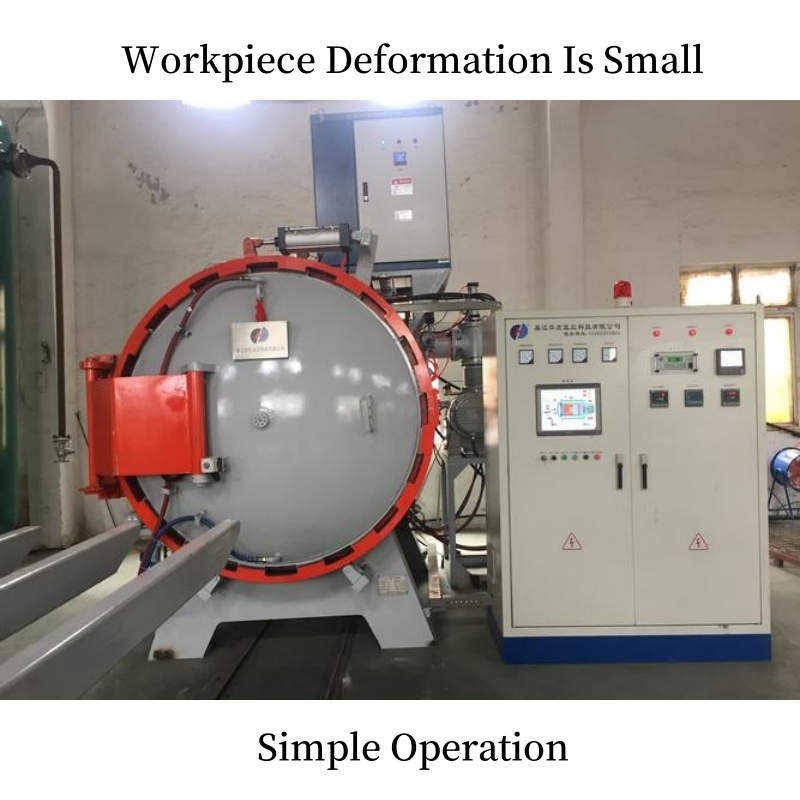

Furnace Features

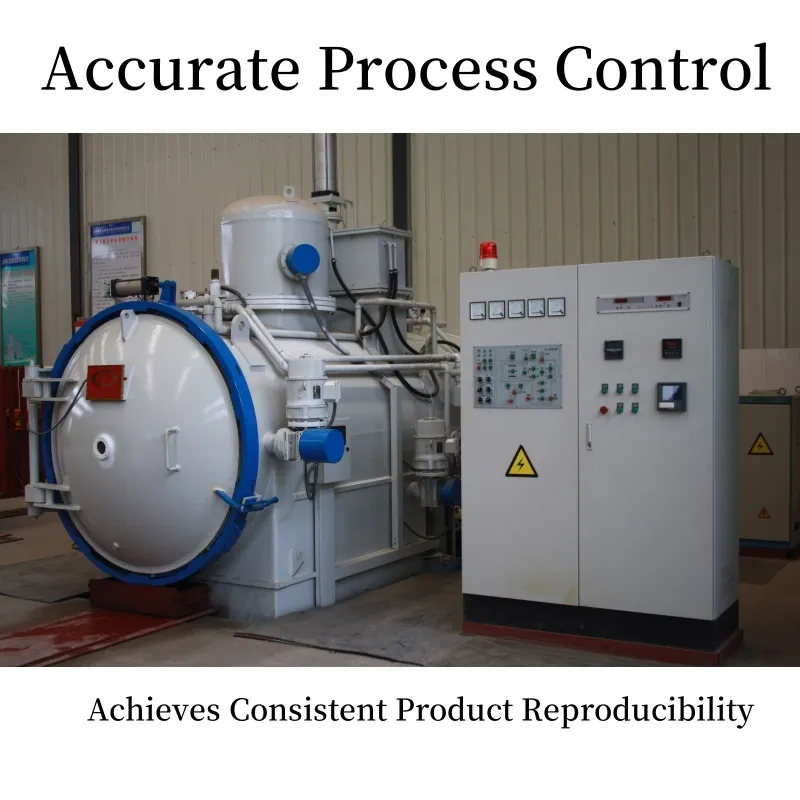

Accurate process control achieves consistent product reproducibility.
Rational spatial modularity standard design for maximum efficiency.
Large area heat exchanger with internal and external circulation fans for quenching functions.
Vacuum partial pressure and multi-area temperature control functions.
Reduction of unit pollution via a vacuum coagulation collector.
Reliable material vehicle transfer system.

Product Parameters

* Special specification requirements can be customized according to customer needs.

Parameter / Model	H-ZQ557	H-ZQ669	H-ZQ7711	H-ZQ8812	H-ZQ9916
Effective Hot Zone (mm)	500×500×700	600×600×900	700×700×1100	800×800×1200	900×900×1600
Load Weight (KG)	300	500	800	1200	2000
Max Temperature (ºC)	1350	1350	1350	1350	1350
Temp Uniformity (ºC)	±5	±5	±5	±5	±5
Vacuum Degree (Pa)	4.0 E -1 / 6.7 E -3	4.0 E -1 / 6.7 E -3	4.0 E -1 / 6.7 E -3	4.0 E -1 / 6.7 E -3	4.0 E -1 / 6.7 E -3
Quenching Pressure (bar)	6-25	6-25	6-25	6-25	6-25

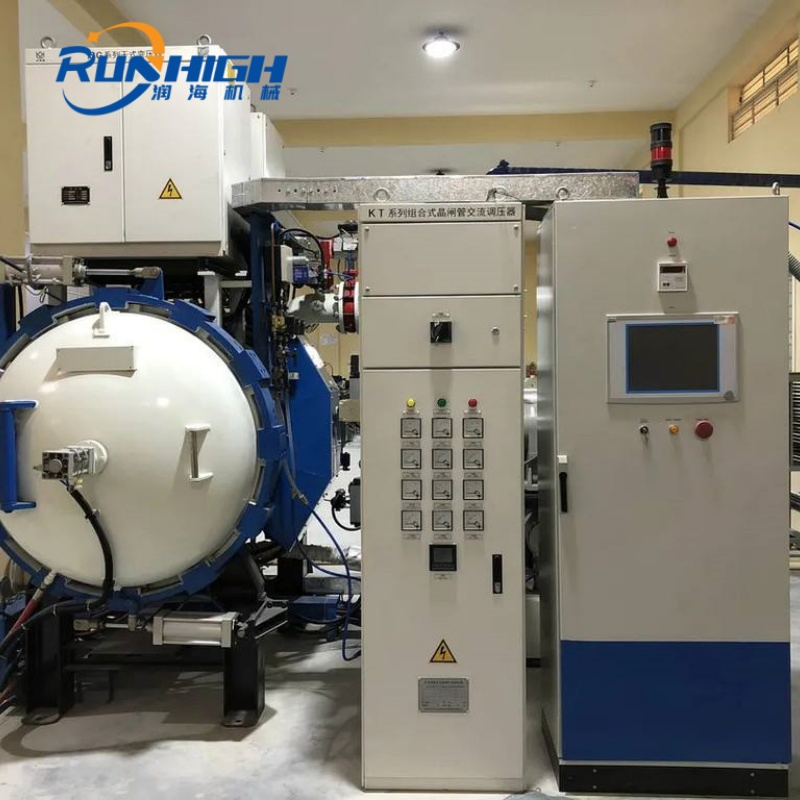

Furnace Structure & Components

Structure Type

Single horizontal/vertical chamber; Assembly line combinations available.

Door Mode

Rotary or Flat type opening modes.

Heating Element

Graphite heating element or Molybdate composite structure.

Control System

Siemens, OMRON, or Mitsubishi PLC systems.

HMI

Computer touch screen or Analog screen options.

Electronics

Schneider or Siemens high-quality components.

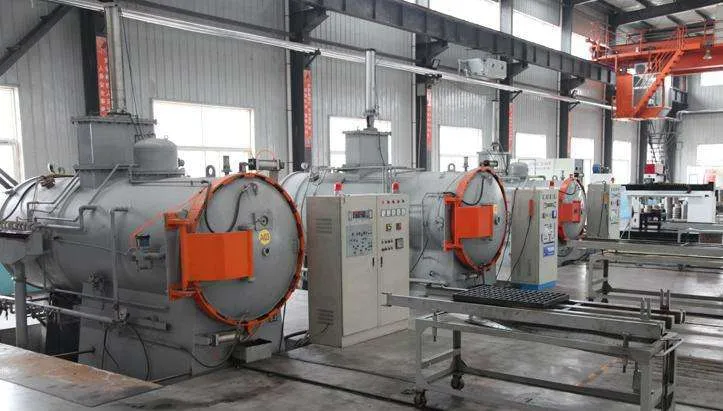

Manufacturing & Quality

The facility covers an area of 3,200 square meters with a robust annual production capacity. Leveraging advanced technologies from Europe and America, the technical research team provides innovative solutions across steel metallurgy, aerospace, military, medical, and automotive sectors. Products are exported to nearly 20 countries including Australia, Russia, Mexico, Hungary, and India.

Our Advantages

Frequently Asked Questions

1. Are you a manufacturer? +

Yes, we are a professional manufacturer specializing in industrial thermal processing equipment with extensive production facilities and a dedicated technical team.

2. Can I request a special design or customization? +

Absolutely. We offer comprehensive customized services to meet specific technical requirements and process needs of our clients.

3. How is installation and commissioning handled overseas? +

We provide remote guidance and on-site overseas services. Engineers can be dispatched to your factory for equipment debugging and staff training.

4. What range of products do you offer? +

Our portfolio includes electric furnaces, molding equipment, shell making systems, wax processing units, vacuum furnaces, and post-processing equipment.

5. What is the typical delivery time? +

Standard production usually takes approximately 30 days, though this may vary depending on the order quantity and customization complexity.

6. What are the accepted terms of payment? +

We support T/T and L/C payment terms. Generally, a 30% deposit is required via T/T after signing the contract, with the remaining 70% balance due before delivery.
