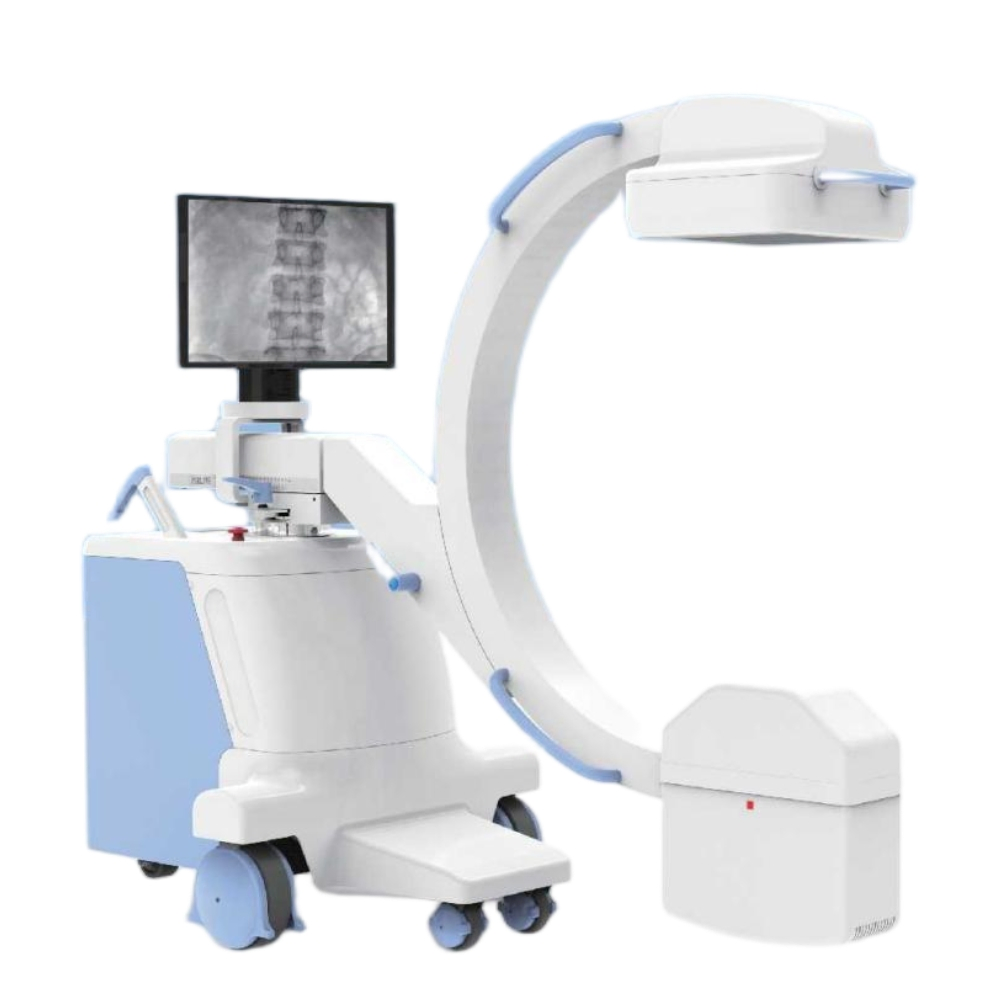

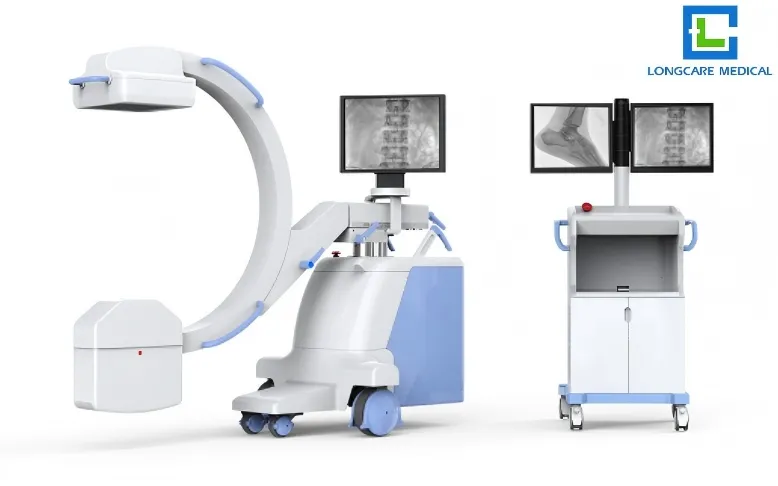

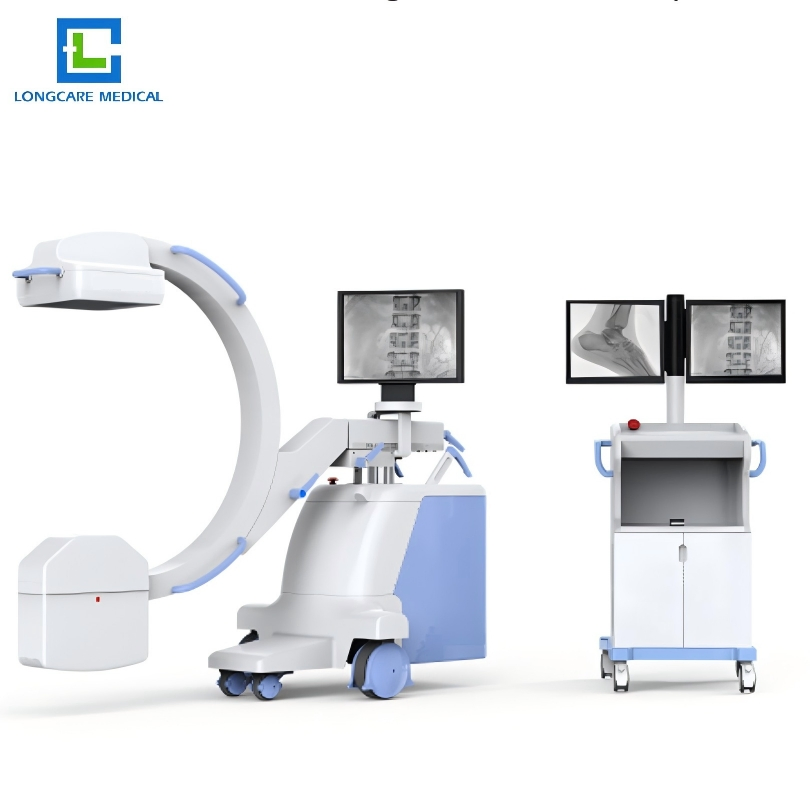

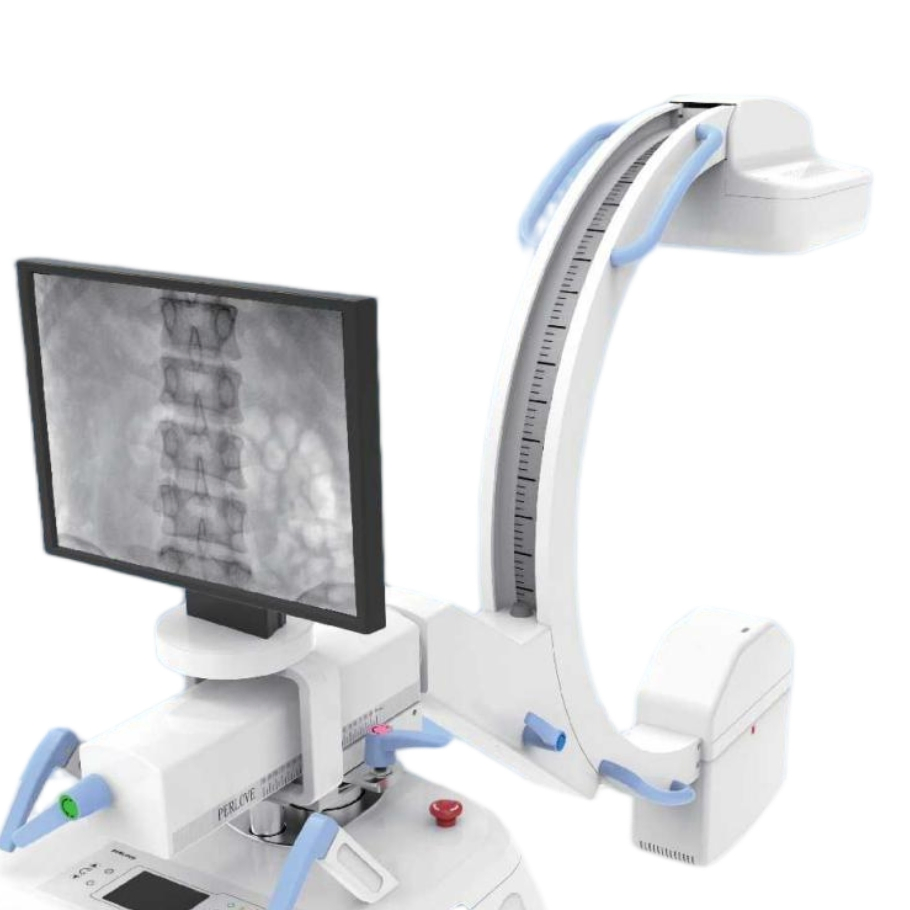

Mobile Surgical C-Arm System 5kw with Flat Panel Detector
Mobile Surgical C-Arm System 5kw with Flat Panel Detector
Mobile Surgical C-Arm System 5kw with Flat Panel Detector
1 / 3
Mobile Surgical C-Arm System 5kw with Flat Panel Detector
Mobile Surgical C-Arm System 5kw with Flat Panel Detector
Mobile Surgical C-Arm System 5kw with Flat Panel Detector

Mobile Surgical C-Arm System 5kw with Flat Panel Detector

Classification: Imaging Diagnostic Equipment
Type: X Ray Equipment
Certification: CE, ISO13485
Send Inquiry

Product Description

Basic Specifications

Model NO.
YHX118F
Group
Medical Devices
Output Power
5kw
Voltage
40-120kv
Flat Panel Detector
Dynamic 9inch
Display
19inch 3PCS
Transport Package
Wooden Case
Specification
2500x1100x1480mm
HS Code
9022140090
Production Capacity
1000 Pieces/Year
⭐ Product Application

This Mobile Surgical C-arm system is widely utilized in orthopedic departments for spine surgery, joint surgery, trauma surgery, pain management, and other clinical interventions requiring high-precision imaging.

Mobile Surgical C-Arm System 5kw with Flat Panel Detector

Main Technical Specifications

Parameter Specification Details
Output power5kW
Inverter frequency110kHz
Voltage range40-120kV
Pulse fluoroscopy0.3-30mA
mAs1-280mAs
Tube focus0.3mm/1.5mm
Flat panel detector9 inch
Pixel size205μm
Resolution2.5Lp/mm
Movement rangeSID:1000mm; Depth 660mm, Free space 800mm, vertical 400mm motorized, lateral 200mm
Workstation display19 inch LCD display 3pcs

Key Features & Advantages

Adapted the most-advanced dynamic FPD with big field, high resolution, high dynamic range, and zero distortion.
9*9 inch effective field of the flat panel detector meeting imaging requirements for general anatomy.
Professional RCDPS software for rapid dynamic image processing, enhancement, and analysis.
Gigabit Ethernet connection for safe and swift image acquisition; fully compliant with Dicom 3.0 standards.
High power combined with high frequency X-ray source realizing pulse fluoroscopy with low skin dose.
Human graphical interface with true color LCD touch screen and digital intelligent control.
Automatic brightness tracking function and multiple automatic protection features with fault tips.
Flexible C-arm main frame design applicable to all kinds of surgical environments.

Product Gallery

C-arm Detail 1
C-arm Detail 2
C-arm Detail 3
C-arm Detail 4
C-arm Detail 5
C-arm Detail 6
C-arm Detail 7
C-arm Detail 8

Frequently Asked Questions

What are the main applications for the YHX118F C-arm?
It is widely used in orthopedics for spine surgery, joint surgery, trauma surgery, and pain management.
What type of detector does this system use?
The system is equipped with a high-resolution 9-inch Dynamic Flat Panel Detector (FPD) for distortion-free imaging.
Does the workstation support PACS system connectivity?
Yes, it adopts the international Dicom 3.0 standard, making it convenient to connect to PACS systems for transmission and printing.
How many displays are included with the system?
The workstation includes three 19-inch LCD displays to ensure clear viewing and data management.
Is the radiation dose controlled for patient safety?
Yes, it uses a high-frequency pulse fluoroscopy mode combined with a high-power X-ray source to achieve high-quality images with low skin dose.
Is the movement of the C-arm motorized?
The system features a motorized vertical movement of 400mm and a lateral movement of 200mm for flexible positioning.
