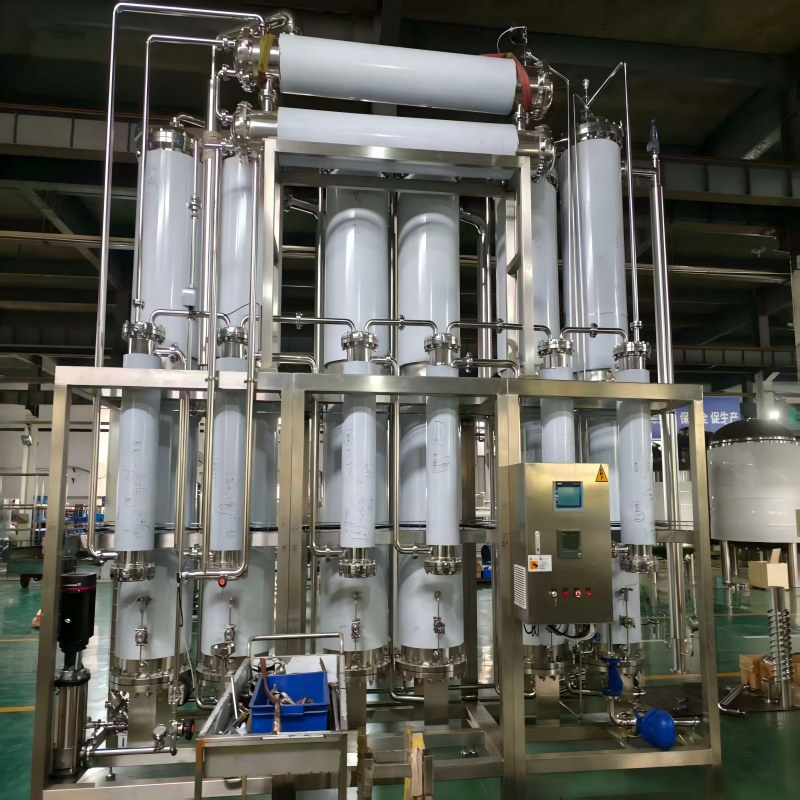

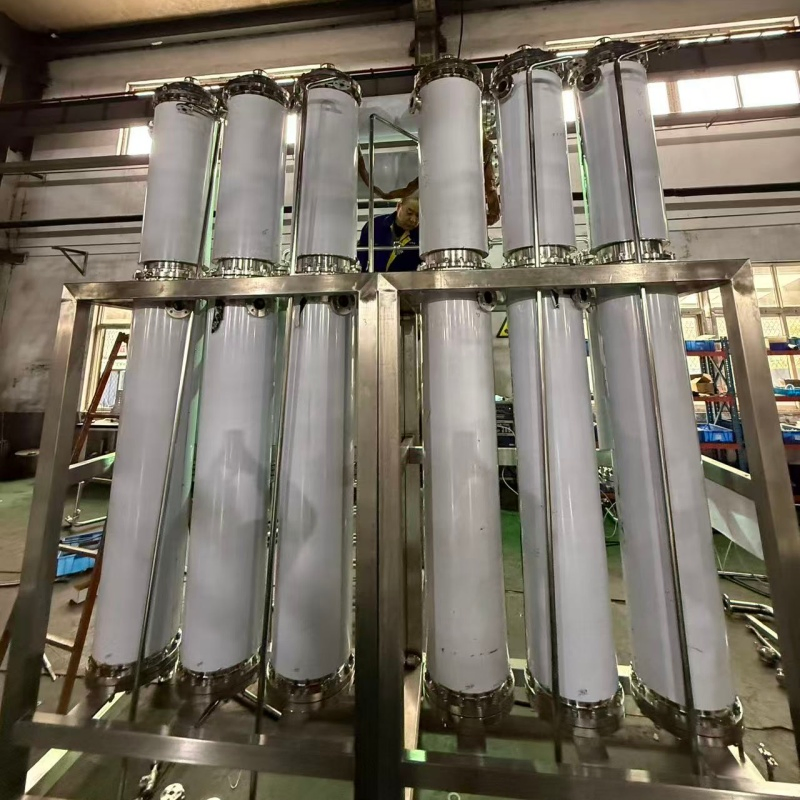

Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
1 / 5
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System
Lds 6000L/H Automatic Six Column Industrial Water Purification System

Lds 6000L/H Automatic Six Column Industrial Water Purification System

Customization: Available
Application: Pharmaceutical Industry
Disposable: No
Send Inquiry

Product Description

📋 Basic Information
Model NO.
6000L
Injection Site
Intramuscular
Material
Glass, Plastic
Needle Gauge
21G
Safety Feature
Needle Guard
Usage
Medical, Pain Management, Vaccine Administration
Warranty
One Year
Feed Water
Purified Water
Heating Source
Industrial Steam
Separation Device
Three Stage Separation Device
Structure Form
Double Tube Plate design
Control System
Full Automatic
HS Code
8419409090
Production Capacity
6000L/H
💡 Product Description

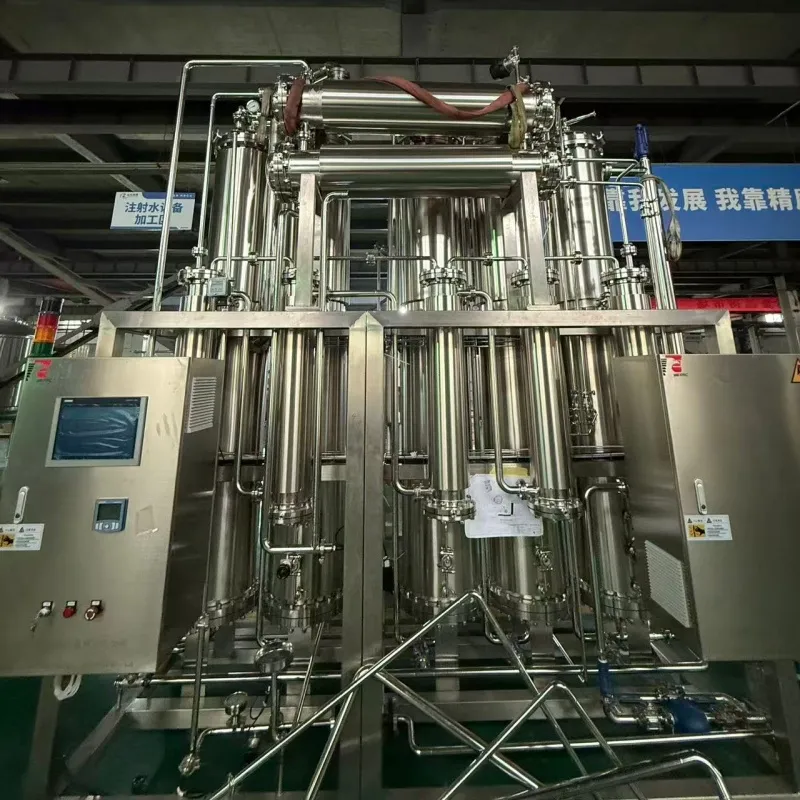

Industrial Water Purification System
Multi-effect Water Distiller Introduction
The six-effect distilled water (WFI Generation plant) is an equipment that uses purified water as raw material and industrial steam to heat water for injection. No external cooling water is required. The produced water meets the specifications of Chinese Pharmacopoeia (CP2020), United States Pharmacopoeia (USP43), and European Pharmacopoeia (EP10).
✔
Structural form: External preheater, condenser, and first effect evaporator feature a double tube sheet plate design with internal tube sheet expansion and external welding to avoid cross-contamination.
✔
Separation device: Features falling film evaporation, gravity separation, and spiral turbulence three-stage separation for maximum non-condensable gas discharge.
✔
Material: SS316L is used for all parts in contact with raw water, water for injection, and secondary pure steam.
✔
Thermal insulation: Insulated with aluminum silicate needle felt for excellent stability and thermal performance.

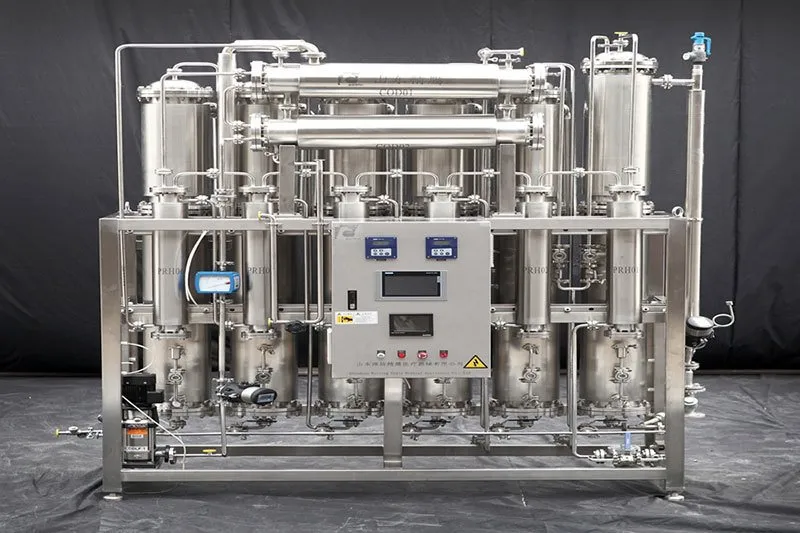

System Detail 1

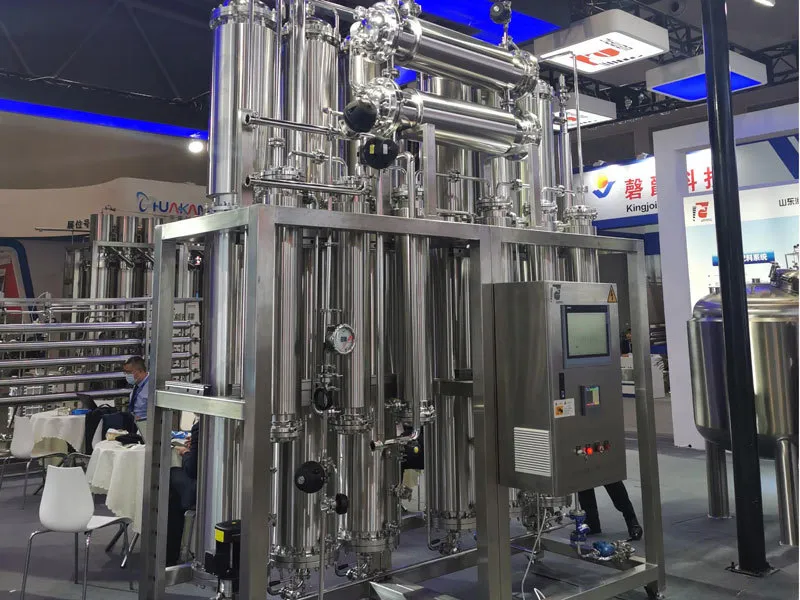

System Detail 2
⚙ Technical Specifications

Energy Saving & Efficiency: Utilizing secondary steam step-by-step ensures high industrial steam utilization. Consumption ratios: Industrial steam 1:0.21; Raw water 1:1.08. No external cooling water is needed.

Advanced Construction: Stainless steel pipes utilize direct elbow stretching to minimize welding. Argon protected automatic welding ensures high quality followed by electrochemical polishing.

Model Industrial Steam Consumption Feed Water Consumption Cooling Water Consumption
LDS6000-6 1350 6600 0

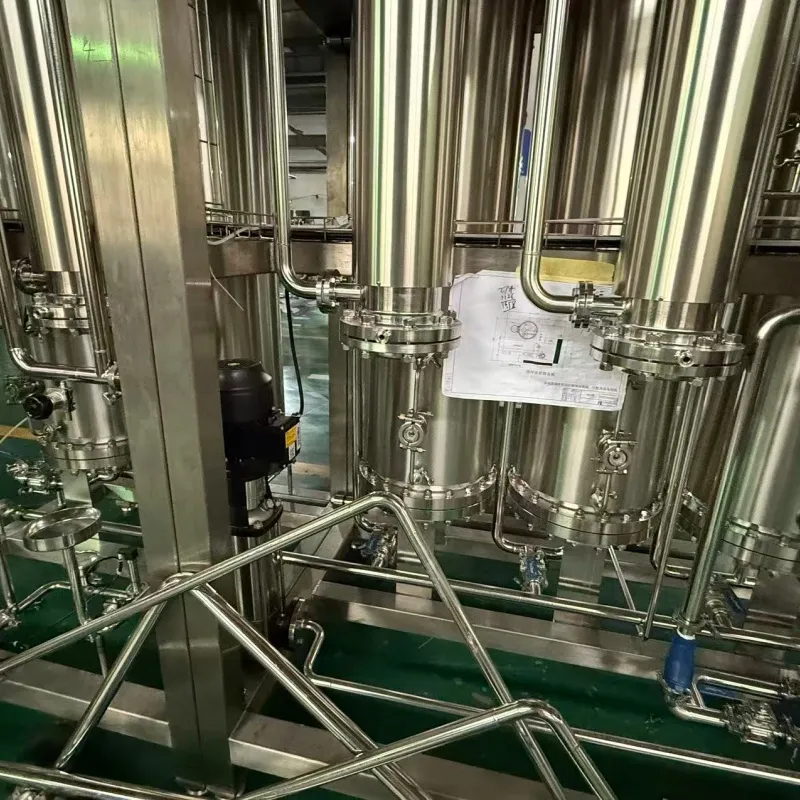

Vertical Component View

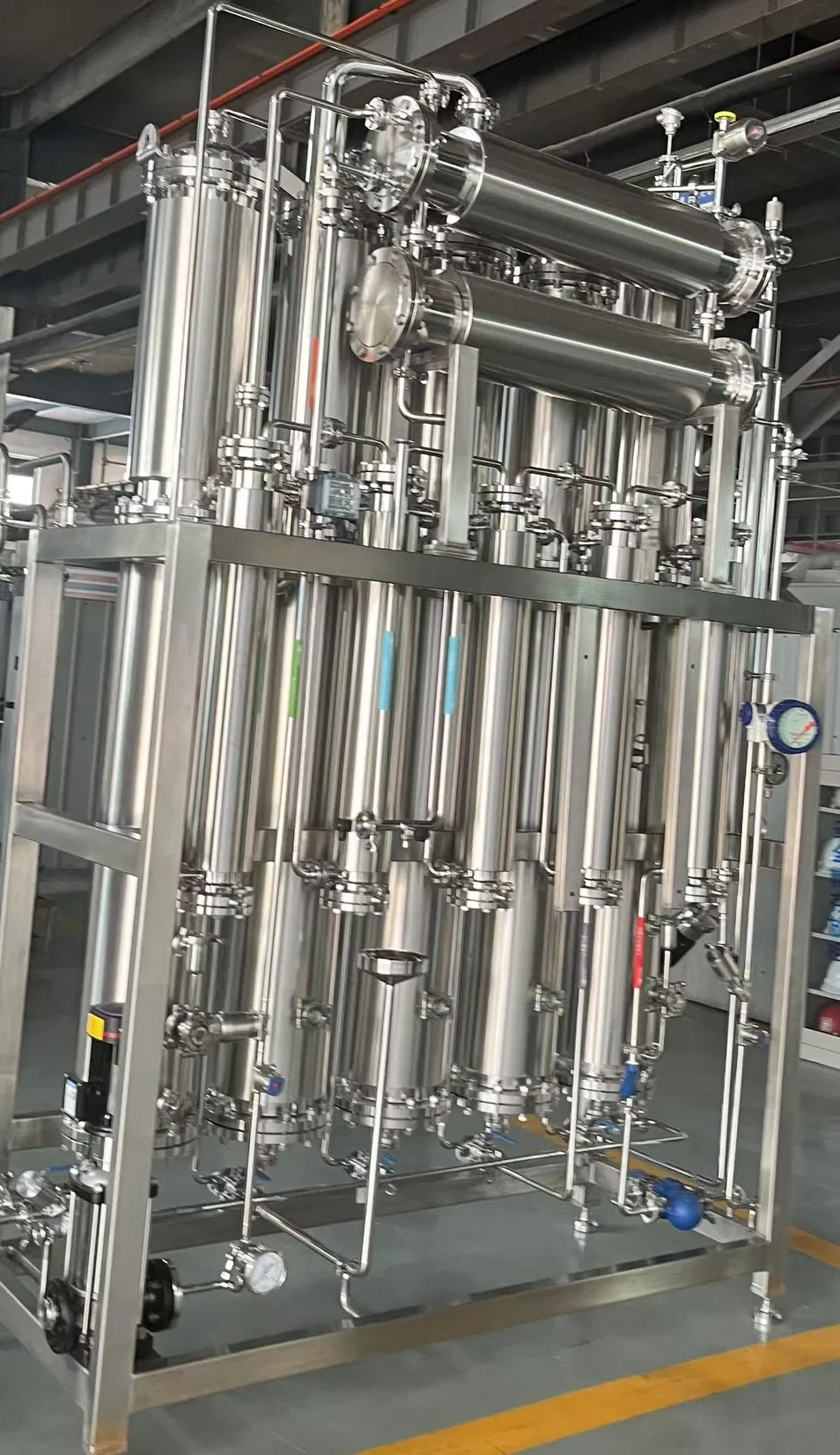

Internal Structure View

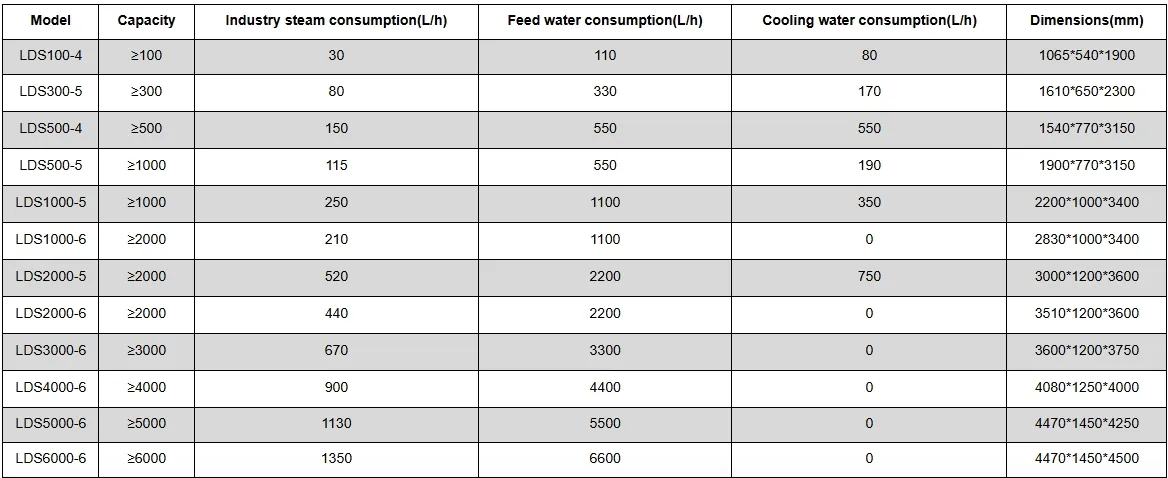

Full System Layout
📦 Packing & Delivery
Package Size
460.00cm * 140.00cm * 490.00cm
Gross Weight
6800.000kg
Transport Package
Wood Packing

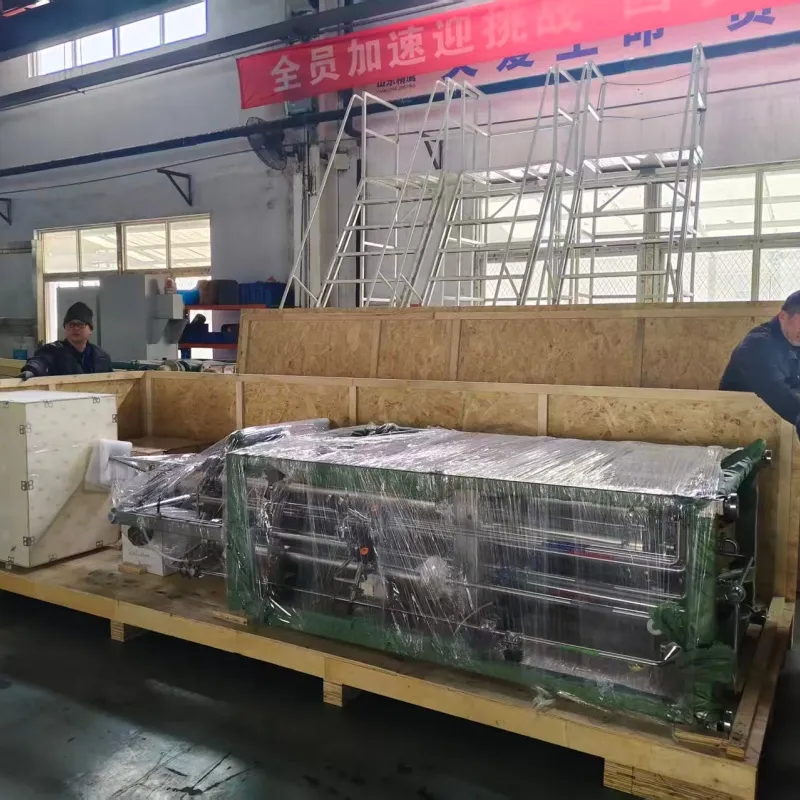

Shipping and Packaging
❓ Frequently Asked Questions
Does this system require external cooling water?
No, the six-effect distilled water machine is designed to operate without the need for external cooling water, significantly reducing resource consumption.
What pharmacopoeia standards does the produced water meet?
The water for injection produced meets the strict specifications of the Chinese Pharmacopoeia (CP2020), United States Pharmacopoeia (USP43), and European Pharmacopoeia (EP10).
Which materials are used for parts in contact with water?
High-grade SS316L stainless steel is used for all components that come into contact with raw water, water for injection, and secondary pure steam.
How is cross-contamination prevented in the structure?
We utilize a double tube sheet plate design for the external preheater, condenser, and first-effect evaporator, combined with internal expansion and external welding to ensure zero cross-contamination.
What kind of control system is integrated?
The system features a full-automatic HMI + PLC control system. It supports SCADA for online data acquisition, monitoring of conductivity, temperature, and flow, with at least three levels of user permissions.
What is the steam and raw water consumption ratio?
The system is highly energy-efficient with an industrial steam consumption ratio of 1:0.21 and a raw water consumption ratio of 1:1.08.
