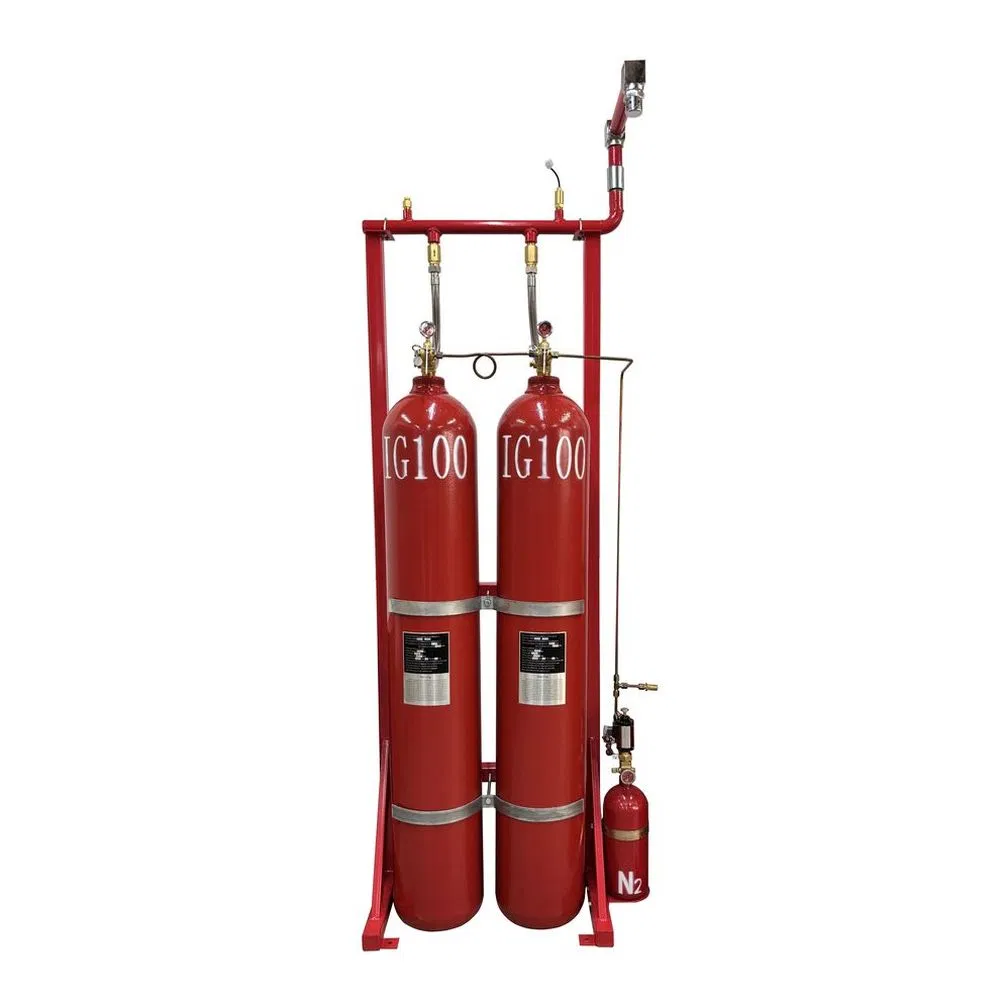

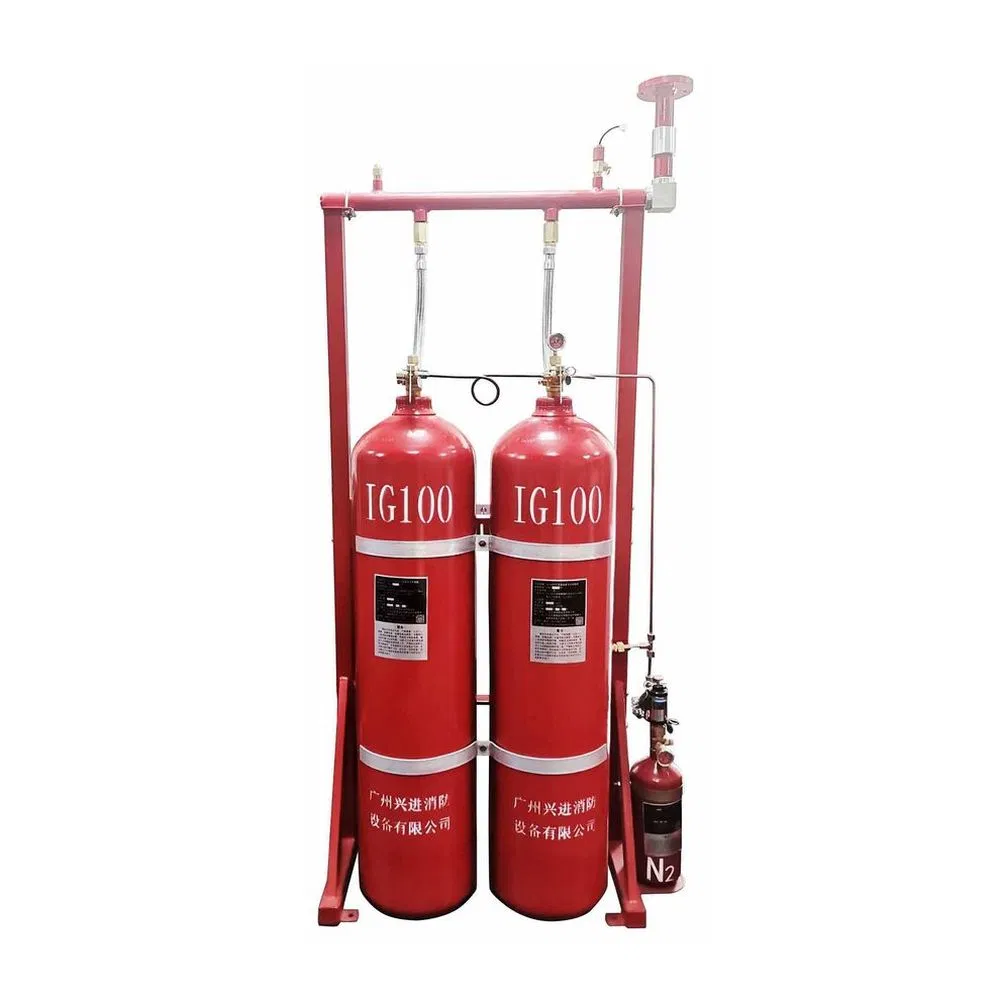

Advanced Inergen Ig100 Fire Safety System for High Heat Environments

1 / 5

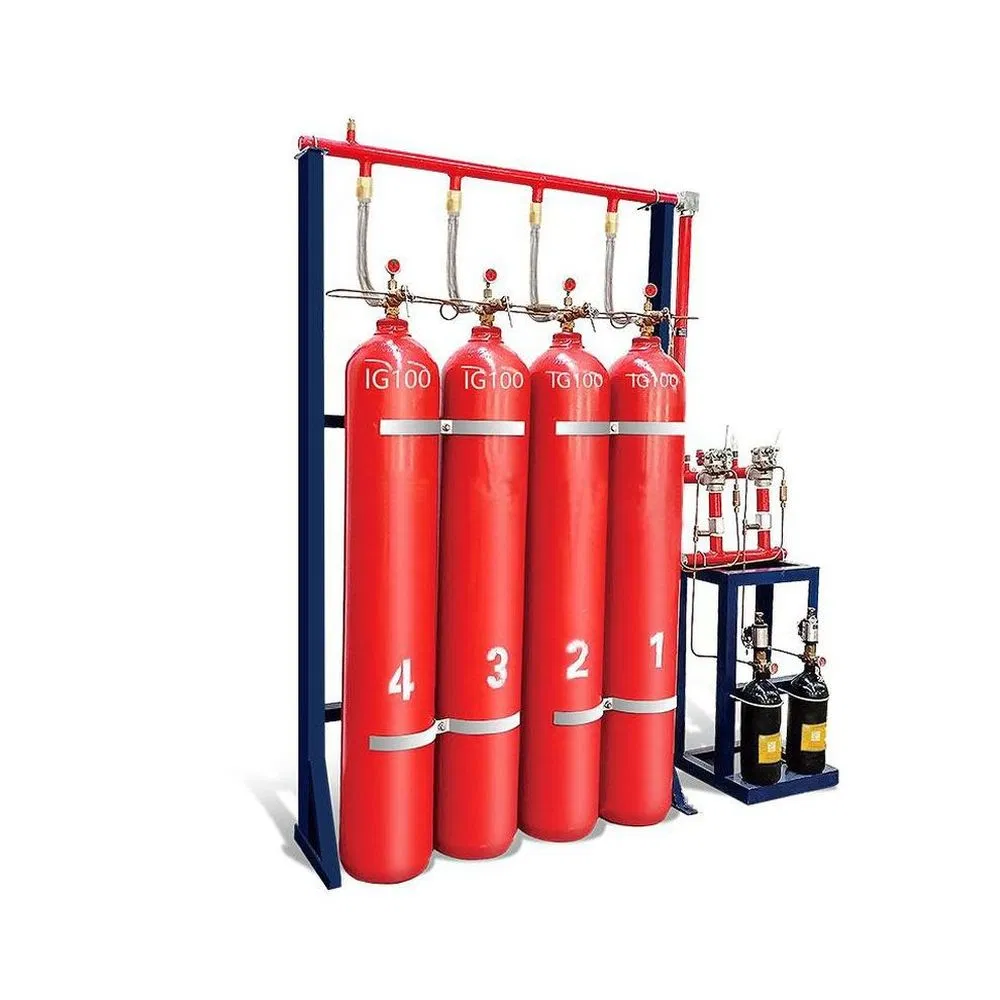

Advanced Inergen Ig100 Fire Safety System for High Heat Environments

Customization:	Available
Agent:	Ig100(100% Nitrogen)
Type:	Transportable Fire Extinguisher

Send Inquiry

Product Description

⭐ Basic Information

Model NO.	IG100 Fire Suppression System	Object	Class F Fires
Size	100kg	Certification	CCCF, GB8013-2005, CCC, CE
Effective Range	9m	Retirement Life	12 Years
Working Pressure	20MPa	Device Model	QMH20/80
Cylinder Diameter	286mm	Cylinder Height	1910mm
Capacity	80LTR, 90LTR	Filling Rate	0.299kg/L
Power Source	Gas Fire Extinguisher (DC24V/1.6A)	Actuation	Automatic or Manual Start

Advanced Inergen IG100 Fire Safety System

📋 Product Description

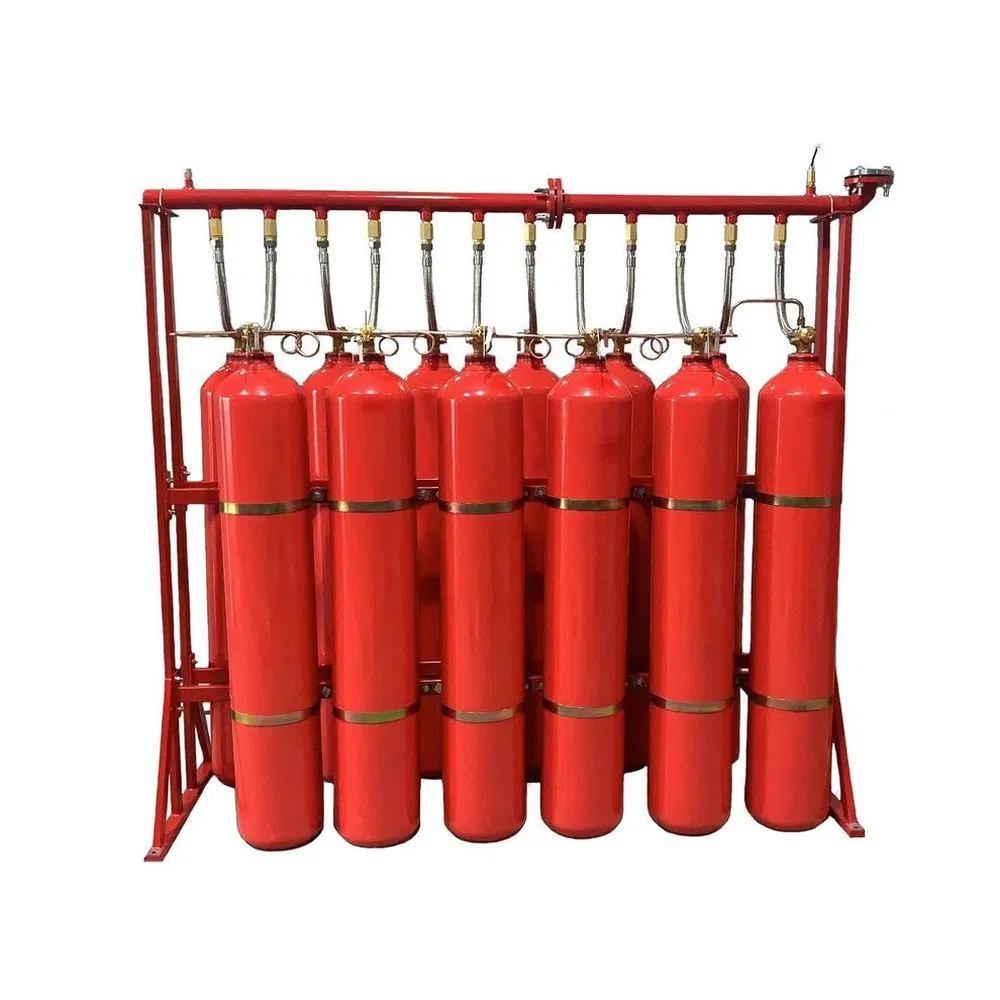

Inergen Fire System Overview

The Inergen Fire System is an efficient fire extinguishing technology that uses inert gas to extinguish fires. This system releases gases such as nitrogen, argon, and carbon dioxide to reduce oxygen concentration at the fire scene, suppressing the spread of fire. Since inert gas does not participate in combustion, it effectively cuts off the oxygen supply.

This system produces no harmful chemicals, is harmless to the environment and the human body, and is considered an eco-friendly safety method. It leaves no residue and ensures the normal operation of protected equipment is unaffected.

Applications: Especially suitable for high-value equipment areas such as computer rooms, communication rooms, transformer rooms, electrical distribution rooms, precision instrument rooms, archives, and libraries where water-based systems are unsuitable.

⚙️ Product Parameters

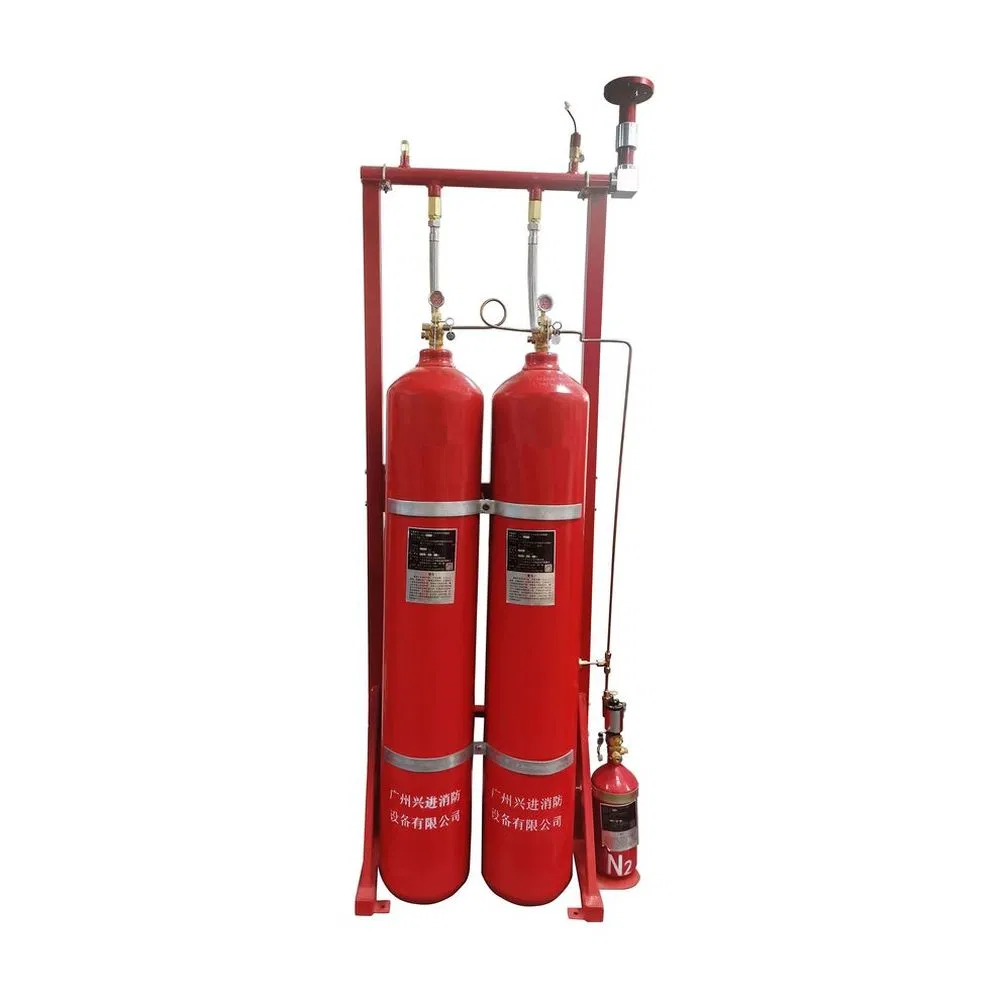

IG100 FIRE SUPPRESSION SYSTEM SPECIFICATION
Product Name	IG100 Fire Suppression System
Working Pressure	20MPa
Device Model	QMH20/80
Capacity	80Ltr / 90Ltr
Filling Capacity of Gas	23.9Kg
Spraying Time	≤120 Seconds
Nitrogen Pressure of Driving Device	6.0±1.0Mpa (20ºC)
Operating Temperature	-20 ~ 50ºC
Max Working Pressure	23.2Mpa
Agent Type	IG100 (100% Nitrogen)
Pattern of Extinguishing	Enclosed Flooding
Power Supply	DC24V / 1.6A

🔍 Detailed Features

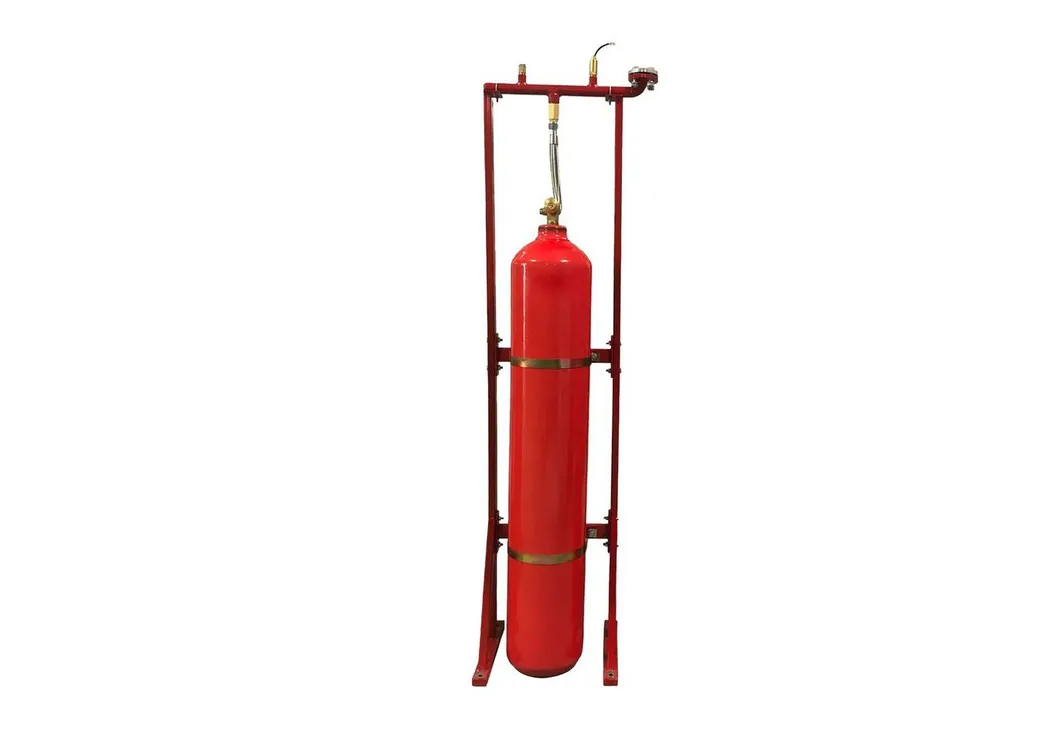

Environmentally Friendly

Uses natural gases (Nitrogen, Argon, CO2) found in the atmosphere. It will not damage the ozone layer and meets all modern environmental protection requirements.

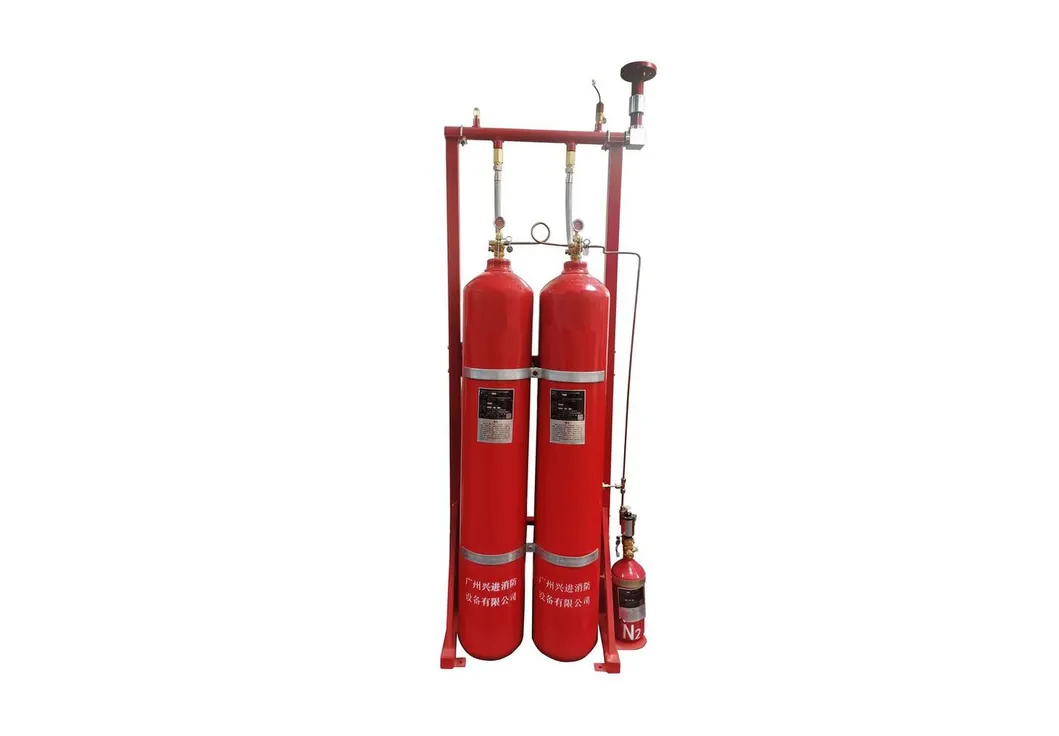

Safe and Reliable

Inert gas fire extinguishing agents produce no harmful chemical byproducts. There is no risk of high pressure or temperature surges that could harm personnel or equipment during discharge.

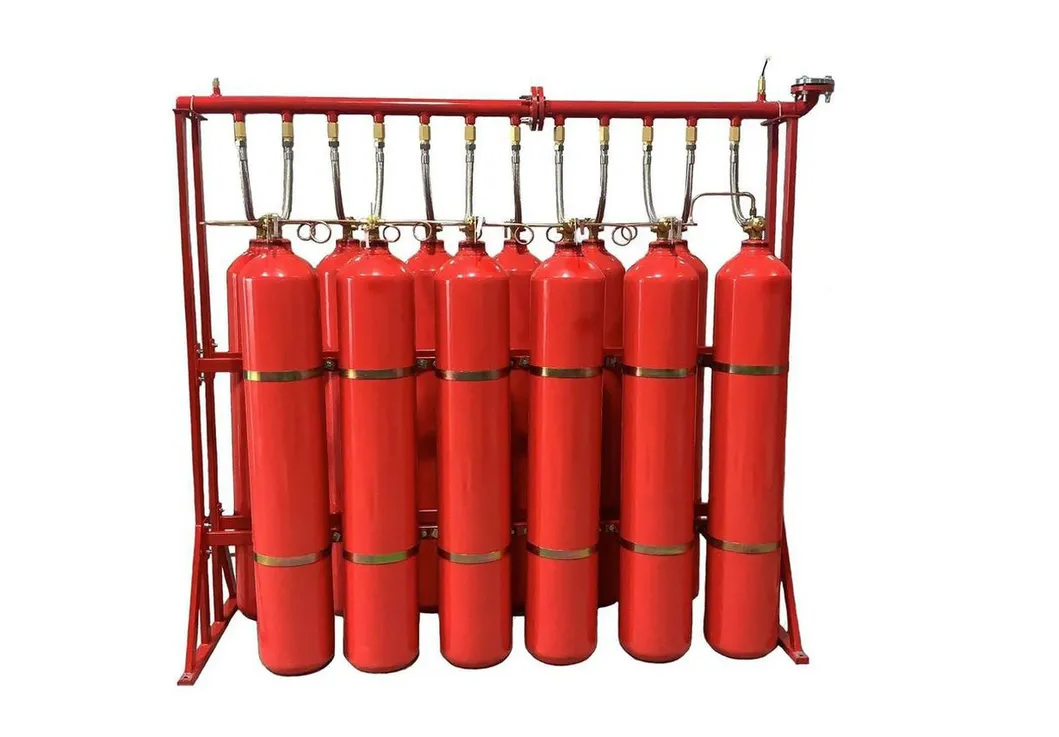

Protective Equipment

Leaves zero residue. It is non-conductive and non-corrosive, making it the ideal choice for protecting precision instruments, electronics, and important physical documents.

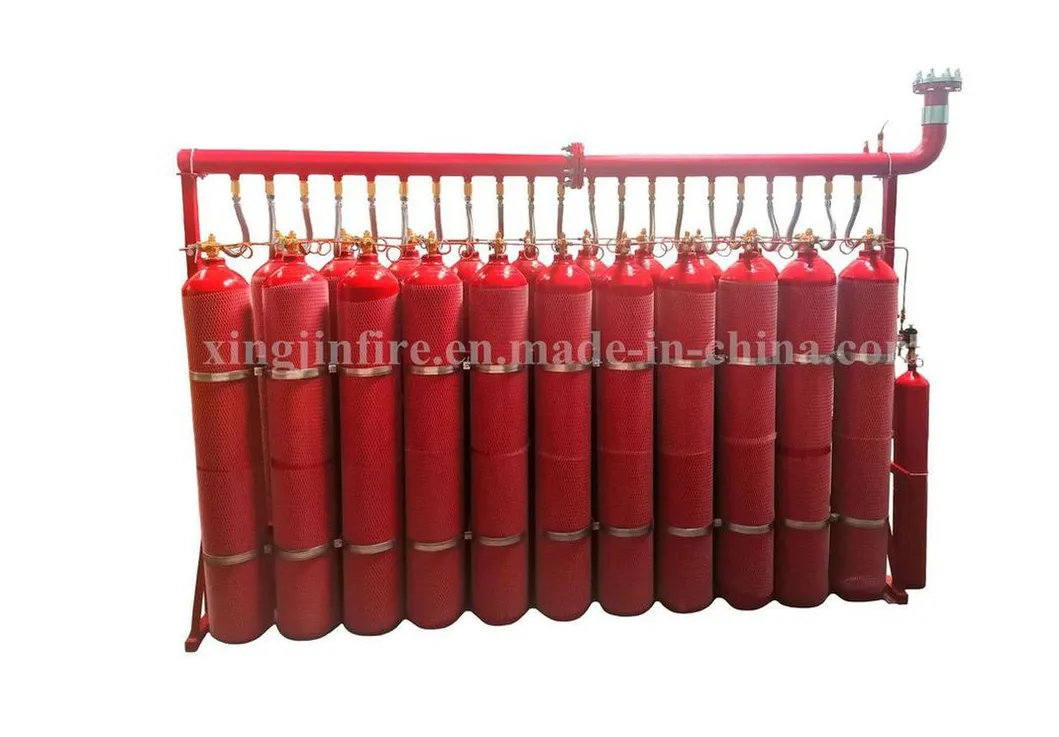

High Fire Extinguishing Efficiency

The system rapidly reduces oxygen levels to extinguish fires quickly. Typical suppression occurs within 30 to 60 seconds after activation.

Frequently Asked Questions

💡 Q1: What is the primary extinguishing agent in the IG100 system?

A1: The primary agent is IG100, which consists of 100% pure Nitrogen. It is a clean, dry, and non-conductive gas that is naturally present in the atmosphere.

💡 Q2: Is the IG100 Inergen system safe for occupied rooms?

A2: Yes, IG100 is safe for occupied spaces. It reduces the oxygen concentration to a level that suppresses combustion but remains safe for human breathing for a short duration during evacuation.

💡 Q3: Does the system leave any residue after discharge?

A3: No, the system leaves absolutely no residue. This eliminates the need for costly cleanup and allows your equipment and operations to resume immediately after the fire is extinguished.

💡 Q4: How fast does the IG100 system extinguish a fire?

A4: The IG100 system is designed for rapid response, typically extinguishing fires within 30 to 60 seconds by quickly reducing the oxygen concentration in the protected area.

💡 Q5: What kind of maintenance is required for these systems?

A5: Regular inspections are required, including monthly visual checks of pressure gauges and annual professional maintenance to ensure cylinder integrity and actuator functionality.

💡 Q6: Can the system be started manually?

A6: Yes, the IG100 system supports both automatic activation via fire detectors and manual activation through a mechanical or electrical pull station.
