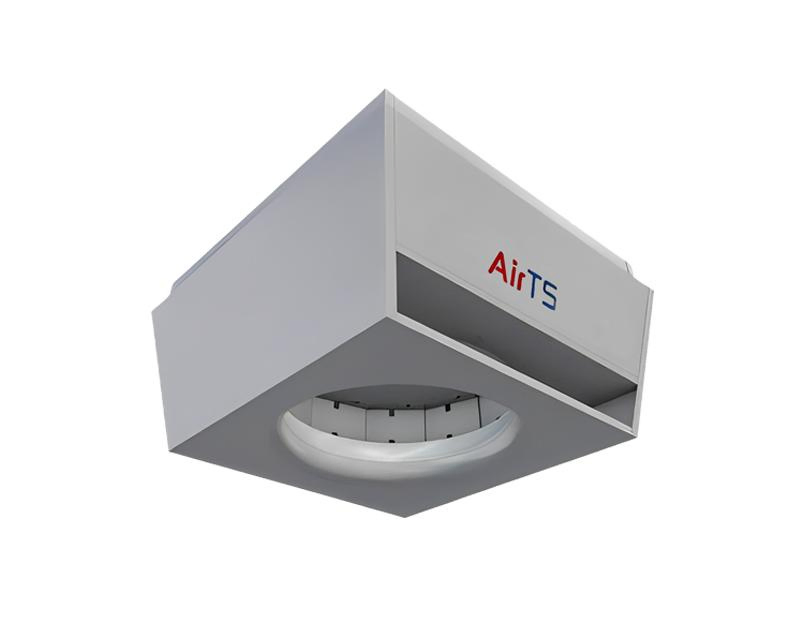

Industrial Heating Heater System for High Ceiling Factories Uniform Heat Distribution

1 / 5

Industrial Heating Heater System for High Ceiling Factories Uniform Heat Distribution

Customization:	Available
After-sales Service:	Long Term
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

AirTS-D

Type

Air Handling Unit

Operating Voltage

380/400 VAC

Noise Level

Low

Mounting

Ceiling Mount

Lifetime

15~20 years

Certification

RoHS, ISO, CE, CCC

Control Mode

Vav Stepless Regulation

Function

Heating, Fresh Air, Top Heat Recovery

Installed Height

4-30 Meter

Standard Air Volume

0~6700 M3/H

Application

Workshop, Farms, Warehouse

Product Description

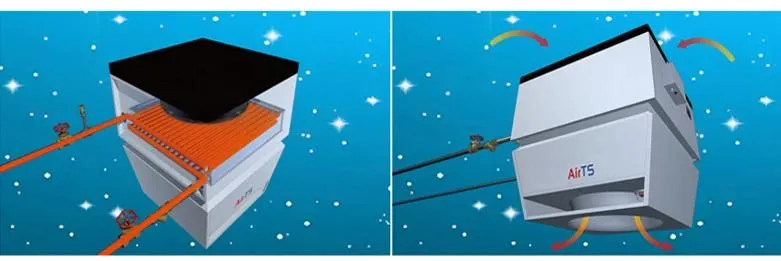

Working Principle

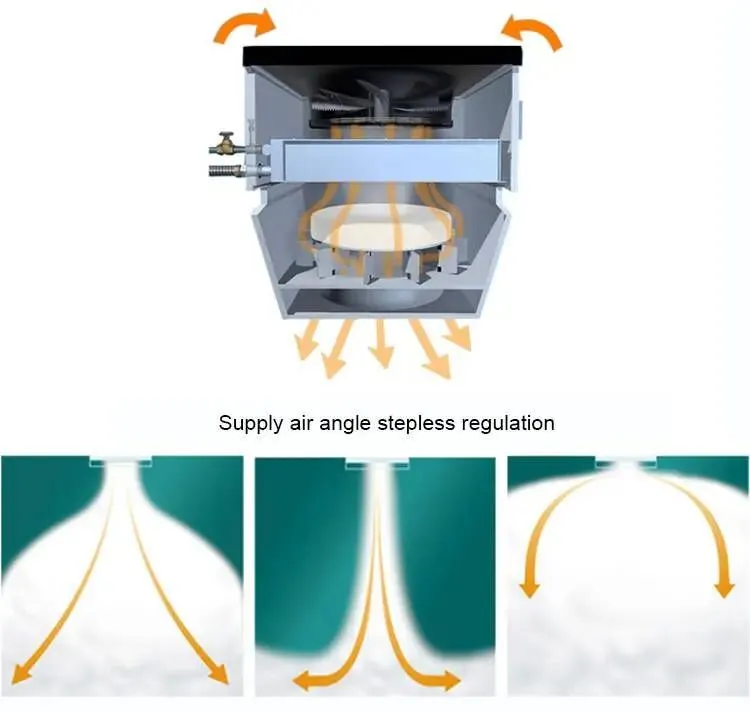

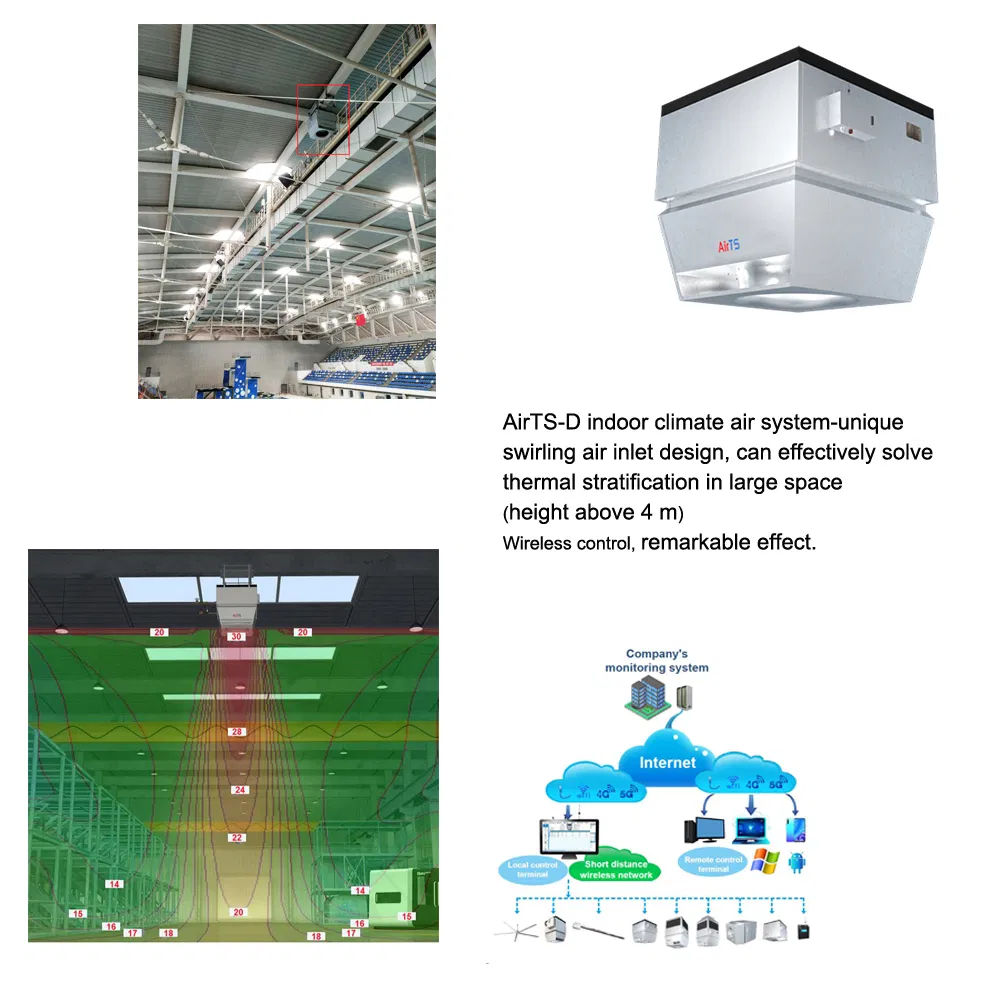

When hot water or steam passes the equipment, the efficient heat exchanger in the equipment is used to achieve rapid heating of the air.

The large wind pressure axial fan installed on the top is used to forcedly press the hot air down. Then the air is subject to pressure boost twice through the silencer sponge and the lower trapezoidal convergence, swirls out from the nozzle through the guide vane and is distributed throughout the space from top to down.

Core Features

Adjustable wind speed and air outlet angle for a comfortable heating environment.
Supply air angle stepless regulation.
Utilizes axial fan to efficiently recover heat from the top, reducing heat loss from the roof.
Uniform arrangement ensures even heat distribution across large spaces.
Decreases temperature difference with the outside, significantly reducing heat loss.
Long air supply distance with high hot air volume.
Optional humidification via high-pressure misting nozzle (requires water softening system).

Technical Comparison

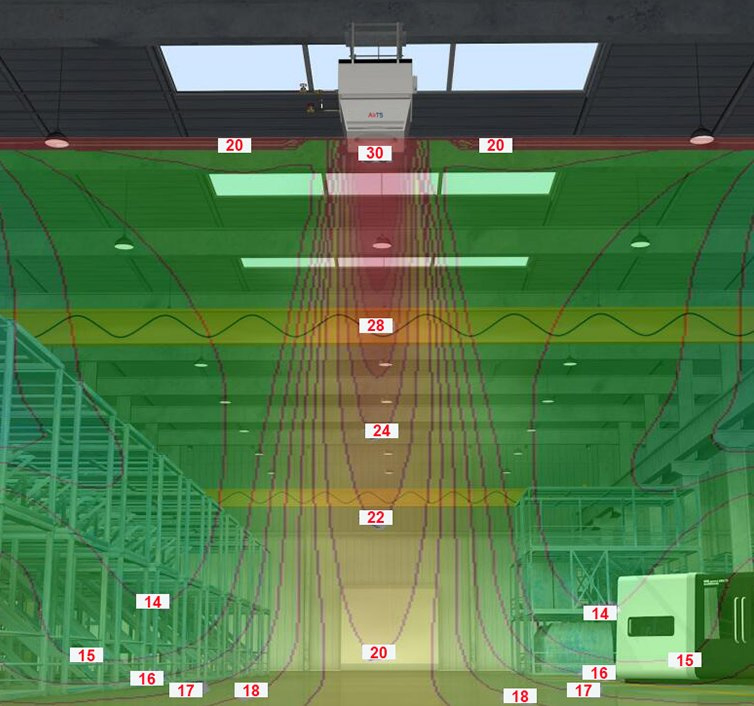

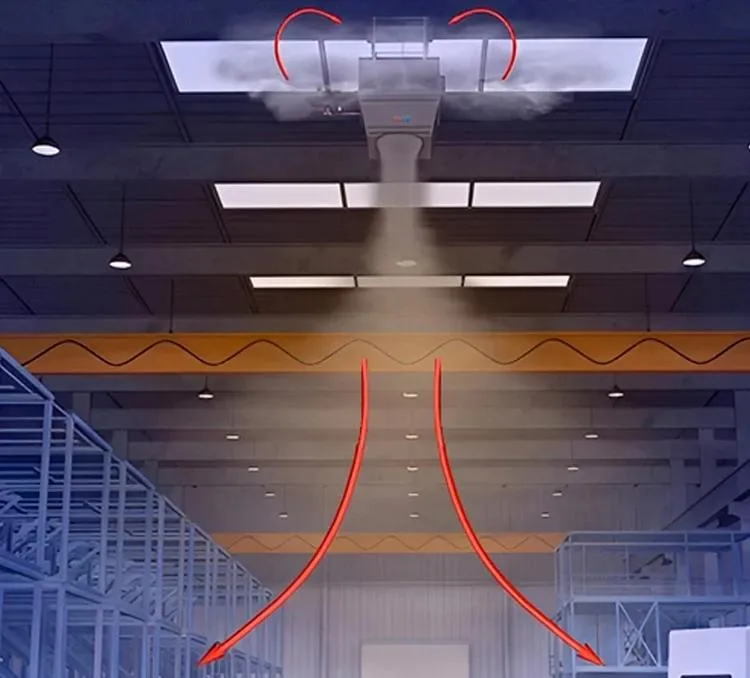

Top Heating Units: Achieves heating through an internal heat exchanger and distributes air efficiently, eliminating indoor temperature layers without wind sensation.

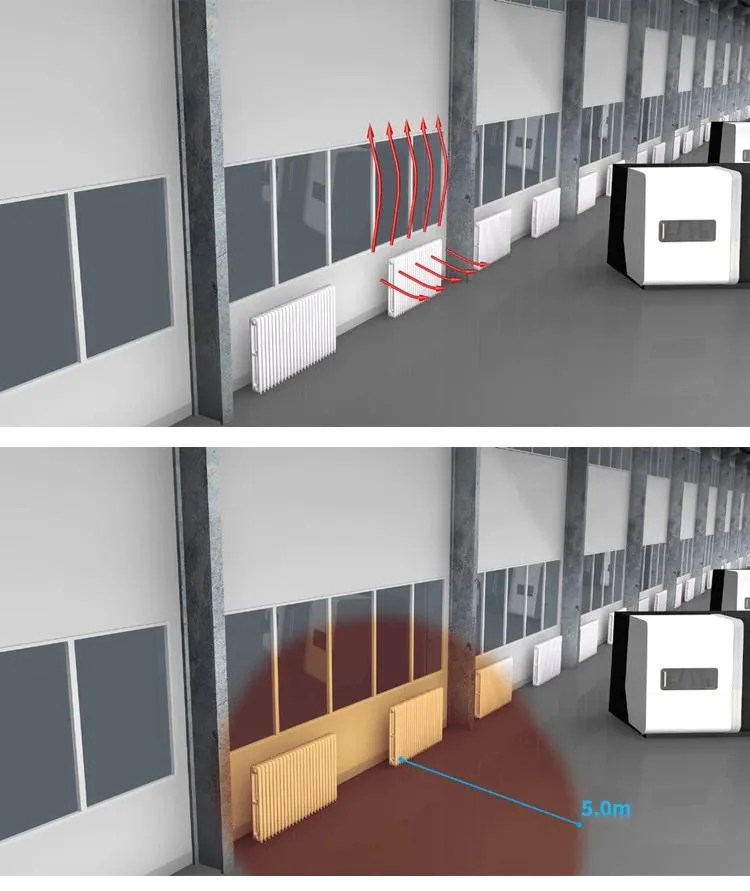

Traditional Bottom Heating: Heat rises to the roof naturally, leading to significant dissipation. Middle and lower working areas often remain cold.

Technical Specifications

Model	Unit	AirTS-D-I	AirTS-D-II
Rotating speed of fan	r/min	0~900	0~860
Standard circulating air volume	m³/h	0~6700	0~9700
Voltage	V	380±5%	380±5%
Electric power	kW	0~0.85	0~1.80
Current	A	0~1.65	0~3.60
Suitable installation height	m	4~10	4~17
Control mode	-	VAV stepless regulation	VAV stepless regulation
Noise	dB	<60	<60

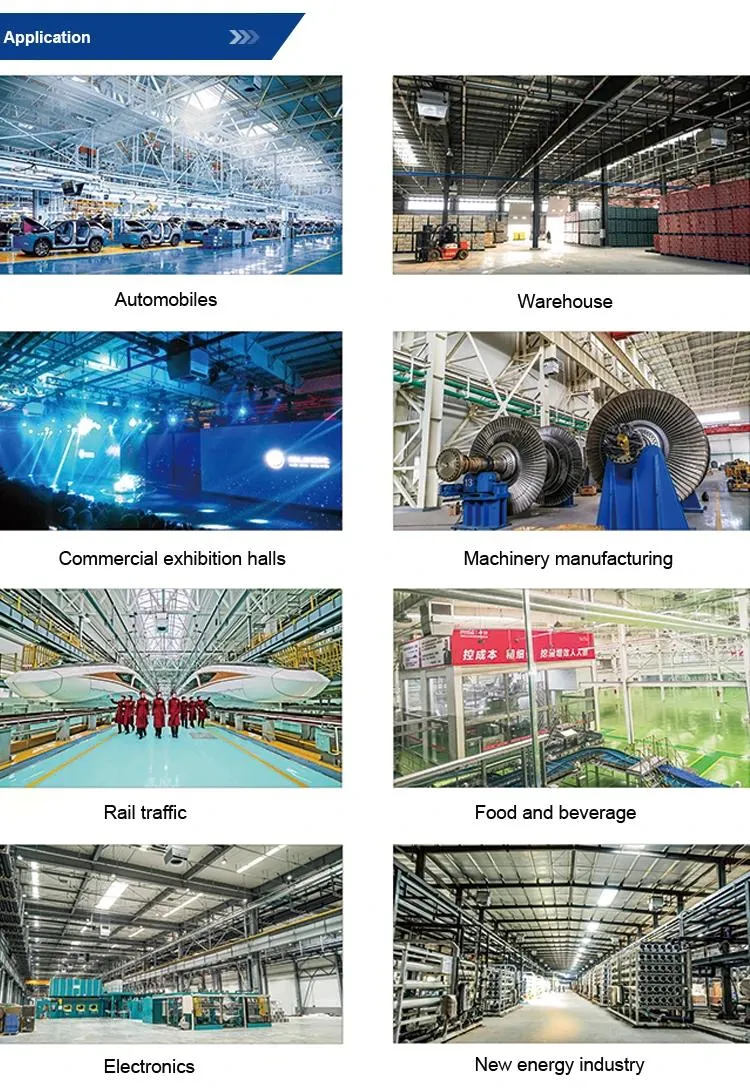

Application Cases & Facilities

Frequently Asked Questions

What types of spaces are these heating units suitable for?

These units are specifically designed for high and large spaces ranging from 4 to 30 meters in height, such as industrial workshops, warehouses, and large farms.

How does the system achieve energy savings?

By using axial fans to recover heat that naturally accumulates near the roof and forcing it back down to the working area, the system reduces heat loss through the roof and maintains a uniform temperature.

What control modes are available for the AirTS-D series?

The system utilizes a Wireless Control System with VAV (Variable Air Volume) stepless regulation, allowing for precise adjustment of air volume and temperature.

Can this unit provide cooling as well as heating?

The primary function of the AirTS-D series mentioned here is heating and fresh air recovery, but the product line also includes dedicated heating and cooling units for year-round climate control.

What is the expected lifespan of the equipment?

With proper maintenance, the industrial-grade components are designed for a long service life of approximately 15 to 20 years.

Is the installation height flexible?

Yes, depending on the specific model (D-I or D-II), the recommended installation height varies between 4 meters up to 17 meters, and up to 30 meters for specialized configurations.
