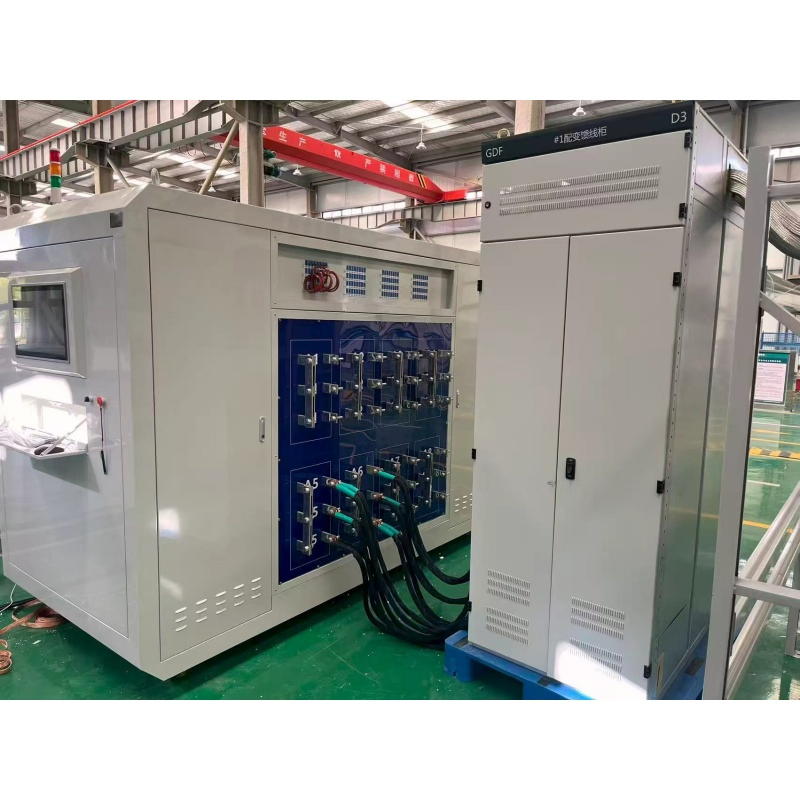

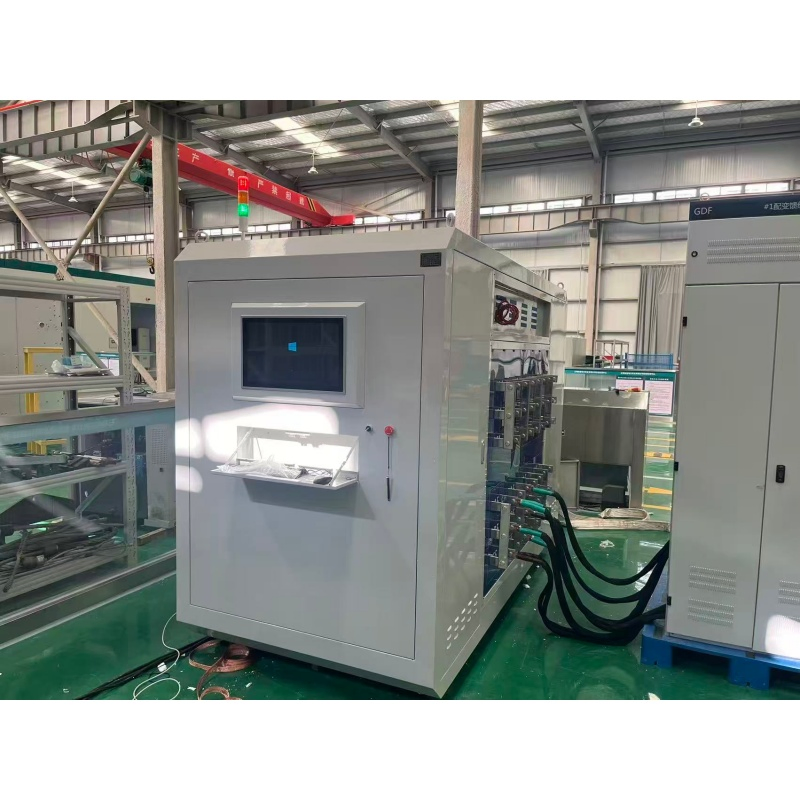

Heat Cycle Test System for Power Cable Thermal Aging and Heating Test

1 / 5

Heat Cycle Test System for Power Cable Thermal Aging and Heating Test

After-sales Service:	2year
Warranty:	2year
Max Diameter of Workpiece:	>3200mm

Send Inquiry

Product Description

Basic Specifications

Mass Scope:

3000kg

Type:

Transformer Testing

Load Way:

Electronic Load

Display:

Digital

Control:

Computer Control

Weight:

100kg~1000kg

Power Source:

AC220V±10% 50Hz±2%

Product Type:

Cable Test Equipment

Test Method:

Heat Cycle / Heating Test

Application:

Power Cables, XLPE Cables

Output Mode:

High Current Heating

Compliance:

IEC 60502 Standards

Customization:

Available Upon Request

Package Size:

2500x1060x1500mm

HS Code:

8504349000

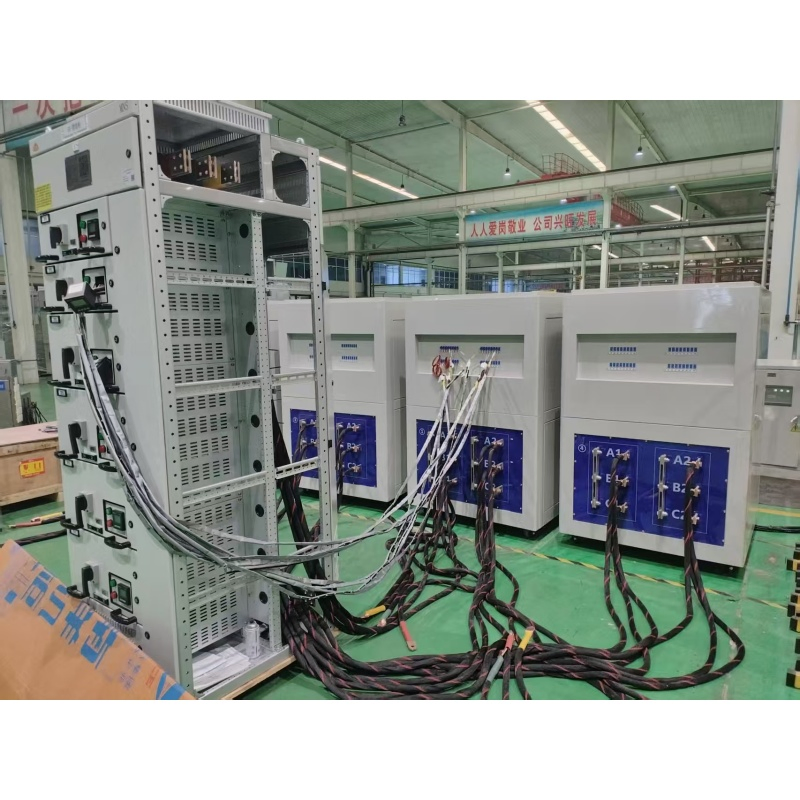

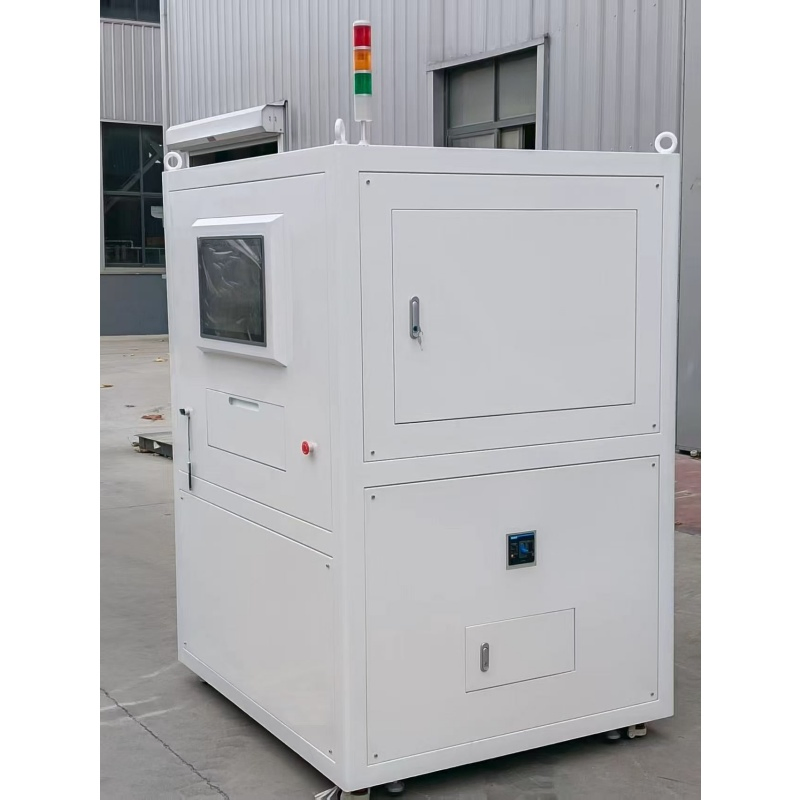

Heat Cycle Test System

The Heat Cycle Test System is designed for heavy-current heating tests of power cables, especially XLPE cables. By applying controlled high current, the system simulates long-term operating conditions to verify thermal performance, insulation reliability, and overall quality.

Widely used for type tests, routine tests, and quality verification in cable manufacturing plants and testing laboratories.

⚡ System Features

✔ Designed for heavy current heating test of power cables
✔ Suitable for XLPE and power cable thermal aging tests
✔ Automatic temperature monitoring and control
✔ Continuous operation for long-duration heating cycles
✔ Stable output and high measurement accuracy
✔ Compliant with IEC 60502 requirements

🛠 System Configuration

✔ High-current power source
✔ Digital control & monitoring cabinet
✔ Temperature monitoring and data recording system
✔ High-current cables and connectors
✔ Safety protection and interlock system

Key Applications

📊 XLPE cable heating and aging test

🌡️ Cable temperature rise test

🔬 Type test and routine test

🏭 Quality control for cable manufacturers

📜 Laboratory certification testing

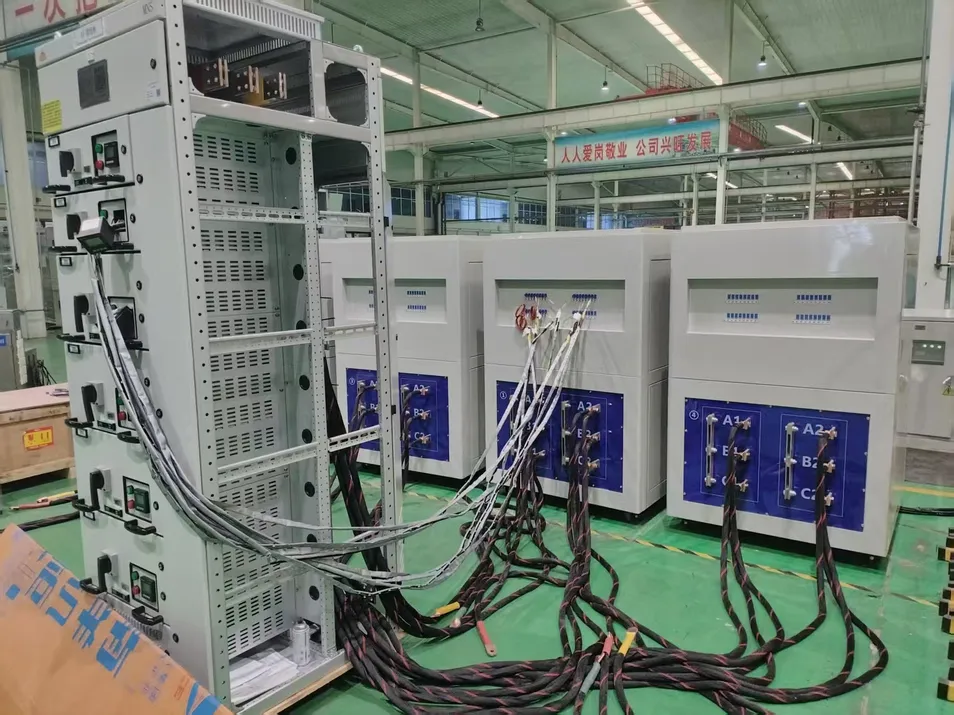

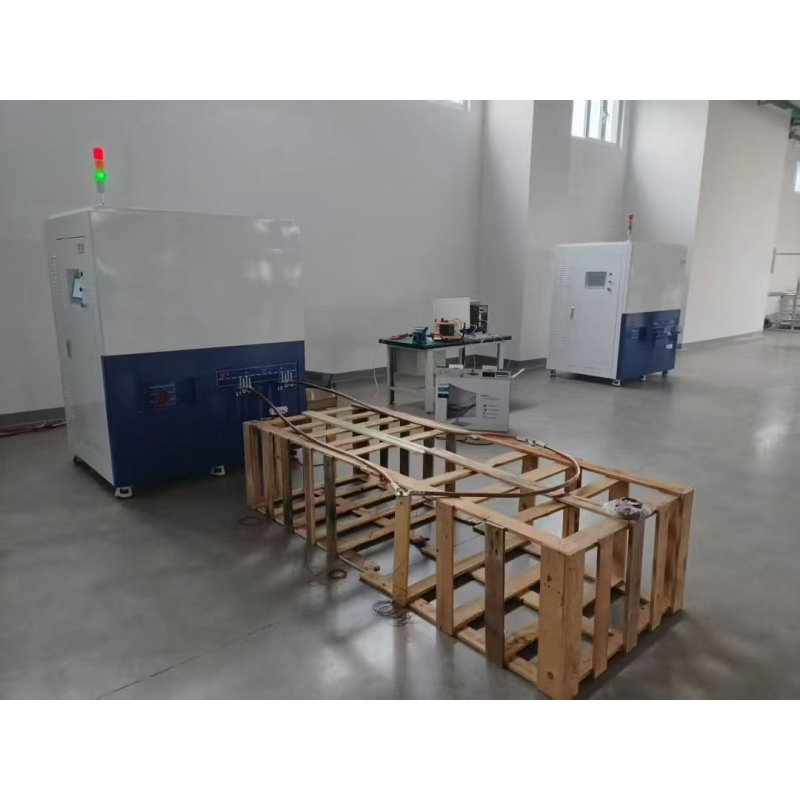

System Setup & Application
