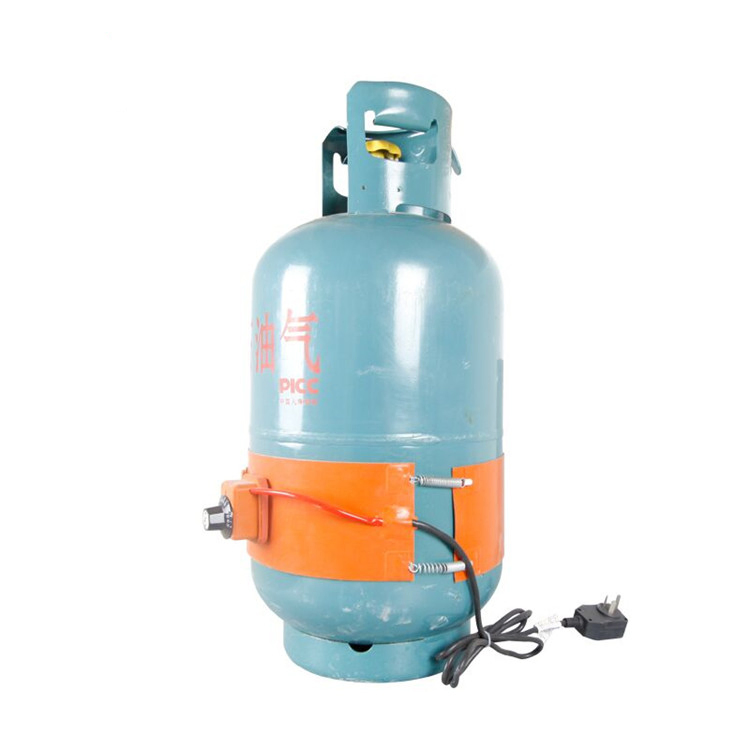

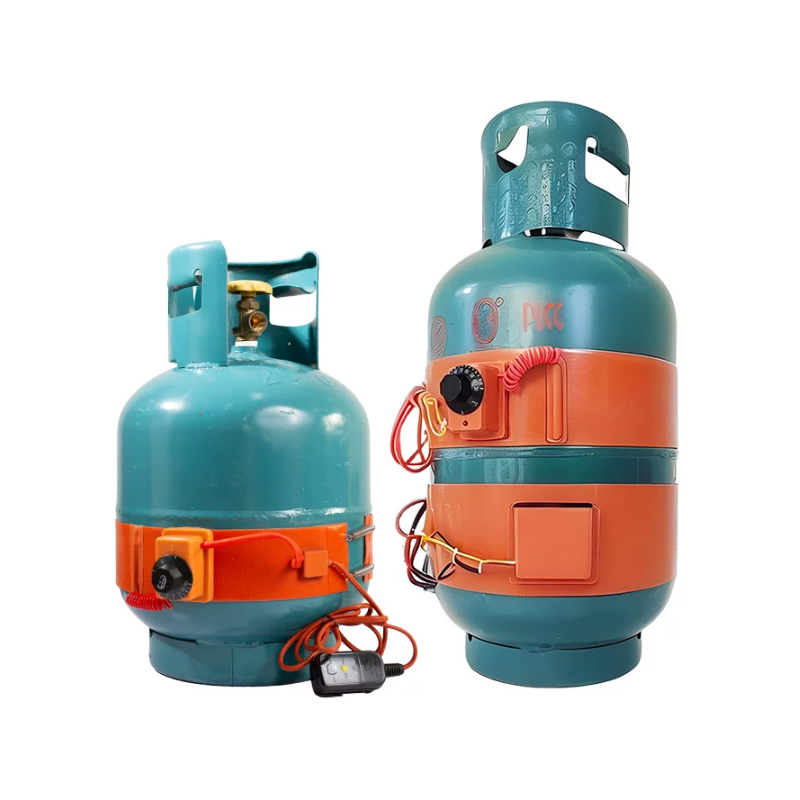

5kg 10kg 15kg 220V Flexible Silicone Rubber Electric Gas Cylinder Heater Belt

1 / 5

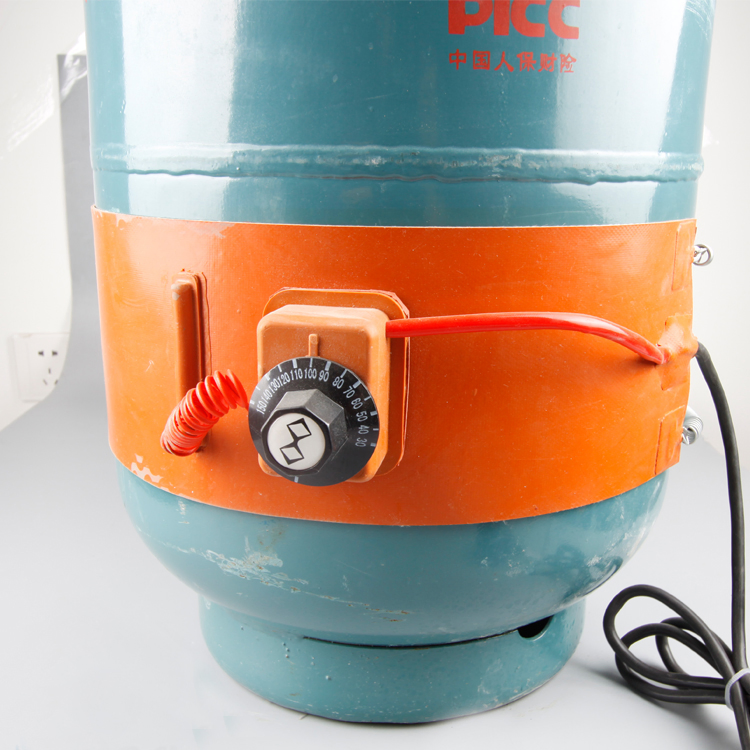

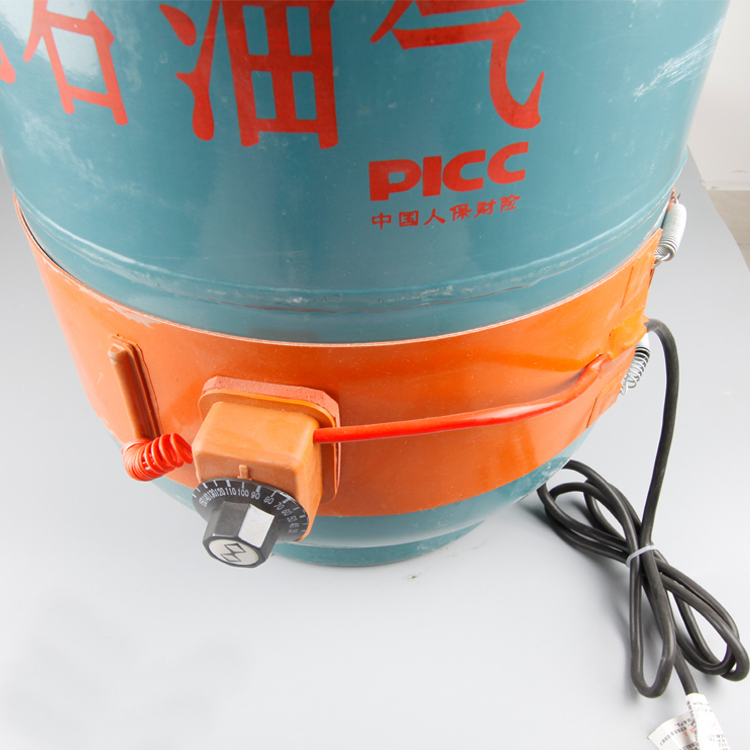

5kg 10kg 15kg 220V Flexible Silicone Rubber Electric Gas Cylinder Heater Belt

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊

Basic Information

Model NO.Gas Tank Heater

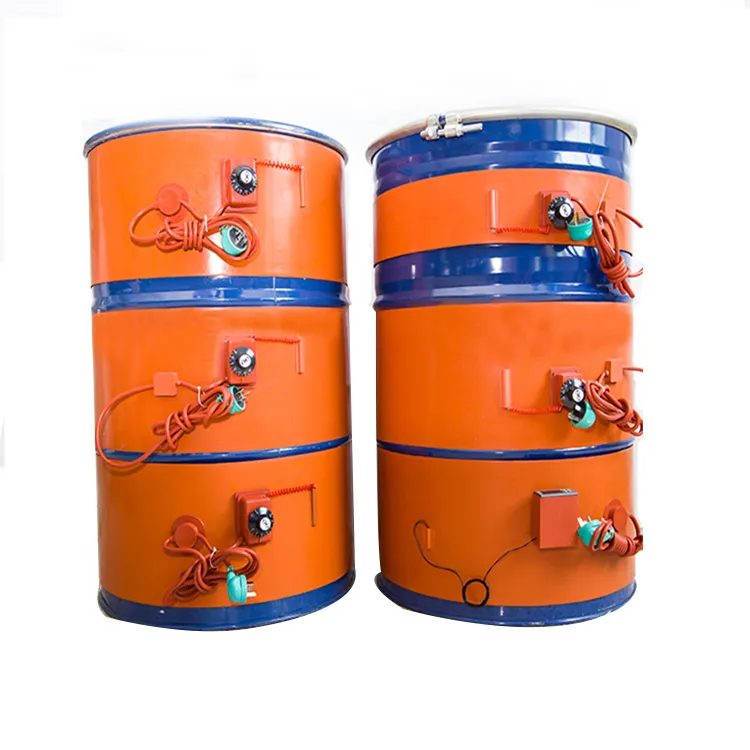

TypeDrum Heater

CertificationCE, ISO, RoHS

StructureHeating Wire

Thickness1.5mm - 1.8mm

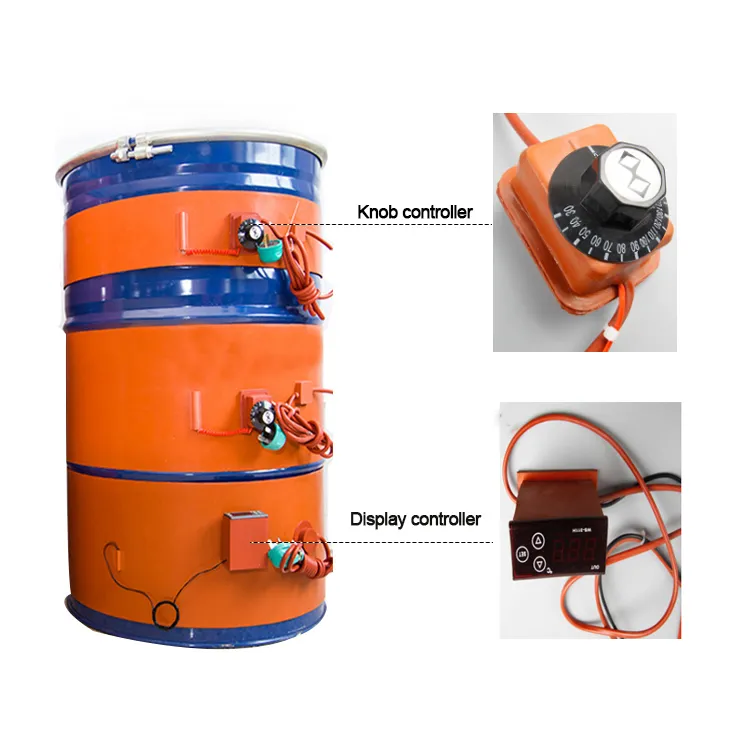

Temp ControlKnob or Display

Wire TypeSilicone Braided Wire

Size Deviation±0.5%

Resistance≥5 MΩ

HS Code8516800000

🔧

Product Description

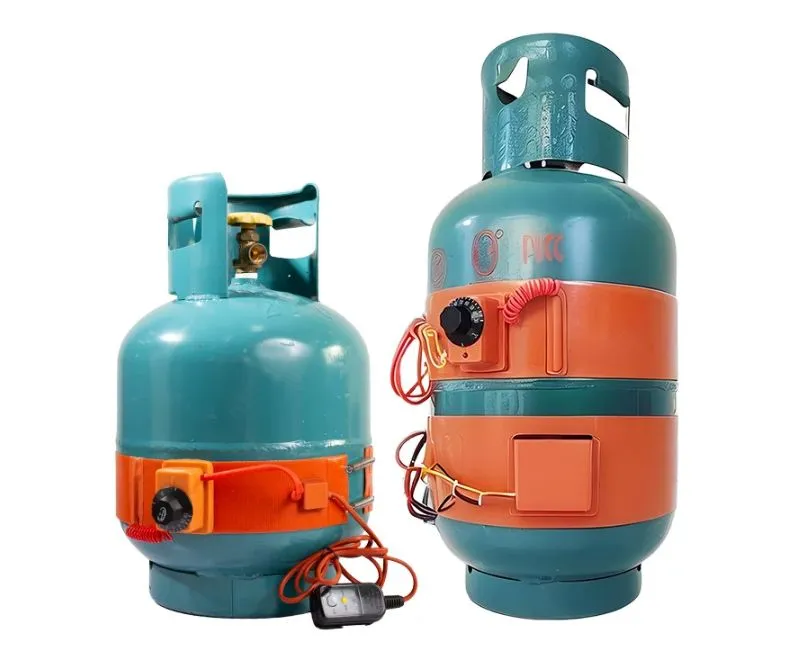

The gas tank heaters consist of nickel alloy wire and high-temperature resistance silicone rubber insulator. Characterized by quick heat, precise temperature allocation, high thermal efficiency, easy installation, and anti-aging properties.

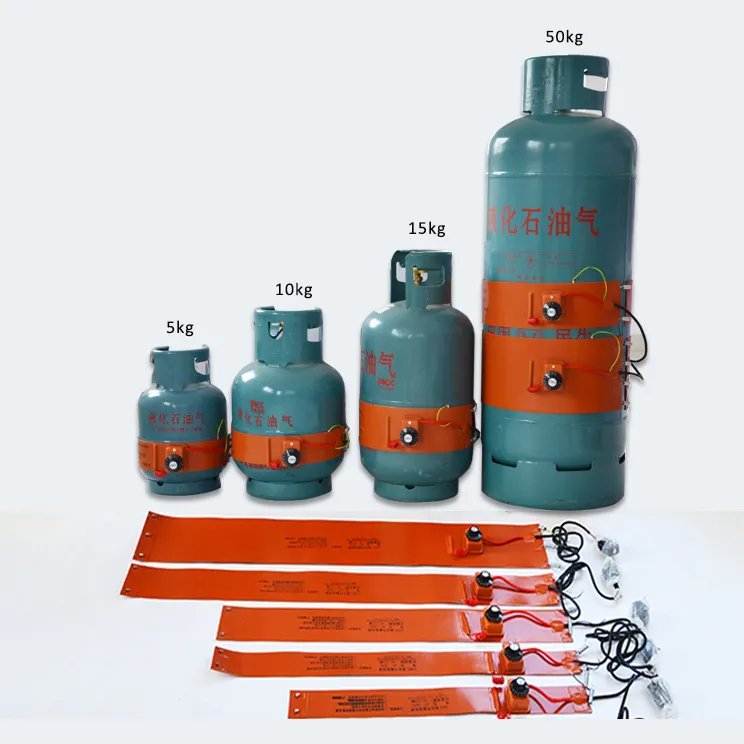

Application	Volume	Stock Size & Power
Gas Tank Heater	5kg	80*760mm 220v 180w
	10kg	80*970mm 220v 220w
	15kg	100*970mm 220v 250w
	15KG	120*970mm 220v 300W
	15KG	100*1250mm 220v 300w
	50KG	120*1250mm 220v 350W
	50KG	200*1250mm 220v 500W

Technical Specifications

Temperature range: -40.00~250.00°C
Electric resistance precision: ±10%
Power density: 0.10~1.50w/cm²
Mechanical pressure: 100.00kg/cm²
Minimum bending radius: 3.20mm

⭐

Key Features & Applications

Material & Construction

Made of flexible silicone rubber material resistant to high temperatures with excellent thermal conductivity, conforming perfectly to tank shapes.

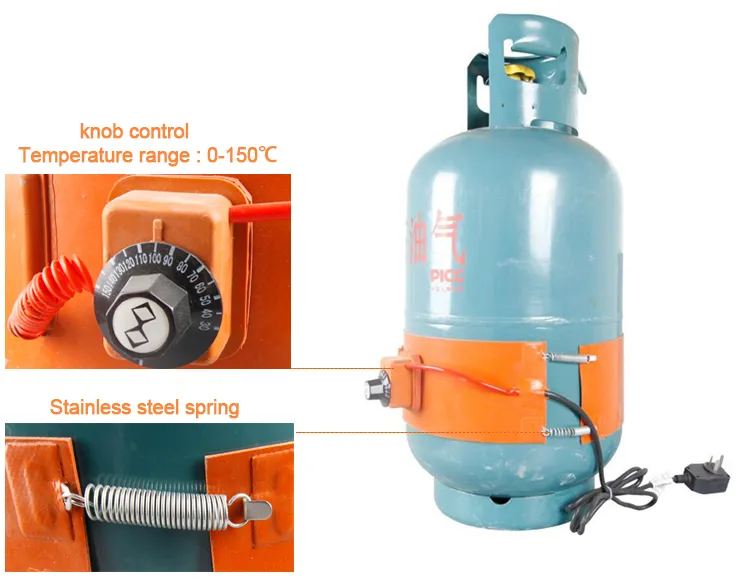

Temperature Control

Equipped with mechanisms like thermostats or thermocouples to ensure controlled heating within safety limits.

Easy Attachment

Designed for quick installation on gas tank surfaces, often featuring adhesive backing or specialized insulation layers.

Primary Applications

Industrial: Heating molds, platens, and fluid lines in manufacturing.
Medical: Therapeutic heat therapy and medical device warming.
Food & Beverage: Keeping food warm in containers and processing equipment.
Automotive: Heating battery systems and seating in electric vehicles.

🔗

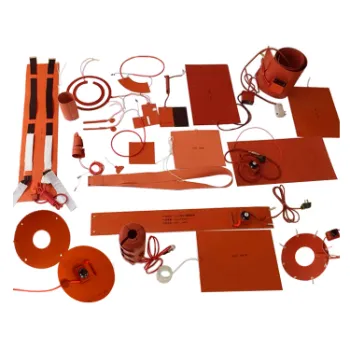

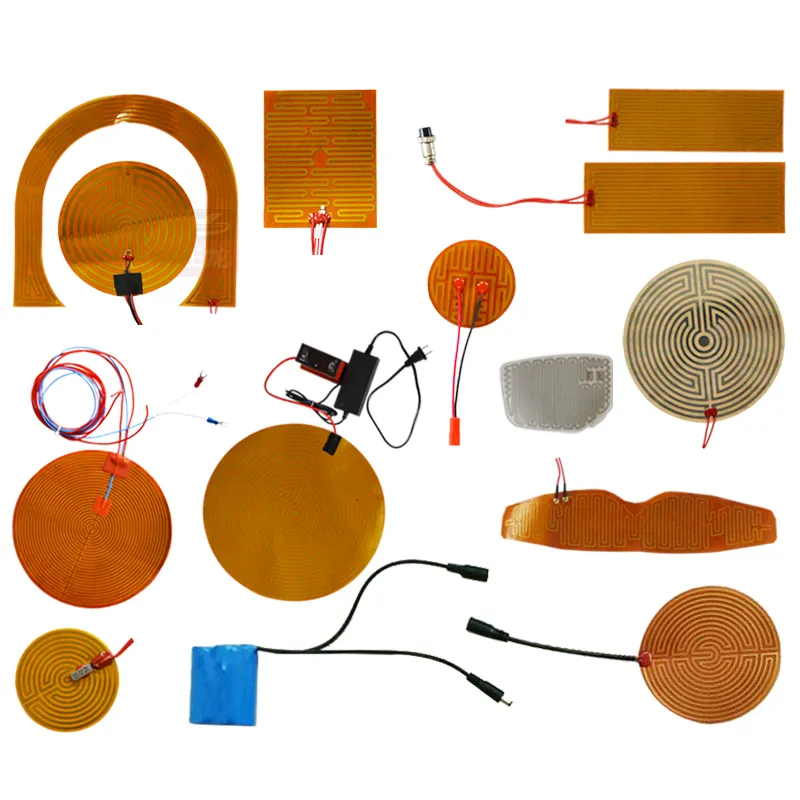

Related Products

🏆

Professional Services

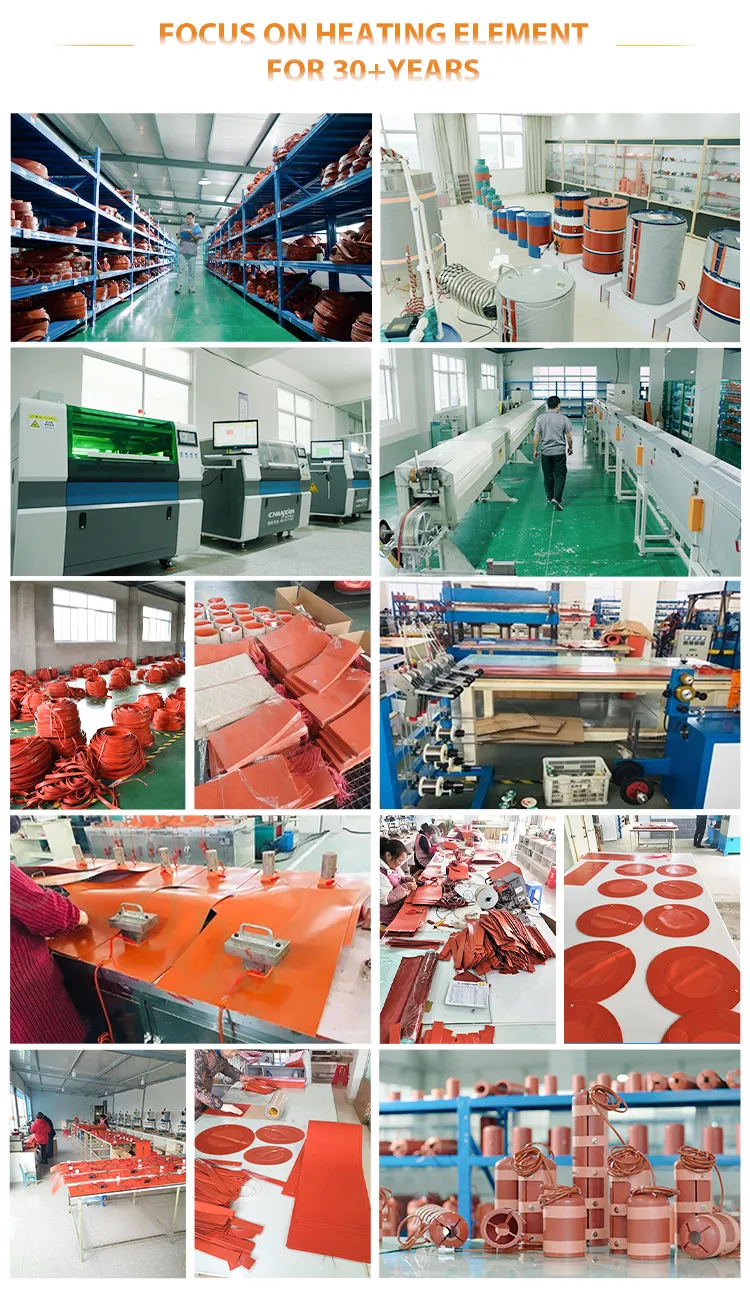

Operating since 2014, our facility covers 5000m² with over 100 employees, certified by ISO9001, CQC, CE, and ROHS. We integrate advanced automatic control and online inspection systems to ensure stability.

Quick Response
Within 24 Hours

OEM Accepted
Custom Designs

Small MOQ
Flexible Demand

❓

Frequently Asked Questions

What is the maximum temperature these heaters can handle?

Our gas tank silicone heaters are designed to operate within a temperature range of -40.00°C up to 250.00°C.

Can the size of the heater be customized for specific tanks?

Yes, we provide OEM services and can customize the dimensions, voltage, and power to fit your specific tank requirements.

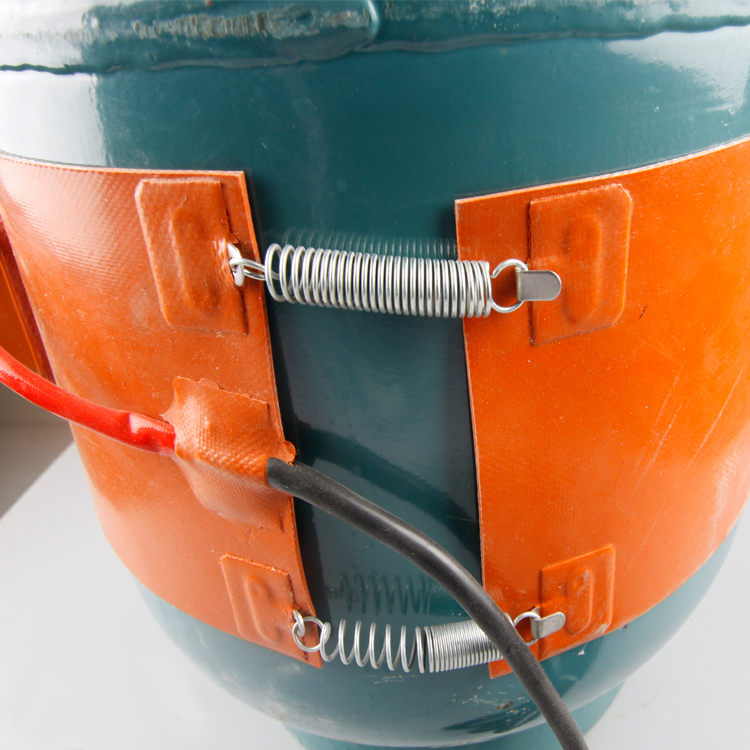

How are the heaters attached to the gas cylinder?

They are typically flexible belts that wrap around the cylinder. Some models come with adhesive backing or mechanical fasteners for secure attachment.

Are these heaters safe for industrial environments?

Absolutely. They are CE, ISO, and RoHS certified, featuring high-quality silicone insulation and optional over-temperature protection.

What voltages are available for the heating belts?

Standard models are available in 220V, but we can also provide custom solutions for 12V, 24V, 48V, or 120V depending on your needs.
