Explosion Proof Hazardous Areas 88 105 135 180 Degree Linear Heat Detection System Cablefloating Roof Tanks

1 / 5

Explosion Proof Hazardous Areas 88 105 135 180 Degree Linear Heat Detection System Cablefloating Roof Tanks

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model Number

Aw1000

Product Name

Linear Heat Cable

Application

Home, Industry, Communication, Special Equipment

Installation Mode

Contact Type

Operating Voltage

24VDC

IP Rating

IP66

Product Description

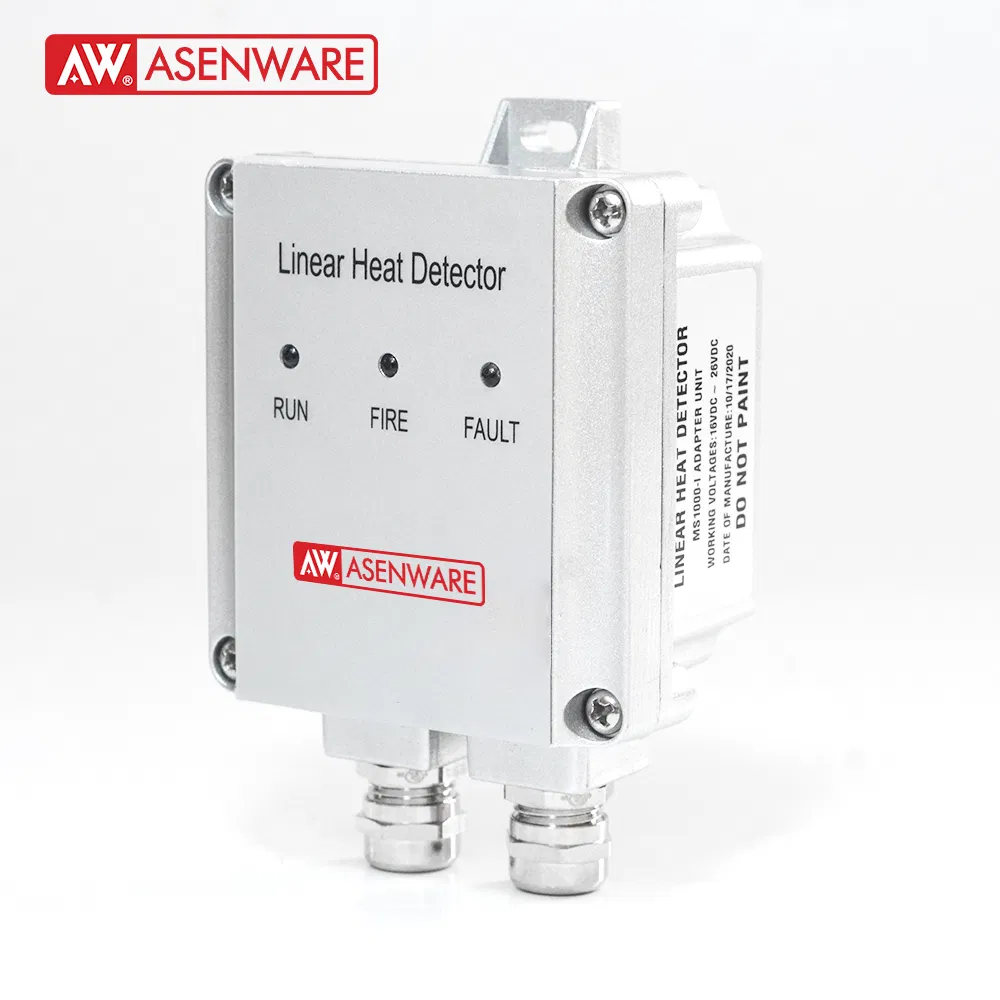

Digital Linear Heat Detector

Compared with other kinds of detectors, the Digital Linear Heat Detector provides a very early alarm detection function to the protected environment. The detector acts as an intelligent "switch" type detector. The polymers between the two conductors will break down at a specific fixed temperature, allowing the conductors to contact, and the short circuit will initiate the alarm.

The detector features continuous sensitivity, which is not influenced by environmental temperature changes or the length of the detection cable used. It requires no adjustment or compensation and can transfer both alarm and fault signals to control panels, functioning with or without a 24VDC supply.

Features and Benefits

Industrial safety design

Low power consumption electrical interface

Real-time monitoring

Works with or without 24VDC supply

Fast response time

No temperature compensation needed

Compatible with any fire alarm system

Alarm temperatures: 68ºC, 88ºC, 105ºC, 138ºC, 180ºC

Technical Specification

Parameter	Details
Model Number	AW1000
Product Name	Linear Heat Cable
Warranty	2 Years
Operating Voltage	24VDC (Range: 16VDC-28VDC)
Alarm Current	30mA
Standby Current	20mA
Fault Current	25mA
Humidity	95%
Alarm Temperatures	68°C, 88°C, 105°C, 138°C & 180°C
IP Rating	IP66
Dimensions	90mm85mm52mm
Production Capacity	100,000 meters/Month

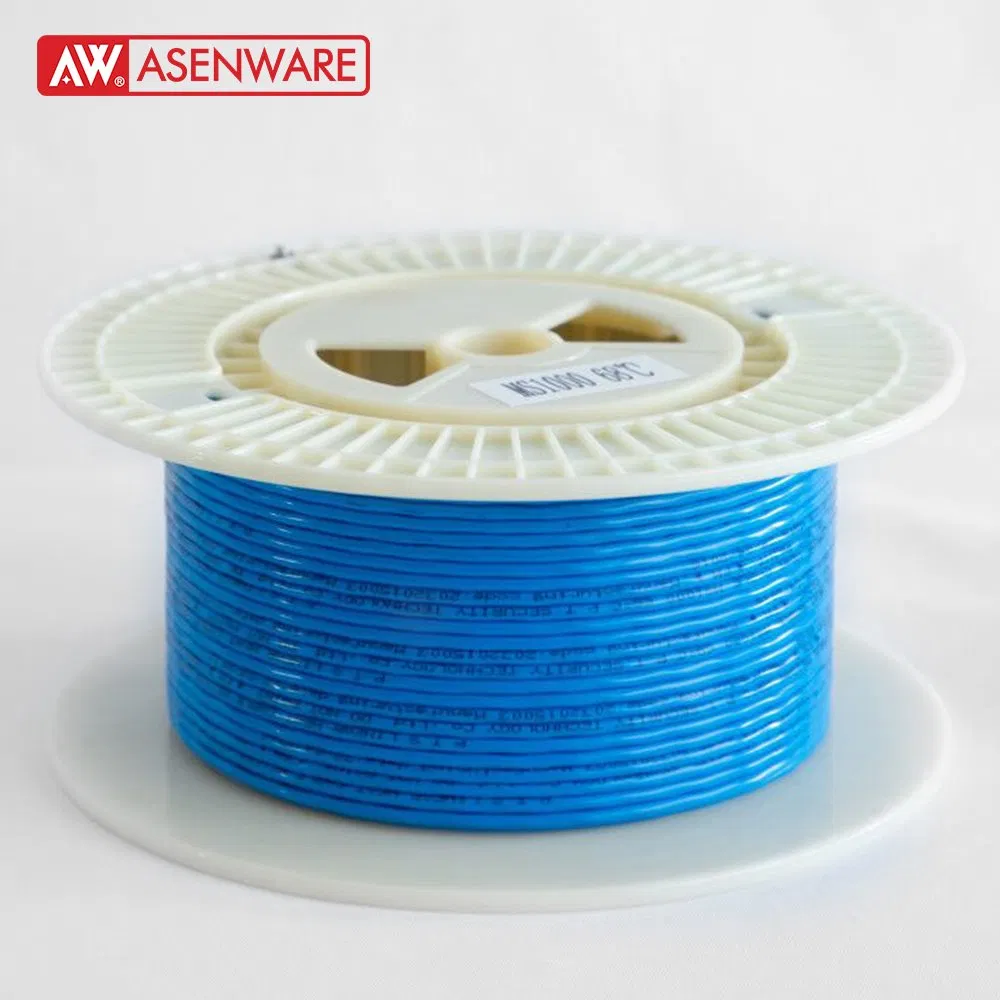

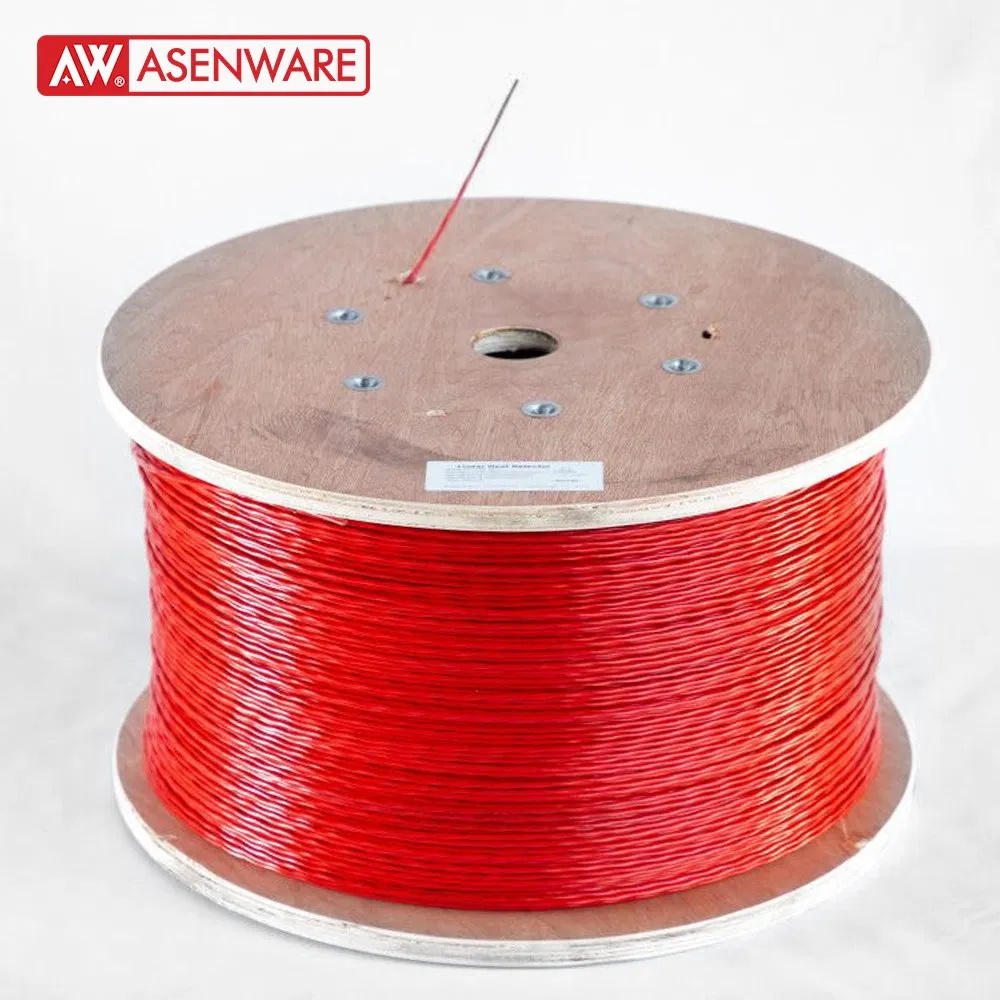

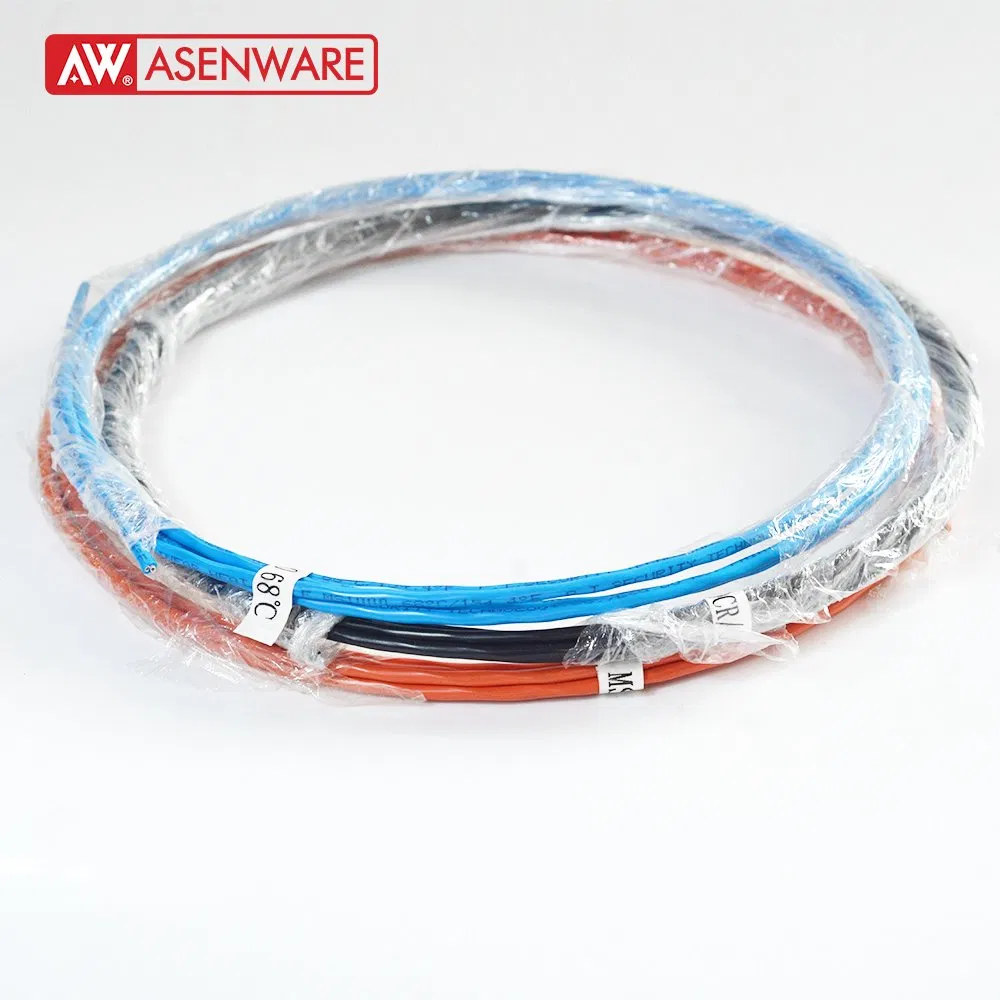

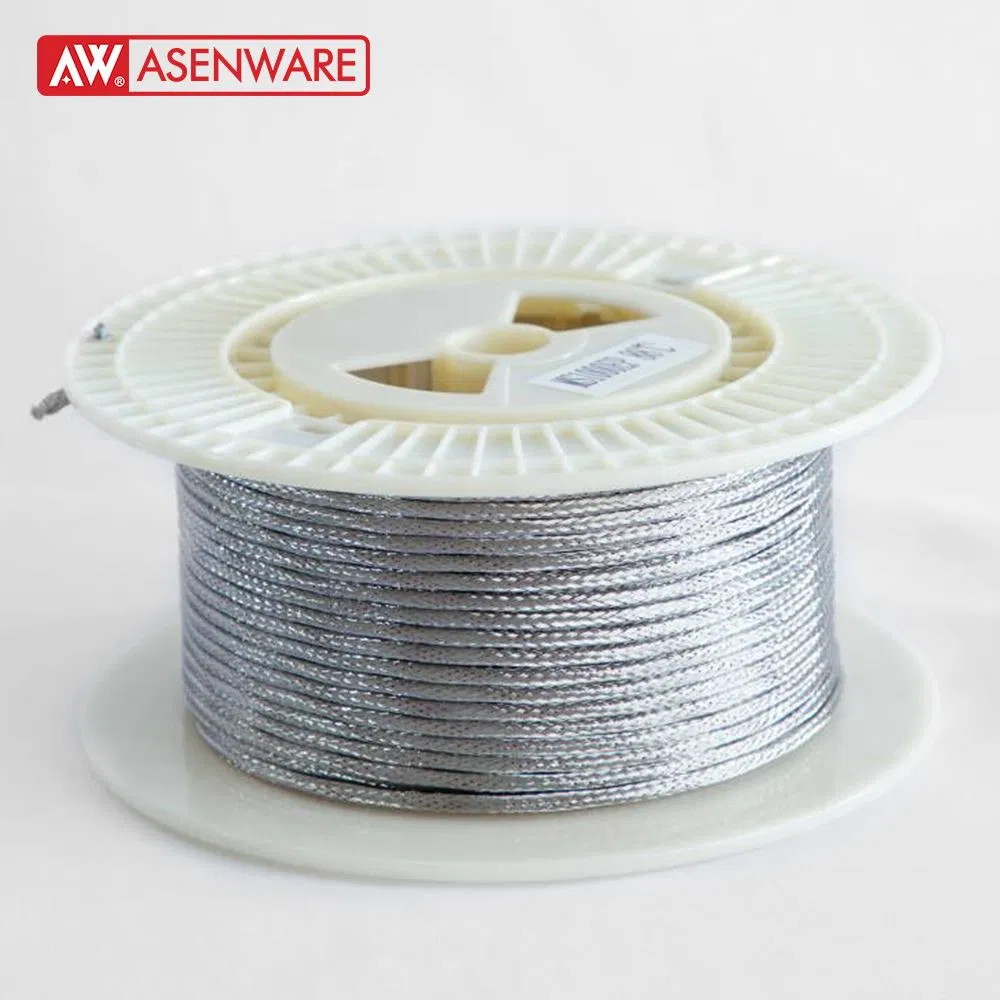

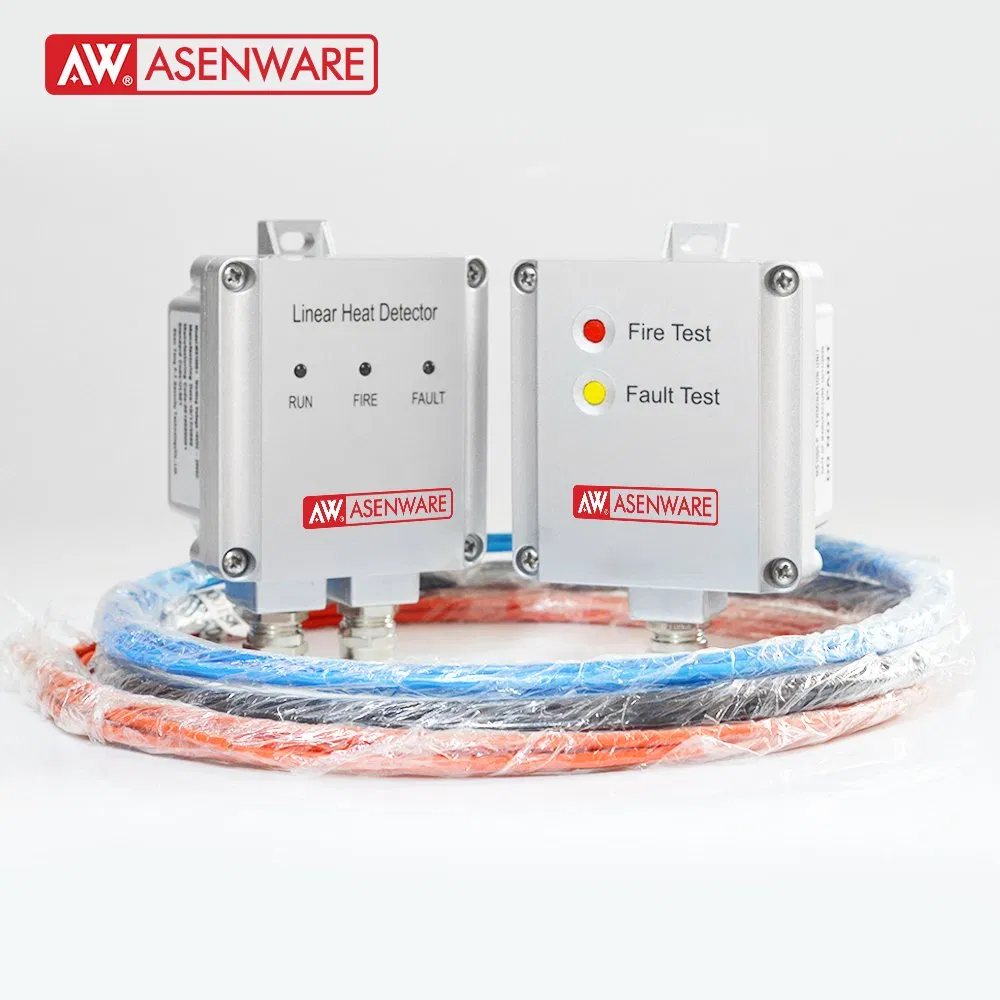

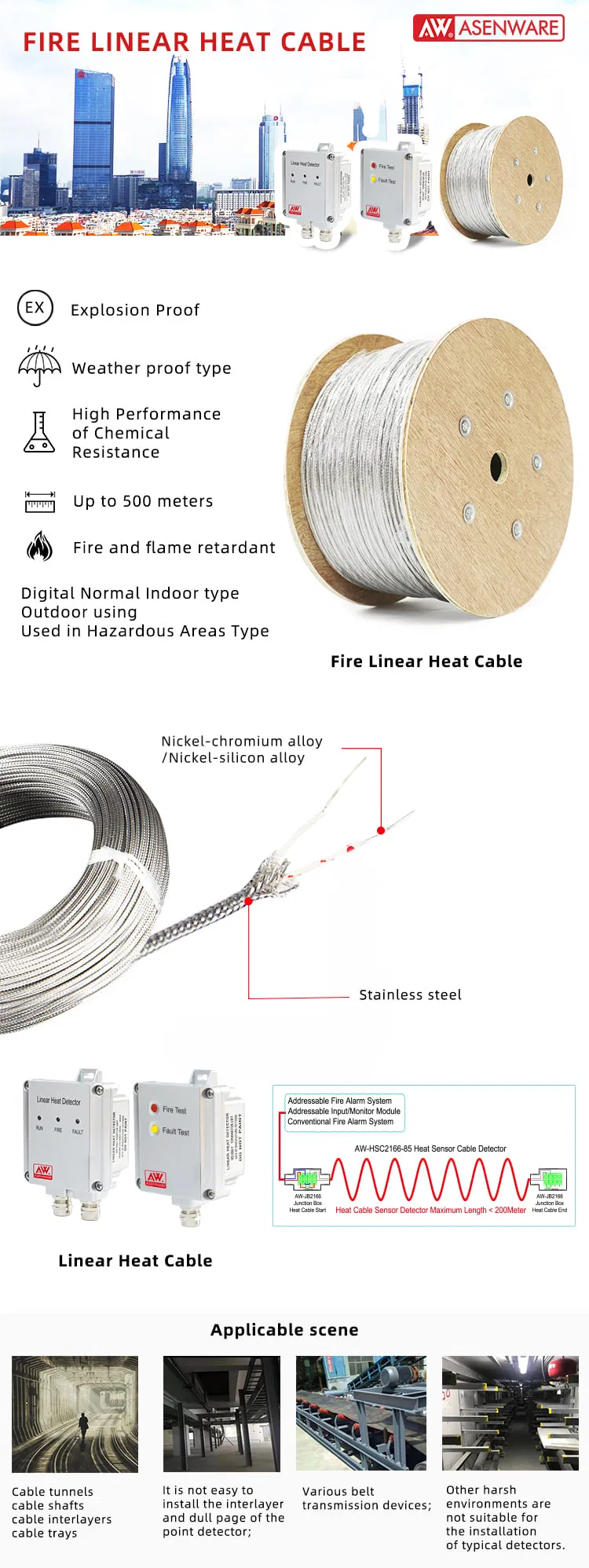

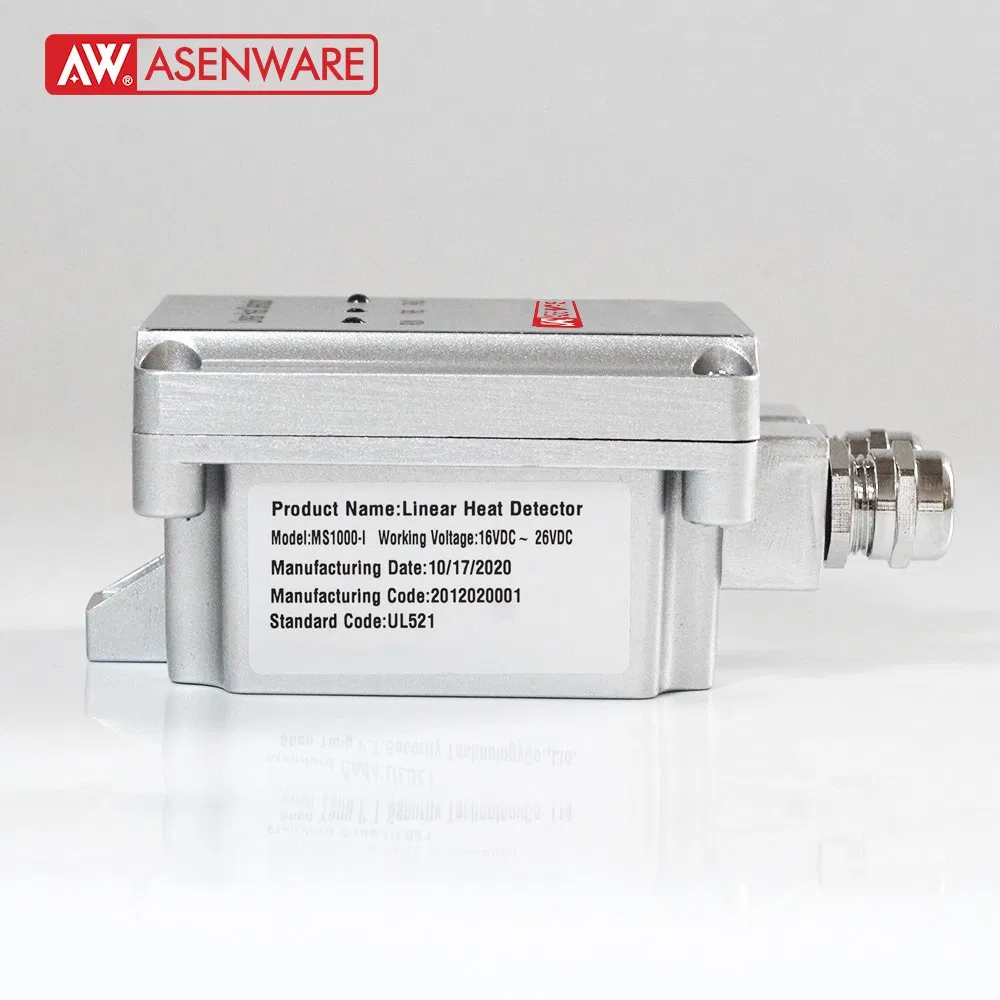

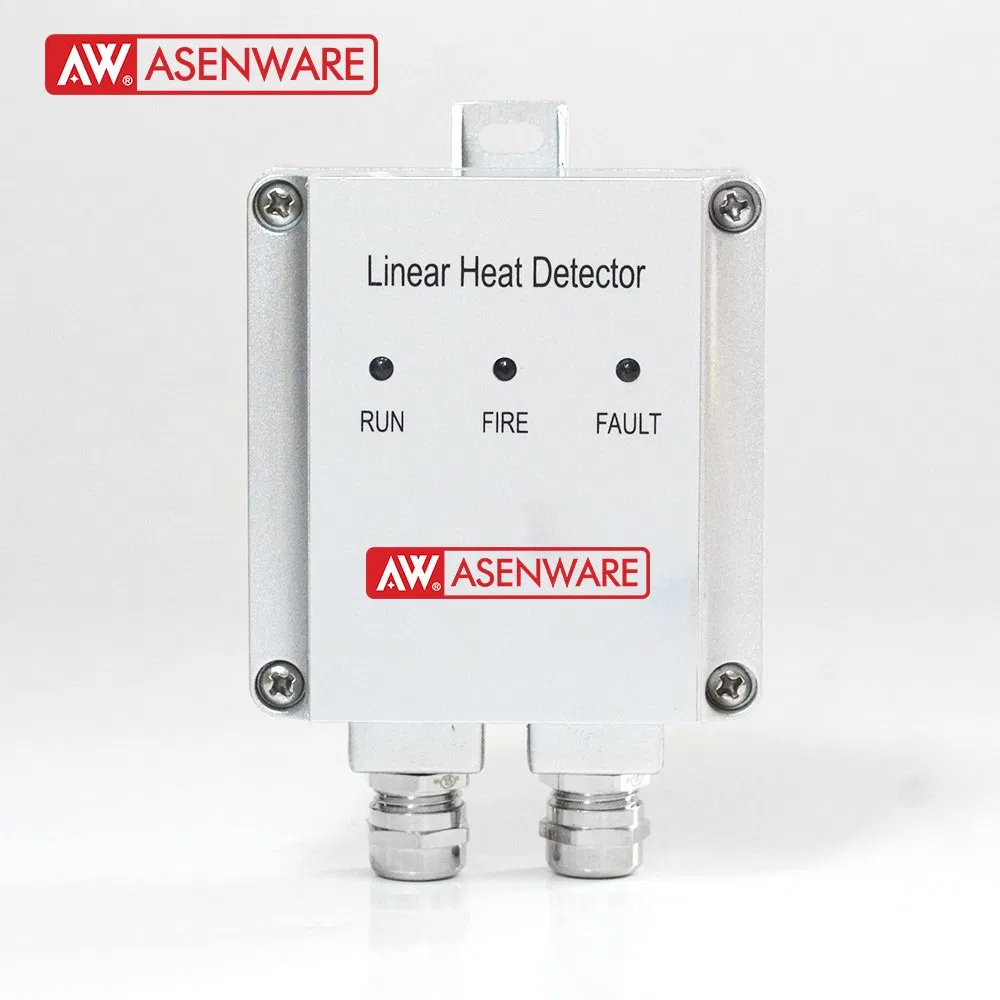

Product Visuals

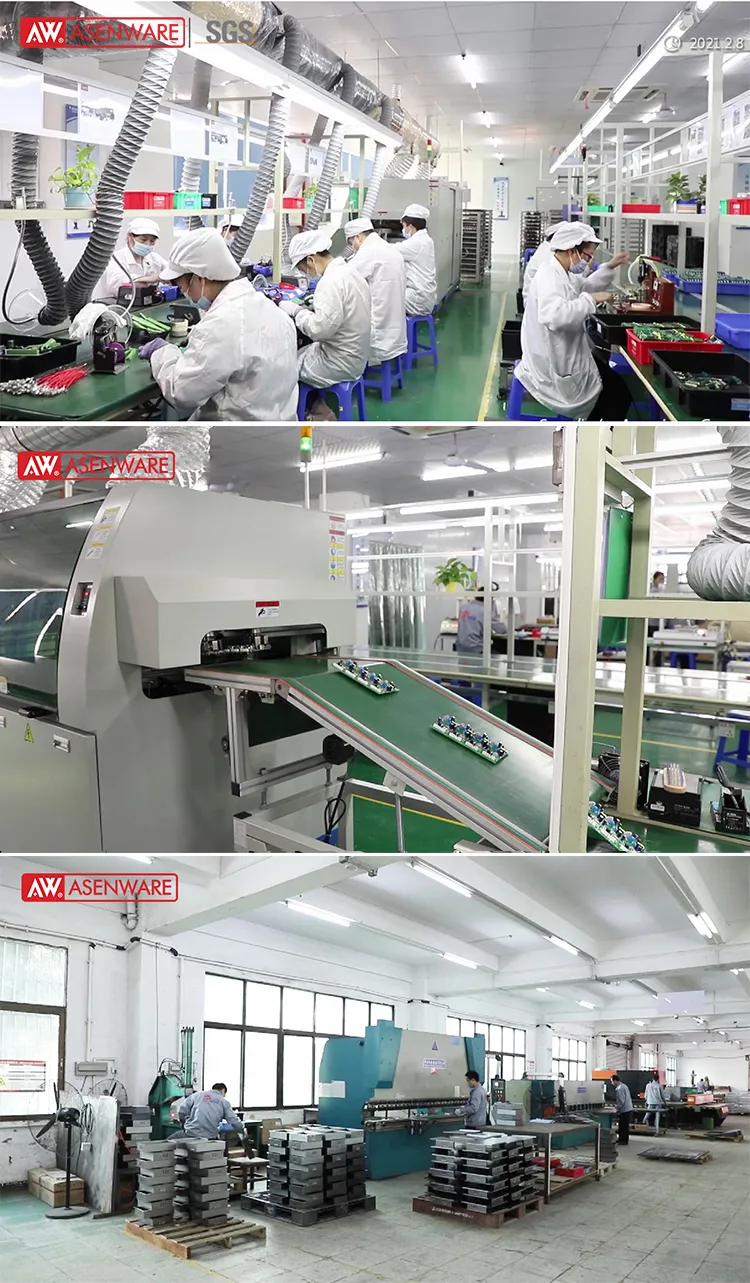

Production & Quality

Frequently Asked Questions

How does the AW1000 Linear Heat Cable detect a fire?

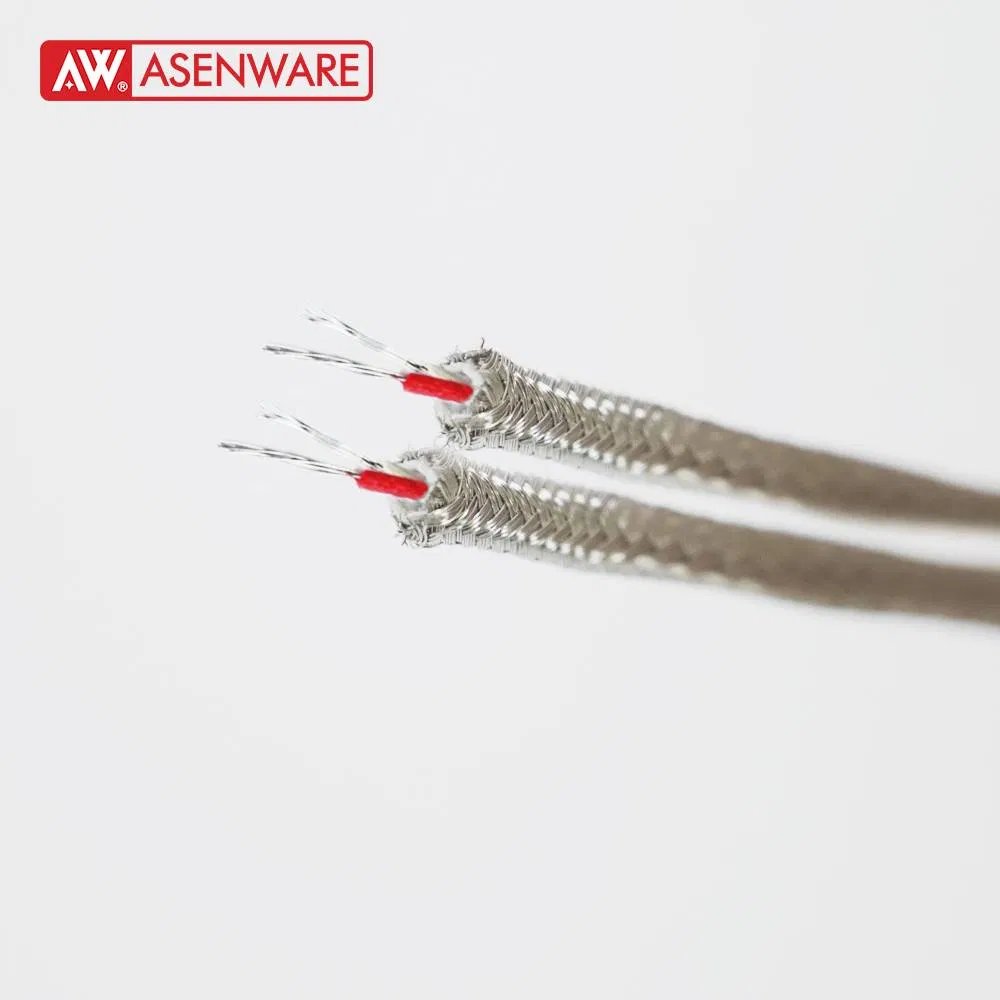

The cable contains two conductors separated by a heat-sensitive polymer. When the specific alarm temperature is reached, the polymer breaks down, allowing the conductors to touch and create a short circuit that triggers the alarm.

What alarm temperatures are available for this cable?

We offer various fixed temperature ratings including 68ºC, 88ºC, 105ºC, 138ºC, and 180ºC to suit different industrial and commercial environments.

Is the sensitivity affected by the length of the cable?

No, the sensitivity of the linear heat detector remains continuous and is not influenced by the environmental temperature changes or the total length of the cable used.

Can this system be integrated with existing fire panels?

Yes, the AW1000 is designed to be compatible with any type of fire alarm system and can operate with or without a 24VDC power supply.

What is the environmental protection rating of the product?

The system features an IP66 rating, making it highly resistant to dust and high-pressure water jets, suitable for harsh industrial applications.

Does the cable require temperature compensation?

No, one of the key benefits of this digital linear heat detector is that no alarm temperature compensation or adjustments are needed regardless of the installation environment.
