Advanced Energy-Efficient Heat Exchange Solutions for Optimal Cooling

Customization:	Available
Warranty:	1 Year
Certification:	CE, ISO

Send Inquiry

Product Description

Basic Information

Model NO.

Flue gas cooler

Principle

Mixing Heat Exchanger

Material

Stainless Steel

Max Pressure

4.5 MPa

Fin Material

Aluminum, Copper, SS

Tube Material

Copper, SS, Titanium, Cu-Ni

Origin

Henan, China

Capacity

5000 units

★

Product Description

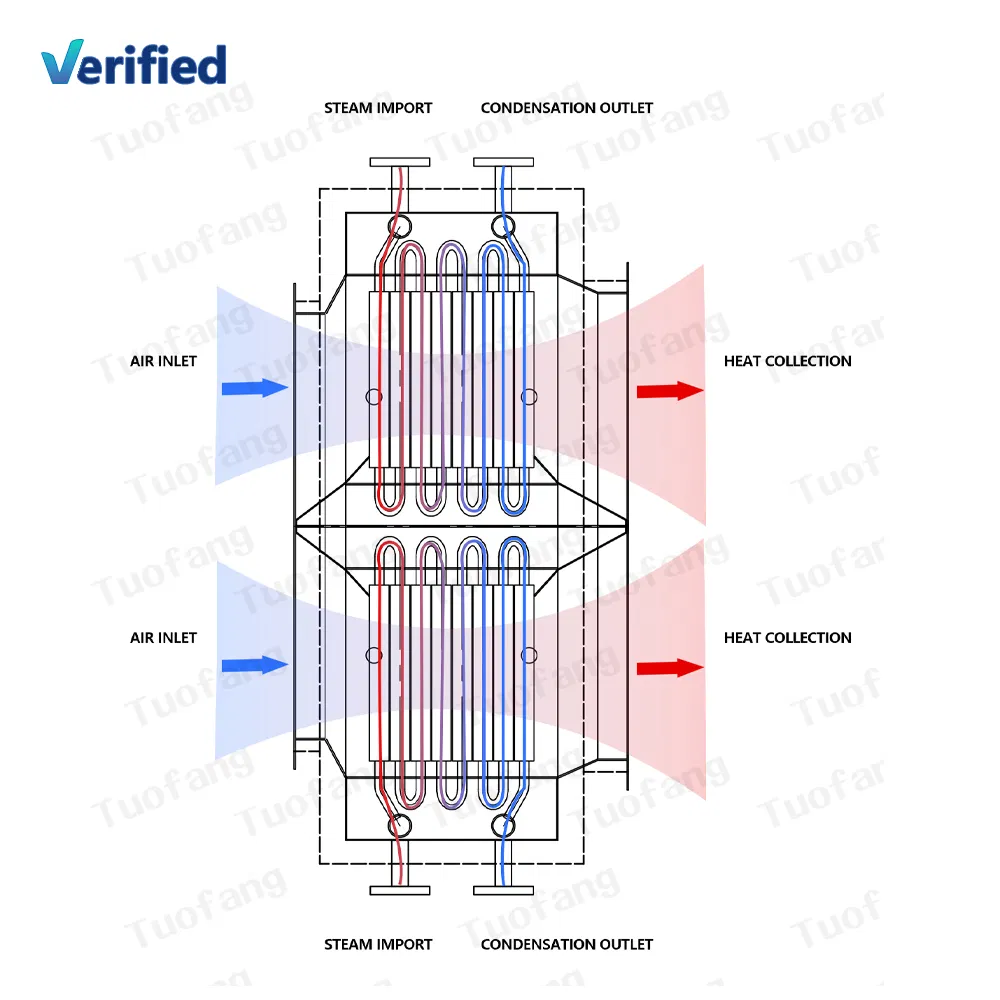

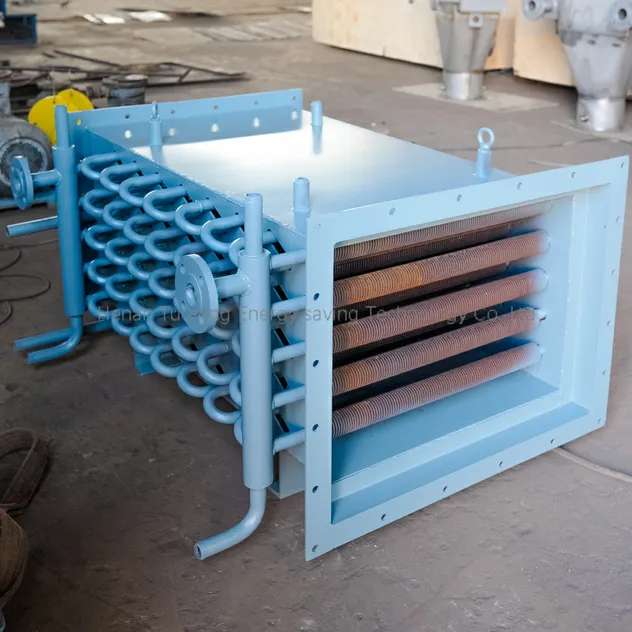

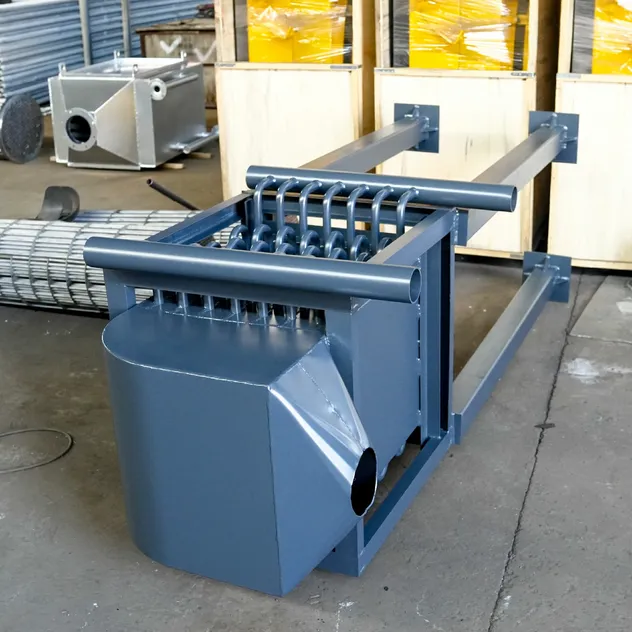

Flue Gas Heat Exchanger: High-Efficiency Waste Heat Recovery Solution

Key Benefits:

Corrosion Resistance: C276 Hastelloy/Enamel-coated options for acidic flue gas
Anti-Fouling: In-situ sootblowing system reduces maintenance frequency

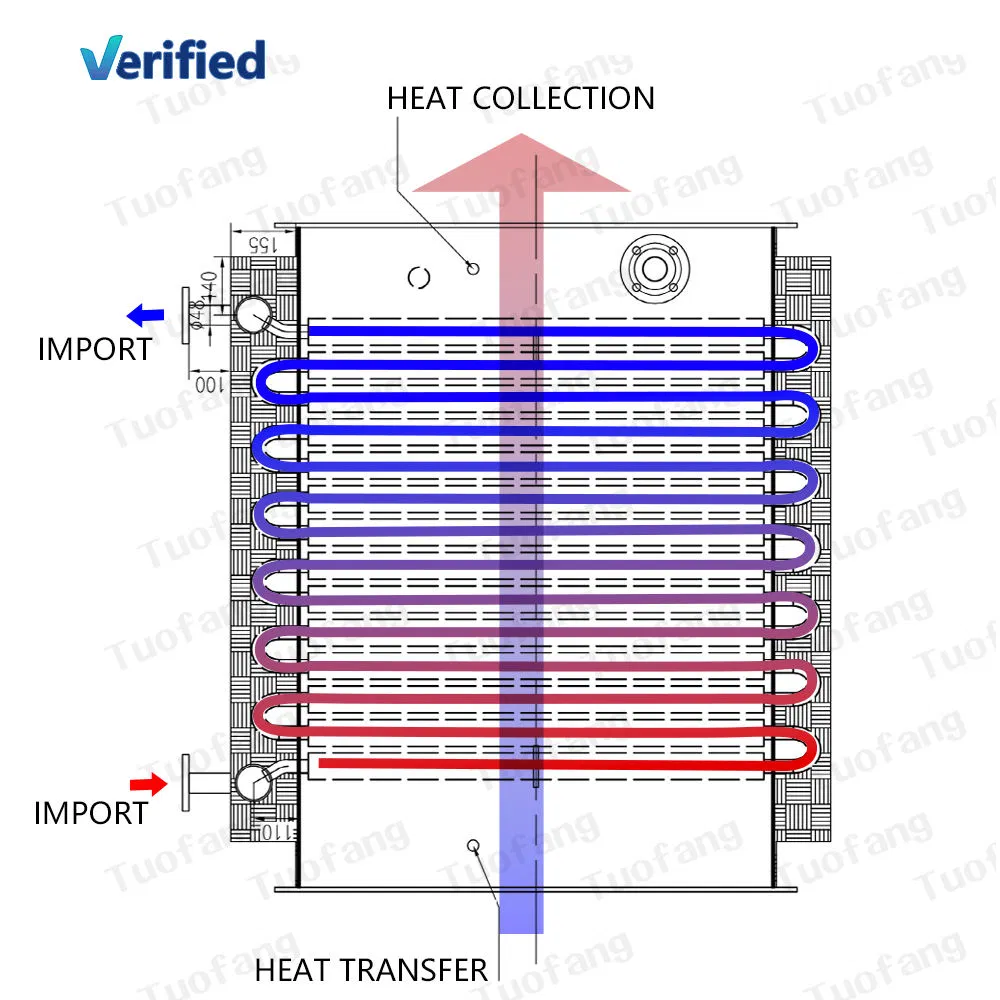

Modular Design: Shell & tube/heat pipe/plate-type configurations available
Energy Recovery: Integrated steam generation preheats boiler feedwater

Technical Data:

Flow Capacity: 590-17,657,000 SCFH
Inlet Temp: Up to 1202°F (650°C)
Outlet Temp: 176~302°F (80~150°C)
Pressure Drop: <3.2 inH2O (800Pa)
Materials: ND Steel/2205 Duplex/PTFE Lined

⚙

Technical Specifications

Core Component	Feature	Parameters / Materials	Notes
Heat Transfer Core	Material	Carbon Steel, SS304/316L, ND Steel, Corten	ND steel recommended for high-sulfur gas
	Dimensions	Tubular: Φ25mm–Φ50mm; Plate: 0.6mm–2mm	Dust-cleaning layout compatible
	Structure	Shell & Tube, Heat Pipe, Plate	Tubular preferred for high-dust environments
Flue Gas Side	Inlet Temp	150°C–600°C	Refractory lining for >500°C
	Outlet Temp	60°C–200°C	Designed to avoid acid dew point
	Pressure	Atmospheric–0.5MPa	Enhanced sealing for positive pressure
Performance	Efficiency	40%–85%	Varies by flow ratio and temp difference

✔

Certifications & Quality Control

We adhere to the strictest international quality and safety standards:

CE Certification: Compliant with EU safety and environmental standards.
ISO 9001:2015: Quality management system for consistent reliability.
Material Test Reports (MTRs): Verified chemical and mechanical properties.

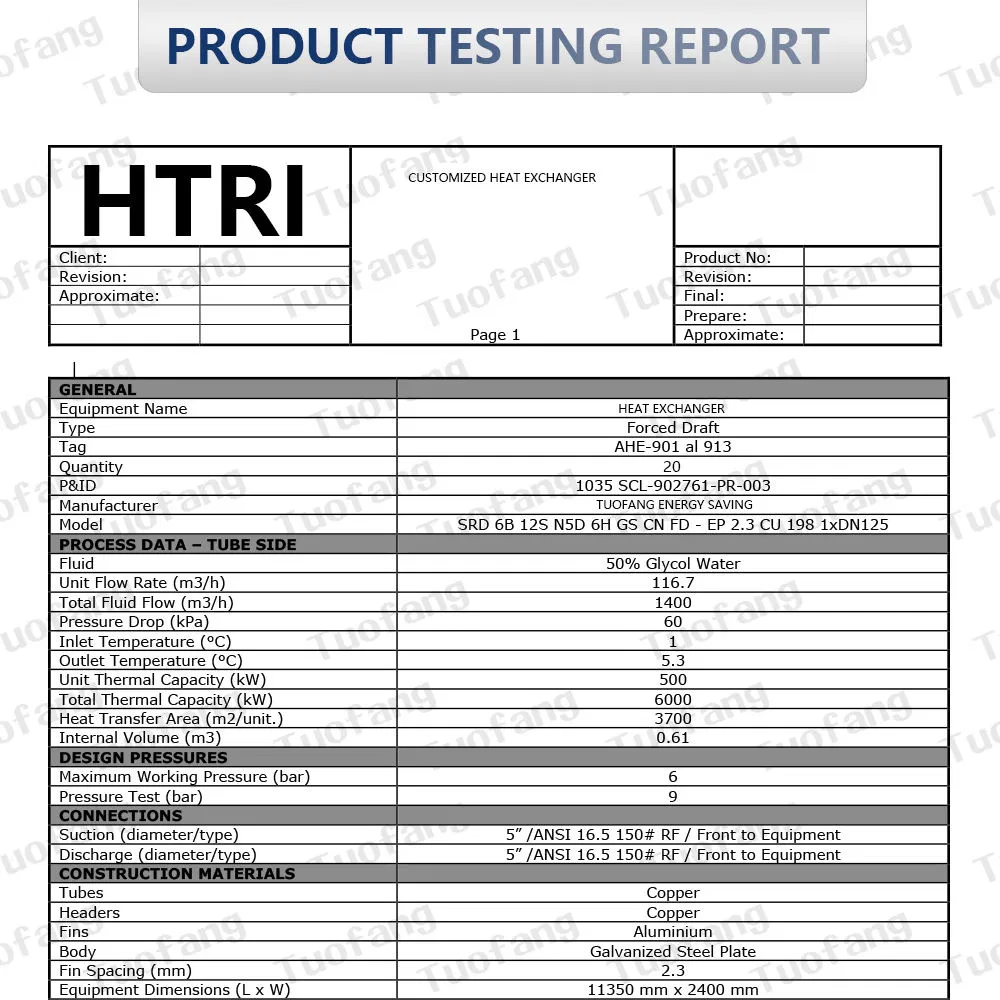

Performance Testing: Validated heat transfer and pressure resistance.

✈

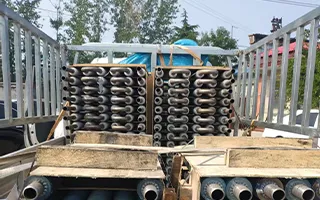

Packaging & Shipping

Frequently Asked Questions

1. How can I verify the quality of your products? We are a certified supplier with ISO9001 and CE credentials. We provide full Material Test Reports (MTRs) and can facilitate third-party on-site inspections for transparency.

2. What is your Minimum Order Quantity (MOQ)? While we primarily handle wholesale orders, we are flexible and can accept a MOQ of 1 piece for evaluation or specialized requirements.

3. Can I request a sample before placing a bulk order? Yes, after price confirmation, free samples can be provided. Samples are typically ready for delivery in 3-7 days and arrive via express within 3-5 days.

4. What payment methods do you accept? We accept various payment options including T/T (Telegraphic Transfer), L/C (Letter of Credit), Western Union, and PayPal.

5. What are your delivery terms and lead times? We offer FOB, CFR, and CIF terms. Delivery times generally range from 15 to 50 days depending on the project complexity and order volume.

6. Do you offer discounts for large projects? We strive to provide competitive pricing and can offer volume-based discounts for large-scale projects and long-term partnerships.
