Eco-Friendly Adiabatic Heat Rejection Systems for Miner Computer

Customization:	Available
After-sales Service:	Free Spare Parts
Warranty:	12 Months

Send Inquiry

Product Description

📋 Basic Information

Type	Air-Cooled	Cooling Water	Industrial Water
System Type	Closed System	Fans Species	Double-speed fan
Noise Level	Low	Application	Immersion Cooling
Condition	New	Certification	ISO
Tube Material	Stainless Steel, Aluminum, Hot DIP Carbon Steel
Fin Material	Aluminum, Stainless Steel, Hot DIP Carbon Steel
Package	Wooden Package	Capacity	2000 PCS/Month

🚀 Product Description

Professional Cooling Solutions for High-Performance Computing

Dry coolers are primarily utilized for machine cooling, process cooling, oil cooling, free cooling, and specialized crypto mining cooling systems.

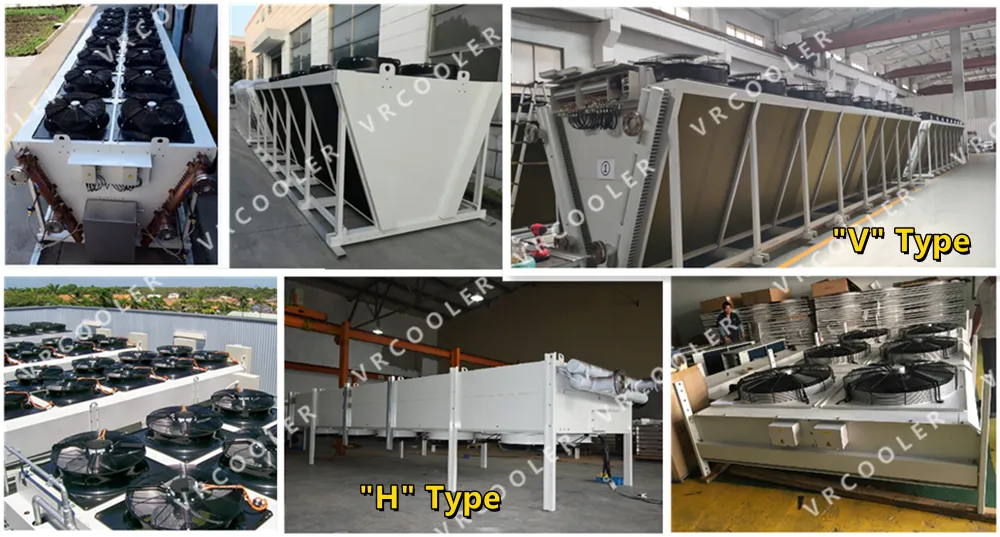

For immersion cooling systems, our dry coolers offer the most cost-effective heat removal method. We provide a full range of immersion-optimized units, ranging from 20kW single-fan models to massive V-shaped 5MW systems.

⚙️ Technical Specifications

Component Specs

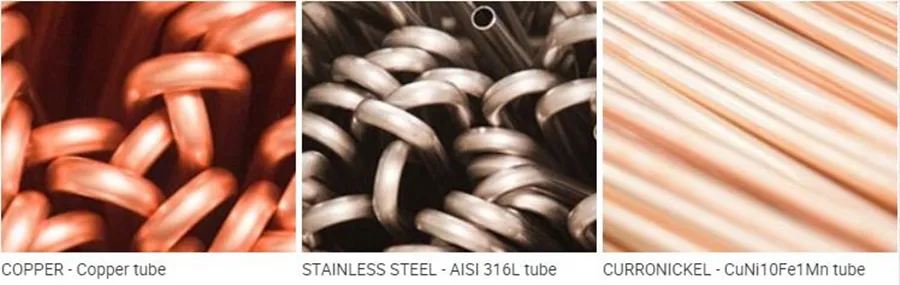

Tubes	Aluminum, copper, stainless steel, Cu-Ni, titanium (12 mm, 1/2", 5/8", 20mm, 25mm)
Fins	Aluminum, copper, stainless steel, titanium (Die-formed corrugated configuration)

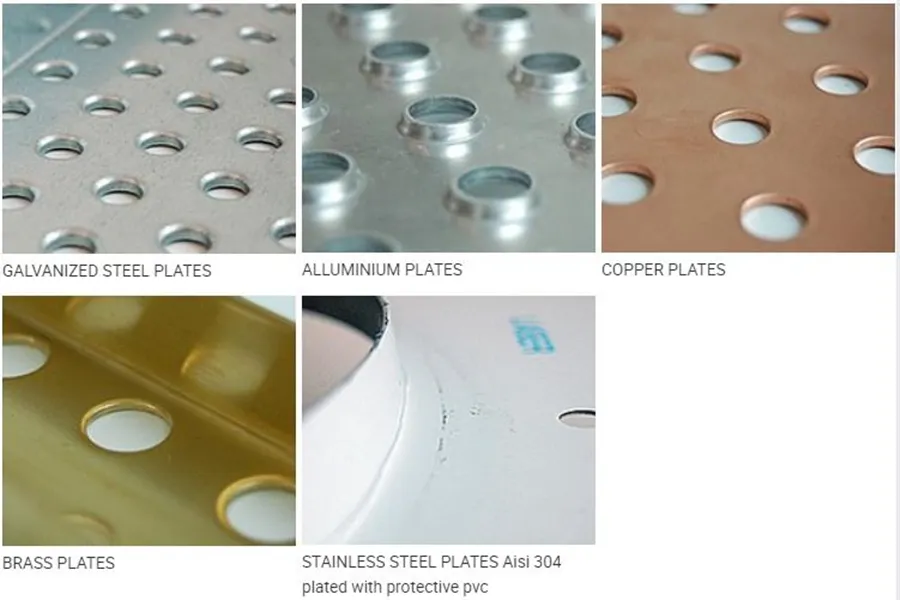

Casing	Thickness 1 - 3 mm; Galvanized steel, Aluminum, Stainless steel, Copper, Brass

Tubes

Standard tubes are arranged inline in the direction of airflow for maximum heat transfer with minimum pressure drop.

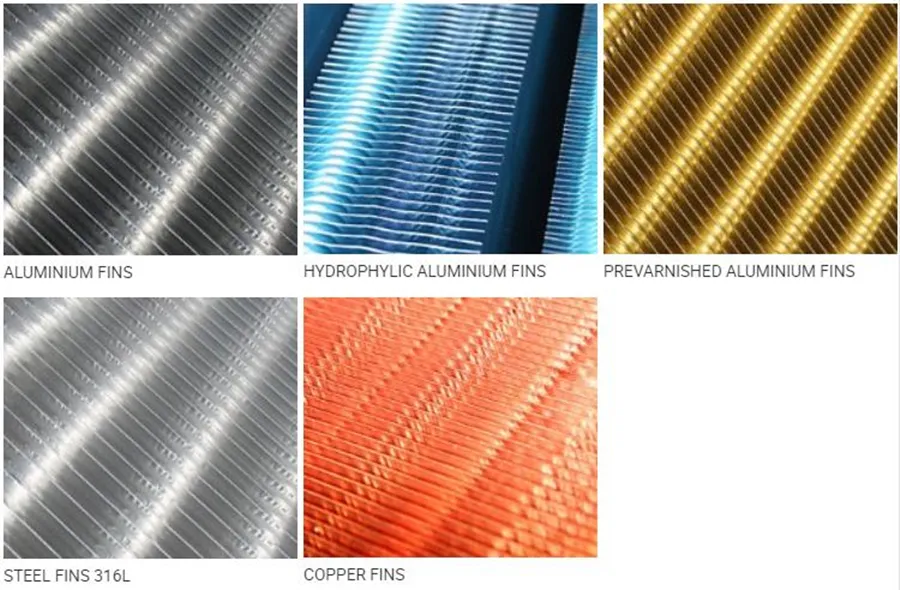

Fins

Waffle configuration encourages turbulent airflow and improves heat transfer efficiency with varied spacing options.

📊 Immersion Cooling Solutions

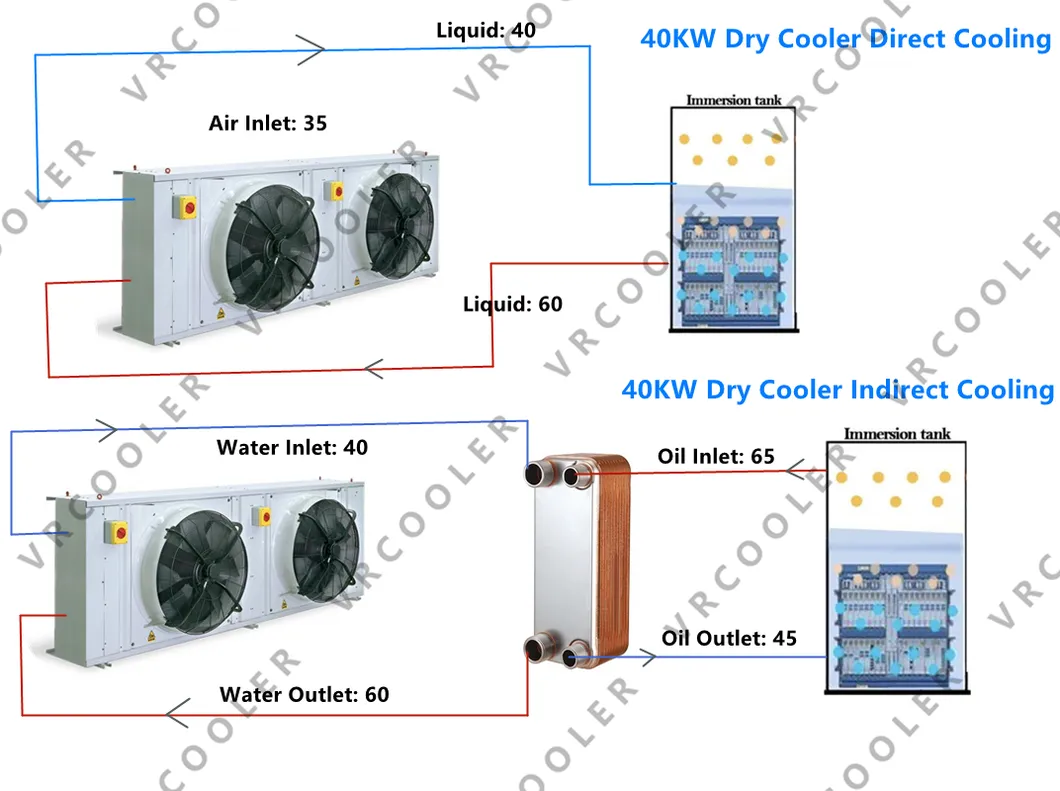

We provide two primary solutions: Direct Cooling via Dry Cooler and Indirect Cooling combined with Plate Heat Exchangers (the most popular economical method).

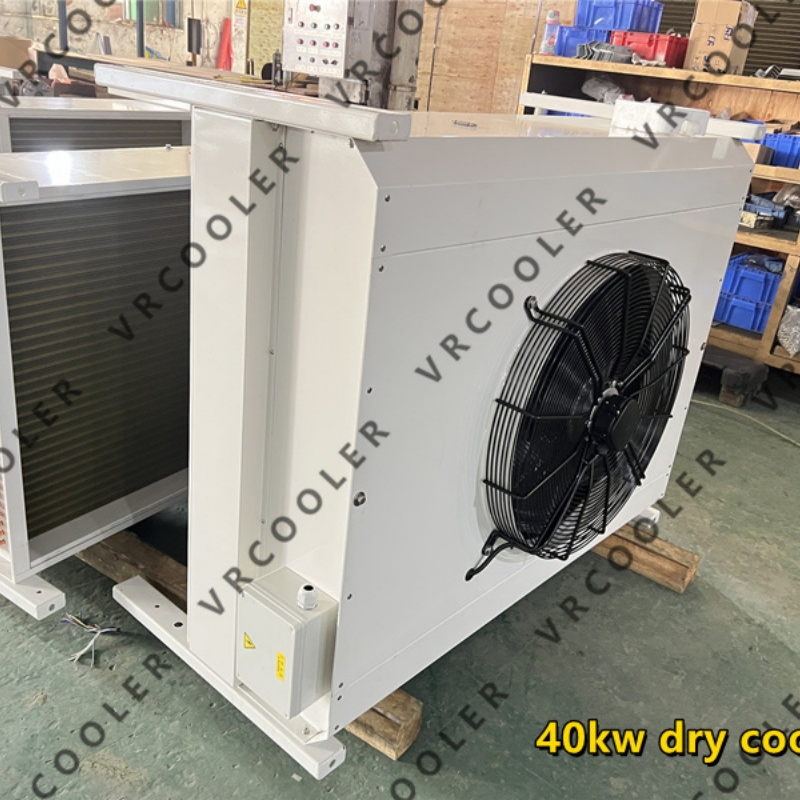

Model: 40KW System

Feature	Direct Cooling	Indirect Cooling (PHE)
Capacity	40KW	40KW
Fluid Temp (In/Out)	60/40 ºC	65/45 ºC (Liquid)
Dimensions	1687x700x952mm	73 Plates PHE

Model: 120KW & 240KW Systems

Specification	120KW Model	240KW Model
Application	Immersion Rack System	Multiple Immersion Racks
Dimensions	3410x1115x700mm	4165X2100X1710mm
Material	Copper Tube Aluminum Fin, GI Steel Powder Coating Casing

🌟 Our Advantages

Custom Design: Professional engineering for specific buyer requirements and designs.
Global Reach: Extensive export experience to the USA, Germany, Canada, Israel, and more.
Rapid Response: Guaranteed inquiry feedback within 24 hours.
Quality Commitment: Focused on efficient service and maintaining an excellent industry reputation.

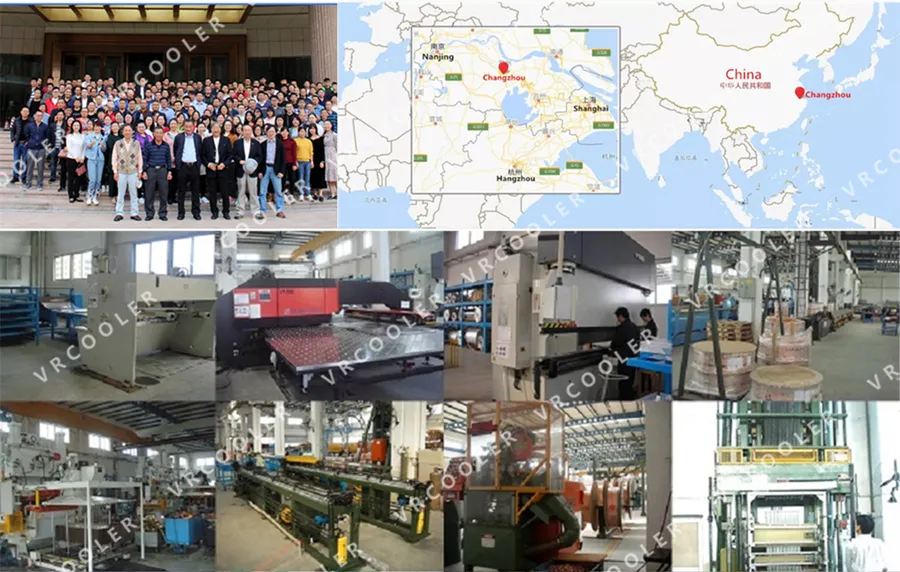

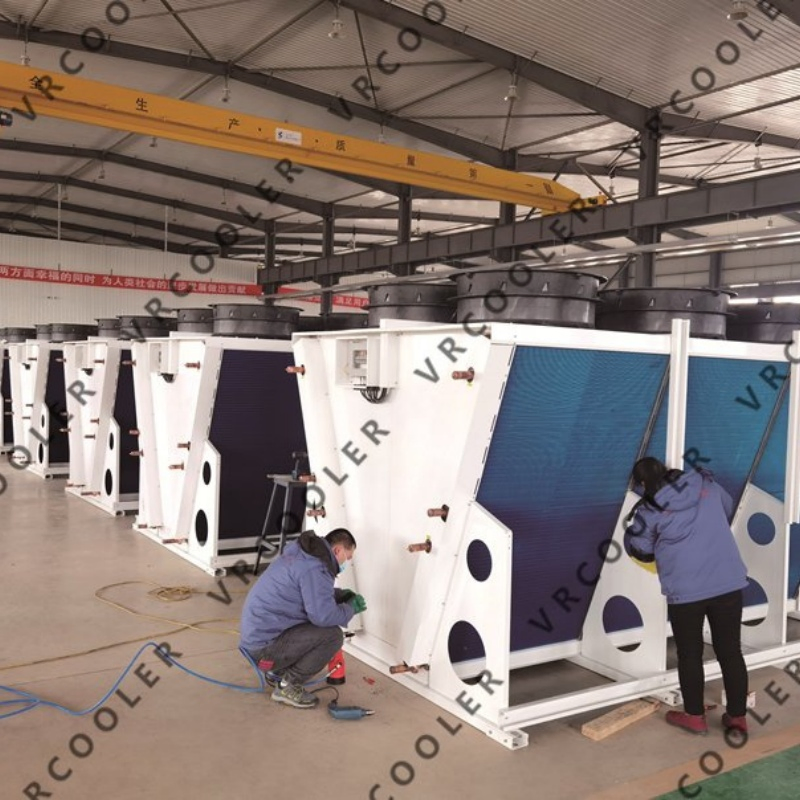

🏢 Professional Manufacturing

Over 15 Years of Success

Our facility specializes in researching, manufacturing, and exporting Heat Exchangers, Evaporators, Condensers, and Air Coolers. Since 2004, we have provided high-quality heat transfer equipment for various industrial sectors worldwide.

Our mission is to meet industrial needs through integrity, responsiveness, and uncompromising quality, fostering long-term business relationships.

❓ Frequently Asked Questions

Q1: Are you a direct manufacturer? Yes, we are a manufacturing factory capable of processing professional OEM and ODM orders according to specific technical requirements.

Q2: What is the typical ordering process? The process includes: Inquiry and requirement analysis -> Technical quotation -> PI and data confirmation -> Advance payment -> Mass production -> Shipping and package documentation -> After-sales support.

Q3: What information is needed for a prompt quotation? Please provide the cooling capacity (KW or Ton), required refrigerant (R407C, R410a, etc.), local voltage/frequency, and the specific application details.

Q4: Can the dry coolers be customized for extreme environments? Yes, we offer various materials like stainless steel or specialized coatings for the casing and fins to ensure durability in corrosive or high-temperature environments.

Q5: What is the benefit of indirect cooling in immersion systems? Indirect cooling using a Plate Heat Exchanger (PHE) is highly efficient and economical, as it allows for better control of the primary cooling loop while protecting sensitive equipment.

Q6: How are the products protected during international shipping? All units are securely packed in professional export-grade wooden cases to prevent damage during sea or land transportation.
