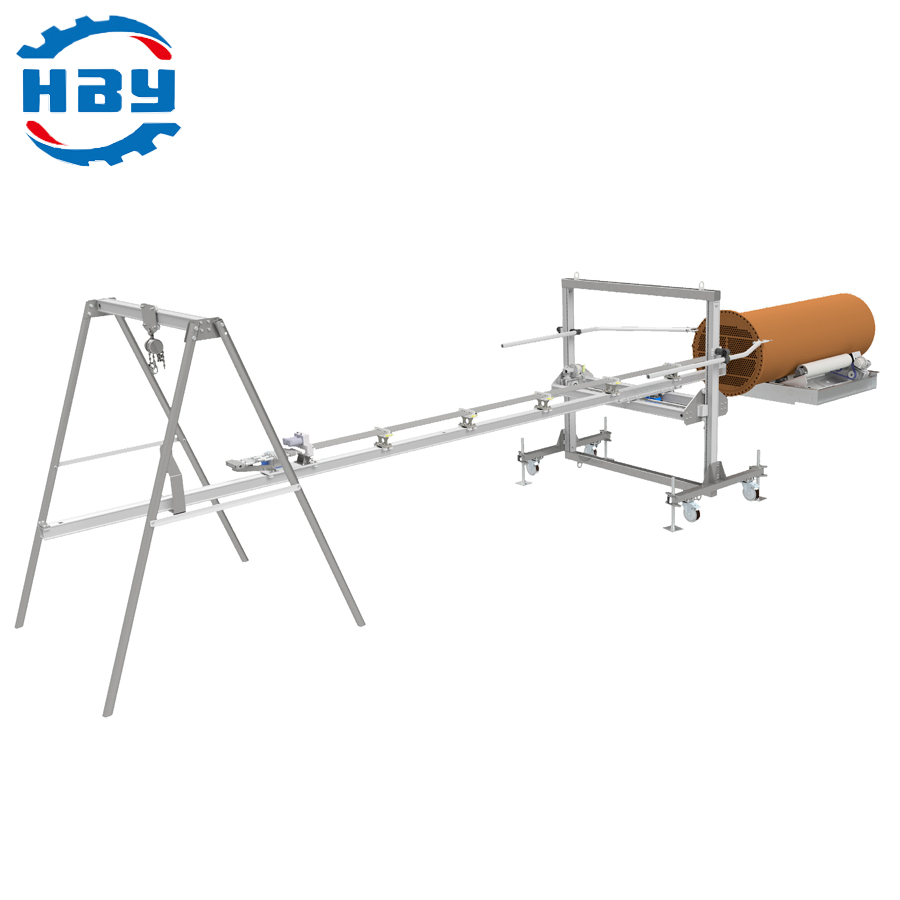

Rigid Lance Cleaning System
The Rigid Lance Cleaning System is an innovative ridged lancing system to clean heat exchanger tube bundles by means of (ultra) high pressure water jets. The RLC is a modular designed machine easy to adapt to any length and suitable for a maximum working pressure of 3000 bar. The RLC is the machine for removal of hard plugs, scaling and general cleaning of heat exchangers.
The basis of the system is an aluminum rail with gear rack on which a modular rotating lancing carriage drives the lances in and out the heat exchanger tubes. For positioning the lances in front of the heat exchanger, the system comes with an X-Y Positioner. This X-Y Positioner consists of a removable wheel kit, support stands / legs and scaffolding guides for vertical application. For stability, the system can be equipped with a rear support for both horizontal and vertical applications.
On the lance carriage, you will find the Modular Lance Rotation Drive Unit. This modular block can be converted to rotate 1, 2, 3 or 5 high pressure lances in any pressure range. For controlling all functions, the machine comes with an operating panel, placing the operator out of the line of fire. The system is standard fully air powered, however a hydraulic version is available on request.

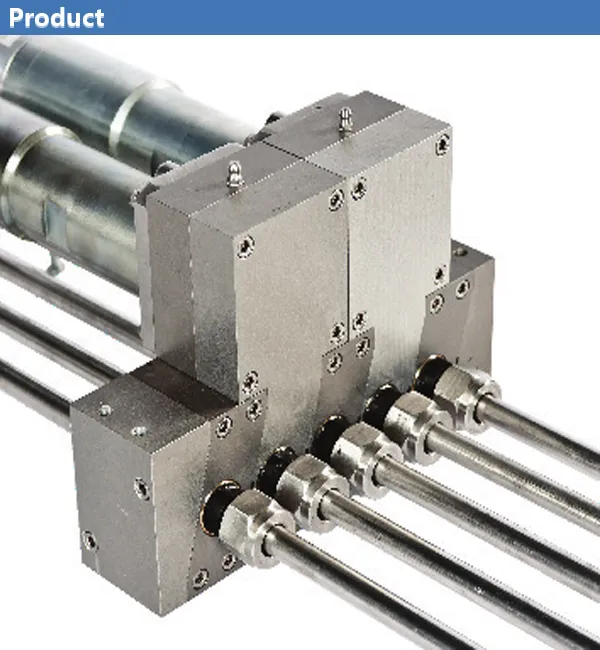

MODULAR LANCE ROTATION DRIVE UNIT
- Modular design
- Includes motor for 600 rpm
- Multiple lances supported
- Unique small pitch distance

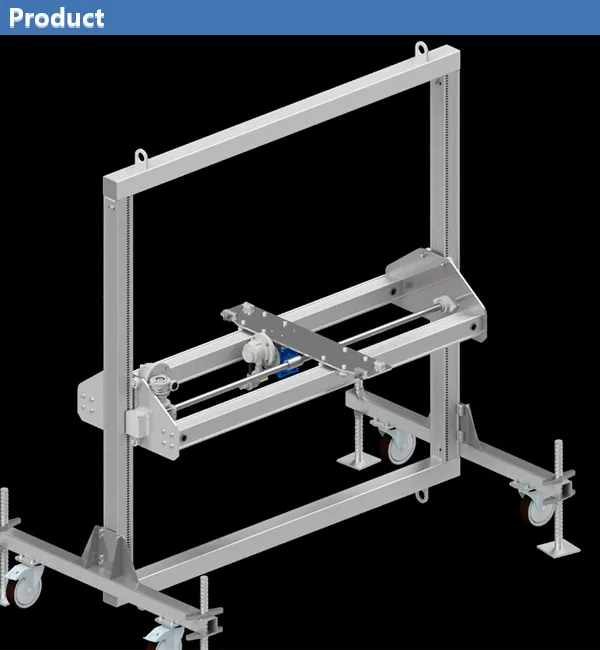

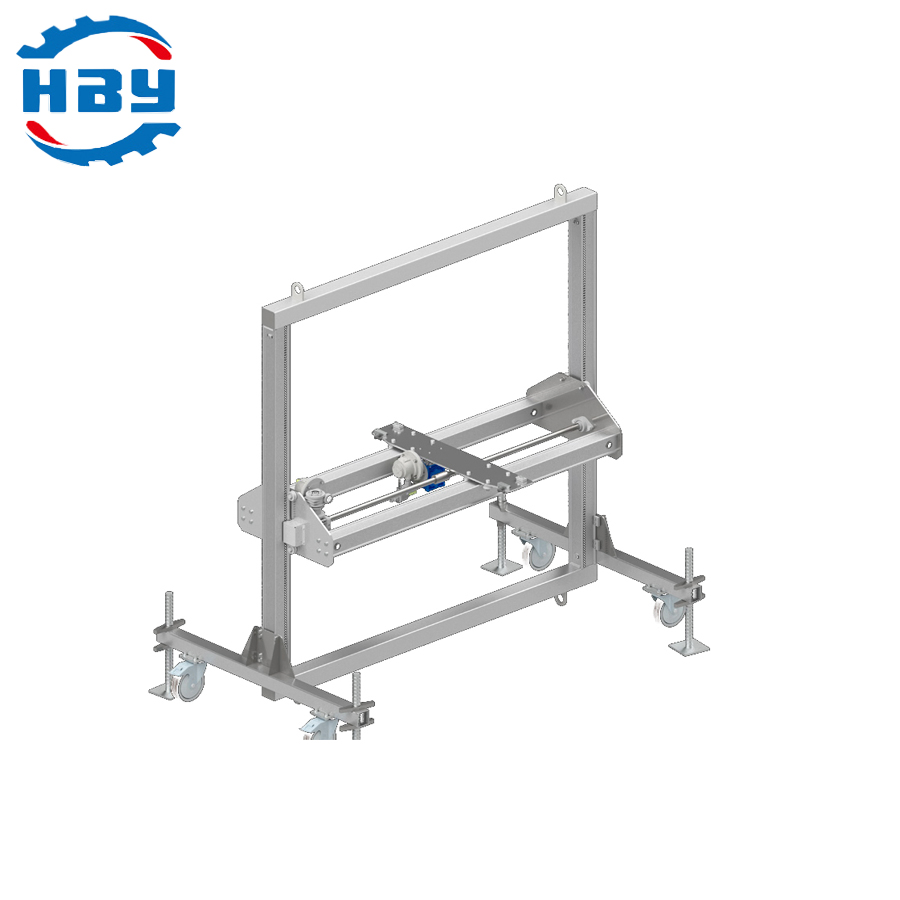

X-Y POSITIONER
- Stainless steel & aluminum construction
- Wheels and supports included
- Complete with braces and c-clamps

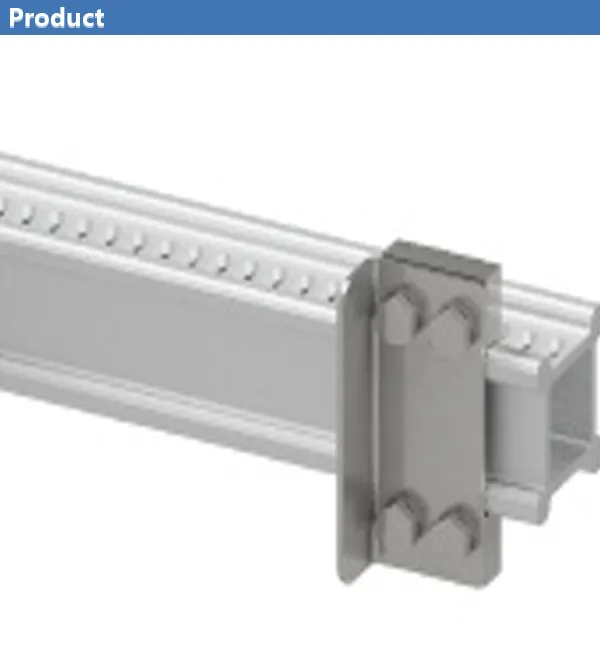

AUTOMATED SOLUTIONS RAIL
- Manual power limit adjustment
- Strong and reliable for tough applications
- Endless modular possibilities

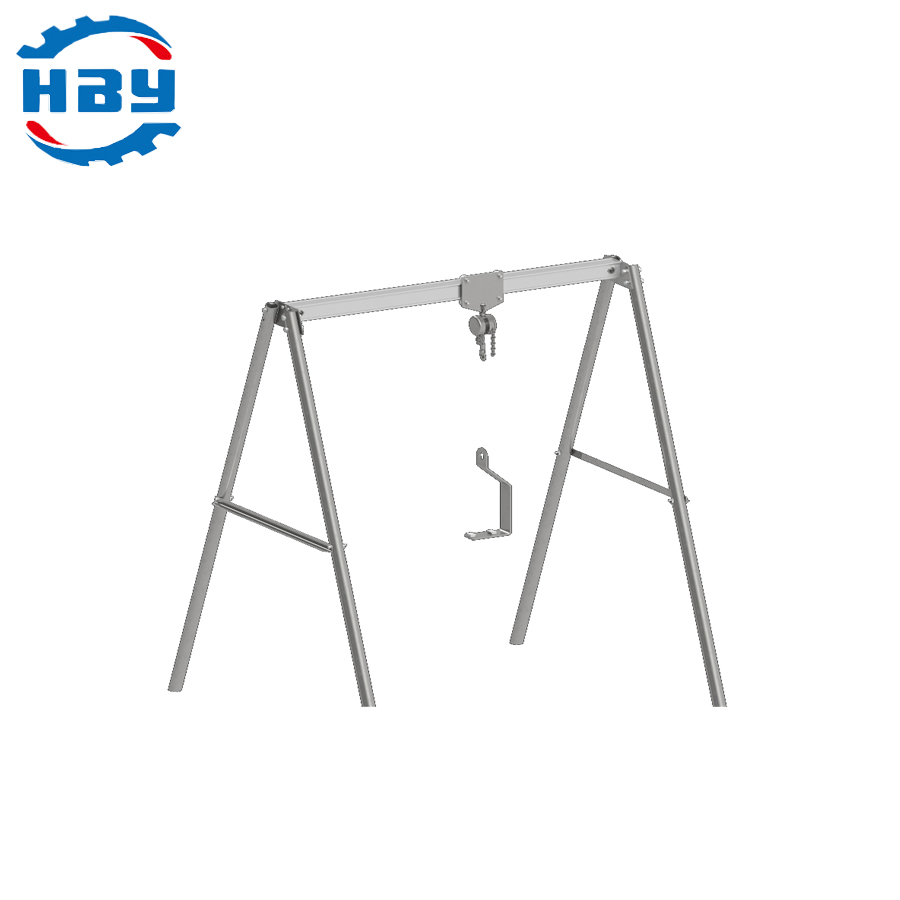

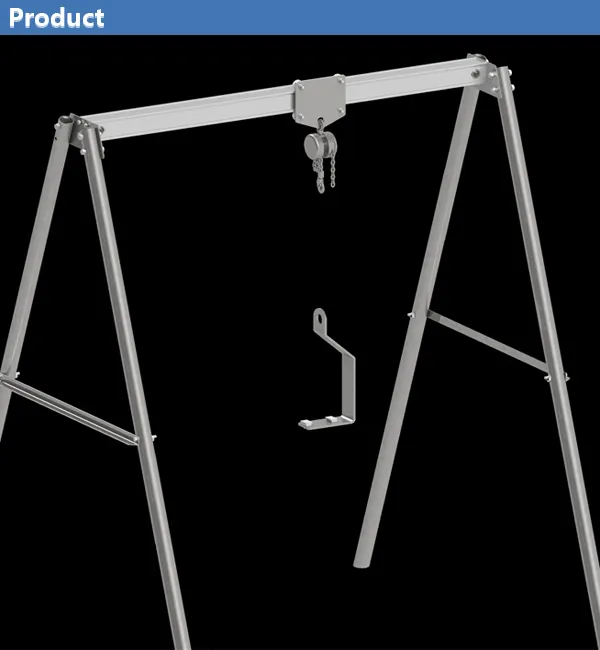

REAR SUPPORT A FRAME
- Heavy duty construction
- Stainless steel & aluminum
- CE marked chain hoist
- Easy to transport

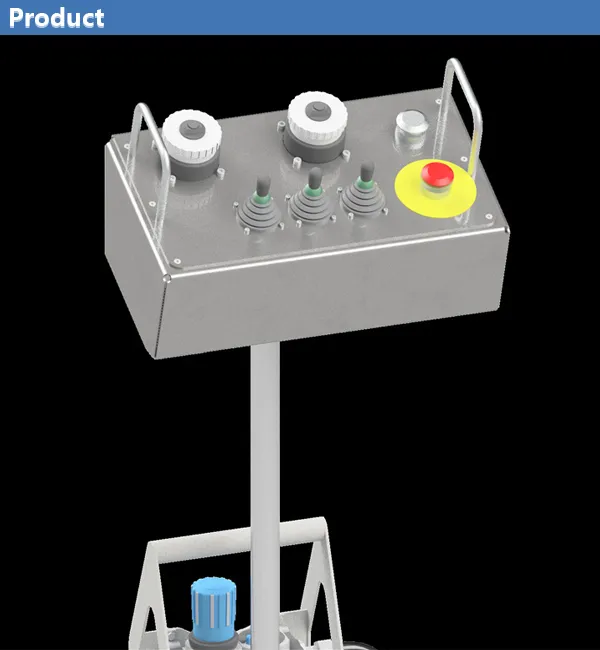

OPERATING PANEL
- Remote control operation
- Lance speed and direction control
- Rotation speed control
- X-Y positioning control

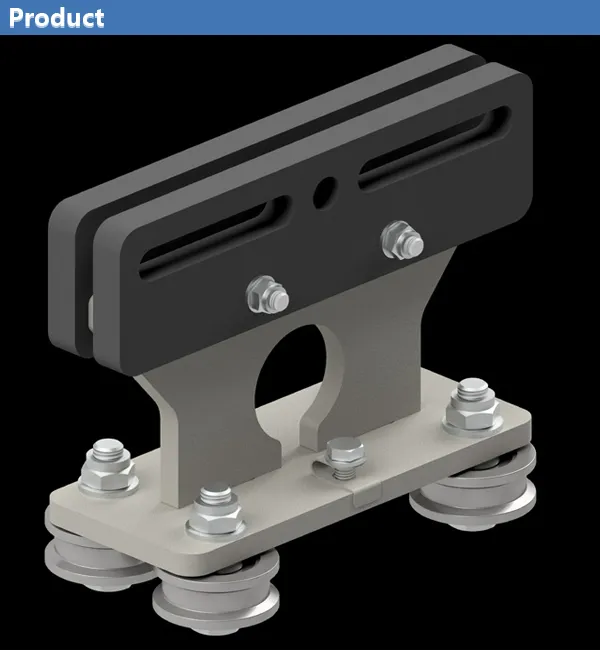

LANCE GUIDE BLOCK
- Stainless steel base
- 4 roller bearings for smooth transport
- Replaceable guide block
- Suitable for 1, 2, 3, or 5 lances
Frequently Asked Questions
Q: What is the maximum working pressure of this system?
A: The system is designed to handle ultra-high pressure water jets up to a maximum of 3000 bar.
Q: How many lances can the rotation drive unit accommodate?
A: The modular design allows for the rotation of 1, 2, 3, or 5 high-pressure lances depending on your requirements.
Q: Is the system suitable for vertical cleaning applications?
A: Yes, the X-Y Positioner includes scaffolding guides and support stands specifically for vertical applications.
Q: What is the primary power source for the system?
A: The standard system is fully air-powered, though a hydraulic version can be provided upon request.
Q: How does the system ensure operator safety?
A: It features a dedicated remote operating panel that allows the operator to control all machine functions while remaining out of the line of fire.
Q: What types of debris can this system remove?
A: It is highly effective at removing hard plugs, heavy scaling, and performing general cleaning within heat exchanger tube bundles.
