Basic Information
Application
Food, Toy, Gifts, Medical
Type
POF Shrink Film Machine
Packing Speed
15-30 bags/Min
Heating Mode
Shrink Furnace
Production Capacity
500/Month
Product Description

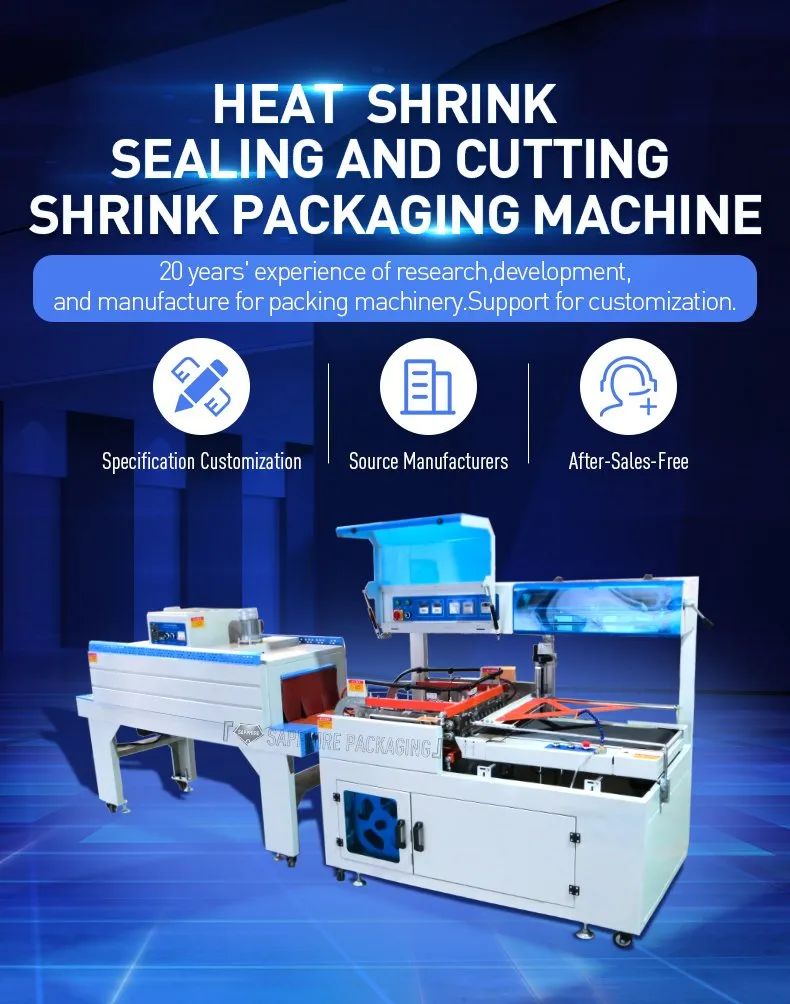

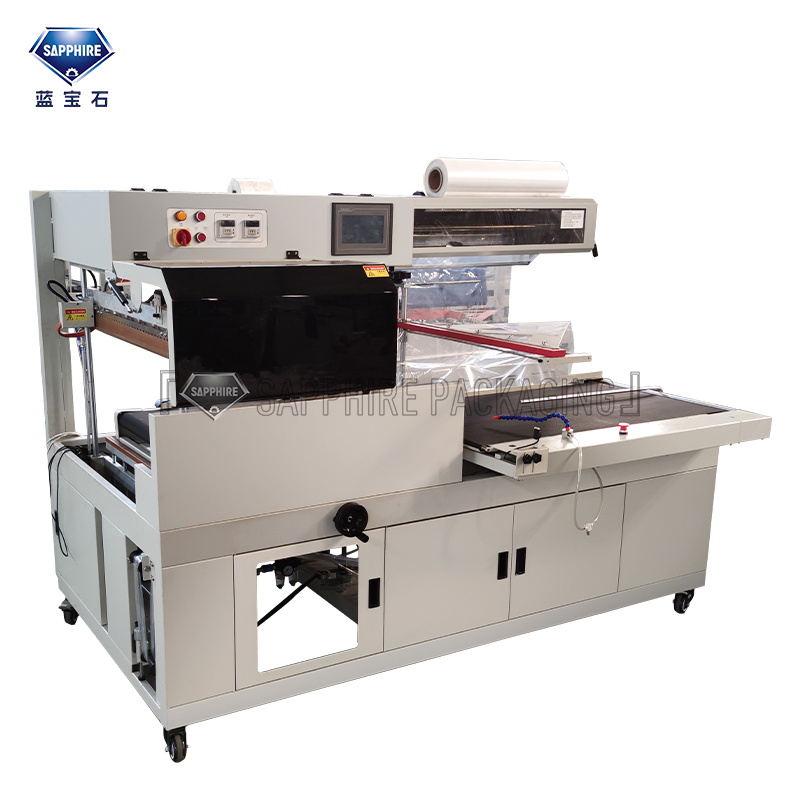

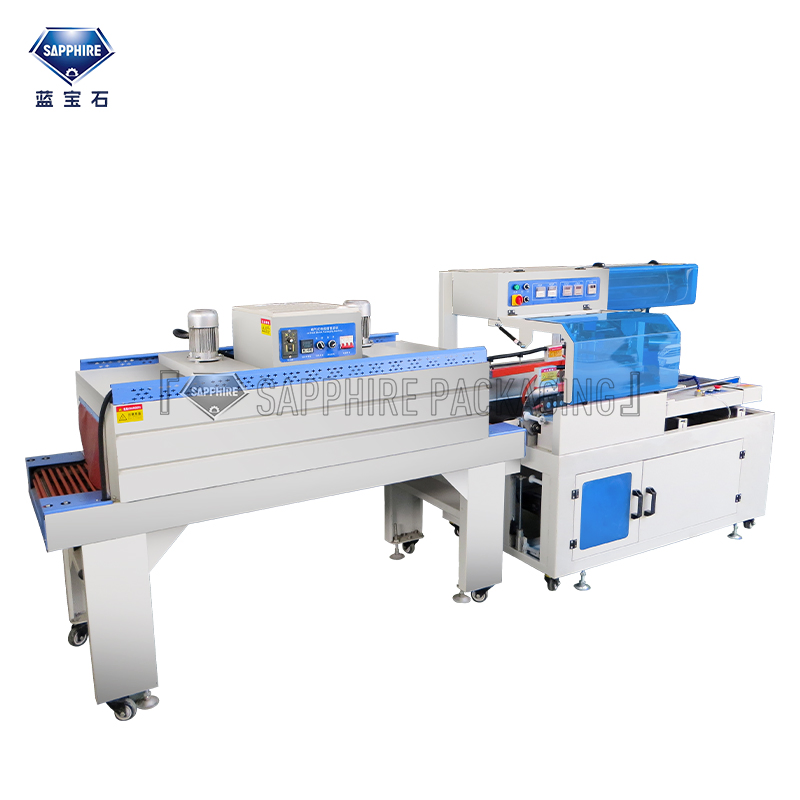

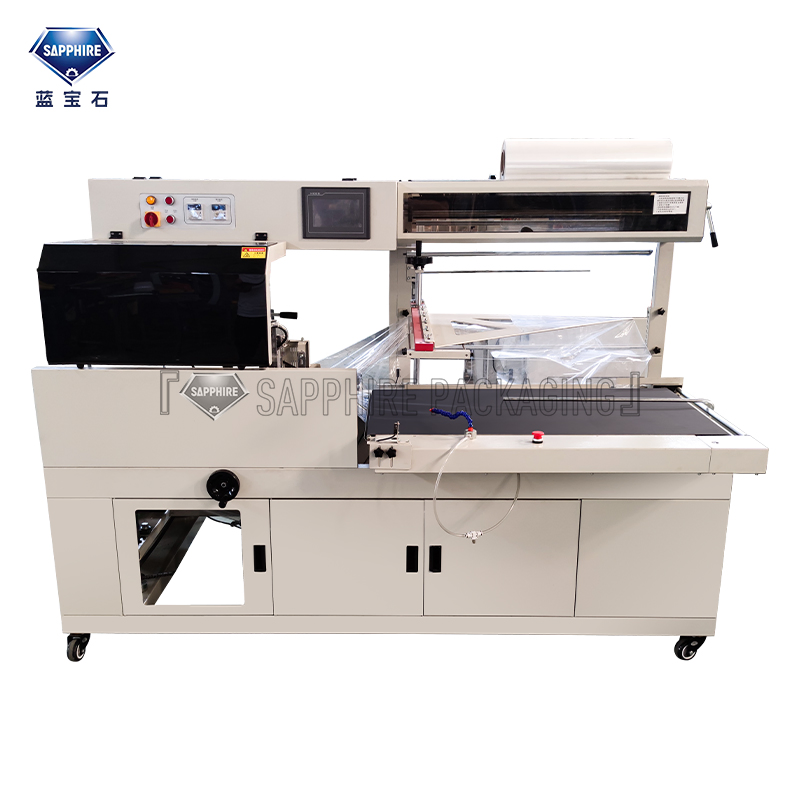

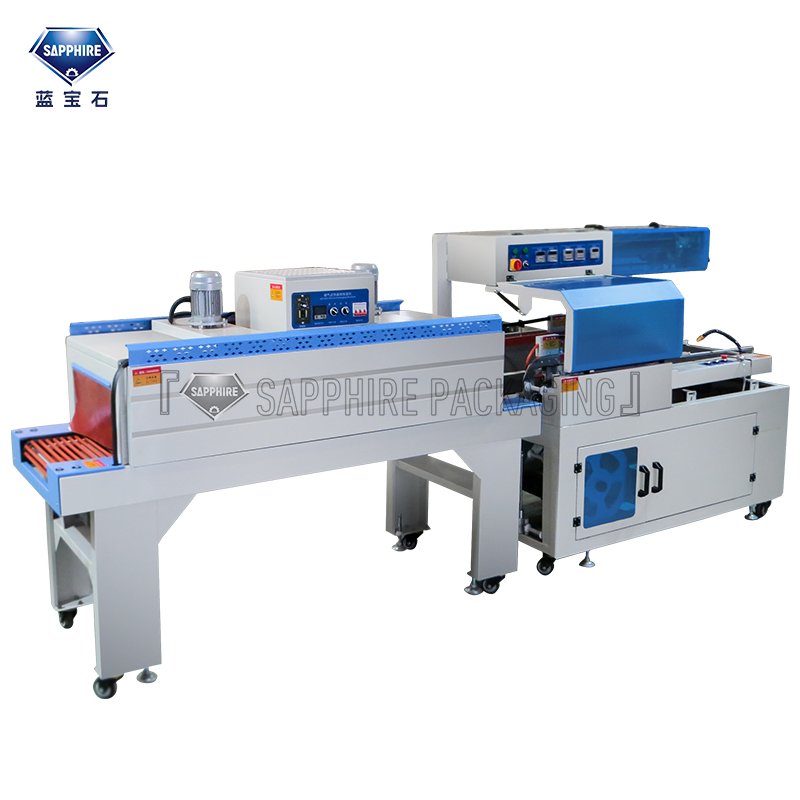

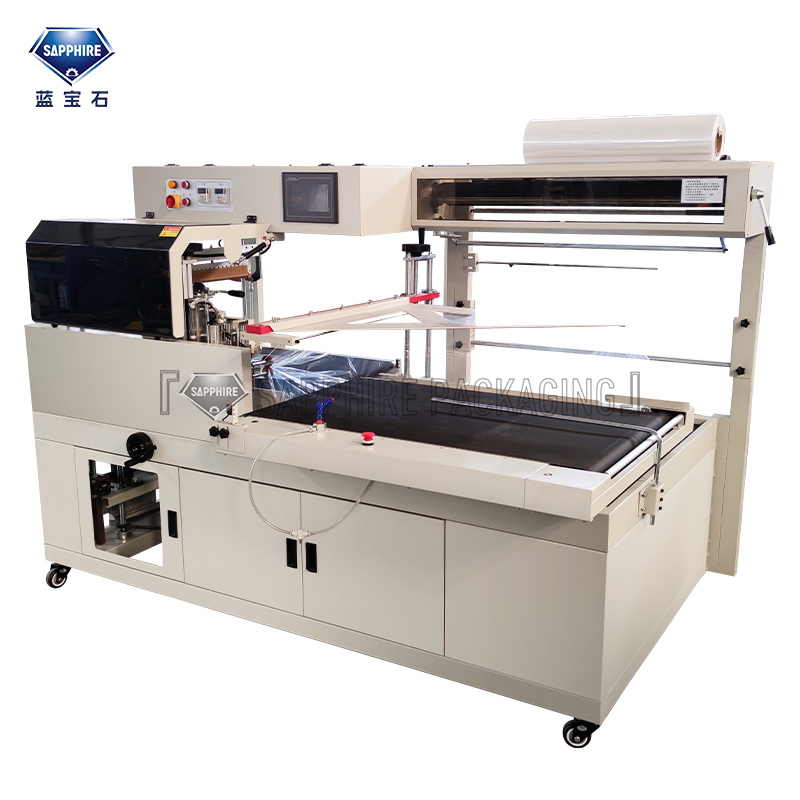

Customized Rapid Heat Shrink Wrapping Machine System

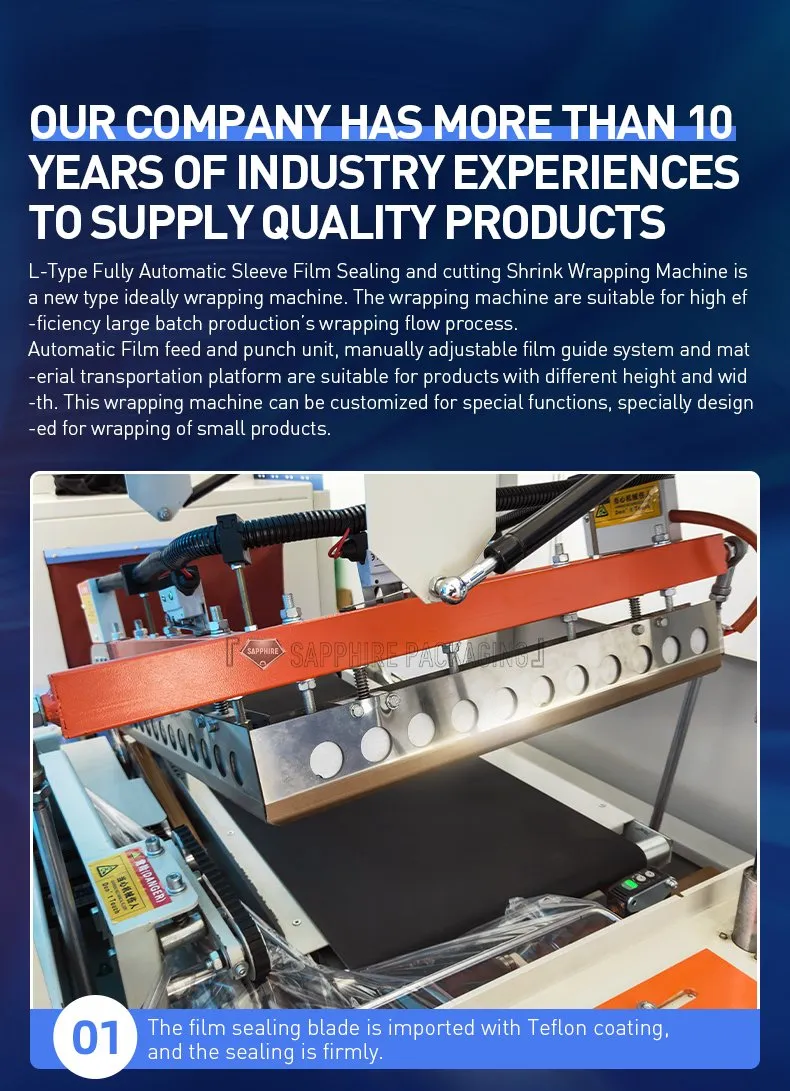

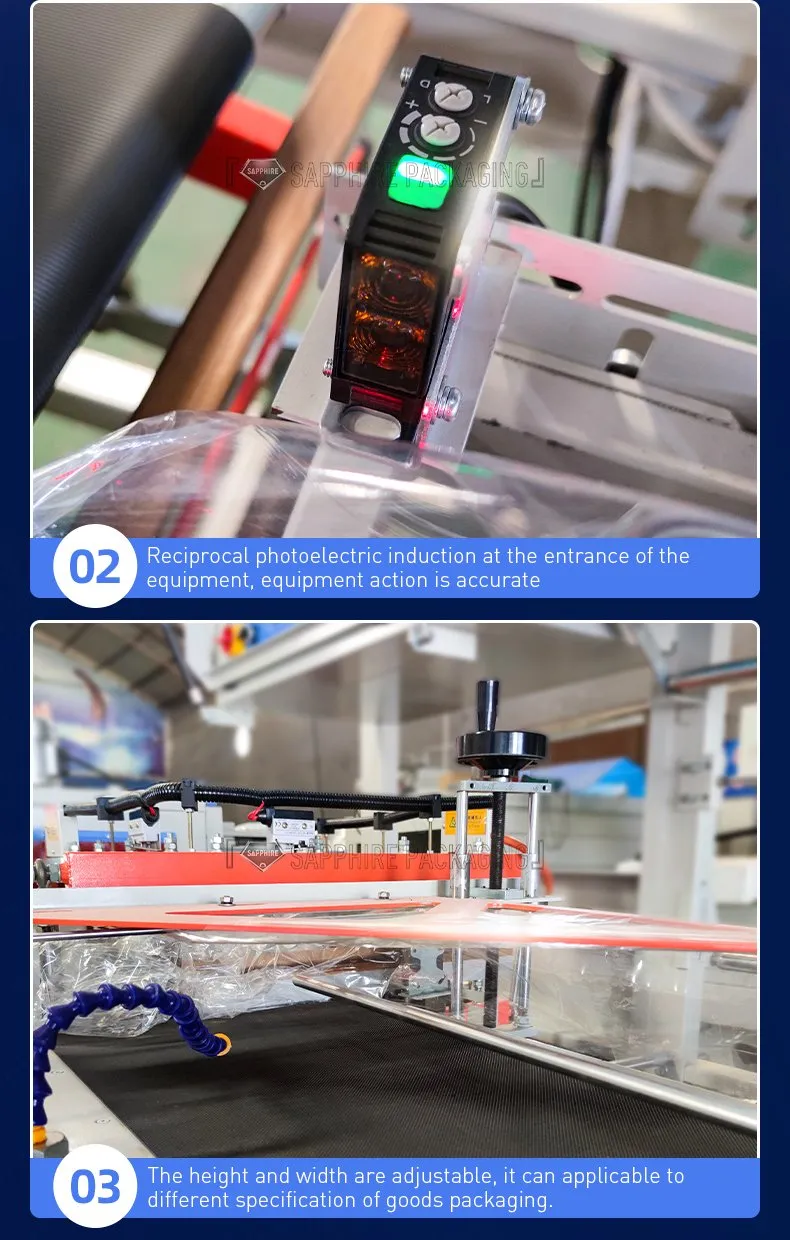

Introducing our state-of-the-art, Fully Automatic L-Shaped Sealing and Shrinking Packaging Machine. This high-efficiency marvel is engineered for seamless, unmanned operations, revolutionizing mass production and packaging lines. It features automatic film feeding and a precise punching device. The manually adjustable film guiding system and versatile feeding and conveying platform accommodate products of various heights and widths. Although uniquely designed for small product packaging, this equipment offers extensive customization to meet your specific needs, ensuring both flexibility and superior performance.

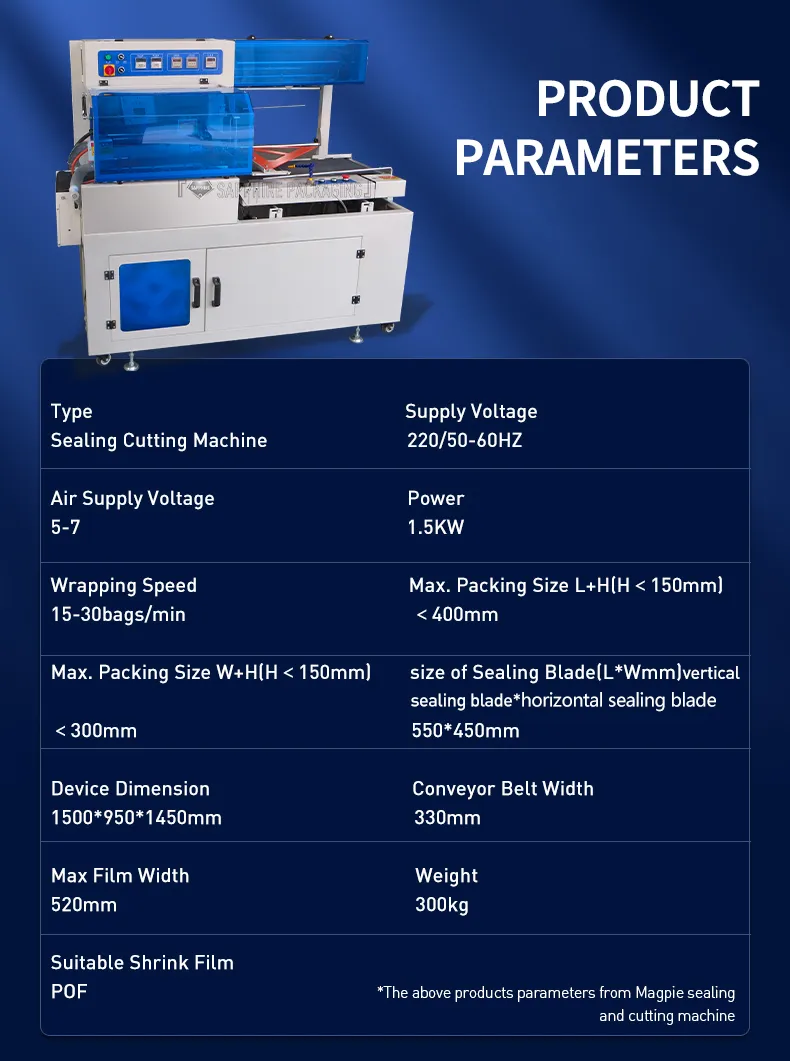

● Sealing and Cutting Machine Parameters
| Model | L450 |
| Voltage | 220V/50HZ |
| Power | 1.5KW |
| Packing speed | 15-30Bags/min |
| Package Size | <500*<400*<150mm(L*W*H) |
| Sealing knife size | 550*450 mm |
| Film Width | 520mm |
| Film material | POF/PE |

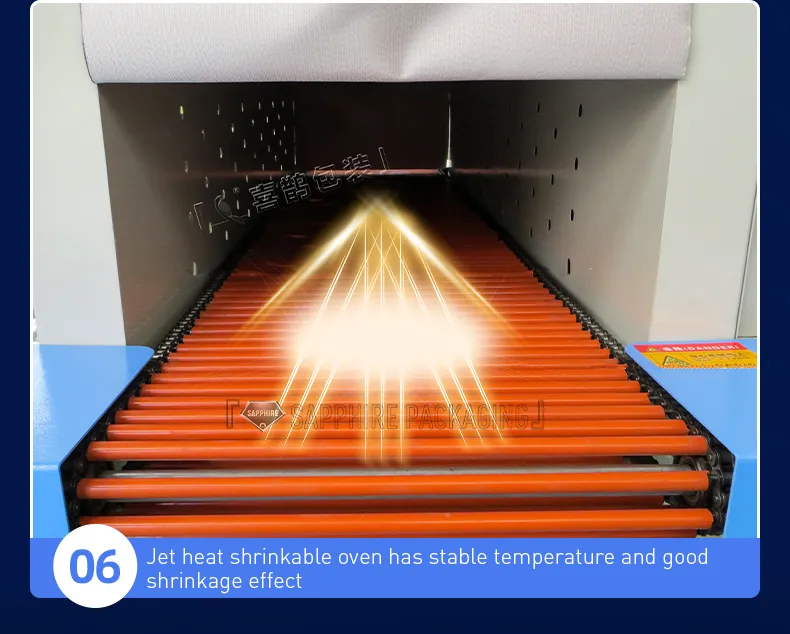

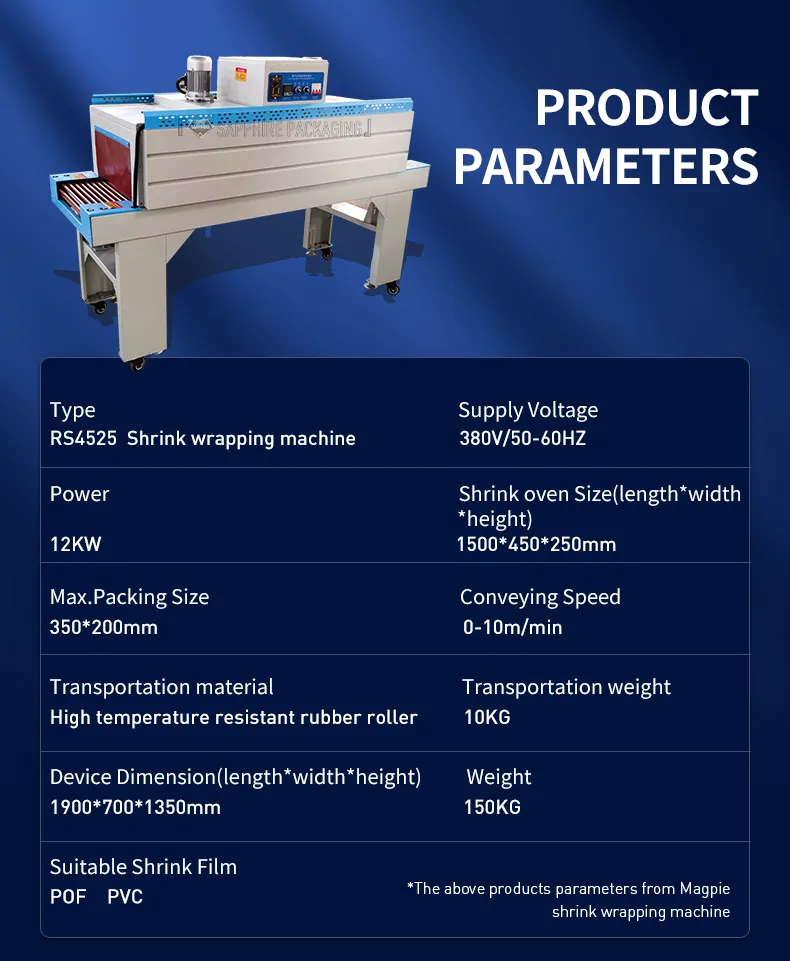

● Shrink Furnace Parameters
| Model | BSP4525 |
| Voltage | 380V/50HZ |
| Power | 12KW |
| Furnace Size | 1500*450*250mm |
| Conveyor material | High temperature resistant rubber roller |
| Conveyor load | 10kg |
| Film material | POF/PE |
Product Gallery
The heat shrink packaging machine is designed to wrap and seal objects using heat shrink film. Widely applicable for a variety of objects, it is especially ideal for boxed products such as books, notebooks, cosmetics, daily necessities, tableware, toys, toothpaste, toothbrushes, masks, wooden products, and medicines.

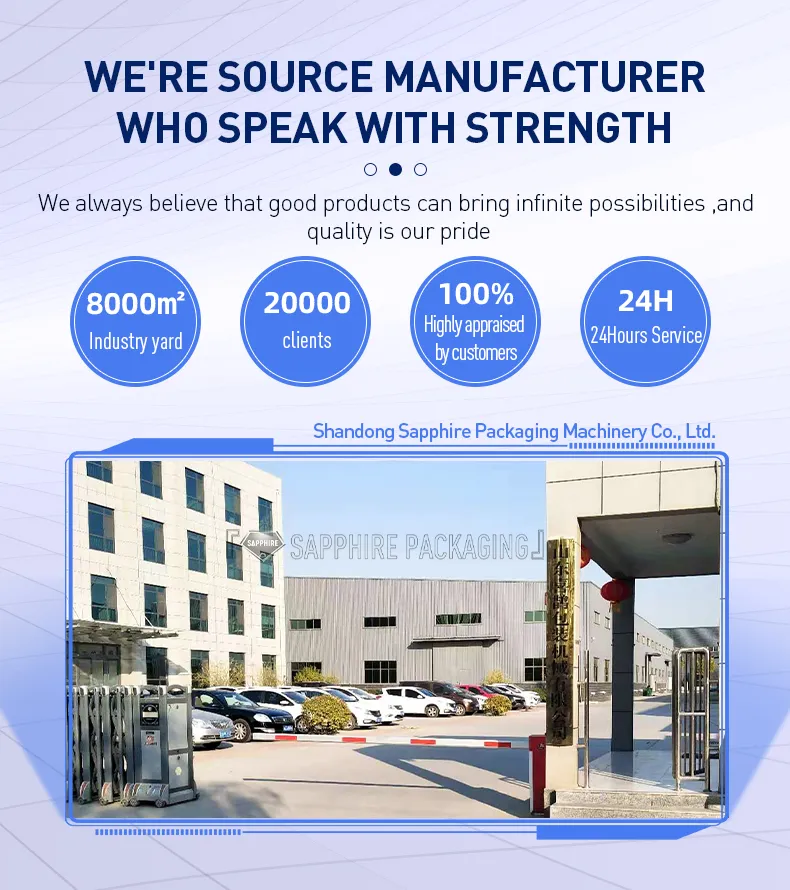

Manufacturing Expertise
Our factory has proudly excelled in the research, development, and manufacturing of packaging machinery for over 20 years. We have brilliantly innovated over 50 distinct products across 6 series, including Pallet Wrapping Machines, Vertical Coil Wrapping Machines, Horizontal Coil Wrapping Machines, 90° Upender Machines, and Heat Shrink Packaging Machines. Our products enjoy global acclaim and are widely exported to Asia, Southeast Asia, and Europe.
After Sales Service
- 🛡️ Quality Guarantee: One year period for all major components.
- 🛠️ Overseas Support: Engineers available for international service.
- 📞 Technical Support: 24/7 round-the-clock assistance via phone/video.
- ✅ Efficiency: Repairs within 10 days or re-production at no extra charge during the guarantee period.

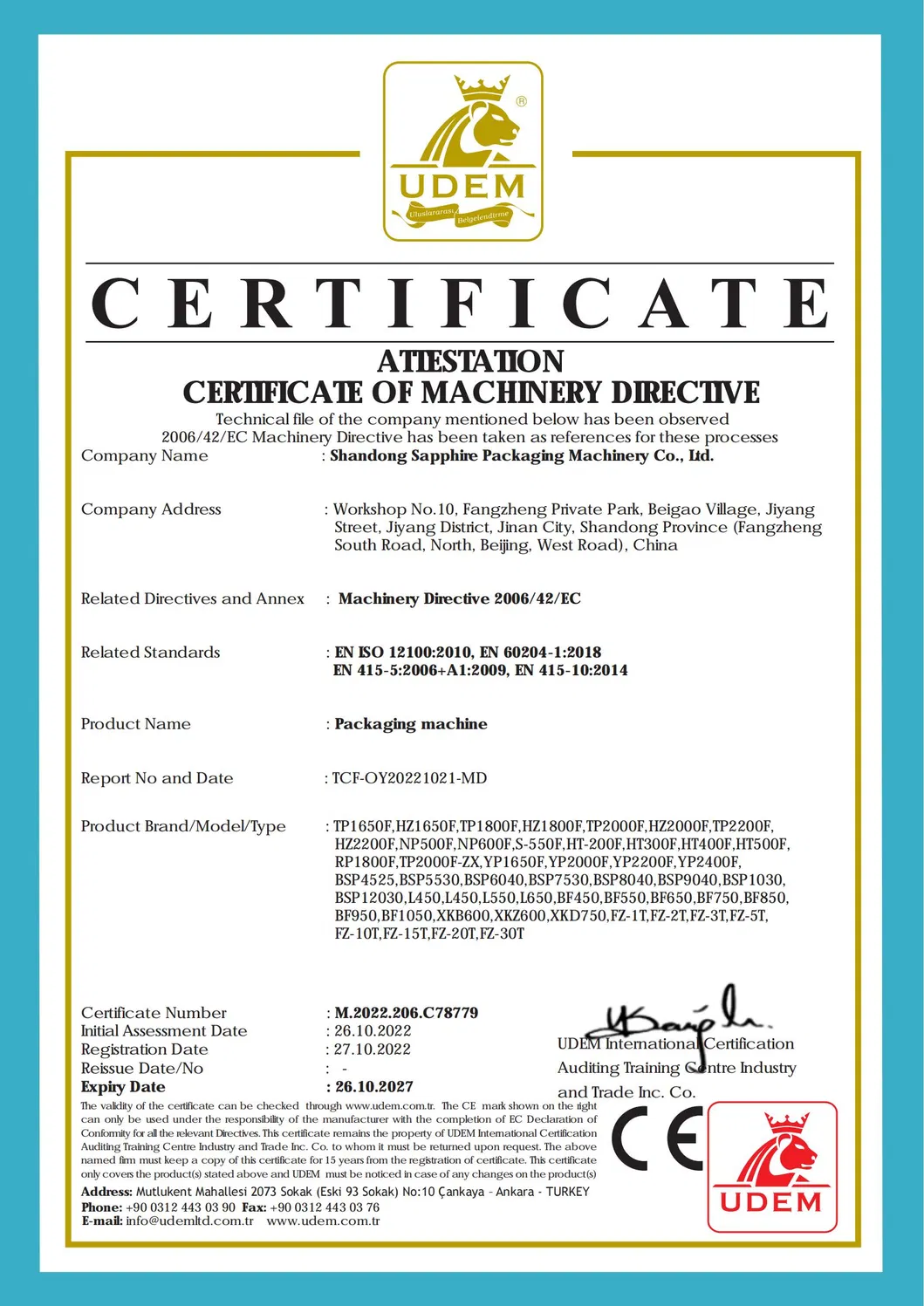

Certifications & Logistics
Frequently Asked Questions
Q1: What types of film can this machine use?
A1: The machine is compatible with POF and PE heat shrink films, which are standard for most retail and industrial packaging.
Q2: What is the maximum product size this machine can handle?
A2: The standard L450 model handles packages up to 500mm long, 400mm wide, and 150mm high. Customized sizes are available upon request.
Q3: Is the packaging speed adjustable?
A3: Yes, the sealing machine supports 15-30 bags per minute, and the shrink tunnel conveyor speed can be adjusted from 0-10m/min via electronic speed control.
Q4: Does the machine require manual operation?
A4: This is a fully automatic system designed for unmanned operation, featuring automatic film feeding, sealing, and conveying into the shrink tunnel.
Q5: What kind of products are best suited for this equipment?
A5: It is ideal for boxed goods like cosmetics, books, toys, medicines, and daily necessities that require a tight, professional film wrap.
Q6: What is the warranty and support policy?
A6: We provide a one-year quality guarantee and lifetime technical support. Engineers are available for overseas installation and maintenance if required.
