Basic Information
Model NO.:500L/H
Injection Site:Intramuscular
Material:Glass, Plastic
Needle Gauge:21G
Safety Feature:Needle Guard
Usage:Diabetes Care, Medical, Pain Management, Vaccine Administration
Warranty:One Year
Feed Water:Purified Water
Heating Source:Industrial Steam
Structure Form:Double Tube Plate Design
Control System:Full Automatic
HS Code:8419409090
⚙️
Product Description

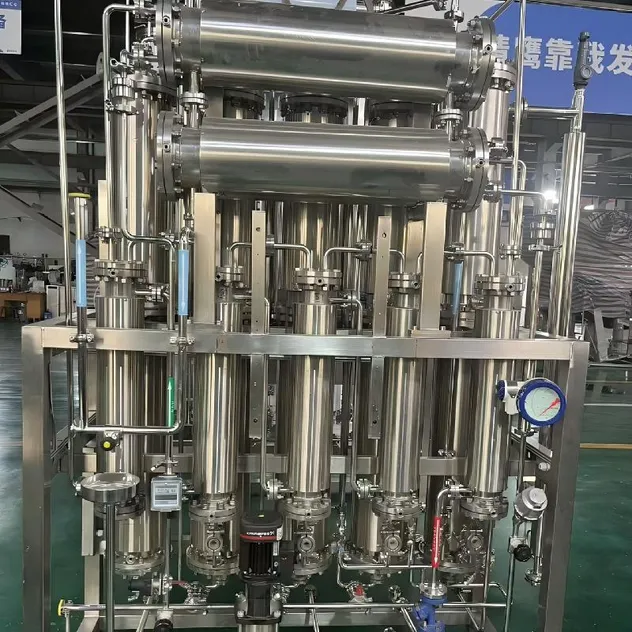

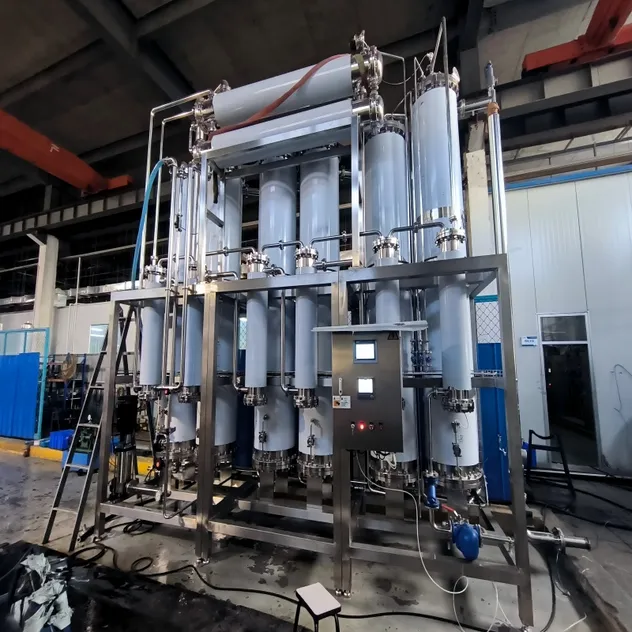

💡 Multi Effect Water Distiller Introduction

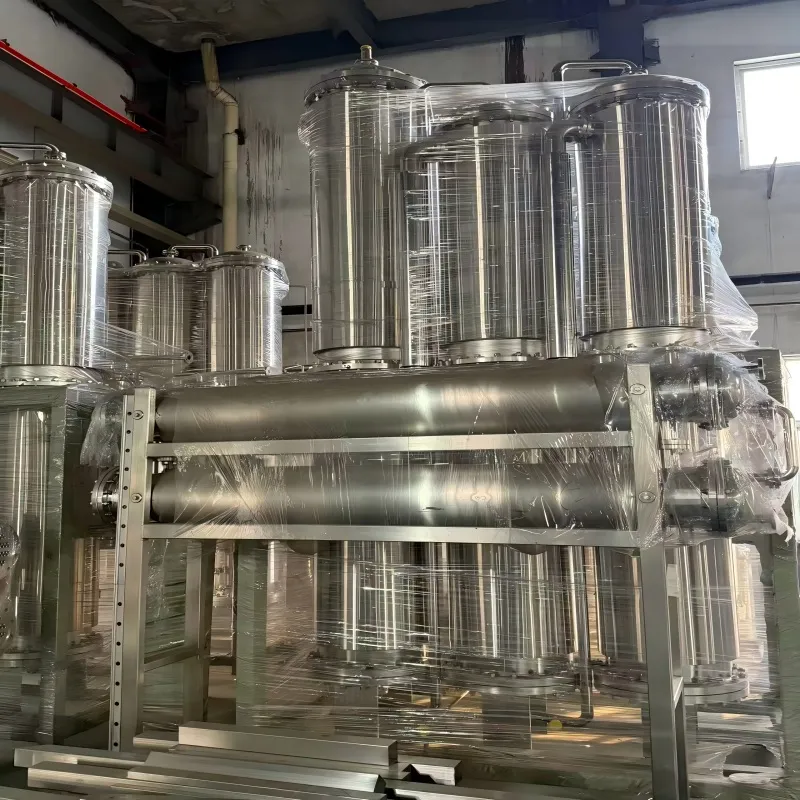

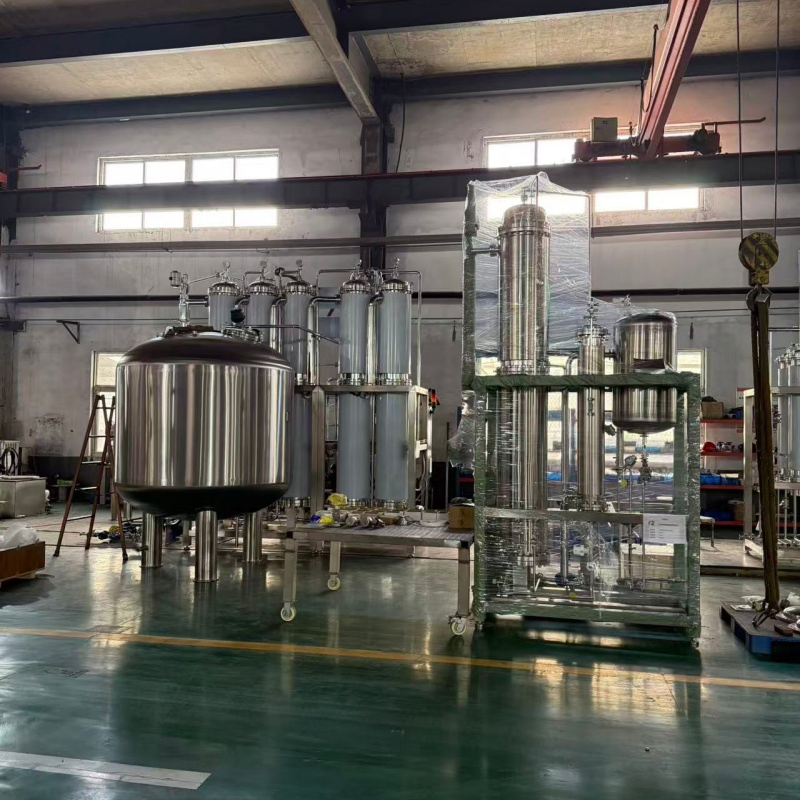

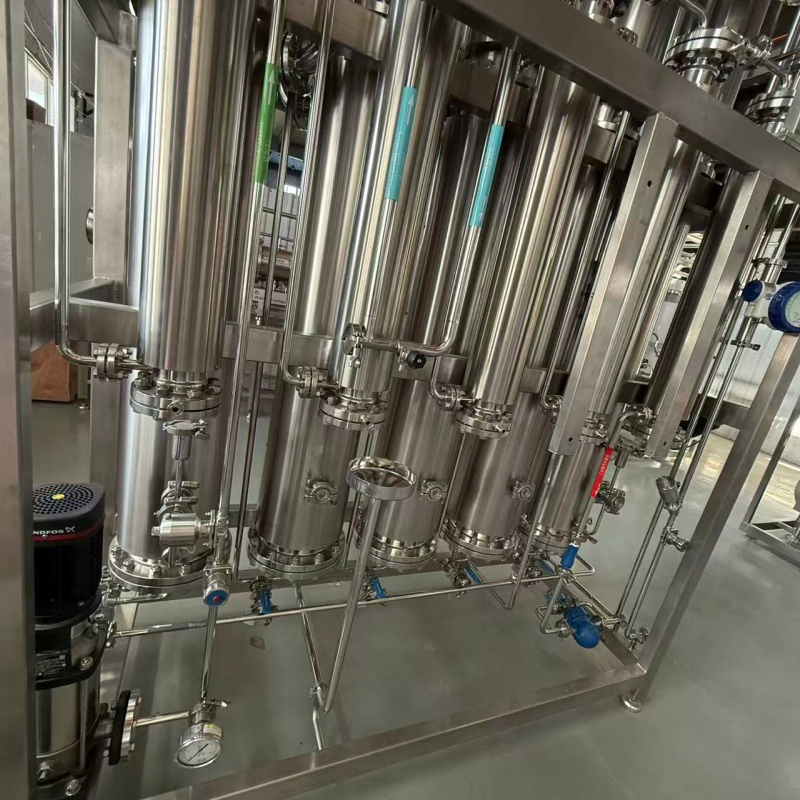

The six effect distilled water (WFI Generation plant) is an equipment that uses purified water as raw material and industrial steam to heat water for injection. The produced water for injection meets the specifications of Chinese Pharmacopoeia (CP2020), the United States Pharmacopoeia (USP43) and the European Pharmacopoeia (EP10).
- Structural Form: Double tube sheet plate design for external preheater, condenser, and first effect evaporator to avoid cross-contamination.
- Separation Device: Falling film evaporation, gravity separation, and spiral turbulence three-stage separation.
- Premium Material: SS316L used for all parts in contact with raw water, WFI, and secondary pure steam.
- Thermal Insulation: Aluminum silicate needle felt insulation for excellent stability and thermal efficiency.
- Surface Treatment: Electro-chemical polishing for both internal and external surfaces.
❓
Frequently Asked Questions
1. What quality standards does the produced water meet?
The produced water for injection meets the rigorous specifications of the Chinese Pharmacopoeia (CP2020), United States Pharmacopoeia (USP43), and European Pharmacopoeia (EP10).
2. Is external cooling water required for this system?
For systems with a capacity over 1000 L/H using a 6-column distiller, no external cooling water is required, significantly reducing operational costs.
3. What materials are used for the contact parts?
All parts in contact with raw water, water for injection (WFI), and secondary pure steam are constructed from high-quality SS316L stainless steel.
4. How does the system ensure energy efficiency?
The multi-effect design uses secondary steam step-by-step. The industrial steam consumption ratio is approximately 1:0.21, and raw water consumption is 1:1.08.
5. What kind of control system is implemented?
The system utilizes an HMI + PLC full-automatic control system with SCADA online monitoring, allowing for real-time data acquisition and multi-level permission management.
6. How is cross-contamination prevented in the design?
The system features a double tube plate design for the preheater, condenser, and first-effect evaporator, coupled with internal tube sheet expansion and external welding processes.
