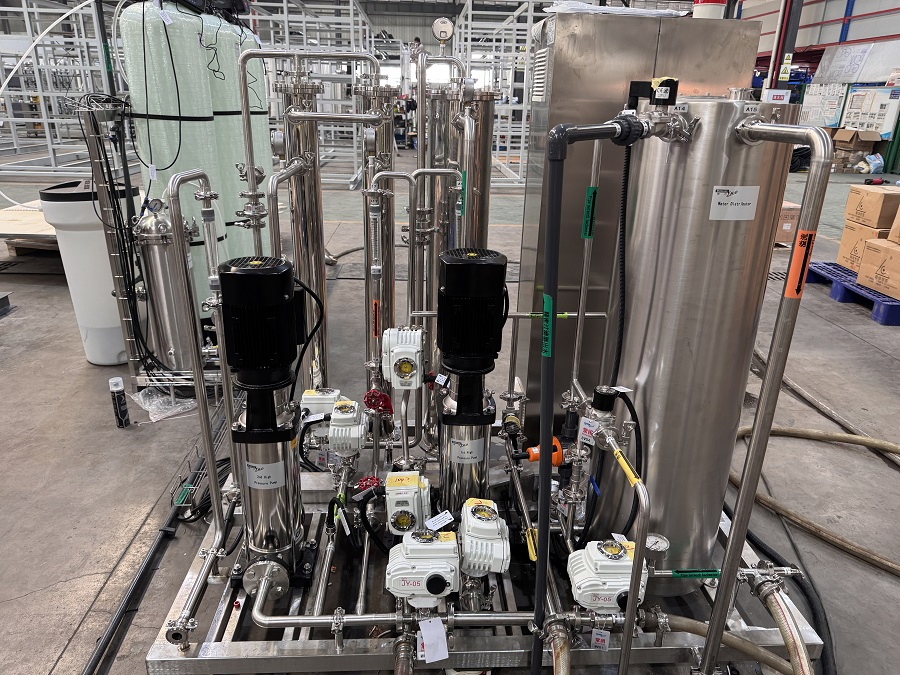

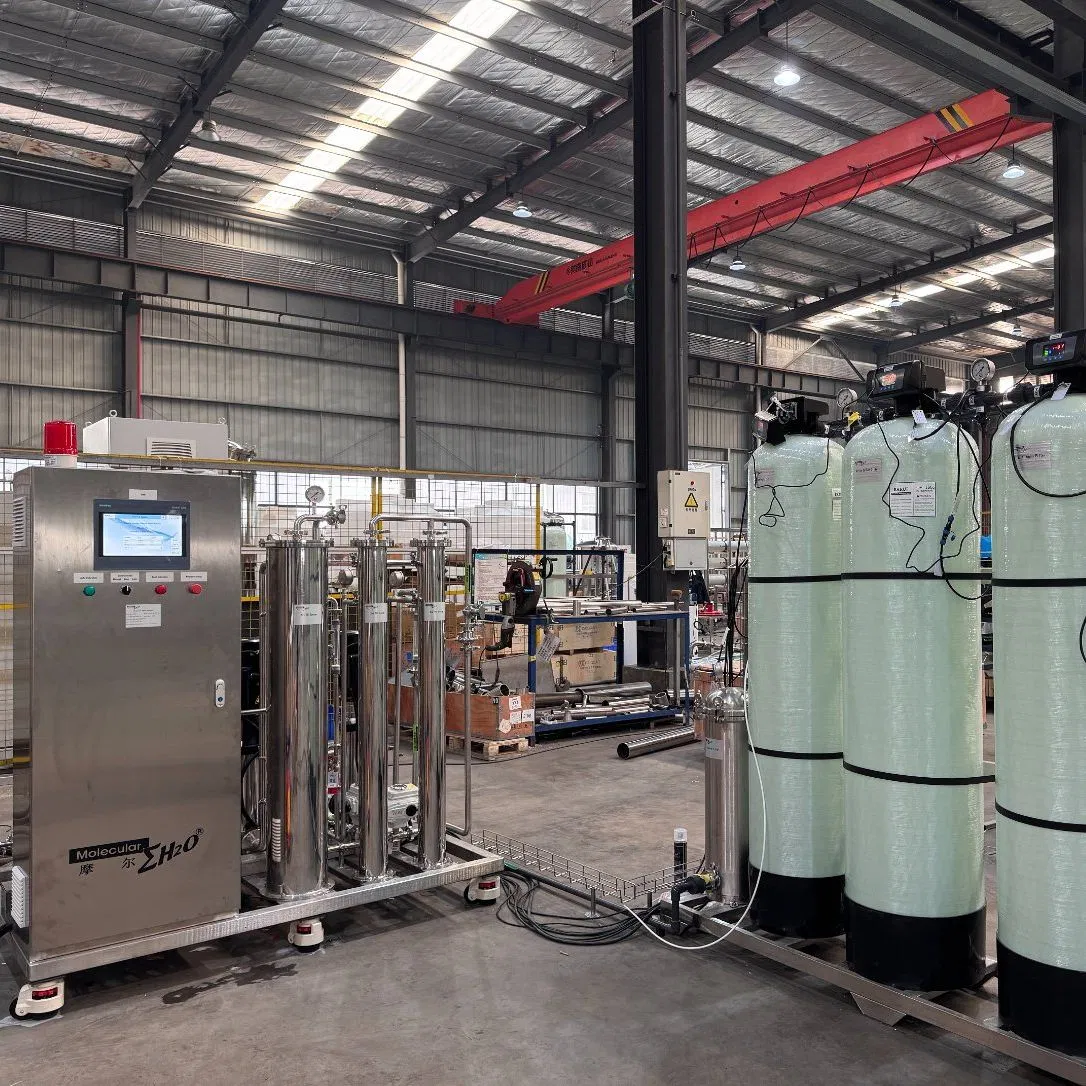

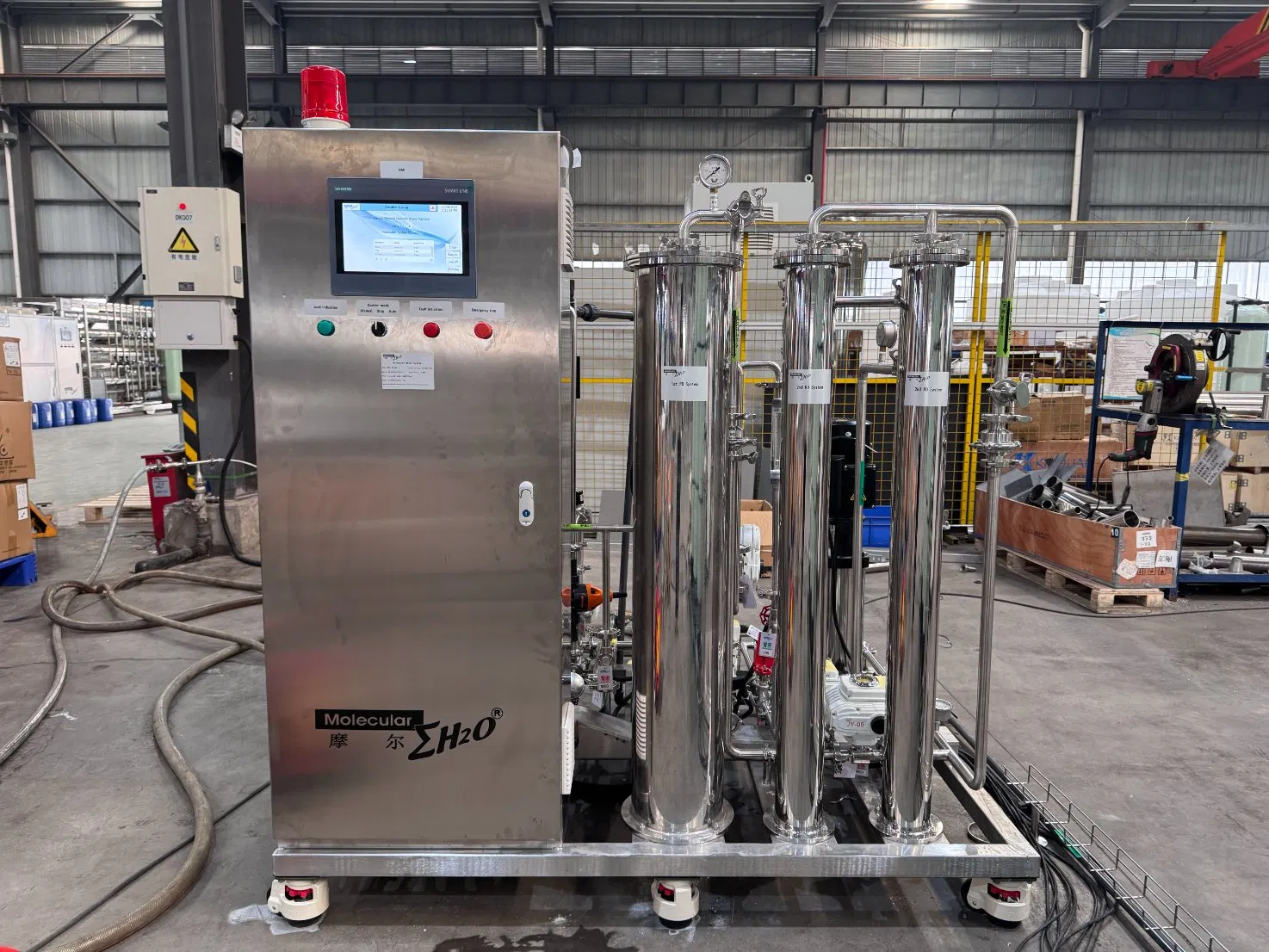

500lph Hemodialysis Pure Water System Double Stage RO with Heat Disinfection

Customization:	Available
Certification:	ISO9001, CE, ISO13485
Salt Rejection Rate:	99.5%

Basic Information

Model NO.

MOL-TX-CSA

Application

Hemodialysis

Capacity

3000lph

Technology

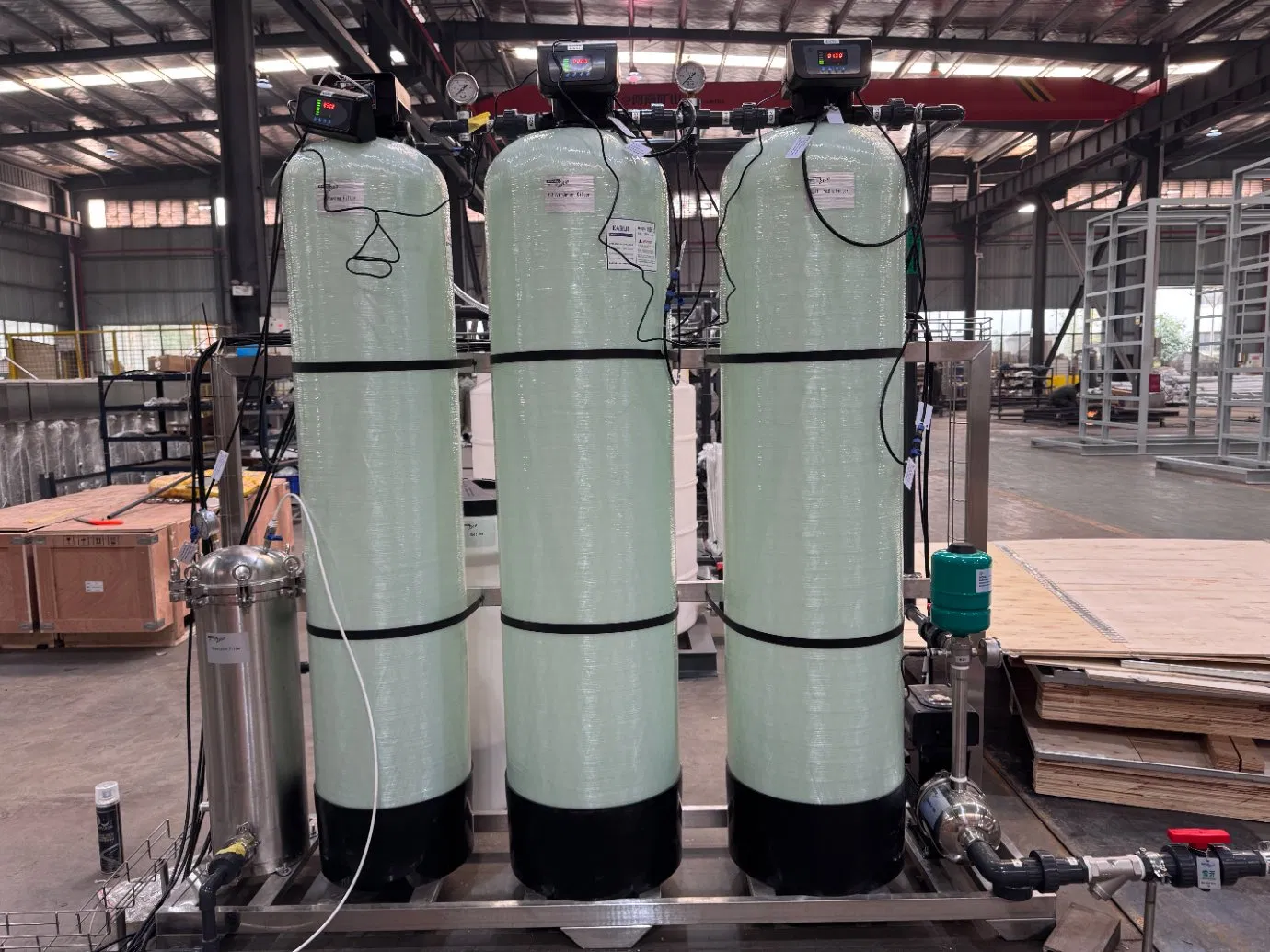

Pretreatment Filters + Double Stage RO

Disinfection

Chemical & Heat Disinfection

Material

UPVC, SS304

RO Membrane

DuPont, Ge

Control

PLC + HMI Automatic Control

Source Water

Tap Water

Water Quality

AAMI, Yy0572-2015

Package Size

2200cm * 1600cm * 2100cm

Gross Weight

750.00kg

Product Description

PROFESSIONAL HEMODIALYSIS WATER TREATMENT SYSTEM FOR MEDICAL-GRADE WATER PURIFICATION

This dialysis pure water system adopts advanced RO purification technology, which can efficiently remove various contaminants from raw water, fully complying with authoritative domestic and international medical standards such as China YY 0572-2015 and American AAMI/ASAIO.

The system is equipped with a PLC intelligent control system, supporting one-button start/stop, automatic water production and online monitoring, with automatic fault alarm. It features user-friendly operation and reliable performance.

Technical Specifications

Model	Flow Capacity	Power	Dialysis Machines (Sets)
MOL-TX-CSA	200-600L/H	3.5KW	1-15
MOL-TX-CSB	600-1300L/H	6.0KW	15-30
MOL-TX-CSC	1300-2500L/H	9.0KW	30-50
MOL-TX-CSD	2500-4000L/H	12.0KW	50-100

Functional Advantages

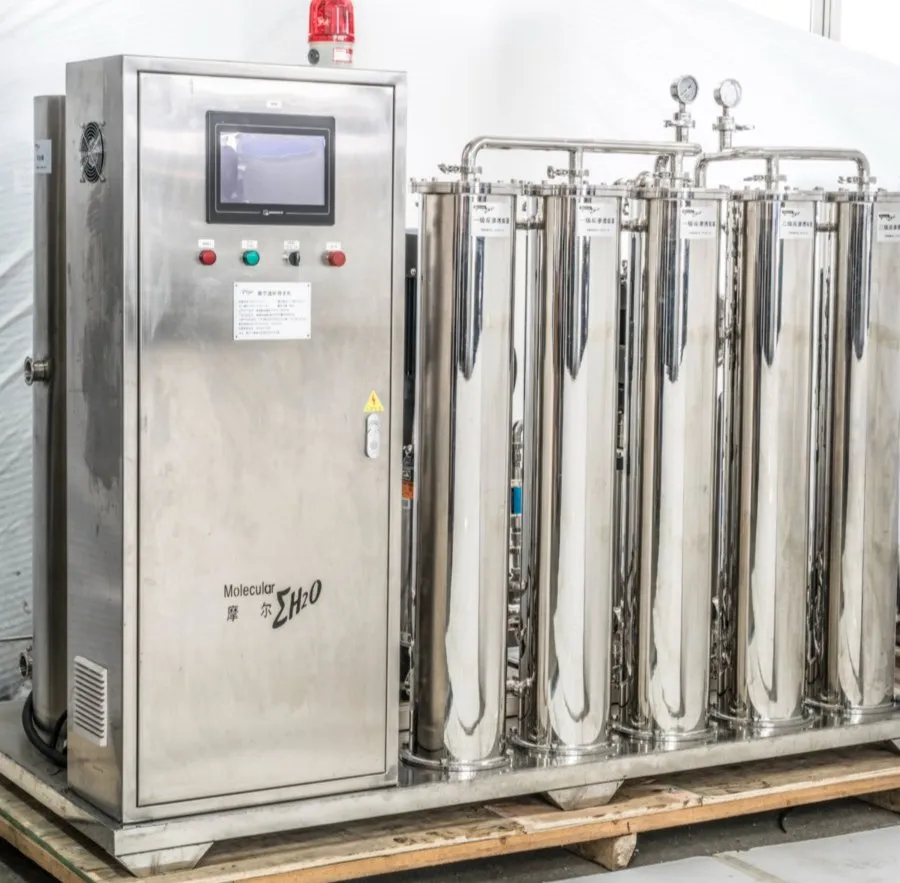

Advanced Bipolar Reverse Osmosis

The system utilizes a sophisticated dual-stage reverse osmosis process that ensures stable and high-purity water output. Both single-stage and dual-stage configurations can operate independently for emergency backup.

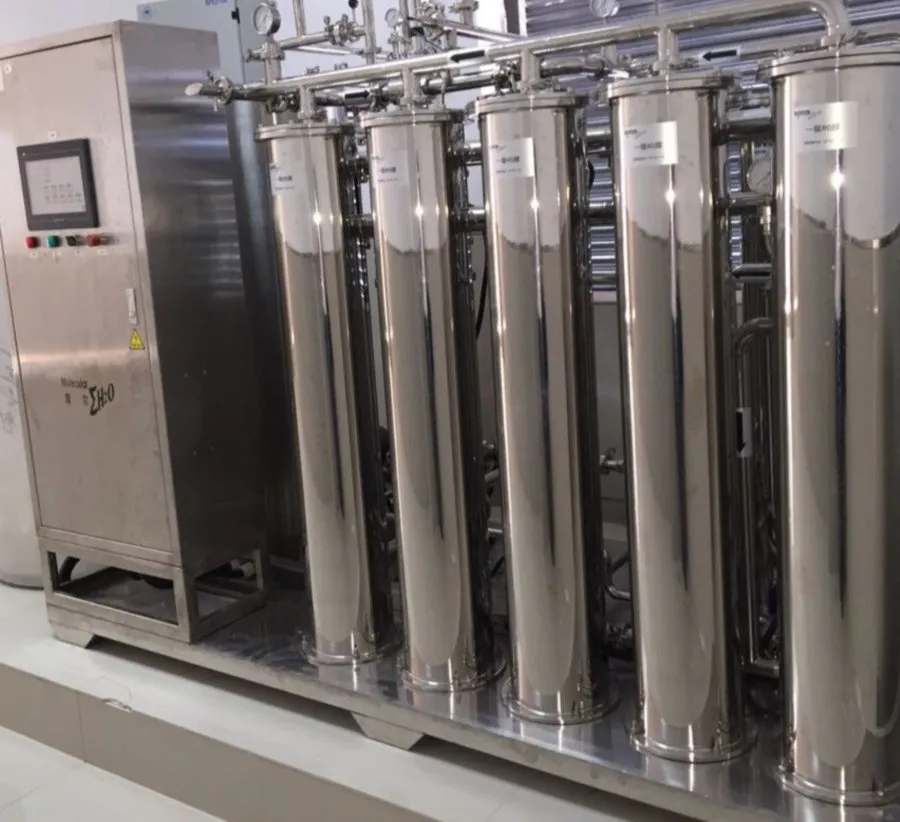

Intelligent PLC Automation

Equipped with a state-of-the-art PLC control system and HMI touch screen. Simplifies operation, reduces human error, and enhances overall efficiency for busy medical staff.

Real-Time Quality Monitoring

Features continuous online monitoring and instant display of water conductivity levels, ensuring compliance with stringent medical water quality standards with immediate alerts.

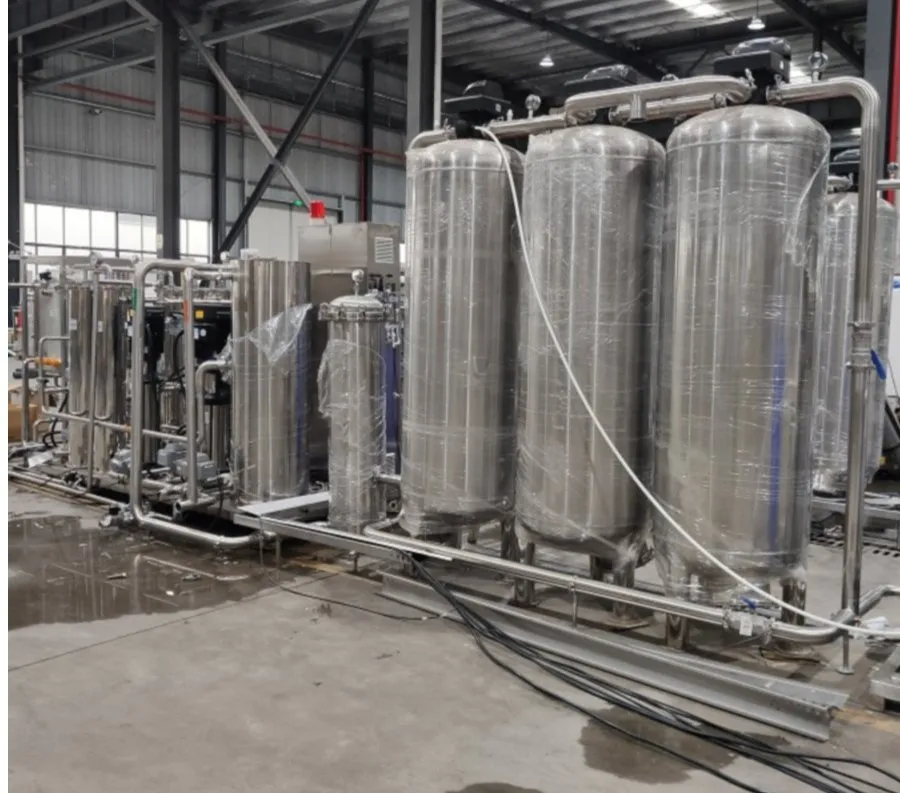

Dual-Material Construction

Available in premium stainless steel or economical UPVC materials. The corrosion-resistant design ensures long-term durability and maintains water purity.

Core Applications

Hospital Hemodialysis Departments: Engineered to meet strict AAMI/ASAIO standards for blood purification treatments.

Renal Dialysis Clinics: Delivers ultra-pure water compliant with YY0572-2015 for renal replacement therapy equipment.

Centralized Medical Solutions: Integrated monitoring for unified management in large medical centers.

Equipment Service Centers: Stable output for dialysis machine testing, calibration, and maintenance.

Production & Quality Showcase

Frequently Asked Questions

Does your dialysis pure water system meet international medical device standards?

Yes, it fully complies with international standards such as the USA AAMI /ASAIO standard and YY0572-2015 standard. System design strictly complies with Yy0793.1-2010. The product water quality ensures clinical safety for hemodialysis.

What are the common pollution problems in RO membranes and how to handle them?

Common contaminants include colloids, organic matter, scaling, and biological contamination. Prevention involves proper pre-treatment and regular flushing. Treatment requires targeted chemical cleaning (alkaline for organics, acidic for scaling).

What causes a sudden drop in water production?

Possible reasons include pre-treatment blockage, RO membrane contamination, insufficient inlet pressure, or abnormal regulation. Troubleshooting involves checking inlet pressure first, then pre-treatment and RO pressure differences.

What key data should be recorded in daily monitoring?

Core data includes influent water parameters, pre-treatment/RO system pressure, product water quality, and operation records to ensure timely identification of hidden issues and compliance.

What delivery and payment terms are accepted?

Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDU. Accepted Payment Currency: USD, EUR. Accepted Payment Type: T/T, L/C, Credit Card, Western Union.

Can the system capacity be customized for different facility sizes?

Yes, we offer scalable water production capacities ranging from 200L/H up to 4000L/H to accommodate everything from small clinics to large hospital dialysis centers.
